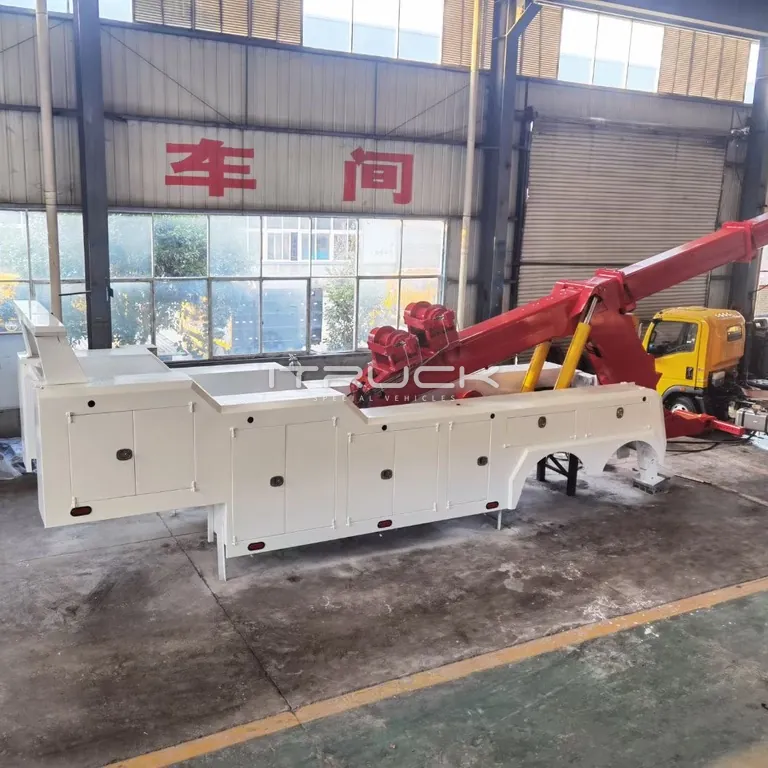

50 t integrated wrecker body with red boom raised, before fitting
Red boom raised, body before fitting

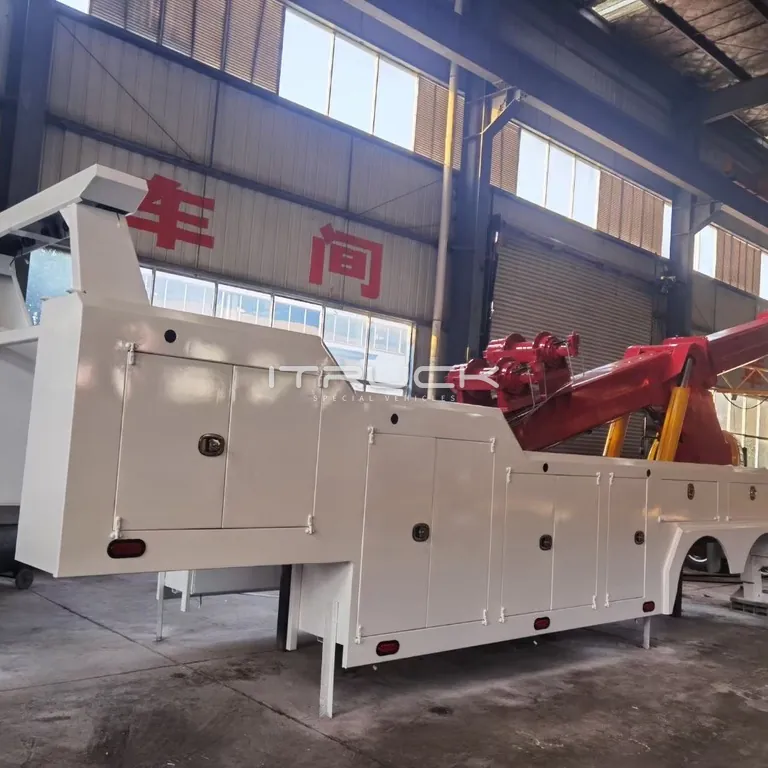

White heavy wrecker body with tall front light pylon and red boom
Body with light pylon

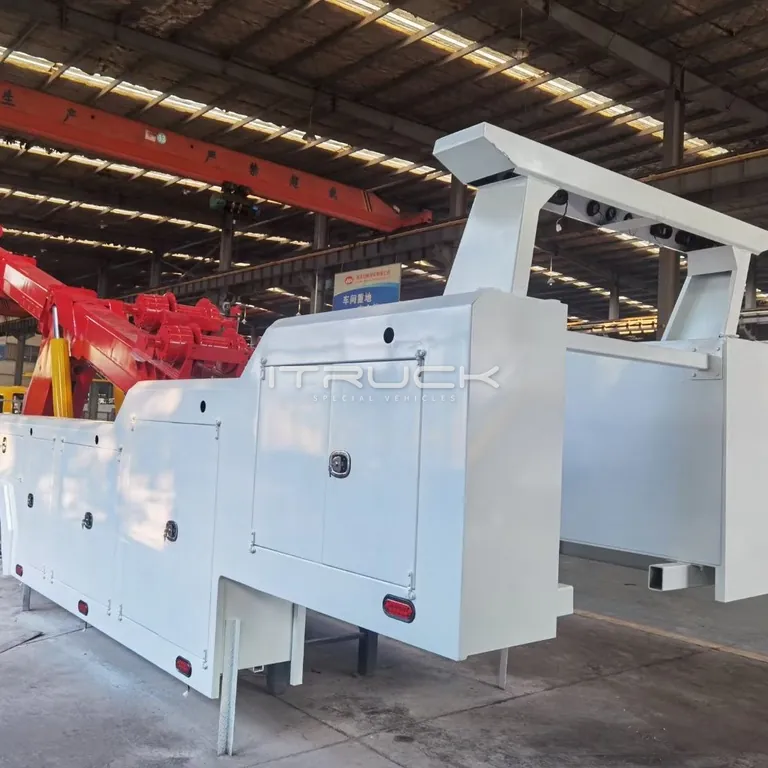

Front of the wrecker body with light pylon and boom behind
Front view, light pylon

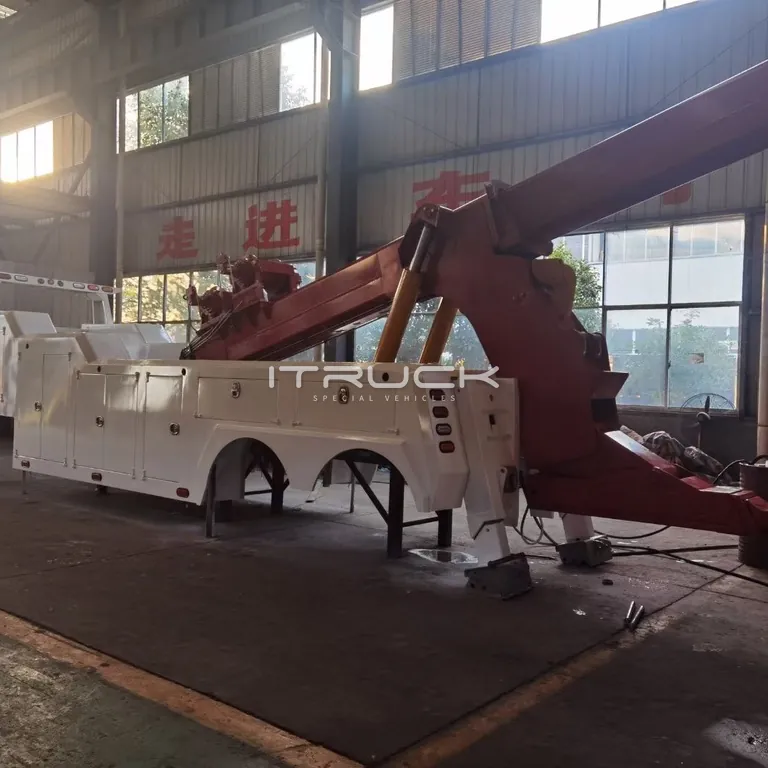

Heavy wrecker body with red boom and extended underlift
Red boom, underlift extended

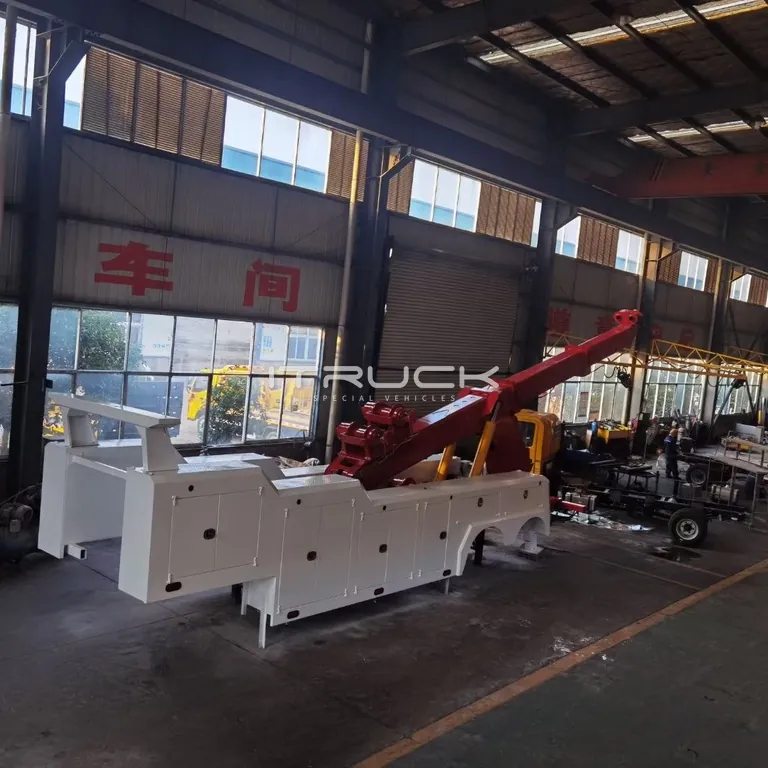

Full-length white wrecker body with red boom in the workshop
Full body, side view
1 / 5

Photos are for reference only. Options may be shown.

Integrated Wrecker Body · Heavy Duty

Integrated Wrecker 40T / 50T

The top of our integrated range, built to your chassis: a 40 t or 50 t HG70 boom with twin planetary winches and a 28 t 3-stage underlift, for tow ratings of 56–85 t.

2 × 20 t / 2 × 25 tMain winches
28 tUnderlift capacity
40 / 50 tBoom lift capacity
56–85 tTow rating
  • Lead time120 days after deposit and drawing approval
  • Container loading1 per 40' HQ
  • Price basisEXW Suizhou · FCA on request
Request a Quote WhatsApp Us
Technical Specifications

Specifications by rating

Item40T50T
Underlift capacity — retracted28,000 kg
Underlift retracted length1,750 mm
Underlift capacity — extended8,500 kg
Underlift extended length3,450 mm
Underlift tilt below horizontal−10°
Tow rating56–85 t
Boom lift capacity — retracted, at 33°40,000 kg50,000 kg
Boom lift capacity — extended, at 33°10,500 kg11,500 kg
Max. boom elevation33°
Max. lifting height9,000 mm9,500 mm
Main winches (quantity)2
Winch line pull20 t25 t
Winch typePlanetary
Winch cable length45 m
Winch cable diameter26 mm
Tow bar length1,400 mm
Tow bar section127 × 127 mm
Tow bar pin56 mm
Tow bar pin bore57 mm
Approx. net weight~10 t~12 t

All tonnages are metric tons (1,000 kg).

Both models use the same 28 t underlift (28T40D / 28T50D).

Standard Equipment

What comes with every unit

Boom

  • Boom — HG70 steel, 2-stage hexagonal

Underlift

  • Underlift — HG70 steel, 3-stage

Winches

  • Main winches 2 × 20 t (50T: 2 × 25 t) — planetary, DOT certified

Subframe

  • Subframe — Q355B carbon steel
  • Rear stabilizer legs — hydraulic

Hydraulics

  • Hydraulic pump — 6/13-tooth spline or single shaft, DOT
  • Hoses and connectors — DOT
  • Control valves — Italian-made, DOT
  • Hydraulic cylinders — DOT

Control

  • Manual control — dual-side operation, English labels
  • Wireless push-button remote control — included

Toolboxes

  • Toolboxes ×2 — one per side, Q235 carbon steel, stainless steel handles

Attachments

  • Fork sets ×5 — 4 axle-lift, 1 suspension-lift
  • Fork receiver and U-shape tire holder — 1 set each
  • Safety chains ×2 — stored in toolbox chain pockets
  • D-rings ×2–4

Lights

  • Side lights — 8 per side, DOT
  • Tail lights — 4 per side, DOT
  • Light pylon — full size, stainless steel, LED

Painting

  • Standard primer
  • Epoxy topcoat
  • Decals and markings in English
  • Protective wrap on toolbox paint

Accessories

  • Air hookups — DOT
  • Electrical hookups — 12 V or 24 V, DOT
Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

Custom colors are matched as closely as possible from a RAL code or sample photo; a slight color difference cannot be excluded.

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.

Will it fit your truck?
Will it fit your truck?
Get the measurement guide (PDF) →
