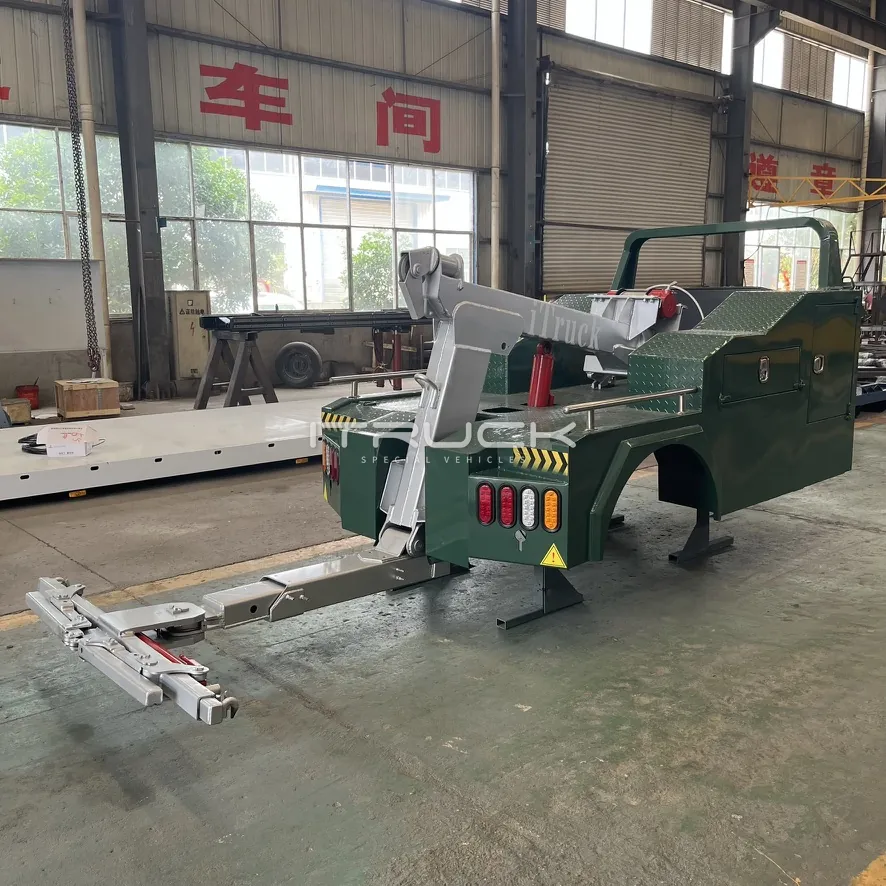

Green mini integrated wrecker body with folding underlift extended
Mini body, underlift extended

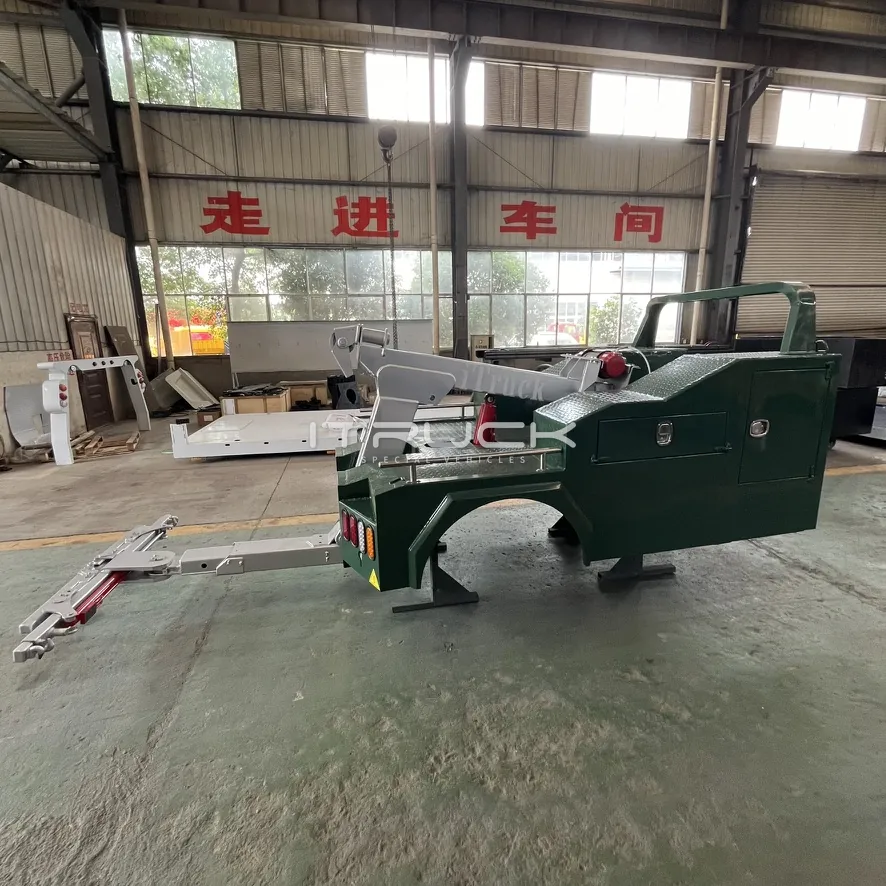

Mini integrated wrecker body with boom raised and wheel grids out
Boom raised, wheel grids out

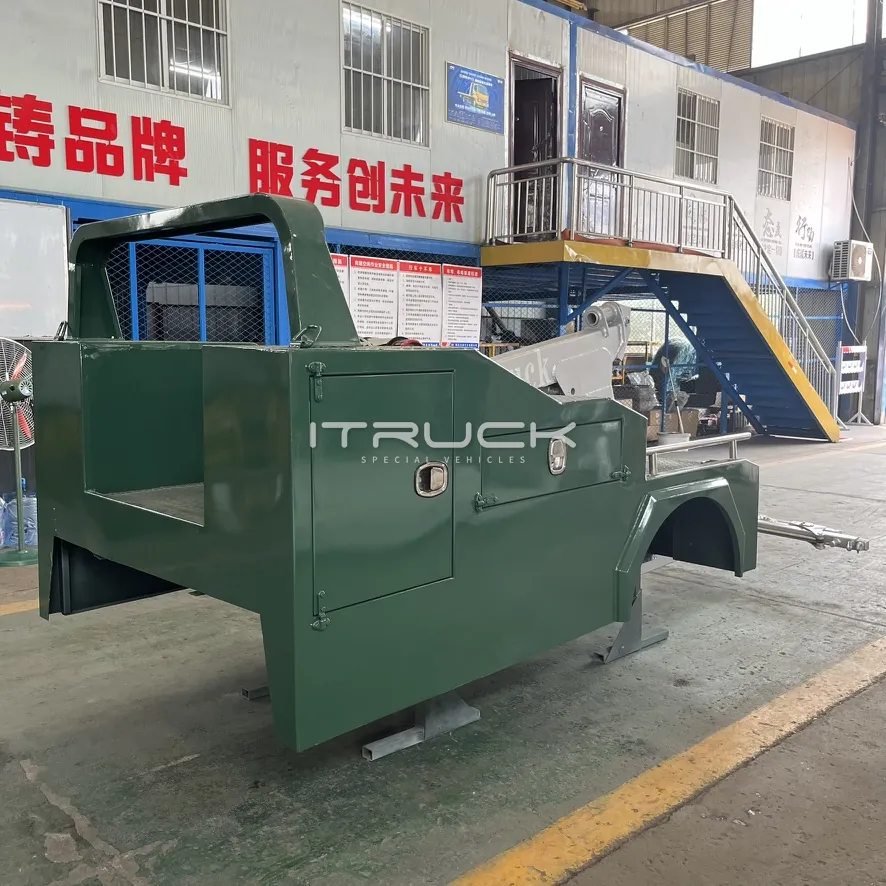

Mini wrecker body side view with steel toolbox doors
Side view, steel toolboxes

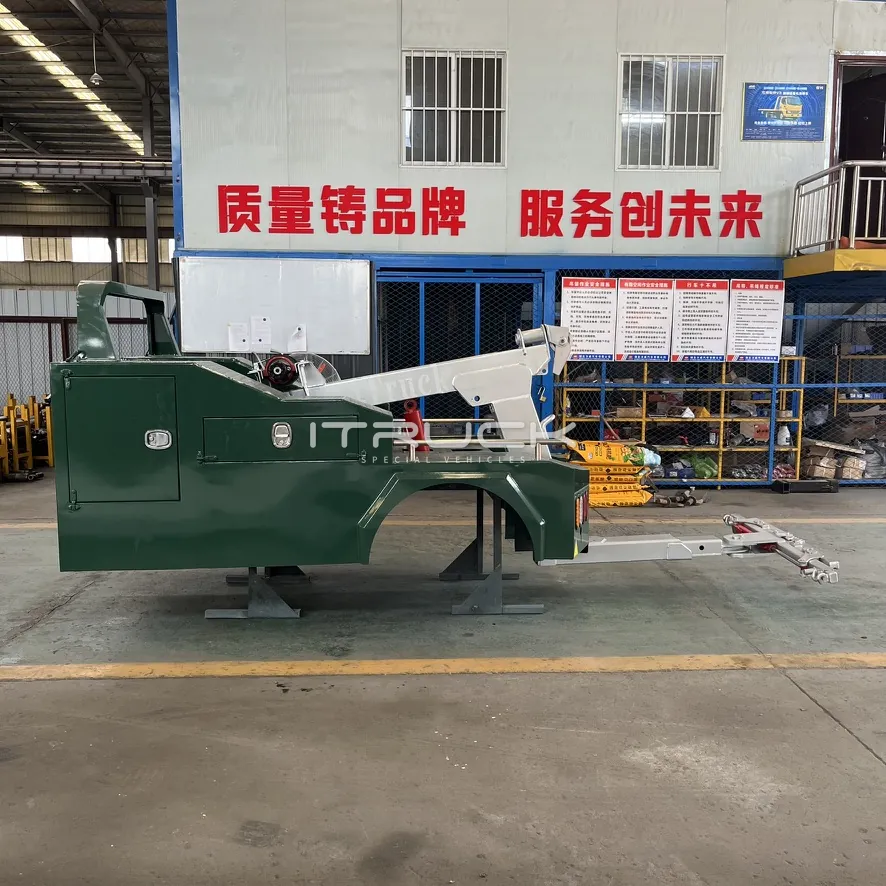

Mini wrecker body side view with boom and underlift extended
Boom and underlift extended

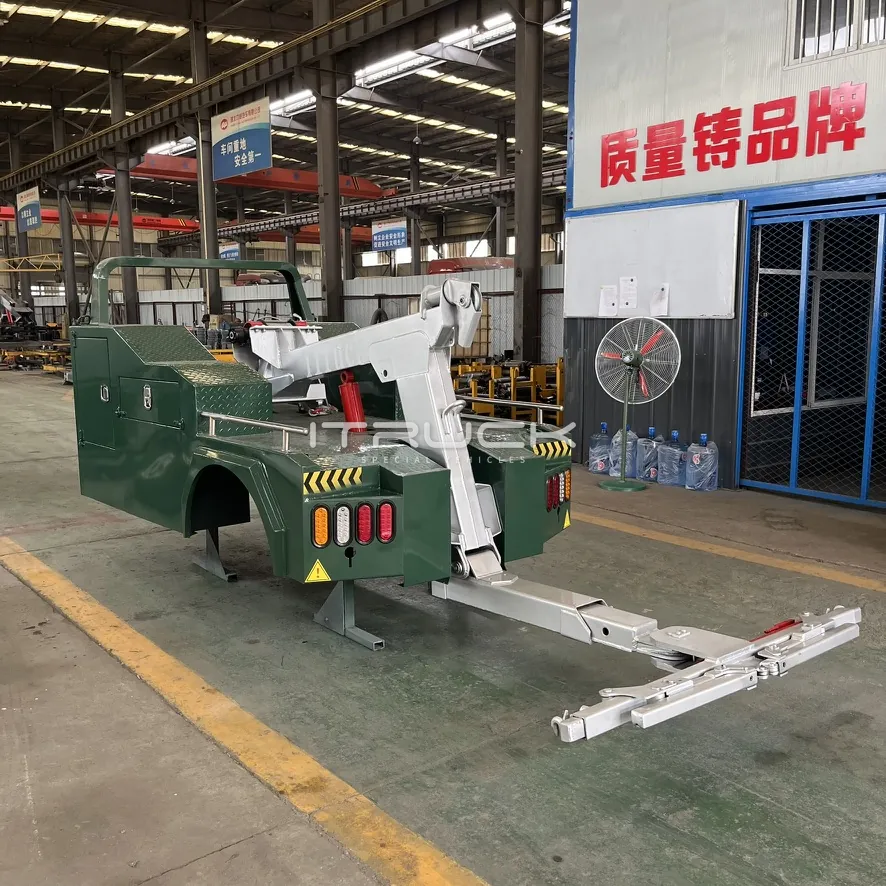

Mini integrated wrecker body with underlift and wheel grids deployed
Underlift and wheel grids deployed

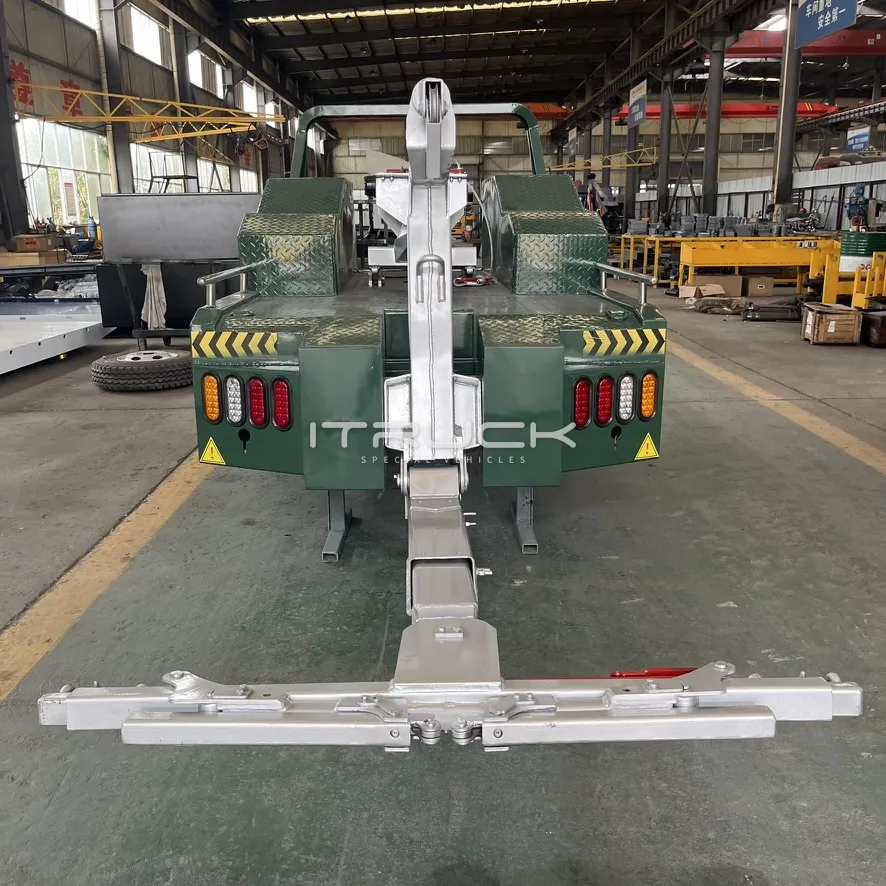

Rear view of mini wrecker with underlift and wheel grid crossbar
Rear view, wheel grid crossbar

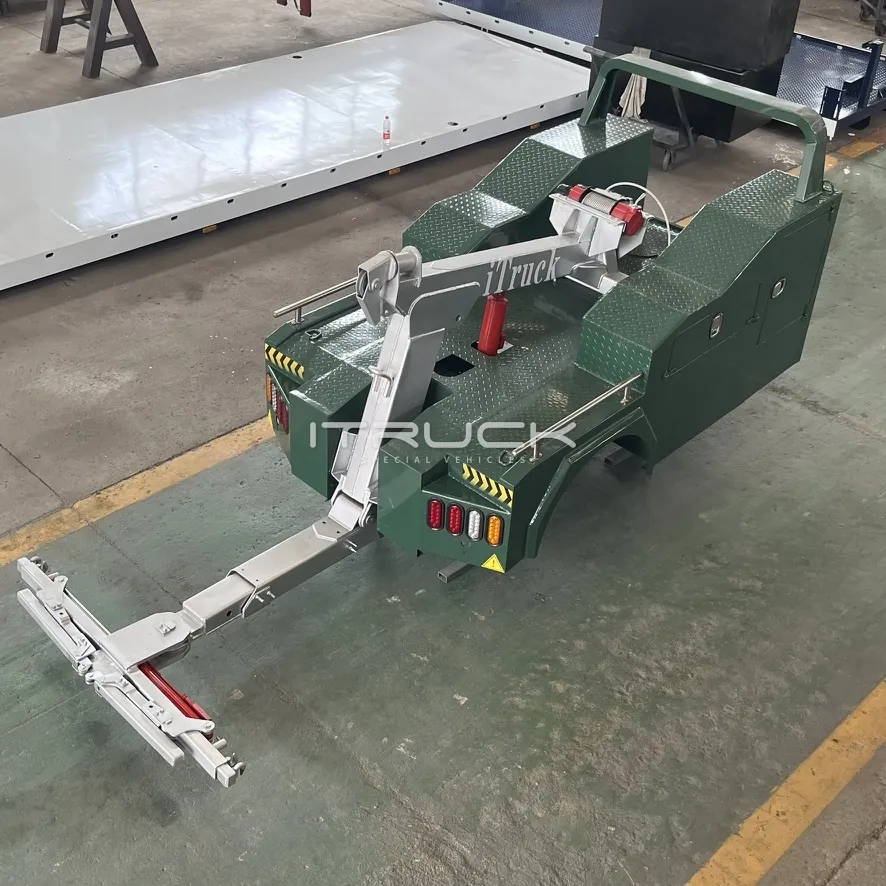

Mini wrecker body from above showing winch and boom
Winch and boom from above

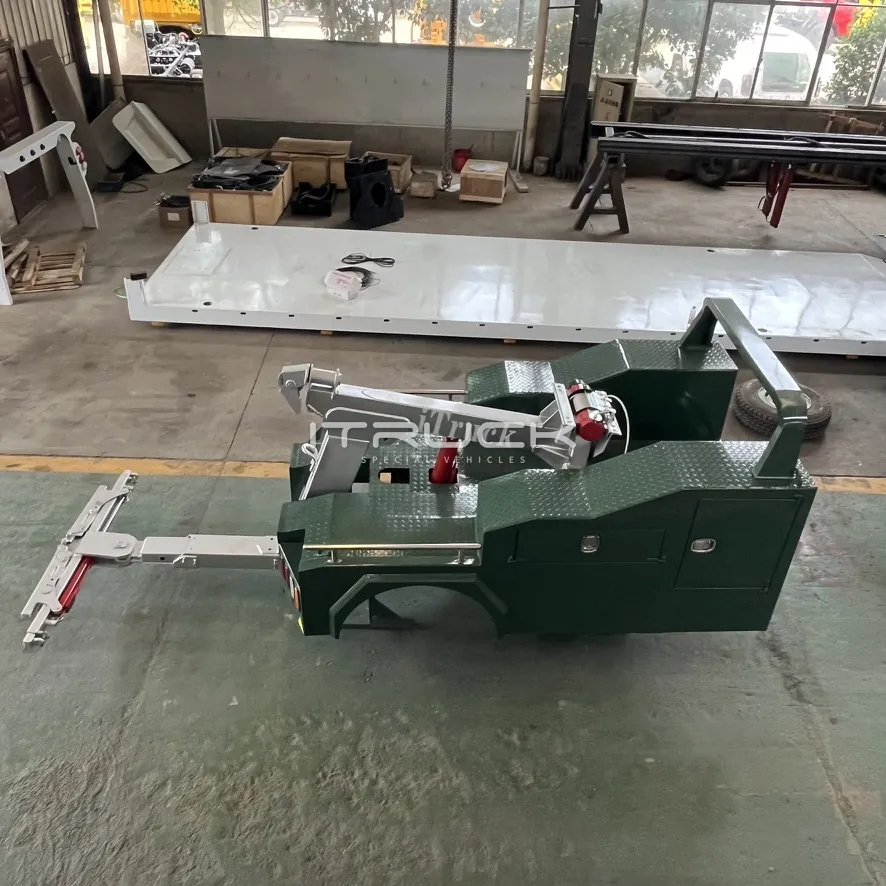

Mini integrated wrecker body in the workshop, boom folded
Boom folded, ready for fitting

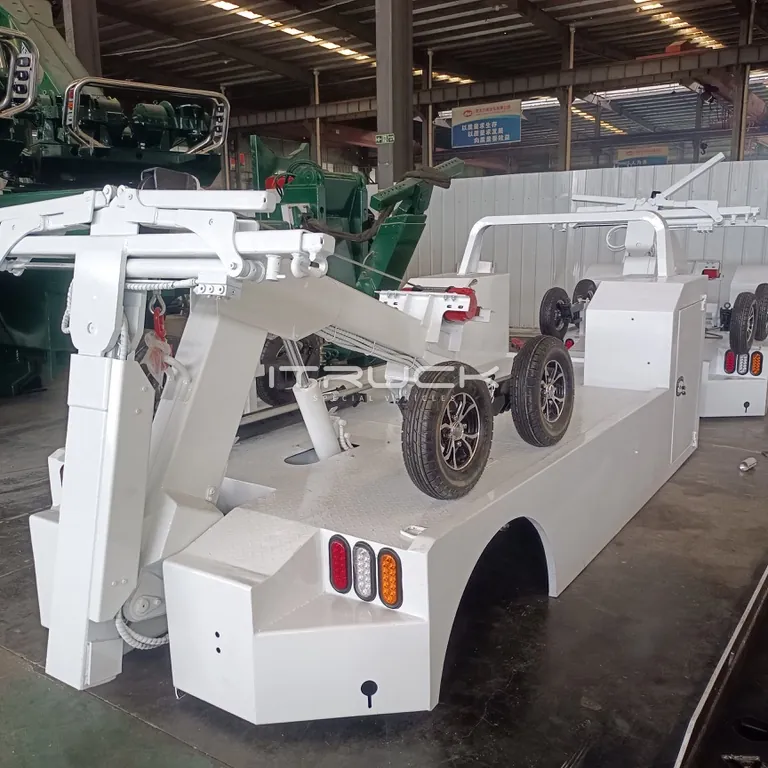

White mini integrated wrecker body with support wheels on deck
White build with support wheels

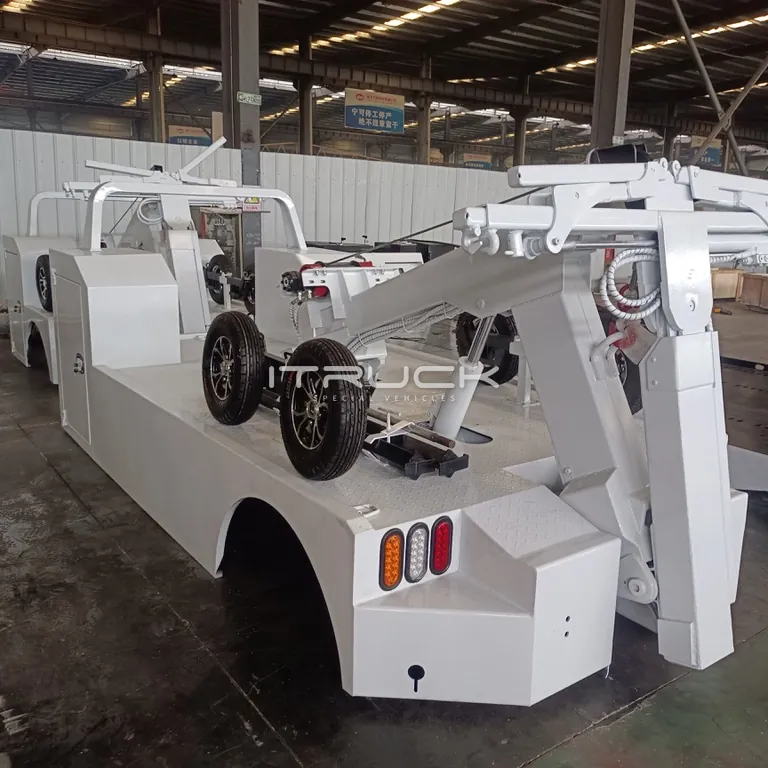

White mini wrecker body with boom and support wheels
White build, boom and support wheels

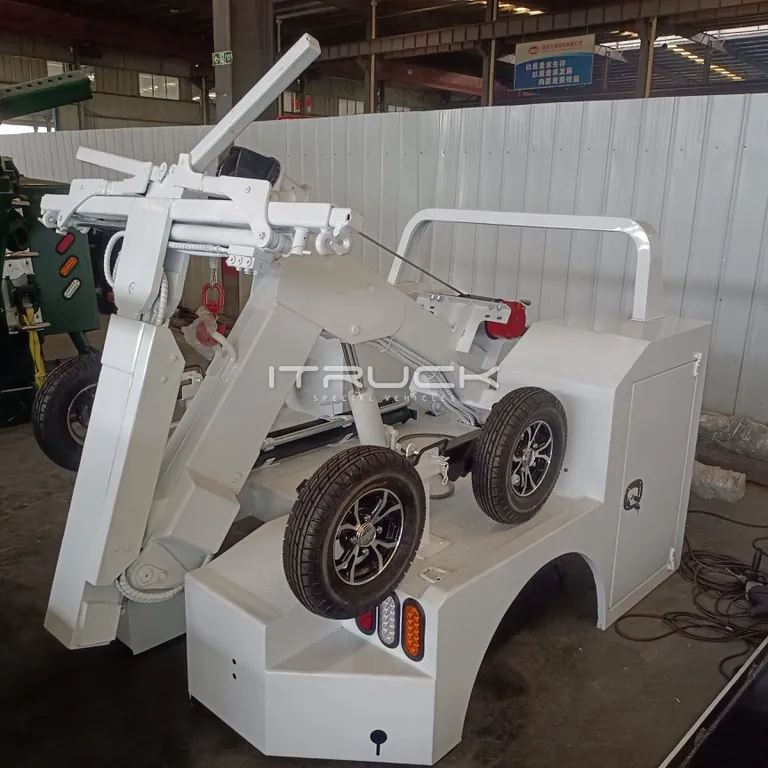

White mini wrecker body rear quarter with support wheels stowed
Support wheels stowed on the body
1 / 11

Photos are for reference only. Options may be shown.

Integrated Wrecker Body · Pickup & Mini Truck

Mini Integrated Wrecker 3T

A one-stage boom and folding underlift for pickup and mini truck chassis, with a 4 t winch and wireless remote as standard. Choose the Standard version or Auto Load with self-loading wheel grids.

3 tMax. lift
6 tTow rating
1.0 / 2.1 mUnderlift retracted / extended
4 tWinch
  • Lead time30 days after deposit
  • Container loading1 per 20' GP · 2 per 40' HQ
  • Price basisEXW Suizhou · FCA on request
Request a Quote WhatsApp Us
Technical Specifications

Specifications by rating

ItemMini
Max. lift capacity3 t
Underlift capacity3 t
Tow rating6 t
Winch line pull4 t
Boom1-stage
Underlift retracted length1.0 m
Underlift extended length2.1 m
Electrical system12 V
Approx. net weight~2 t

All tonnages are metric tons (1,000 kg).

Standard Equipment

What comes with every unit

Body & Subframe

  • Mini integrated wrecker body for pickup and mini truck chassis

Boom

  • 1-stage boom

Underlift

  • Folding underlift — 1 m retracted, 2.1 m extended

Hydraulics

  • Hydraulic power unit — 12 V or 24 V, specify at order
  • Lift cylinder ×1
  • Underlift extension cylinder ×1 · folding cylinder ×1
  • Hoses ×1 set

Winches

  • Winch — 4 t

Control

  • Wireless remote control ×1 set
  • Manual control ×1 set

Attachments

  • Self-loading wheel grids — included on Auto Load, optional on Standard
  • Support wheels ×1 pair
  • Tie-down straps ×4
  • Pins and accessories ×1 set

Toolboxes

  • Steel toolboxes

Painting

  • Standard primer
  • Epoxy topcoat
  • Decals and markings in English
  • Protective wrap on the toolbox paint
Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

The Auto Load version comes with self-loading wheel grids fitted.

Custom colors are matched as closely as possible from a RAL code or sample photo; a slight color difference cannot be excluded.

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.

Will it fit your truck?
Will it fit your truck?
Get the measurement guide (PDF) →
