Home · Wreckers · Integrated · Mini Aluminum Locker 3T

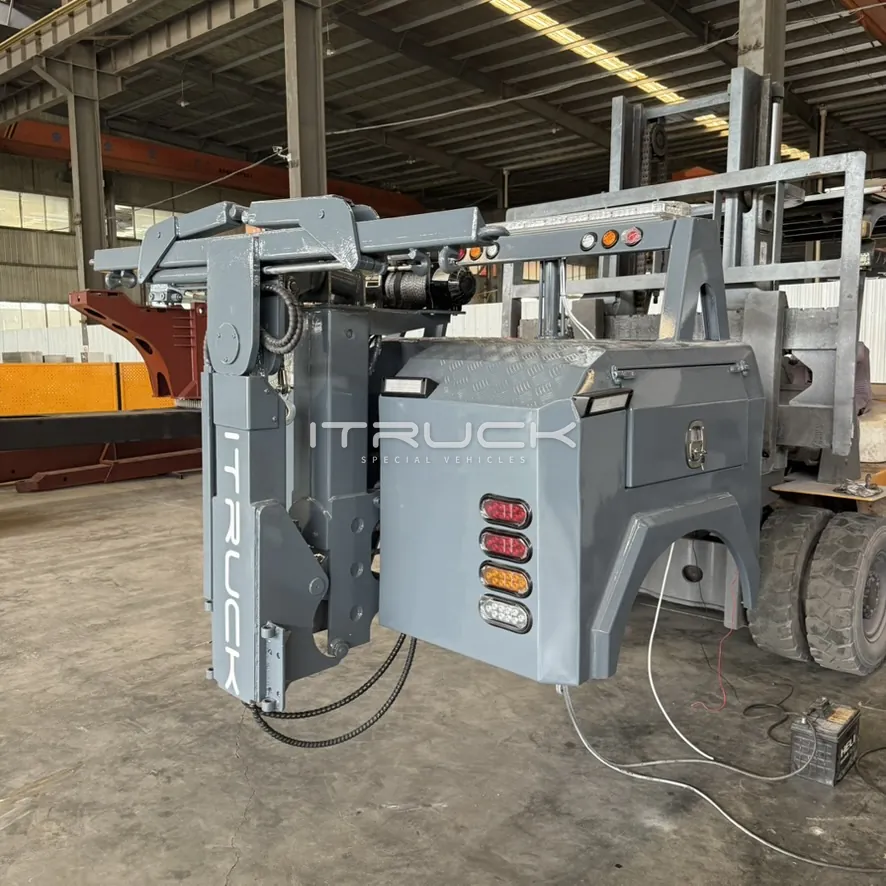

Grey mini integrated wrecker with boom and warning light frame
Grey body, boom and light frame

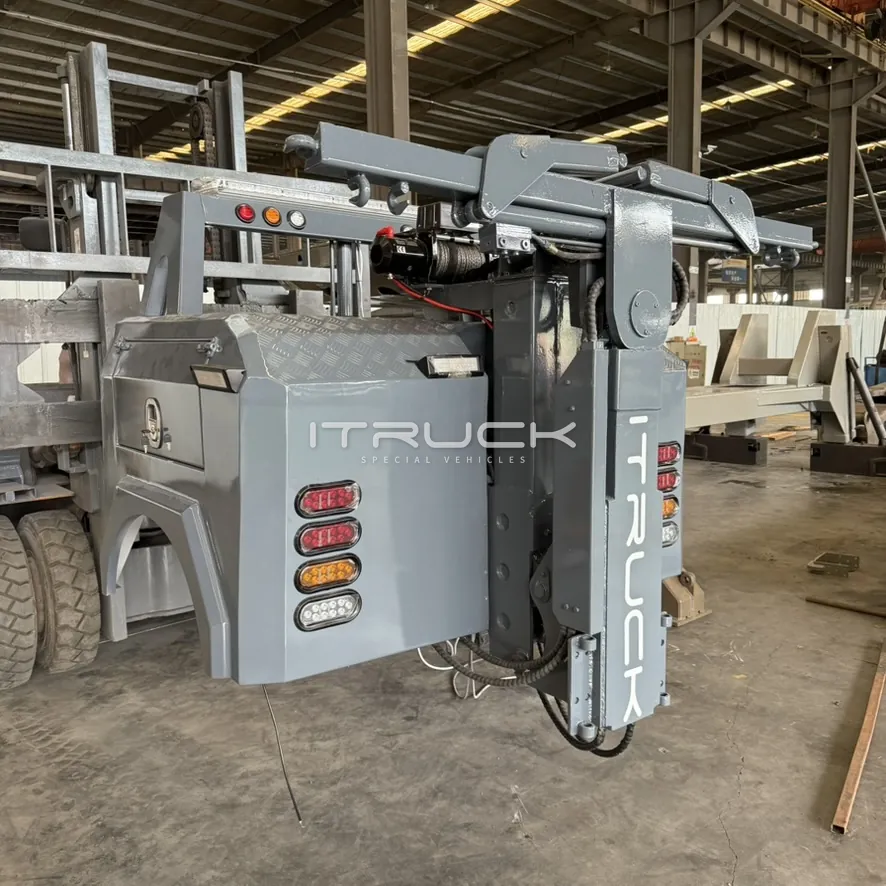

Rear view of grey mini wrecker body with tail lights
Rear view with tail lights

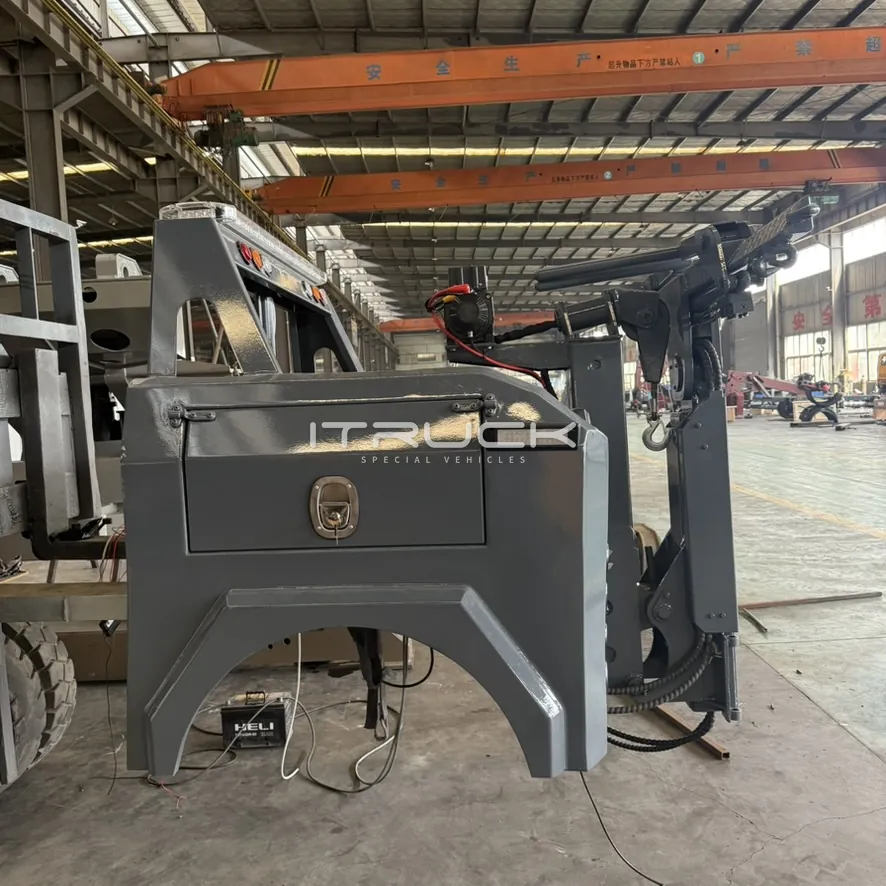

Side of mini wrecker body with locker door
Side locker and wheel arch

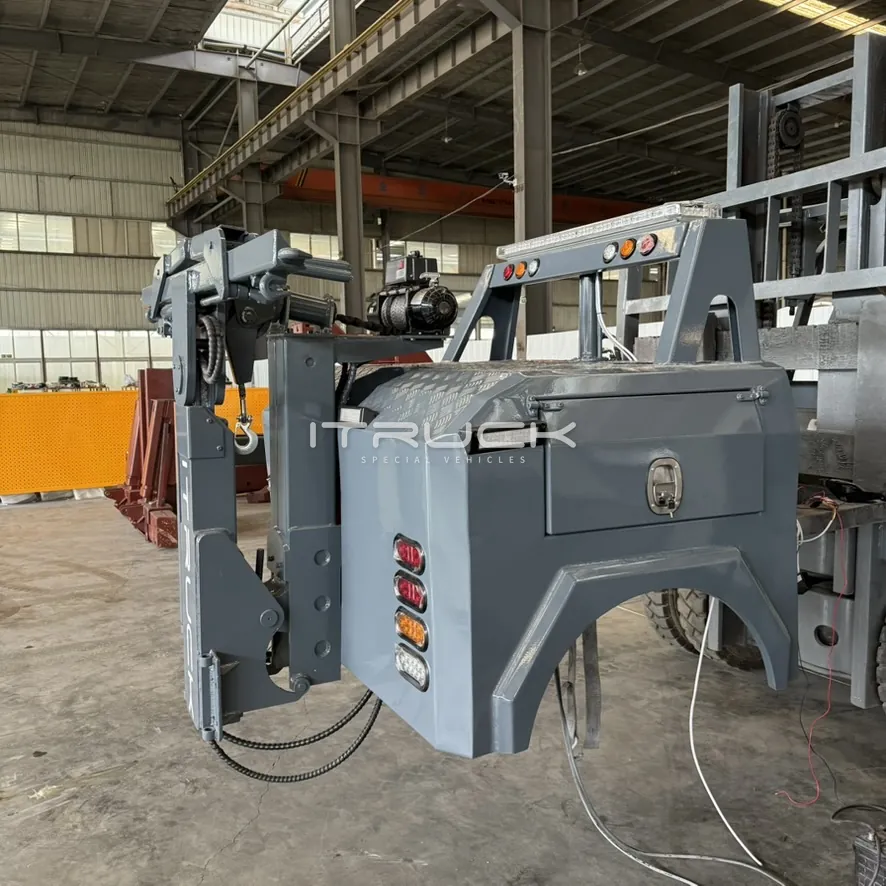

Mini wrecker body rear quarter with boom and winch
Boom and winch, rear quarter

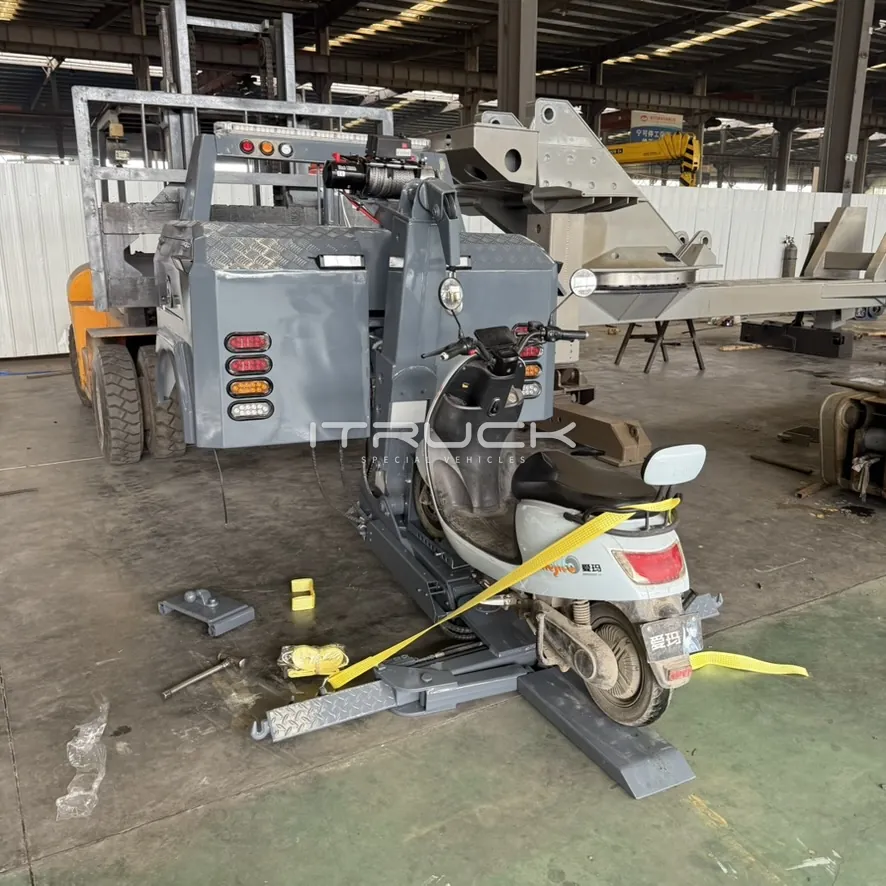

Motorcycle strapped on the mini wrecker underlift module
Motorcycle module in use

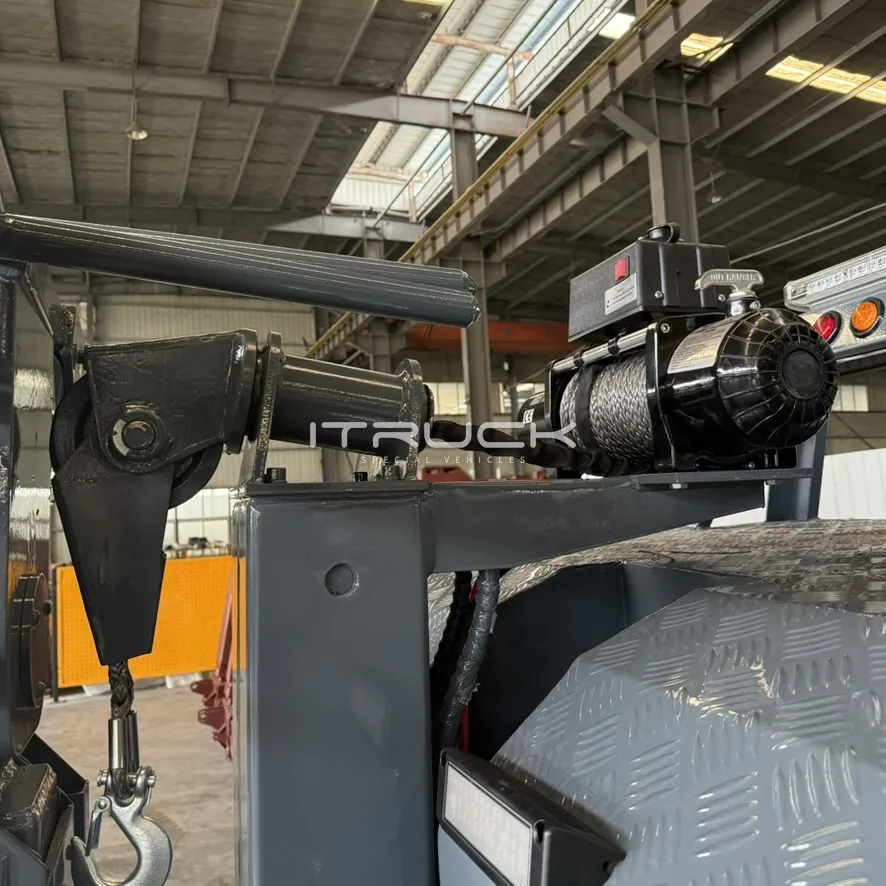

Boom head and synthetic-rope winch on the mini wrecker
Boom head and winch

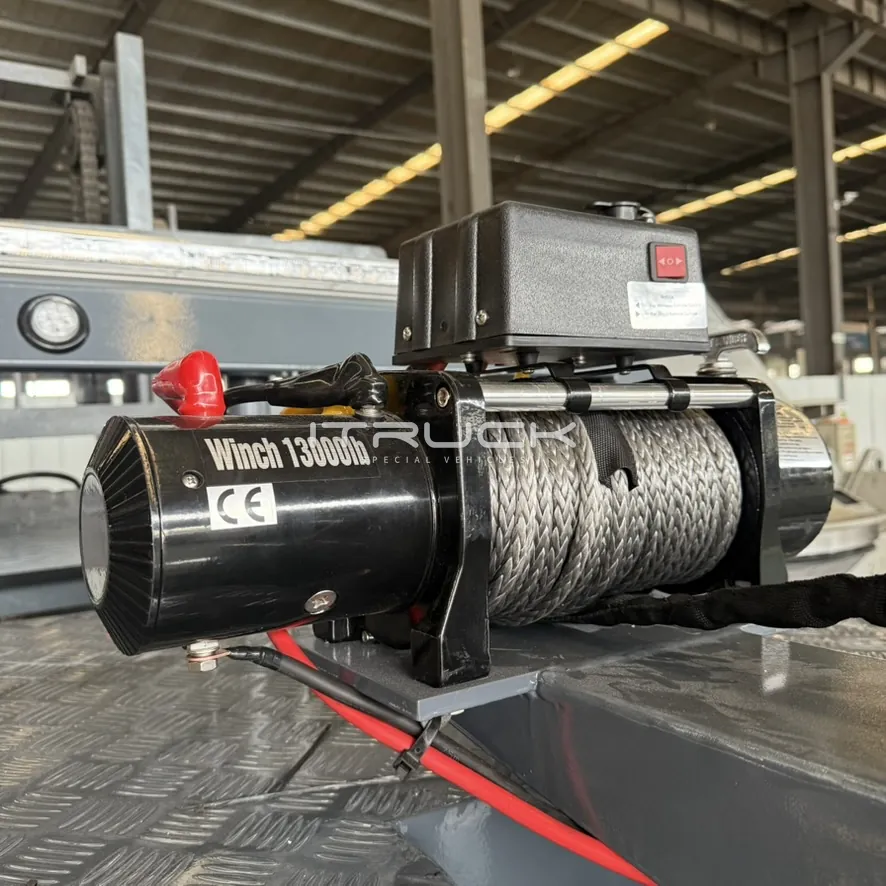

Close-up of the winch with synthetic rope
Winch with synthetic rope
1 / 7

Photos are for reference only. Options may be shown.

Integrated Wrecker Body · European Edition

Mini Integrated Aluminum Locker 3T

The premium edition of our mini wrecker for pickup chassis: aluminum locker, 6 t winch with synthetic rope, self-loading wheel grids, a motorcycle module and extendable warning lights as standard.

3 tMax. lift
6 tTow rating
6 tWinch
AluminumToolbox
  • Lead time30 days after deposit
  • Container loading1 per 20' GP · 2 per 40' HQ
  • Price basisEXW Suizhou · FCA on request
Request a Quote WhatsApp Us
Technical Specifications

Specifications by rating

ItemMini AL
Max. lift capacity3 t
Underlift capacity3 t
Tow rating6 t
Winch line pull6 t
Underlift retracted length1.0 m
Underlift extended length2.1 m
ToolboxAluminum
Approx. net weight~2 t

All tonnages are metric tons (1,000 kg).

Standard Equipment

What comes with every unit

Body & Subframe

  • Premium mini integrated wrecker body for pickup chassis
  • Frame reinforcements ×1 set
  • Ice barrier teeth ×1 set

Boom

  • Boom with elevation cylinder

Underlift

  • Underlift — 1 m retracted, 2.1 m extended

Hydraulics

  • Hydraulic power unit — 12 V or 24 V, specify at order
  • Lift cylinder ×1
  • Underlift extension cylinder ×1
  • Hoses ×1 set

Winches

  • Winch — 6 t, with synthetic rope

Control

  • Wireless remote control ×1 set
  • Manual control ×1 set

Toolboxes

  • Aluminum toolbox

Attachments

  • Self-loading wheel grids ×1 set
  • Support wheels ×1 pair
  • Tie-down straps ×4
  • Pins and accessories ×1 set
  • Motorcycle module ×1 set

Lights

  • Extendable warning lights with repeater lamps
  • Work lights ×4

Painting

  • Standard primer
  • Epoxy topcoat
  • Decals and markings in English
  • Protective wrap on the toolbox paint
Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

Custom colors are matched as closely as possible from a RAL code or sample photo; a slight color difference cannot be excluded.

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.

Will it fit your truck?
Will it fit your truck?
Get the measurement guide (PDF) →
Integrated Range

Other integrated wreckers

Mini Integrated 3T3 t 6T Integrated6 t 6T with 8T Wheel Lift6–8 t 8T / 12T Integrated8–12 t Integrated 16T16 t Integrated 20T20 t Integrated 30T30 t Integrated 40T / 50T40–50 t
