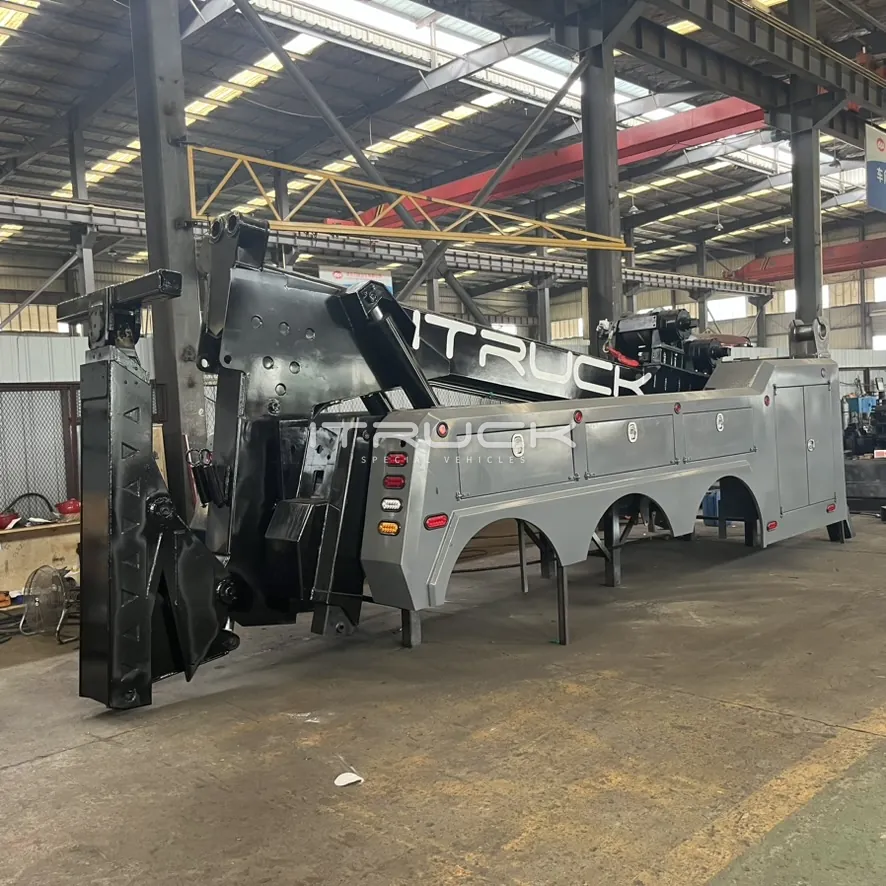

30 t integrated wrecker body in grey with black boom and underlift
Grey body, black boom

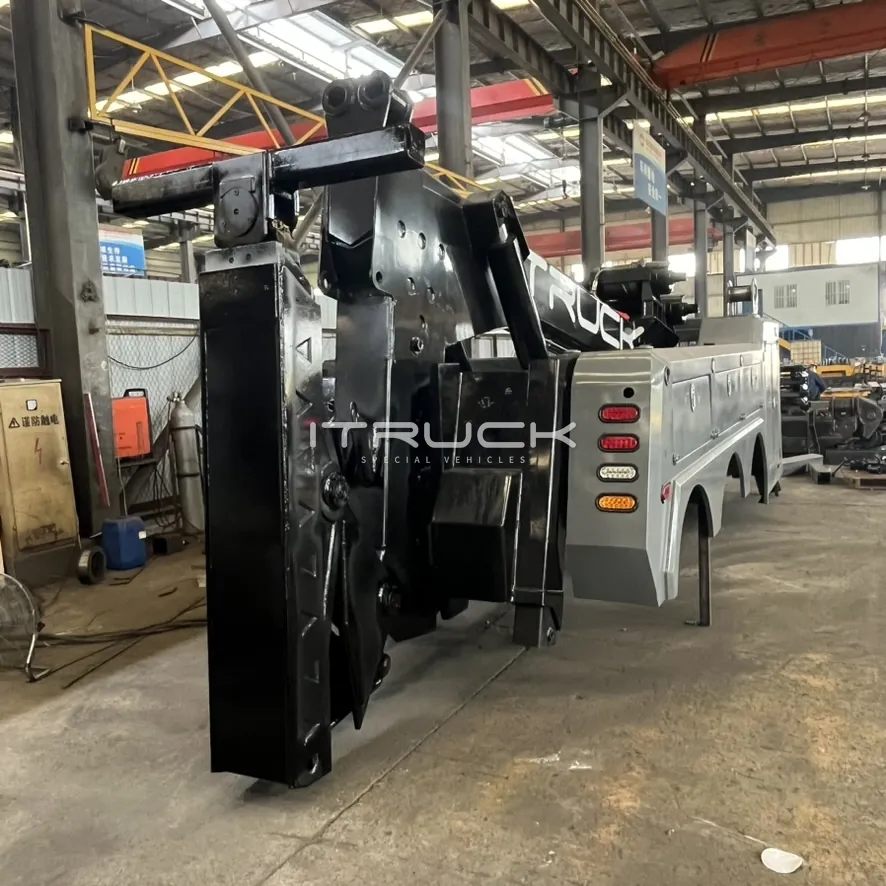

Rear close-up of heavy boom mast and folded underlift
Boom mast and folded underlift

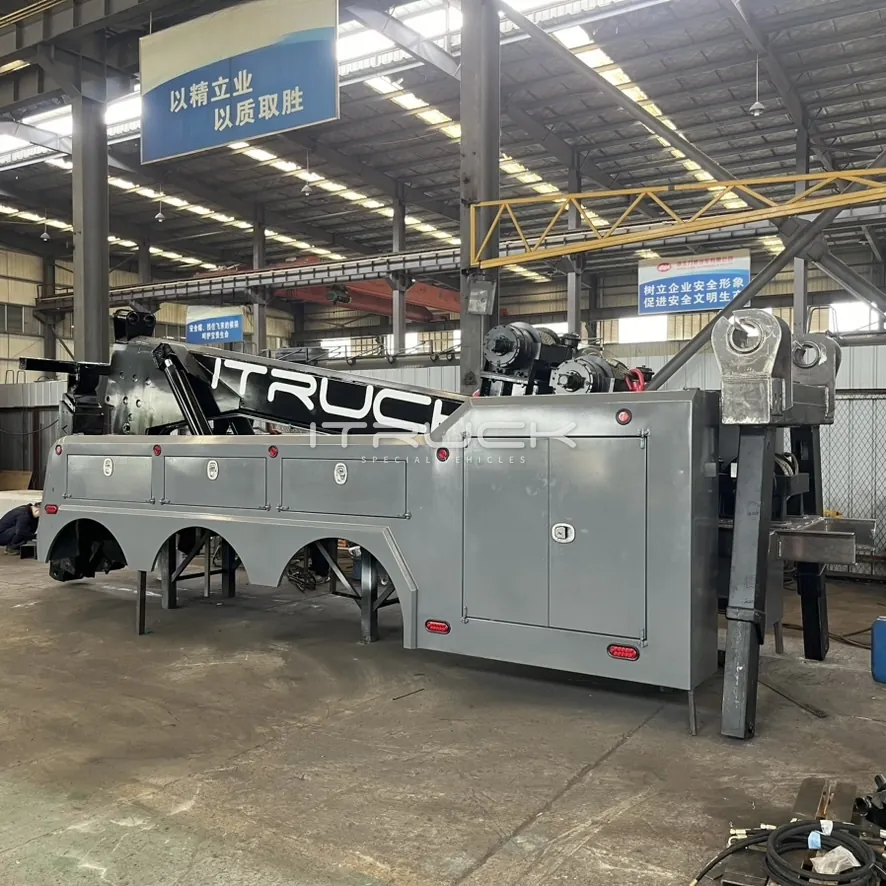

Tri-axle grey wrecker body with side toolboxes and boom stowed
Tri-axle body, boom stowed

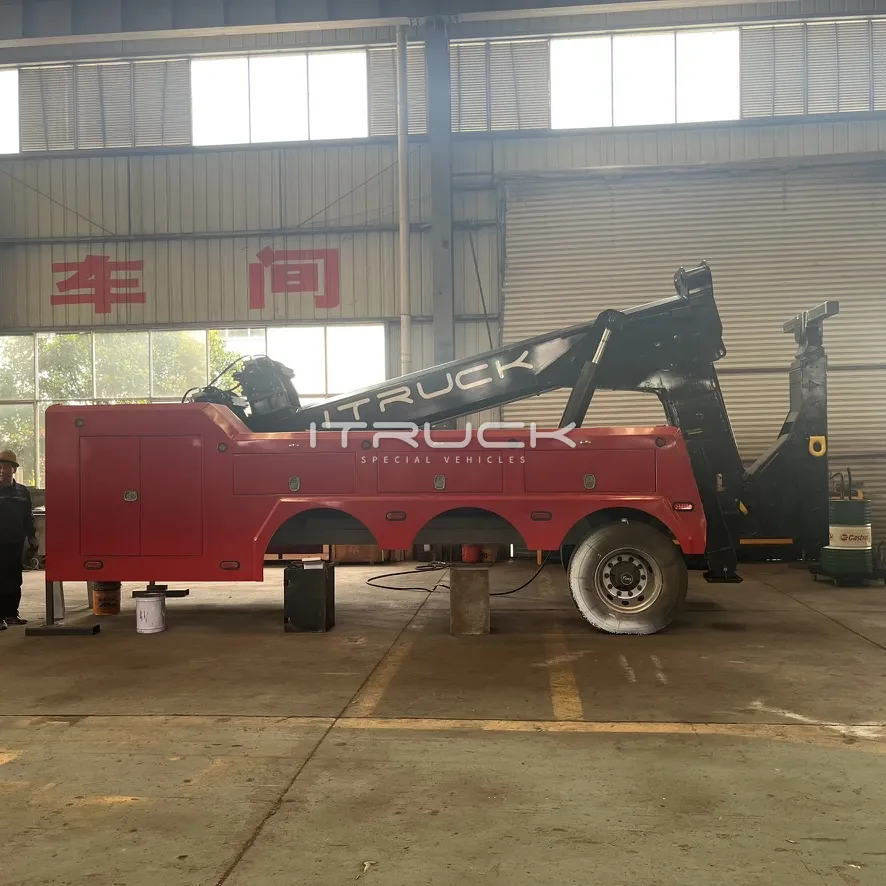

Side view of red wrecker body with black boom on chassis
Side view, red and black build

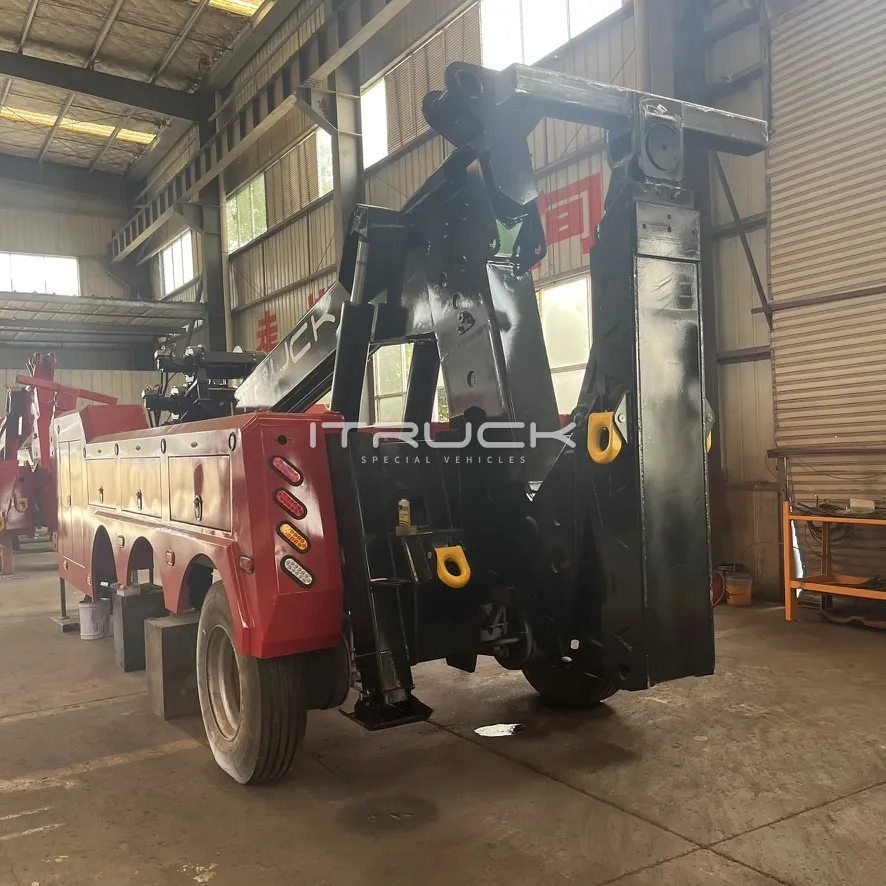

Rear view of red and black wrecker with underlift folded
Rear view, underlift folded

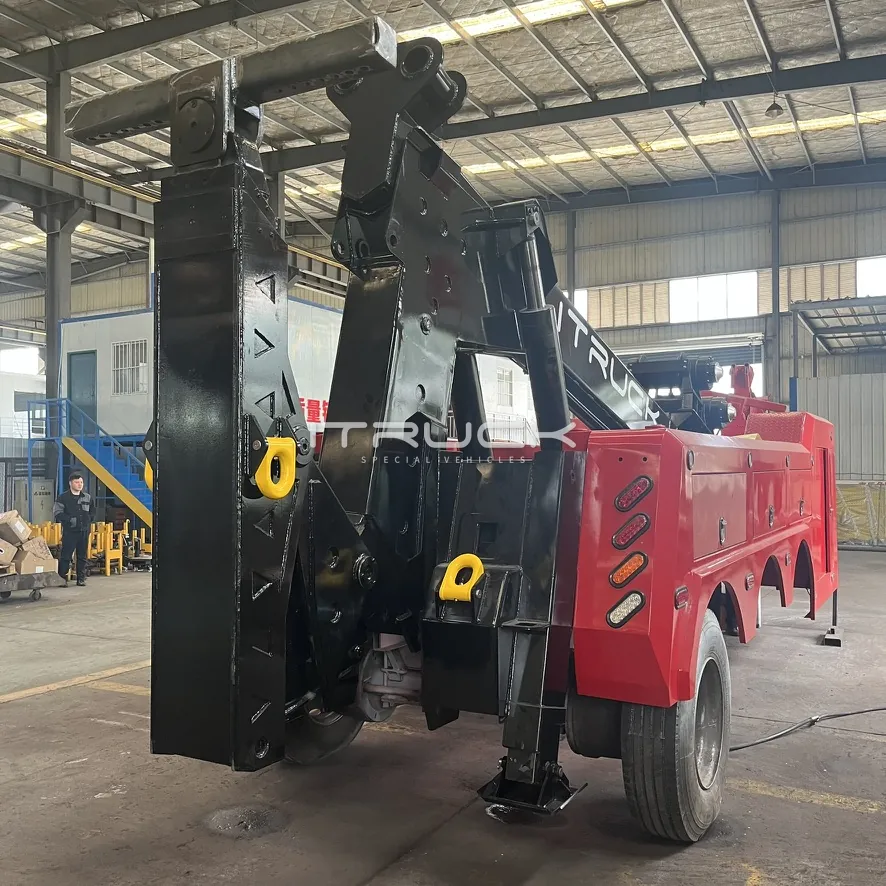

Rear quarter of heavy wrecker with stabilizer legs and tow hooks
Stabilizer legs and tow hooks

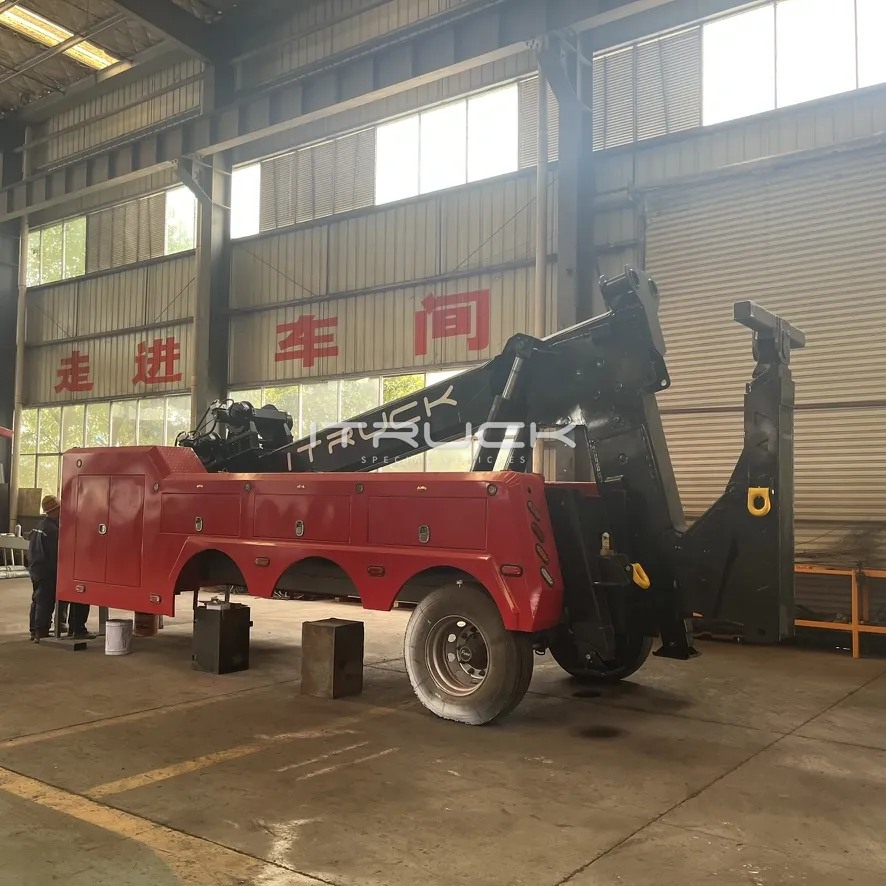

Red and black integrated wrecker with boom raised on chassis
Boom raised on chassis

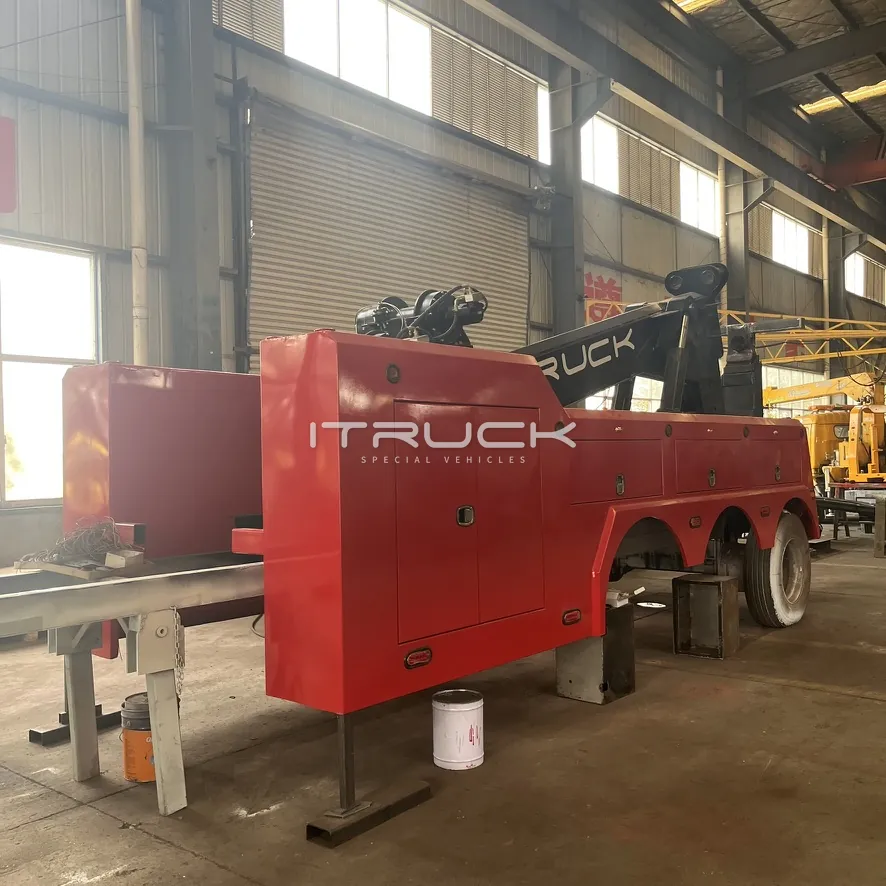

Red wrecker body side toolboxes and tandem wheel arches
Side toolboxes, tandem arches

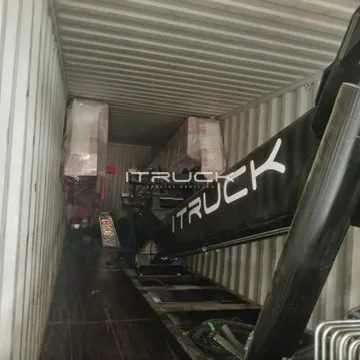

Heavy wrecker boom and body loaded in a shipping container
Loaded in a container

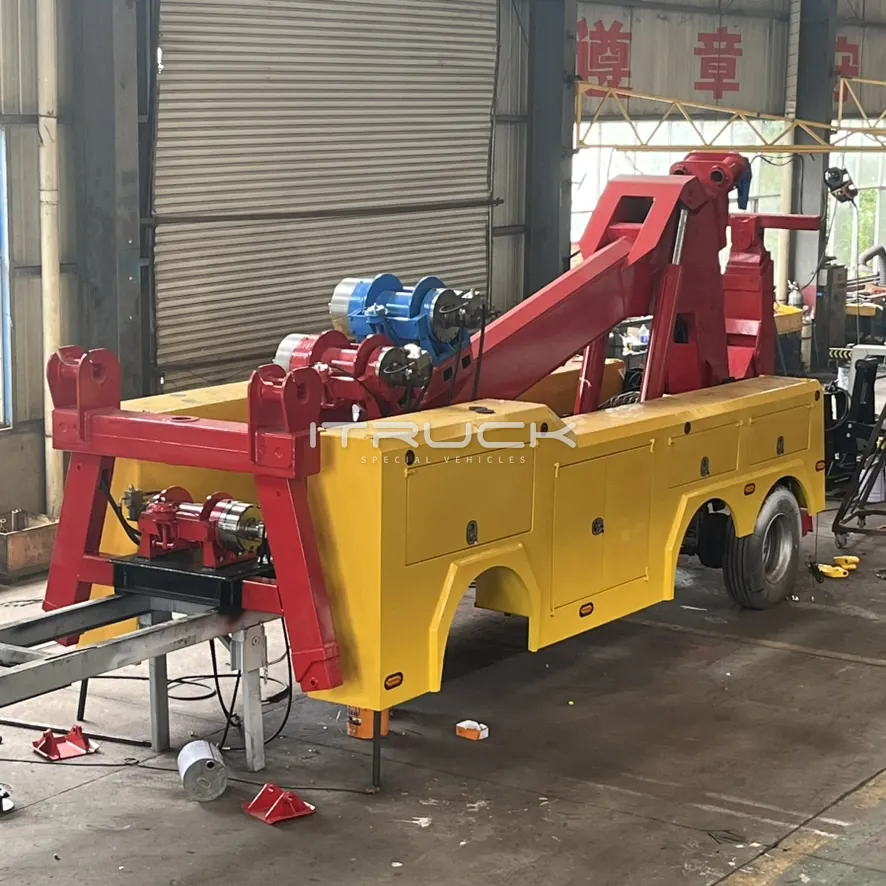

Yellow body with red boom and twin winches during assembly
Red boom, yellow body in build

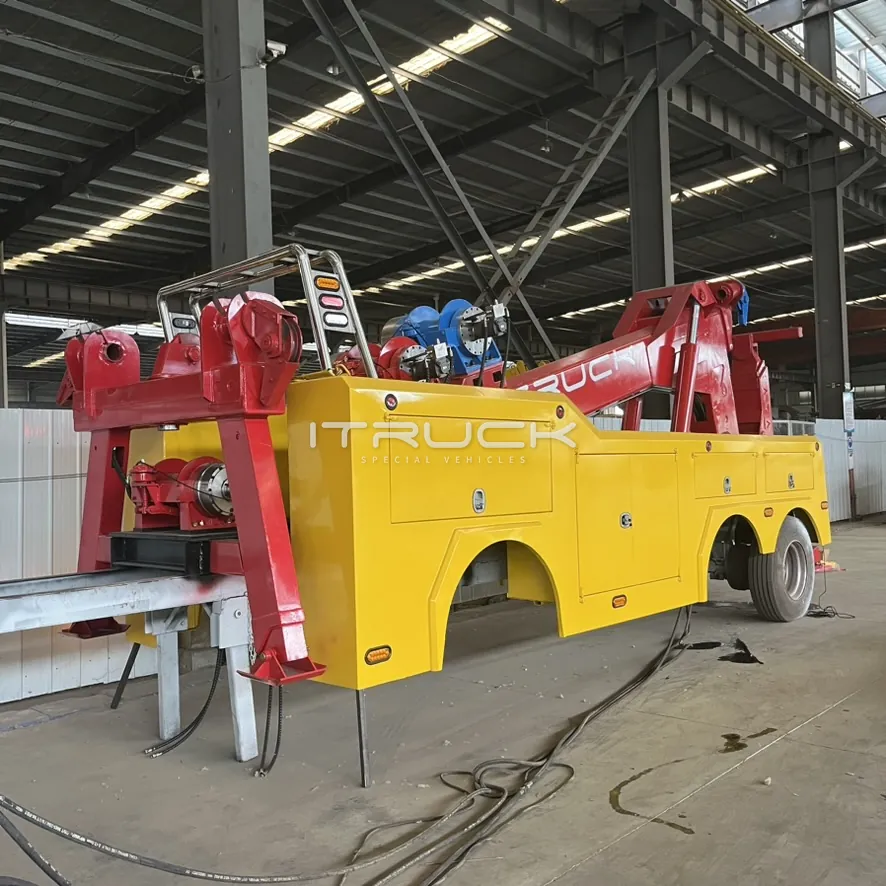

Yellow and red heavy wrecker body from the rear quarter
Rear quarter, yellow and red build

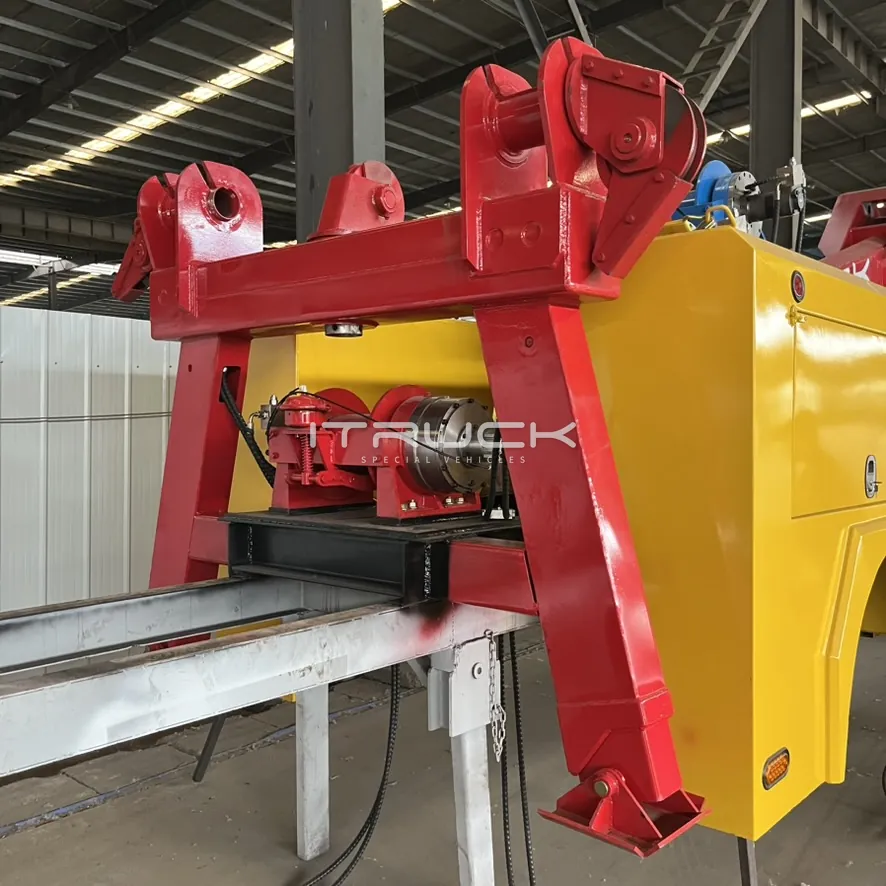

Rear crossbar, underlift base and stabilizer legs close-up
Rear crossbar and underlift base
1 / 12

Photos are for reference only. Options may be shown.

Integrated Wrecker Body · Heavy Duty

Integrated Wrecker 30T

A heavy-duty boom-and-underlift body built to your chassis: a 30 t HG70 boom with twin 15 t planetary winches, and a 3-stage underlift in a 25 or 28 t rating for tow ratings of 50–85 t.

2 × 15 tMain winches
25 / 28 tUnderlift capacity
30 tBoom lift capacity
50–85 tTow rating
  • Lead time120 days after deposit and drawing approval
  • Container loading1 per 40' HQ
  • Price basisEXW Suizhou · FCA on request
Request a Quote WhatsApp Us
Technical Specifications

Specifications by rating

Item25T UL28T UL
Underlift capacity — retracted25,000 kg28,000 kg
Underlift retracted length1,650 mm1,750 mm
Underlift capacity — extended6,500 kg8,500 kg
Underlift extended length3,150 mm3,450 mm
Underlift tilt below horizontal−10°
Tow rating50–75 t56–85 t
Boom lift capacity — retracted, at 33°30,000 kg
Boom lift capacity — extended, at 33°9,000 kg
Max. boom elevation33°
Max. lifting height9,000 mm
Main winches (quantity)2
Winch line pull15 t
Winch typePlanetary
Winch cable length45 m
Winch cable diameter20 mm
Tow bar length1,400 mm
Tow bar section127 × 127 mm
Tow bar pin56 mm
Tow bar pin bore57 mm
Approx. net weight~9 t

All tonnages are metric tons (1,000 kg).

One 30 t boom, two underlift ratings: 25 t or 28 t (UL = underlift).

Standard Equipment

What comes with every unit

Boom

  • Boom — HG70 steel, 2-stage hexagonal

Underlift

  • Underlift — HG70 steel, 3-stage

Winches

  • Main winches 2 × 15 t — planetary, DOT certified

Subframe

  • Subframe — Q355B carbon steel
  • Rear stabilizer legs — hydraulic

Hydraulics

  • Hydraulic pump — 6/13-tooth spline or single shaft, DOT
  • Hoses and connectors — DOT
  • Control valves — Italian-made, DOT
  • Hydraulic cylinders — DOT

Control

  • Manual control — dual-side operation, English labels
  • Wireless push-button remote control — included

Toolboxes

  • Toolboxes ×2 — one per side, Q235 carbon steel, stainless steel handles

Attachments

  • Fork sets ×5 — 4 axle-lift, 1 suspension-lift
  • Fork receiver and U-shape tire holder — 1 set each
  • Safety chains ×2 — stored in toolbox chain pockets
  • D-rings ×2–4

Lights

  • Side lights — 8 per side, DOT
  • Tail lights — 4 per side, DOT
  • Light pylon — full size, stainless steel, LED

Painting

  • Standard primer
  • Epoxy topcoat
  • Decals and markings in English
  • Protective wrap on toolbox paint

Accessories

  • Air hookups — DOT
  • Electrical hookups — 12 V or 24 V, DOT
Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

Custom colors are matched as closely as possible from a RAL code or sample photo; a slight color difference cannot be excluded.

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.

Will it fit your truck?
Will it fit your truck?
Get the measurement guide (PDF) →
