Fifth Wheel Wreckers & DTU
4 – 30 ton

Add heavy recovery to a truck you already run. A fifth-wheel wrecker couples to a tractor's fifth wheel and turns it into a tow truck in minutes; a DTU is a full boom-and-underlift recovery unit that bolts on — and off — your chassis. Built to your chassis, DOT hydraulics.

4–30TLift Range
75 tMax Tow (DTU)
MinutesTo Couple Up
HG70Boom & Underlift
What it is

Two ways to make a truck recover

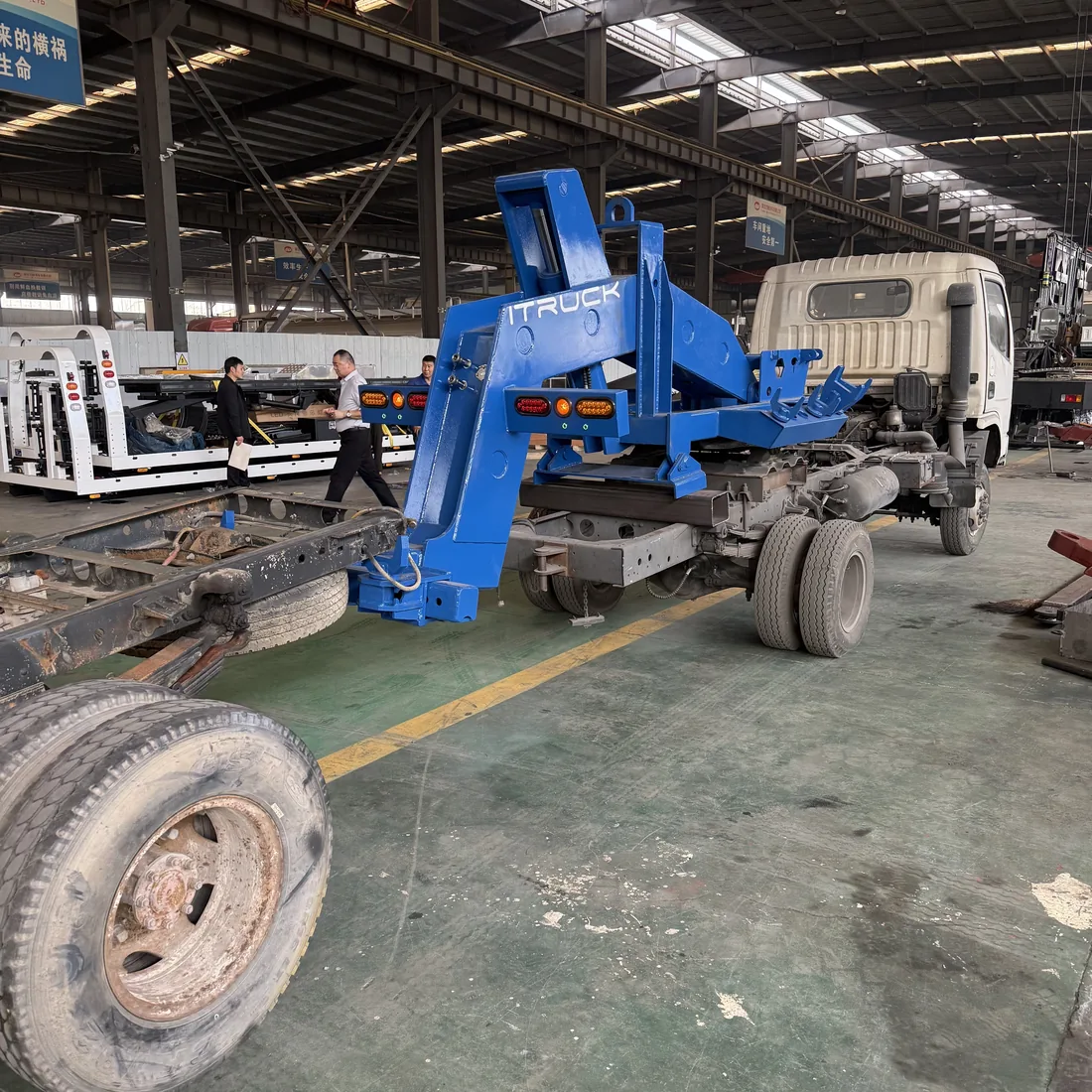

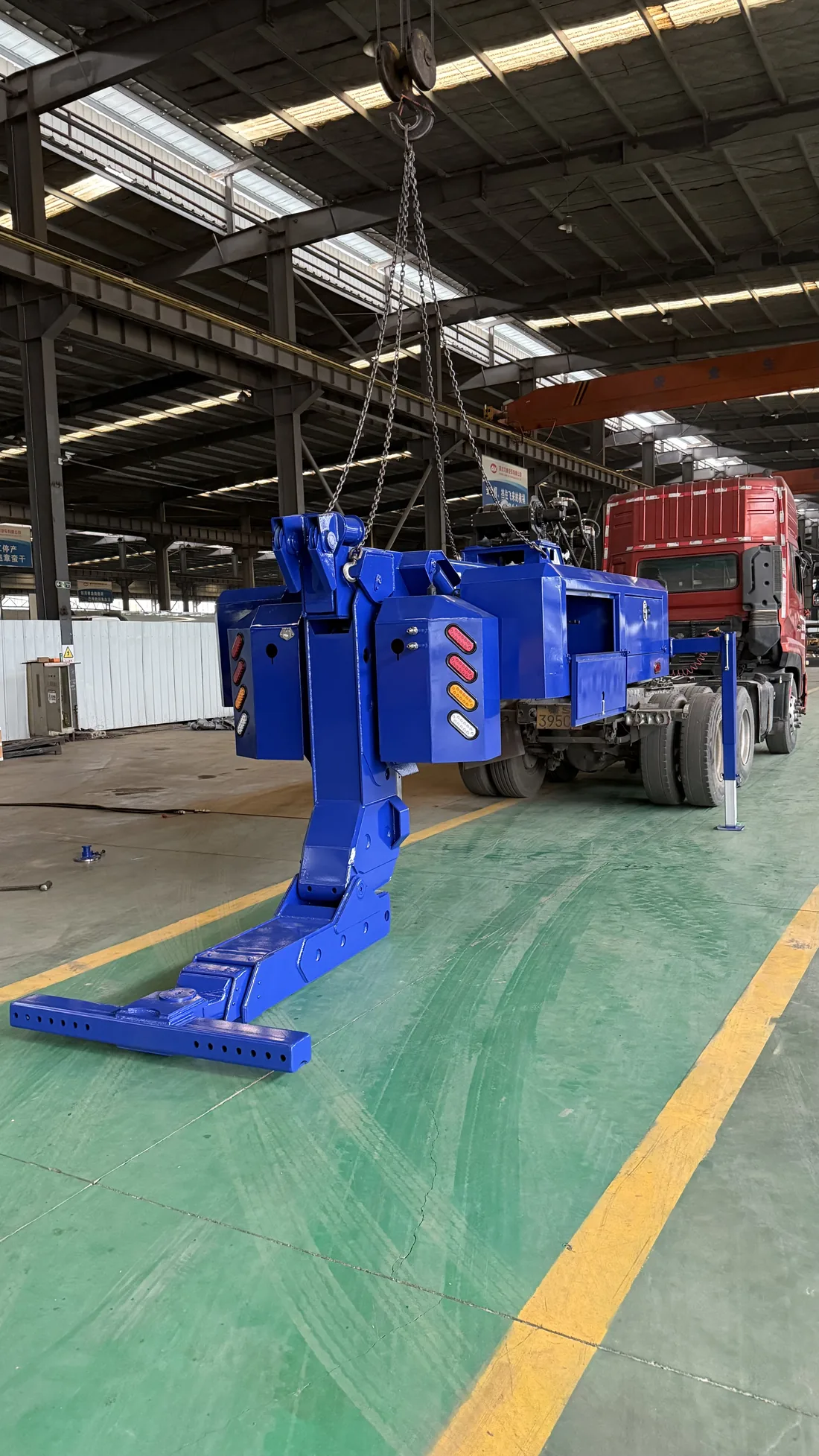

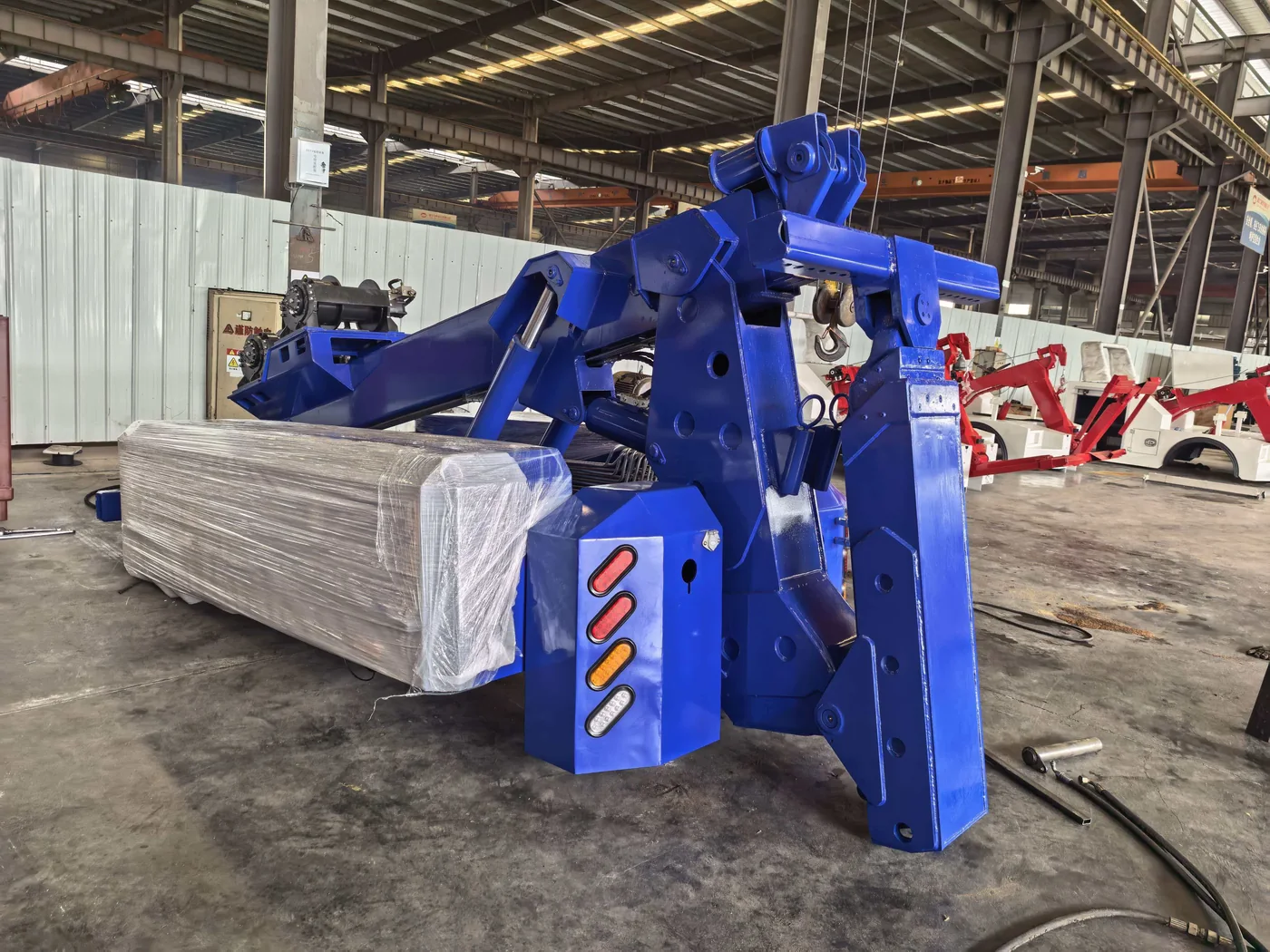

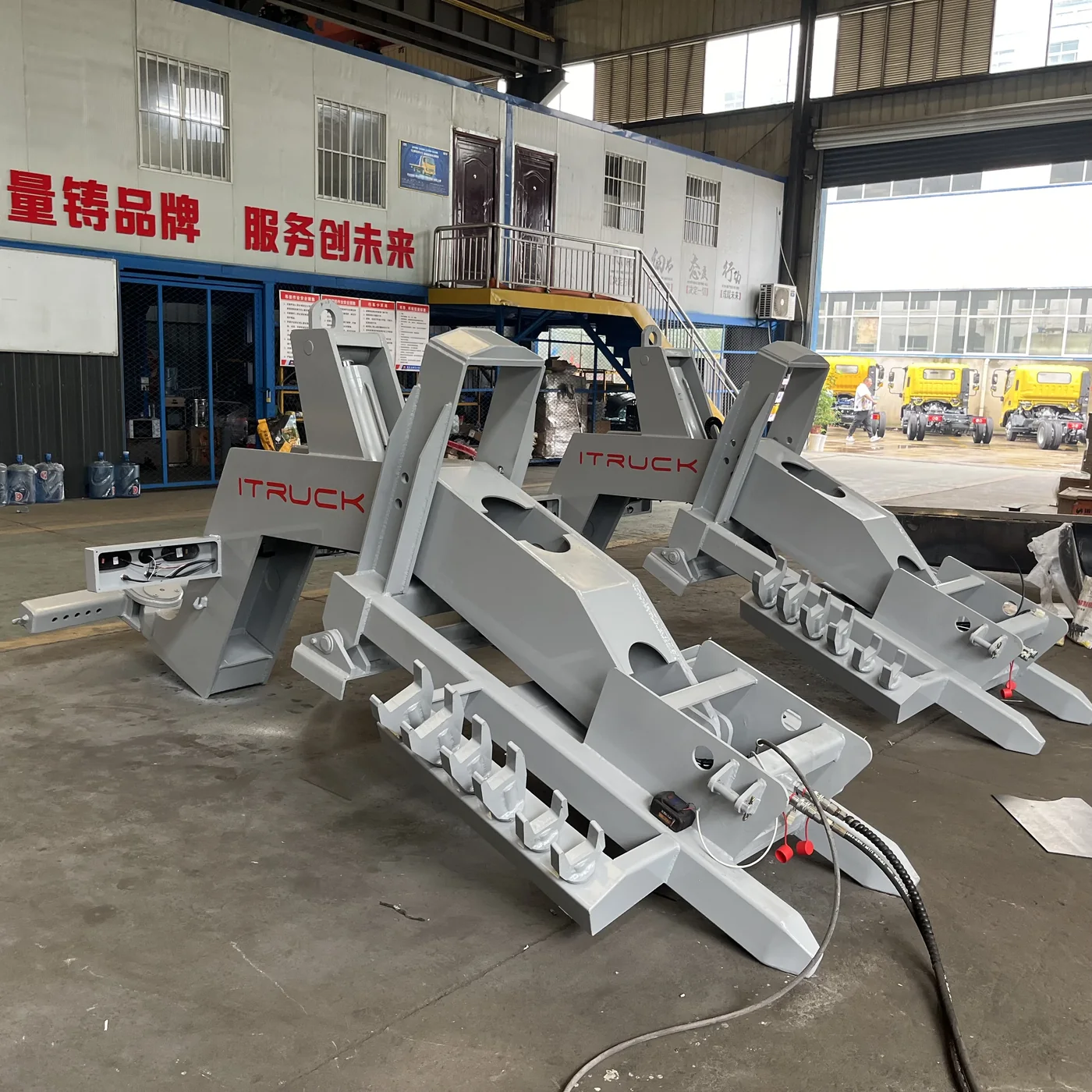

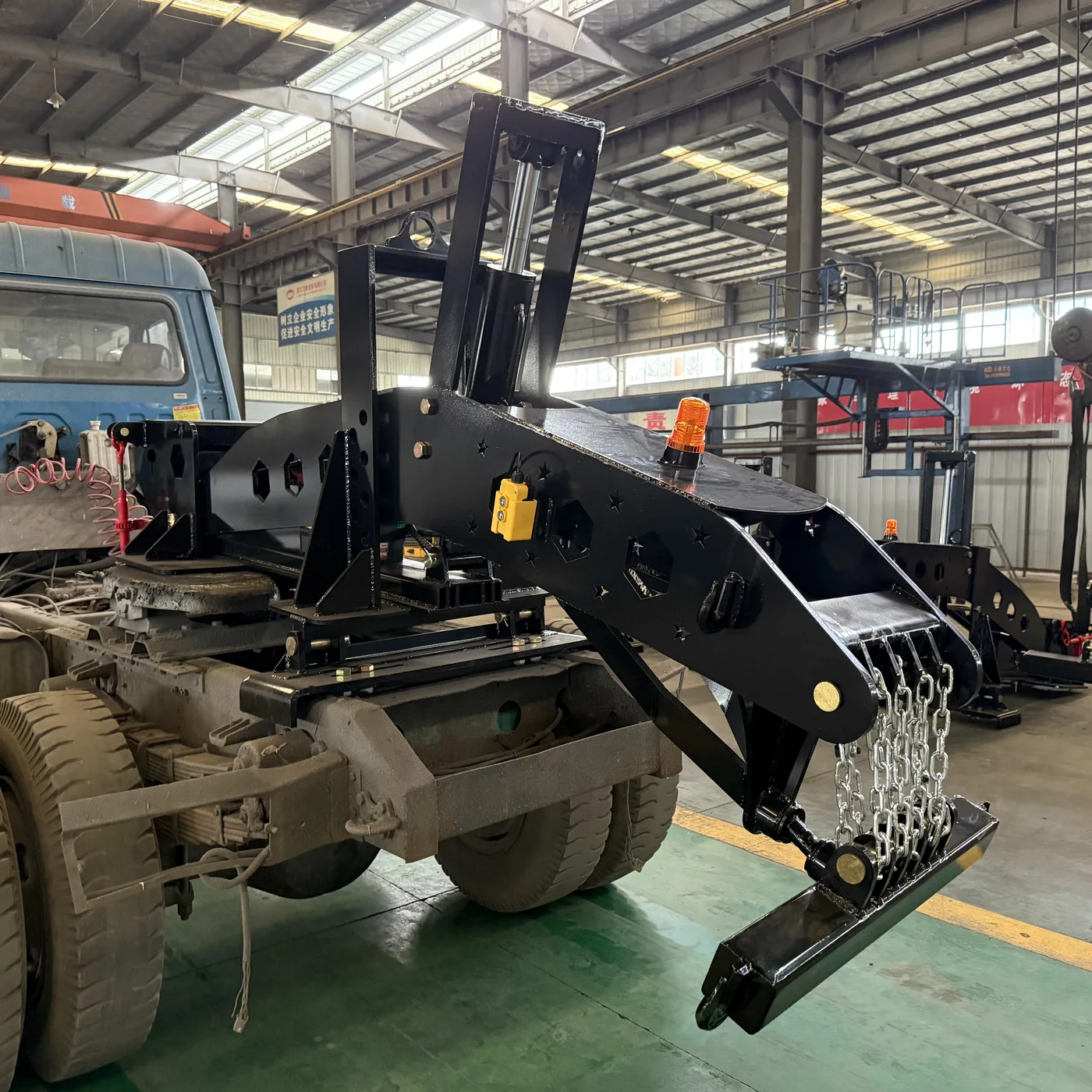

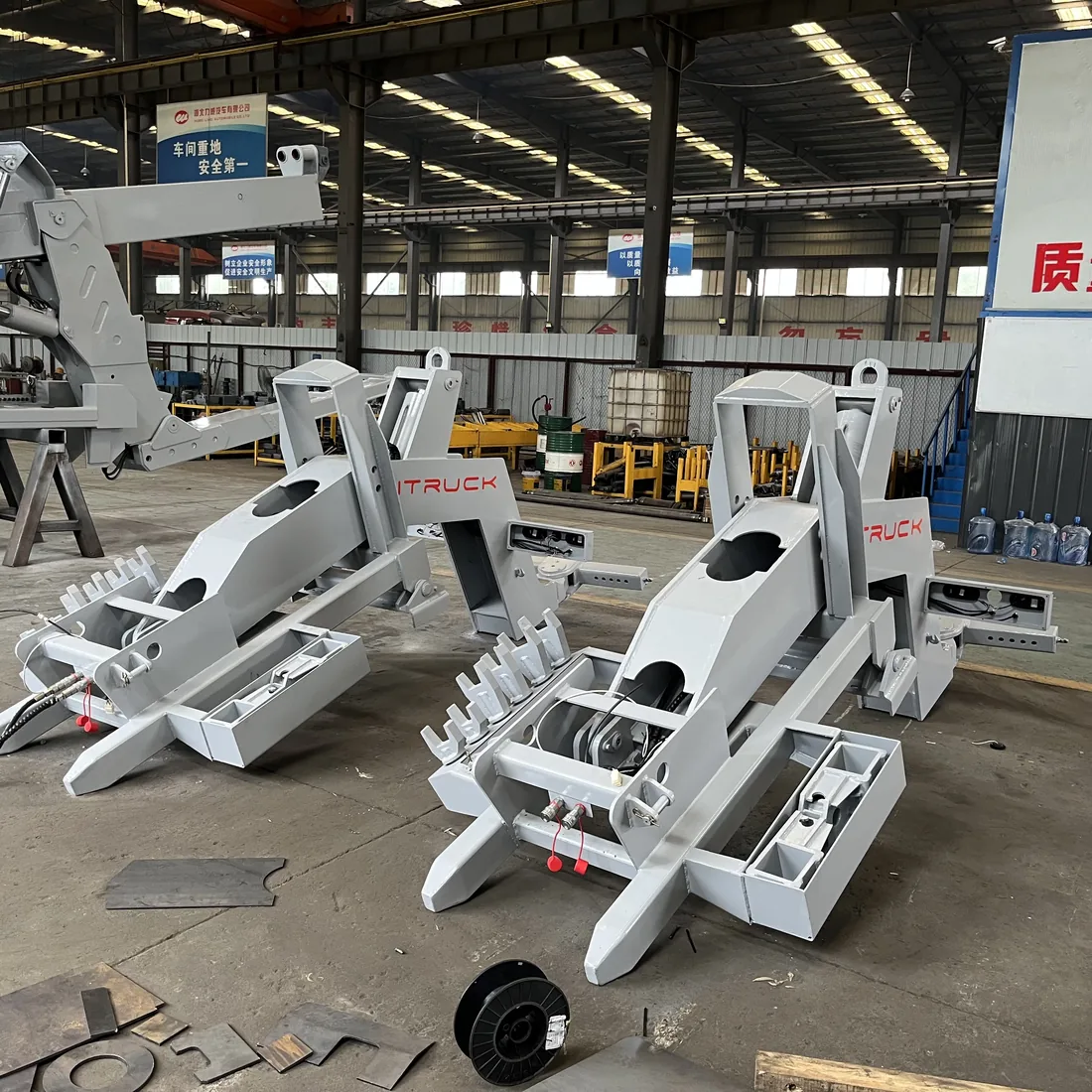

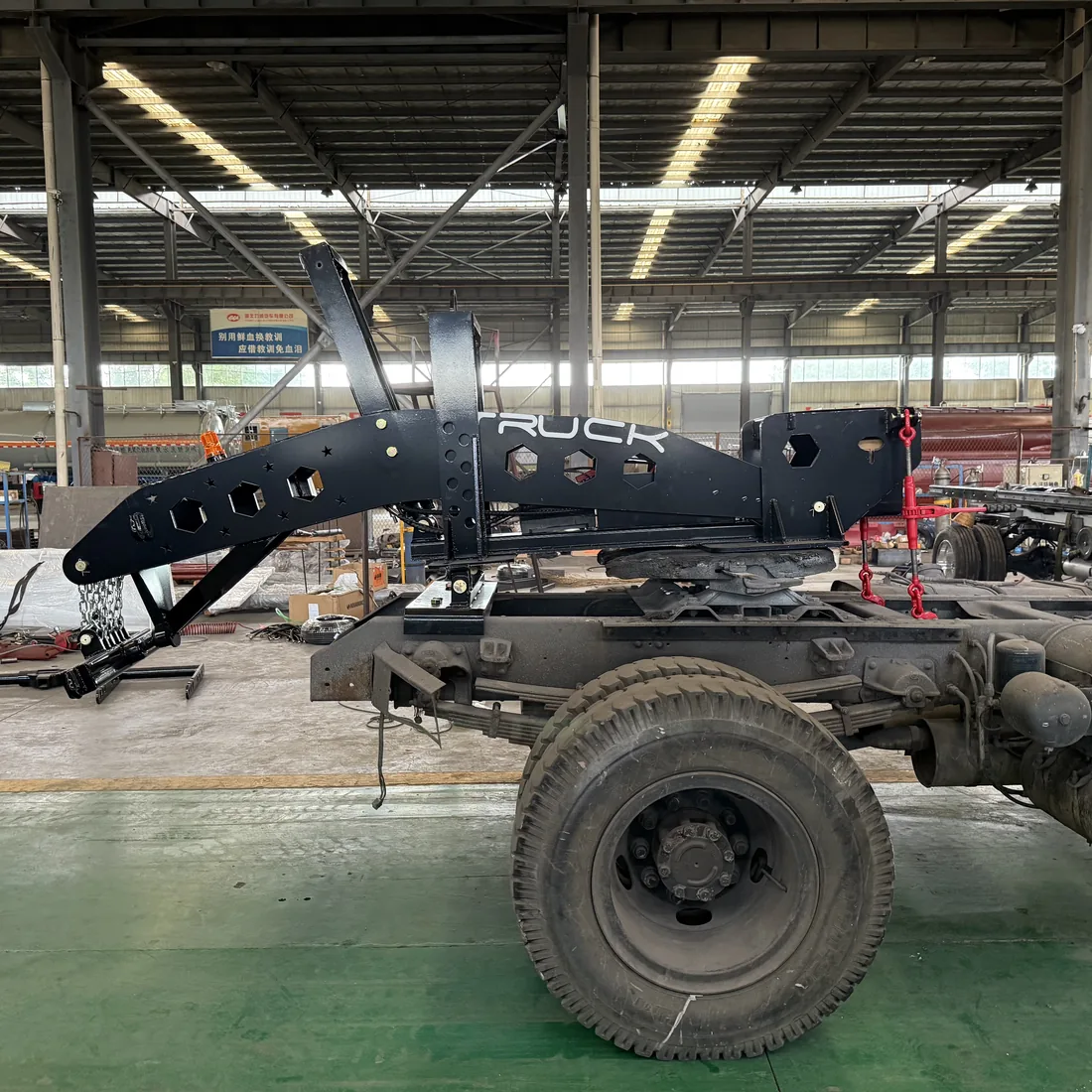

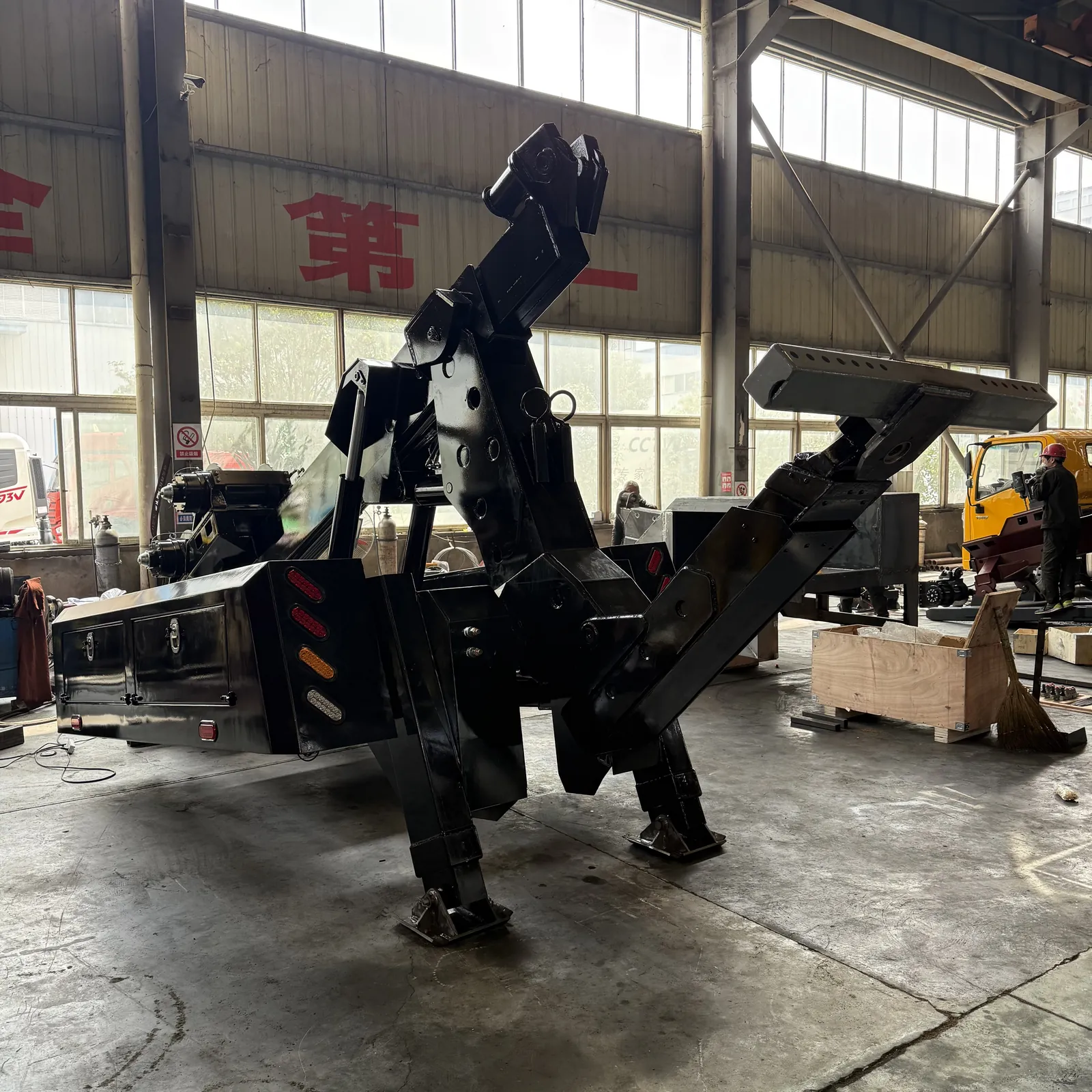

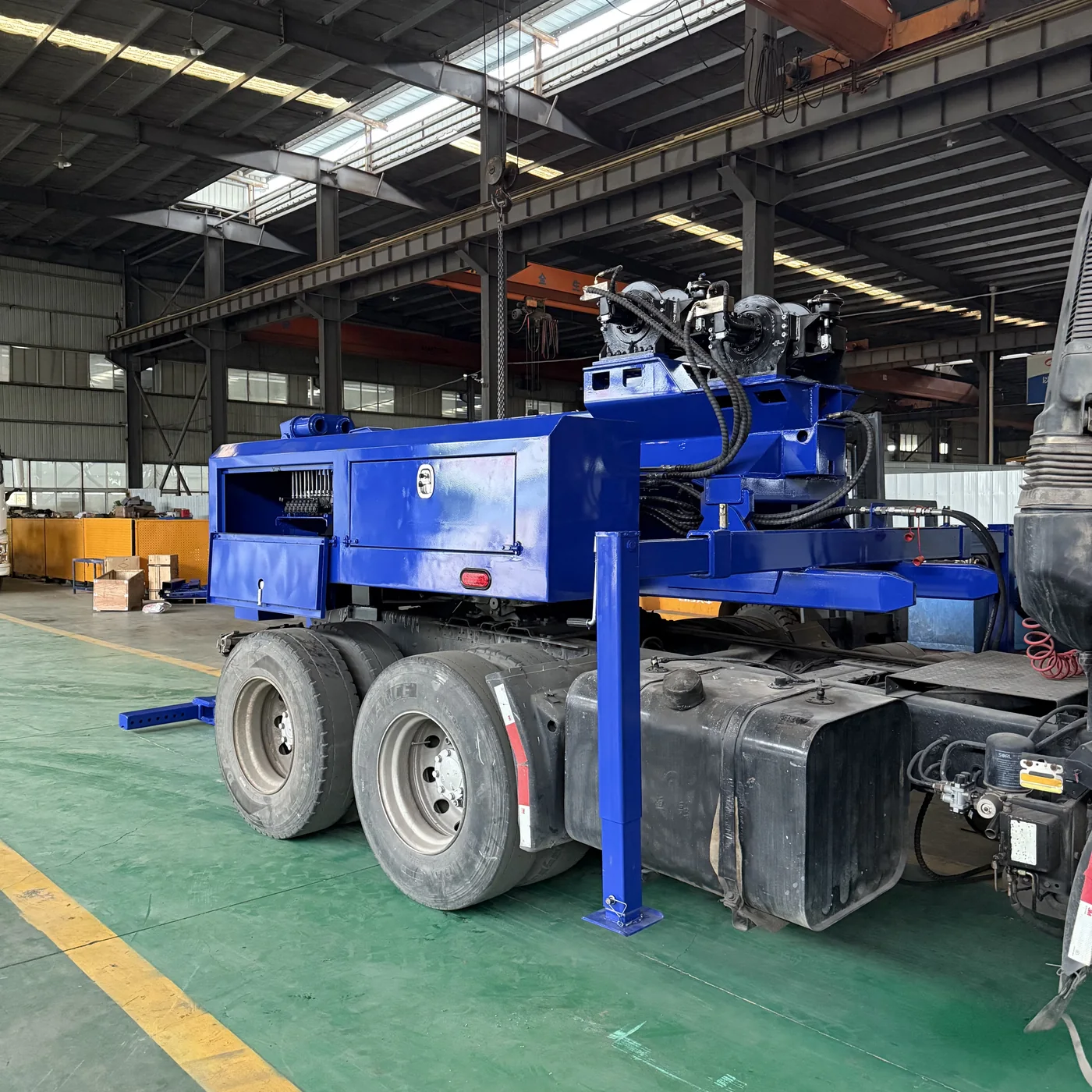

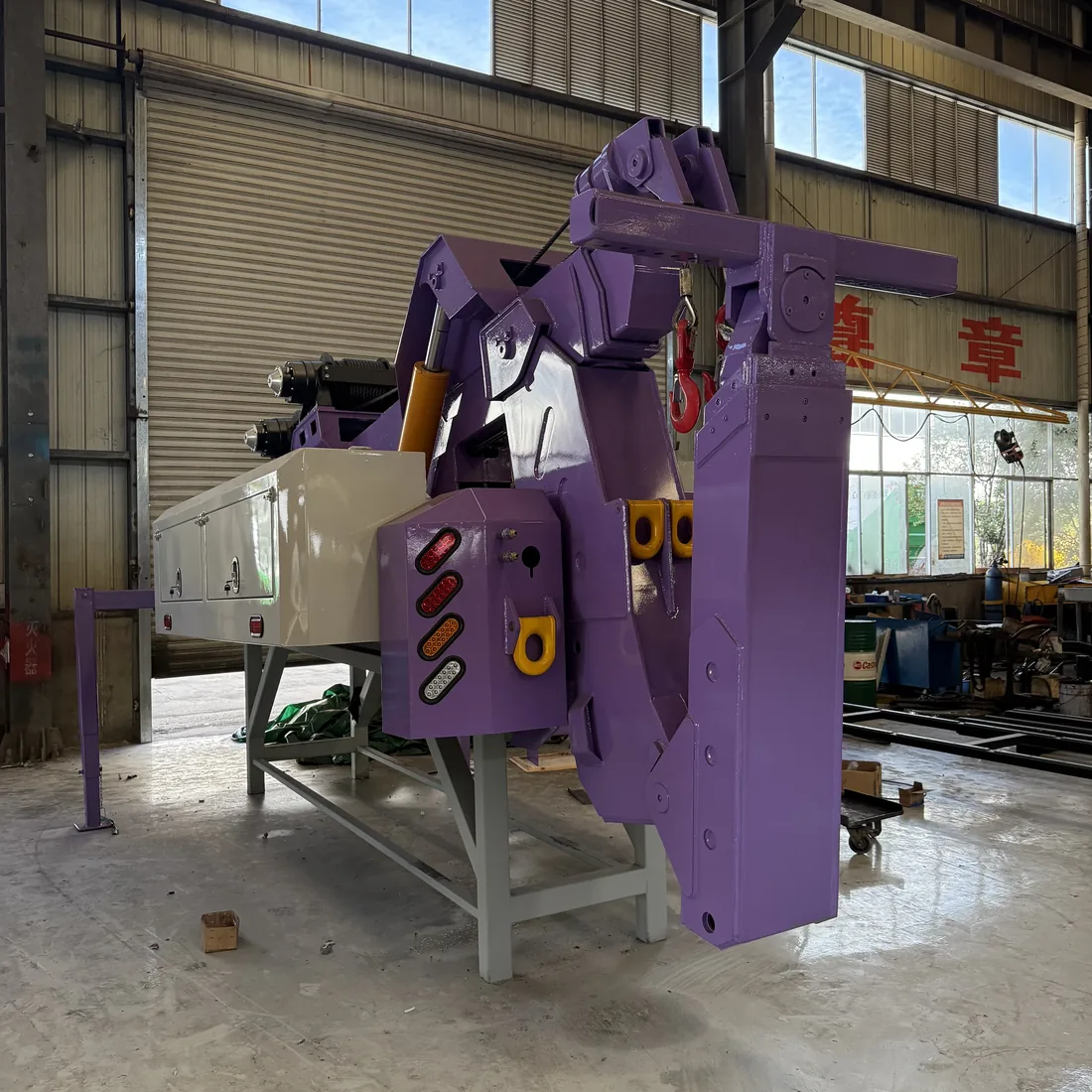

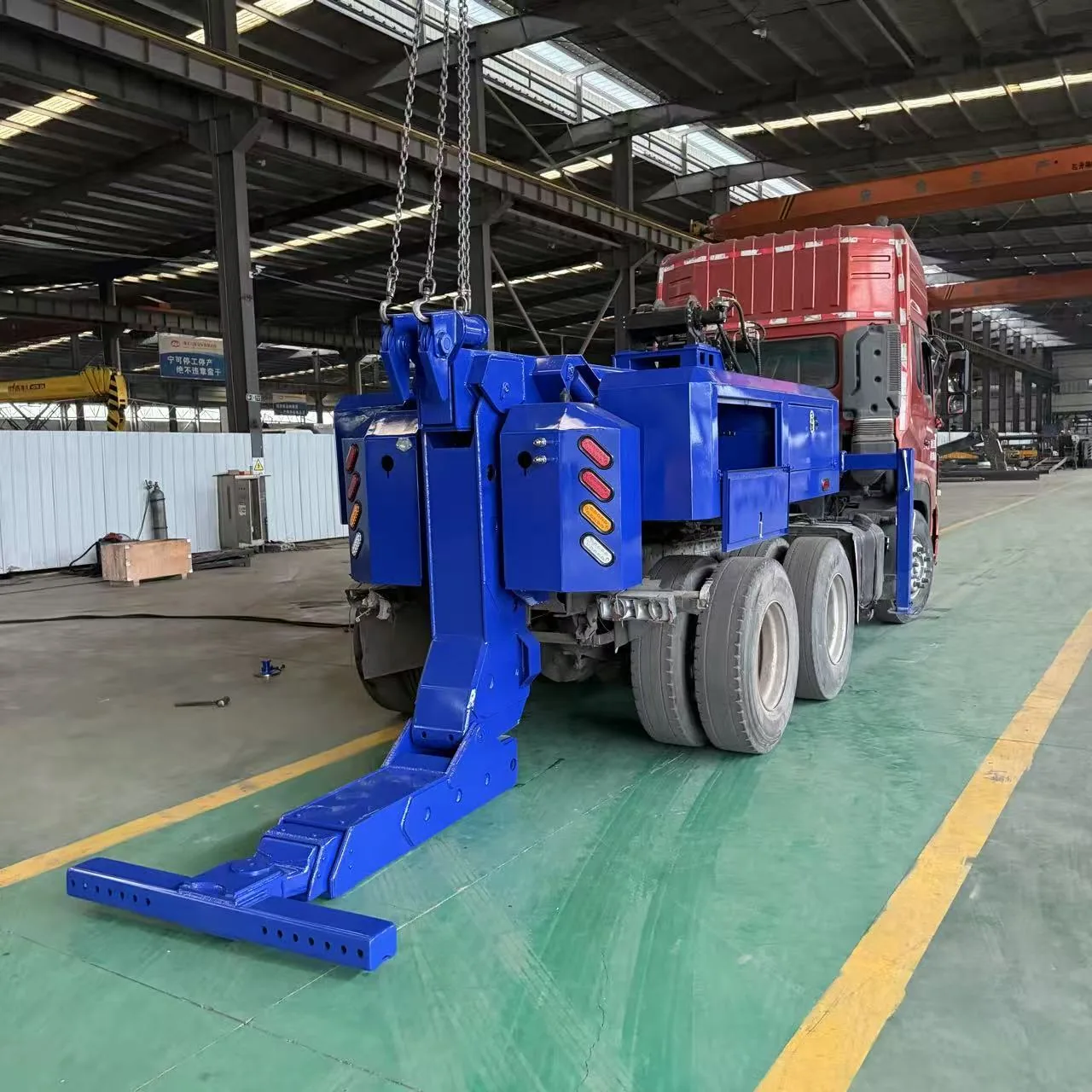

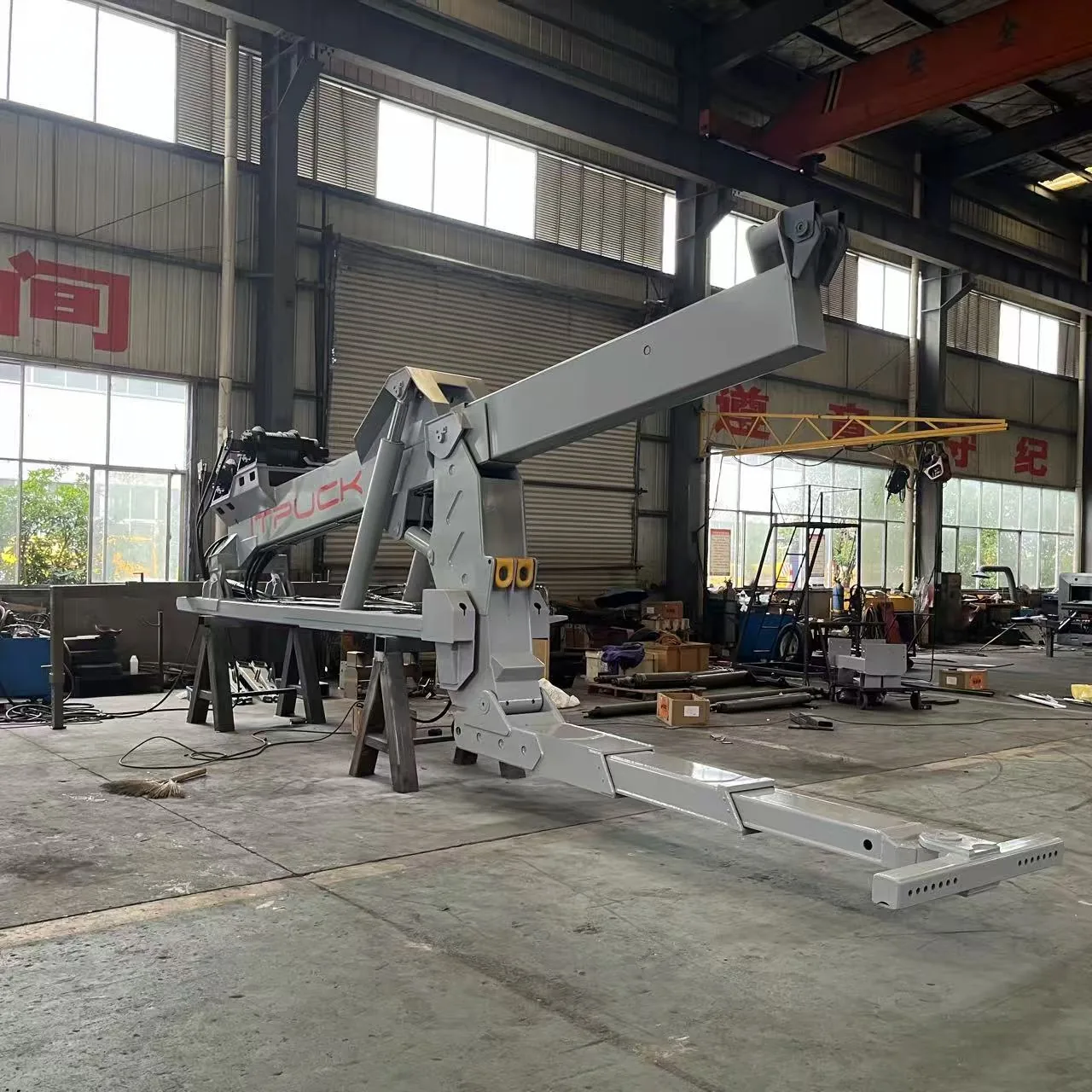

A fifth-wheel wrecker couples to the tractor's fifth-wheel plate with a 50 mm (2") kingpin. Choose 4T / 8T electric hydraulics, or 16T / 25T PTO-driven models with a standard or telescopic underlift. Lift capacity and towing capacity are separate ratings; compare them below. A DTU (Detachable Tow Unit) is a boom-and-underlift recovery module on a removable subframe, giving integrated-wrecker capability from 10 to 30 ton.

Model Range

Fifth wheel wreckers & DTU line-up

ModelLift capacityTowing capacityLead time

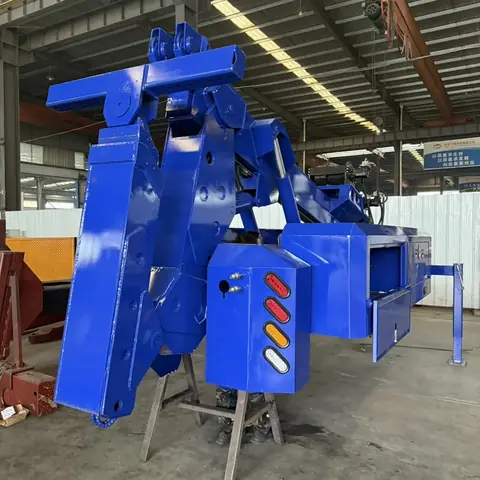

DTU 10T10 t20–30 t50–80 days
DTU 16–25T16 / 20 / 25 t32–75 t50–80 days

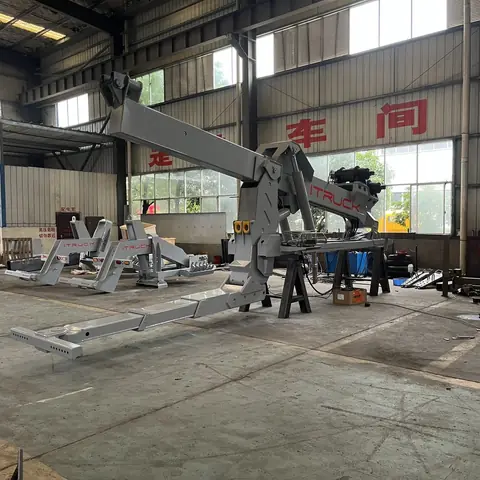

DTU 30T25 t50–75 t50–80 days
Fifth Wheel Wrecker 4T / 8T4 / 8 t8–16 t30 days
Fifth Wheel Wrecker 16T / 25T16 / 25 t32 / 50 t30 days

Fifth-wheel wrecker ratings: 4T lifts 4 t and tows 8–10 t; 8T lifts 8 t and tows 16 t; 16T lifts 16 t and tows 32 t; 25T lifts 25 t and tows 50 t. Standard and telescopic 16T / 25T versions have different weights and underlift configurations. All tonnages are metric tons (1,000 kg).

Choose your fifth-wheel wrecker

Three configurations, clearly compared

01

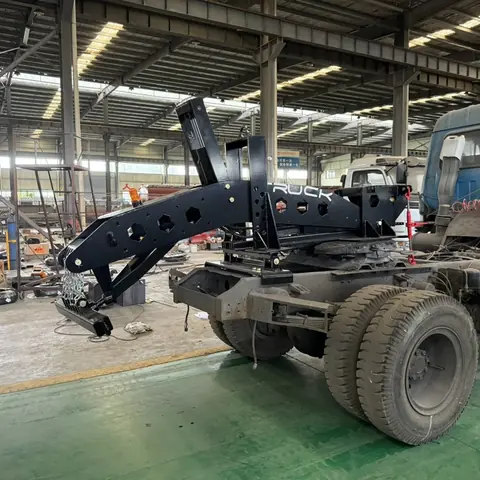

4T / 8T · Electric hydraulics

12 V standard; 24 V at no extra charge. Wireless remote, one main lift cylinder and two ratchet tie-downs. Approx. net weight: 700 / 1,000 kg. Battery not included; source locally.

View 4T / 8T specifications →
02

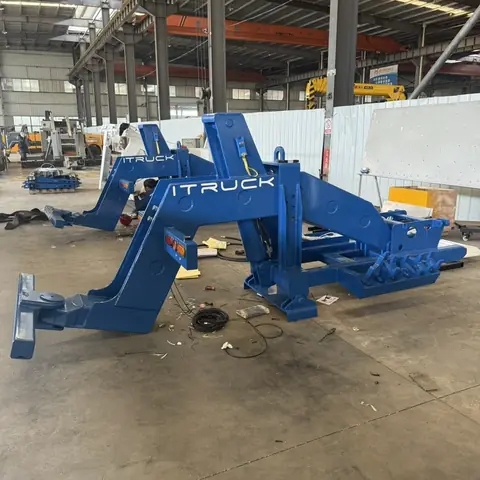

16T / 25T · Standard underlift

PTO-driven pump with wireless and dual-side manual controls. Three fork sets, one fork receiver and two ratchet tie-downs. Approx. net weight: 1,500 / 1,800 kg. Battery power pack available; battery not included.

Compare standard models →
03

16T / 25T · Telescopic underlift

Underlift reach: 1,290 mm retracted / 2,435 mm extended. Approx. net weight: 2,500 / 2,800 kg. PTO standard; optional 12 V or 24 V electric hydraulic pump, battery excluded. Fully unfold before lifting; never lift or tow while folded or partly folded.

Compare telescopic models →

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.

Fifth wheel wrecker / DTU
Fifth wheel wrecker / DTU
01Frame width
Outside edges of both frame rails.
Frame width
02Frame height
Ground to top of frame.
03Fifth wheel to frame end
Fifth wheel centre to rear frame end.
04Fifth wheel height
Frame top to highest fifth wheel point.
05System voltage
Confirm with the chassis manufacturer.
12 V / 24 V

Keep the fifth wheel installed when measuring.

Schematic - not to scale · mm / in

Tell us your tractor / chassis & recovery weight —
we'll spec the unit and quote in 24 h.
