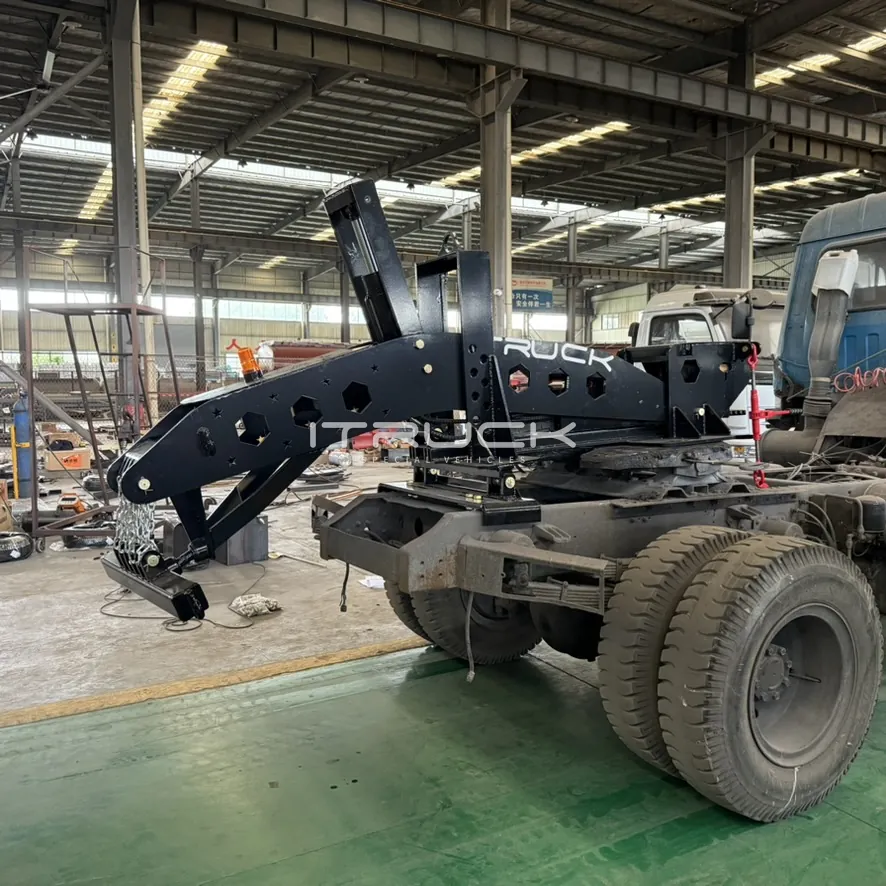

Black fifth wheel wrecker coupled to a truck, underlift lowered
Coupled to a truck

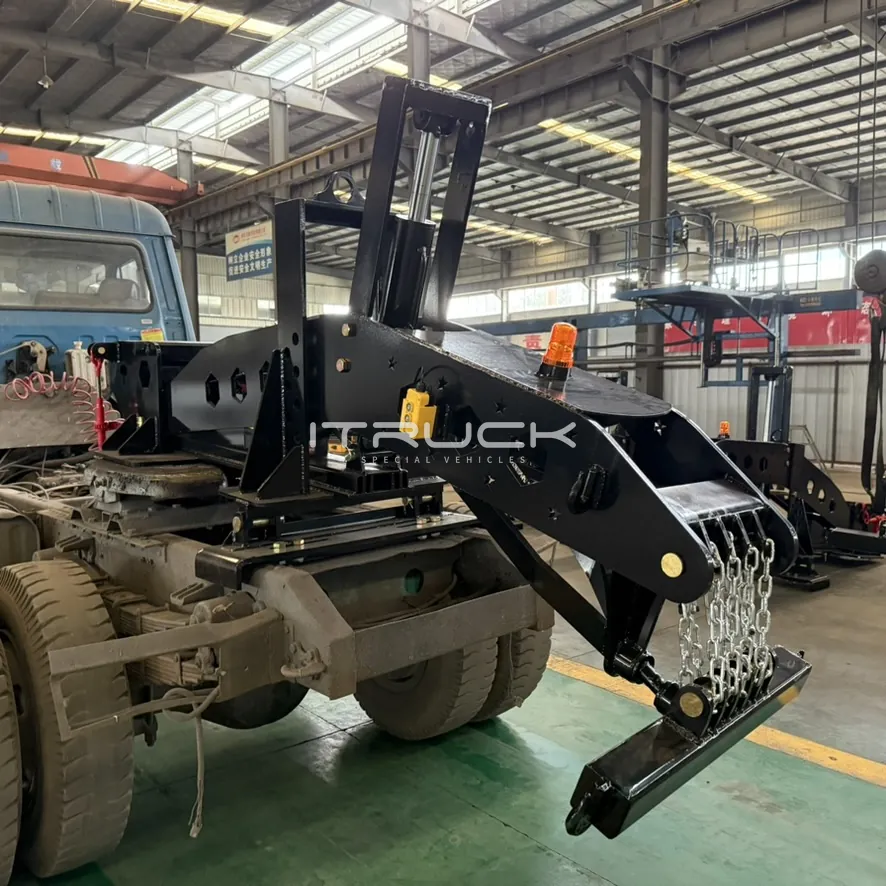

Fifth wheel wrecker rear view with underlift and safety chains
Underlift and chains

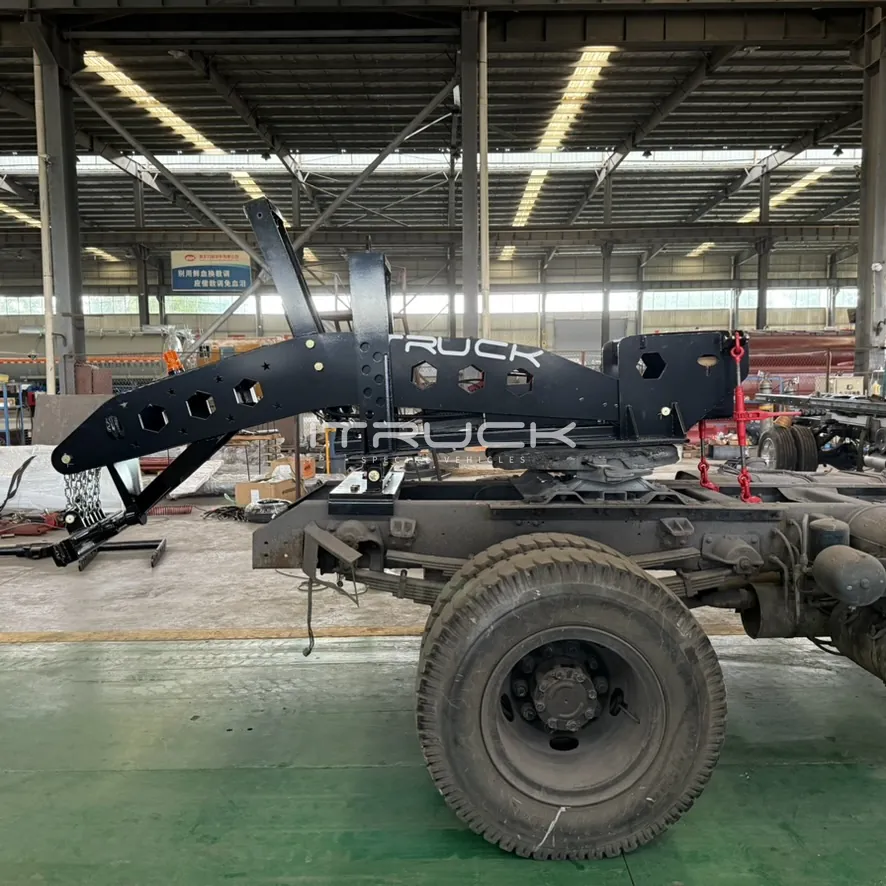

Fifth wheel wrecker side view on a two-axle truck
Side view on a truck

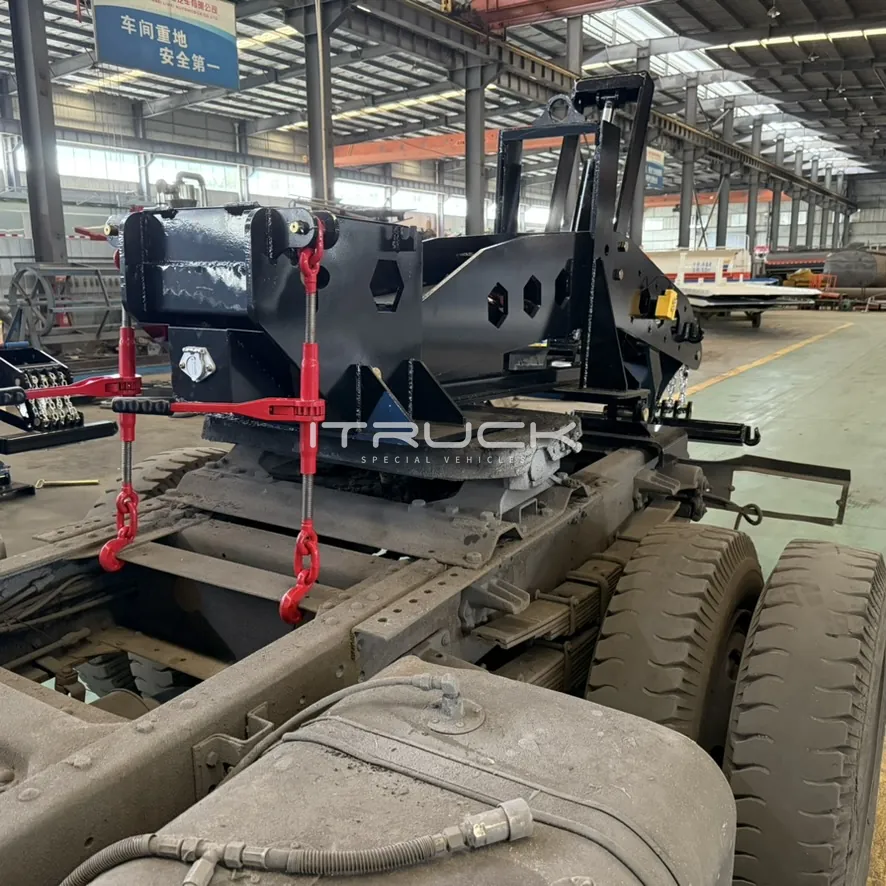

Fifth wheel wrecker secured on the fifth wheel with ratchet tie-downs
Secured with tie-downs

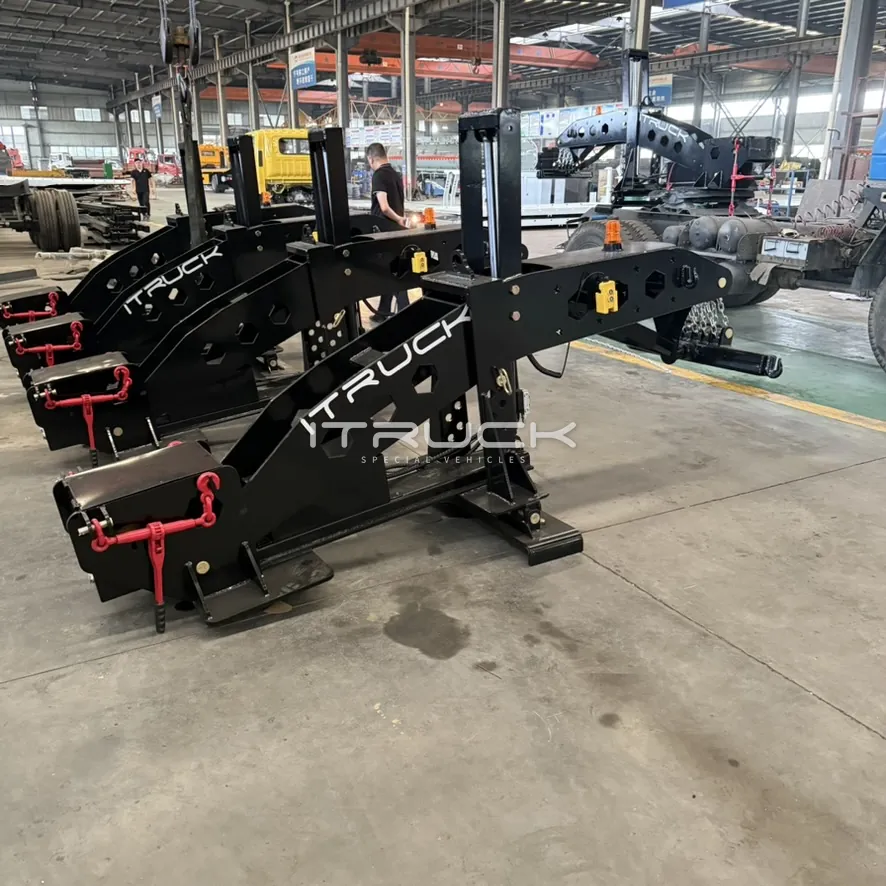

Row of black fifth wheel wreckers on stands in the workshop
Units in the workshop

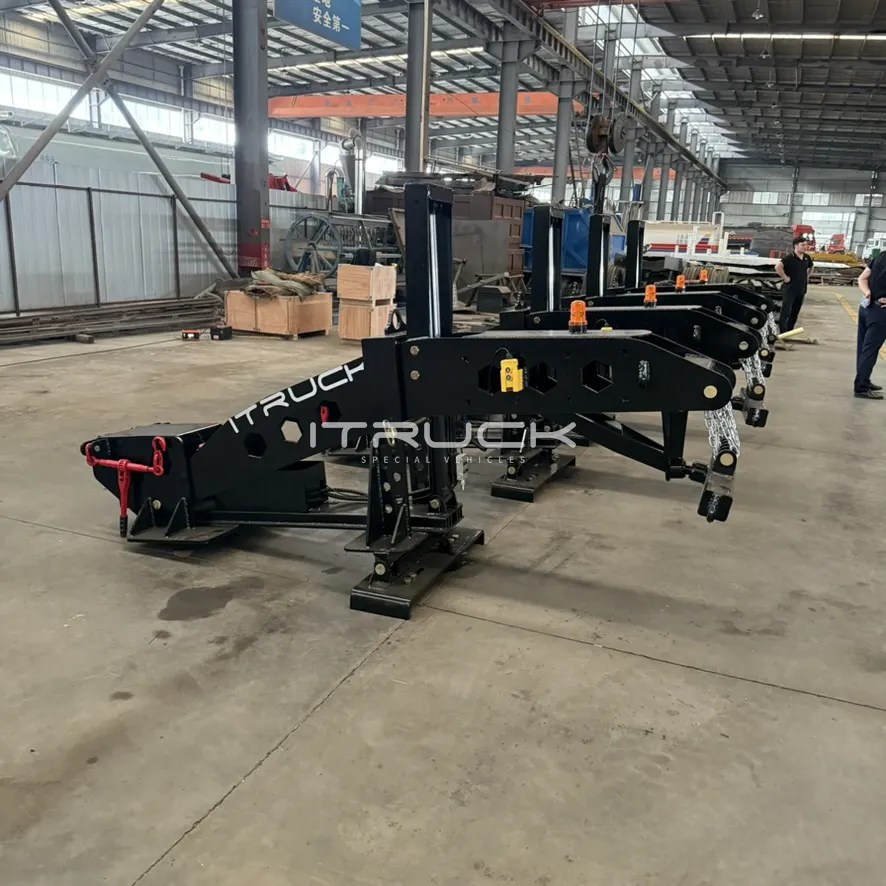

Fifth wheel wreckers lined up on the workshop floor, side view
Side view, lined up

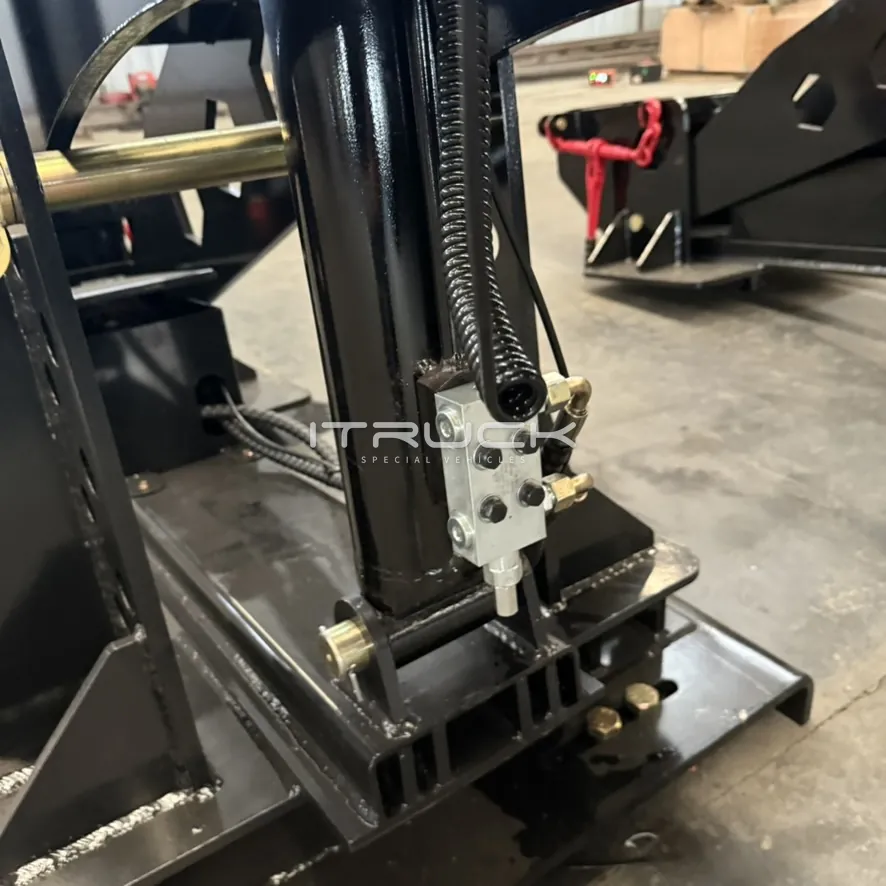

Lift cylinder and hydraulic hose fittings on the fifth wheel unit
Lift cylinder and hoses

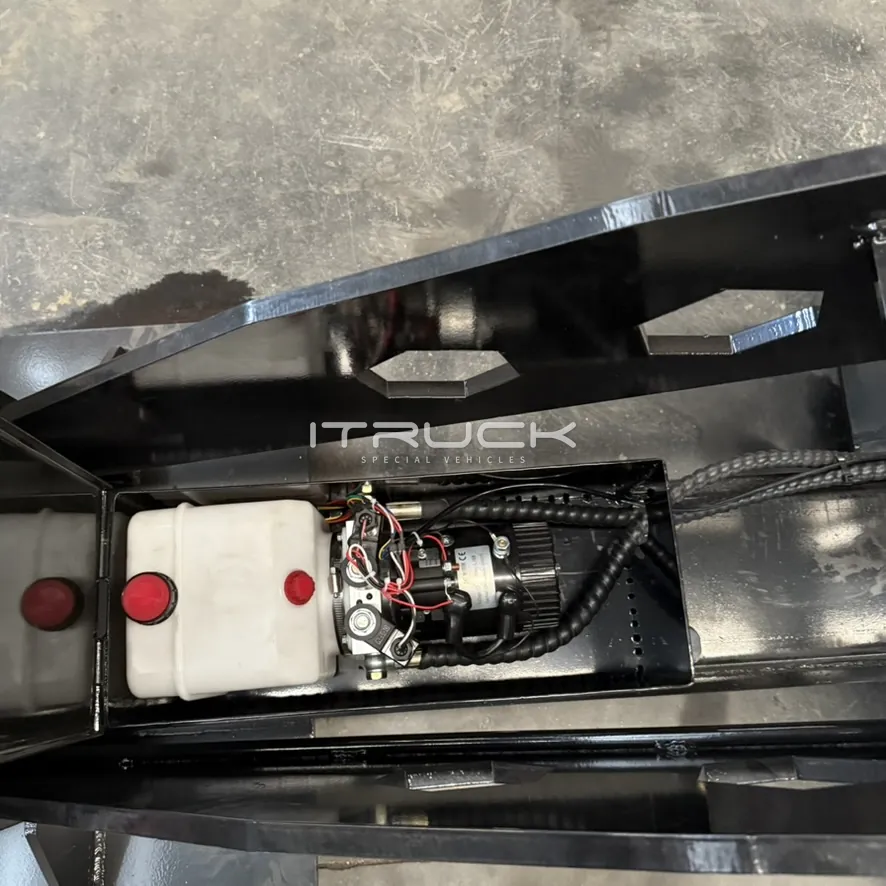

Electric hydraulic power unit inside the frame housing
Electric hydraulic power unit

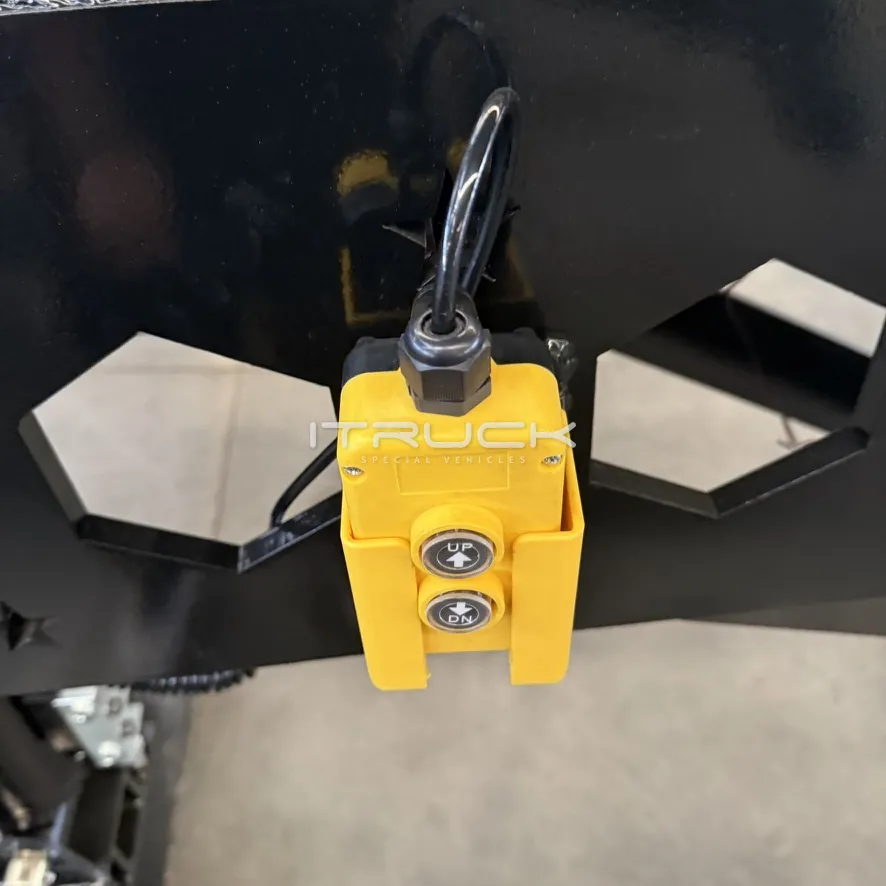

Pendant control with up and down buttons on the frame
Pendant control

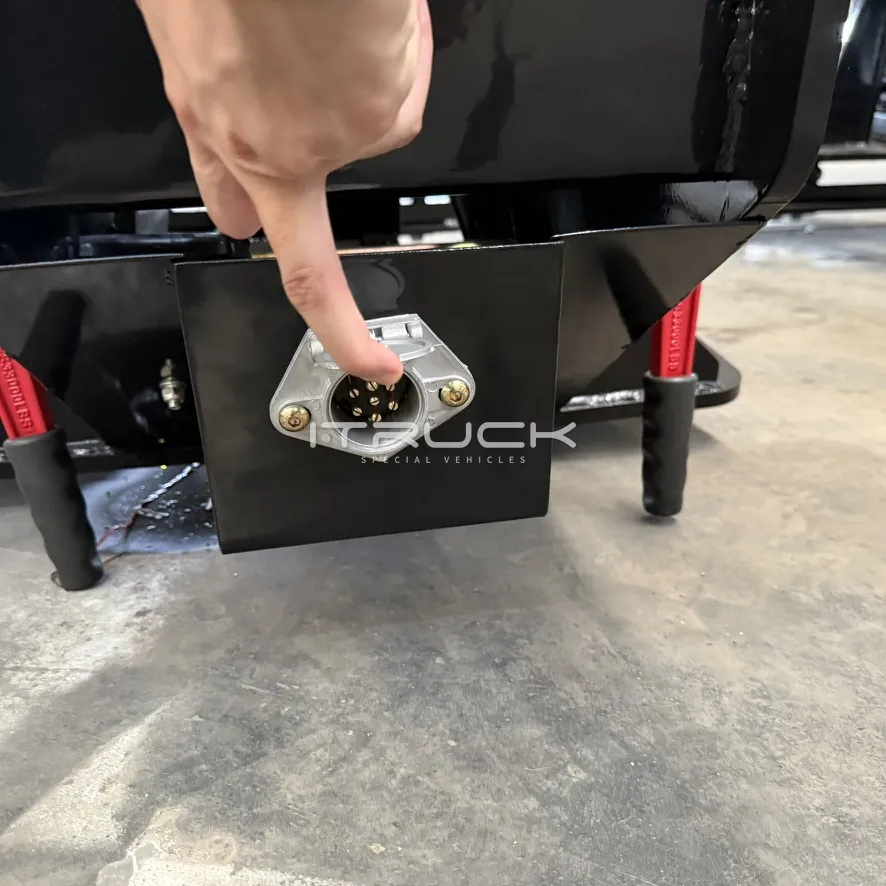

Electrical connector socket at the rear of the unit
Electrical connector

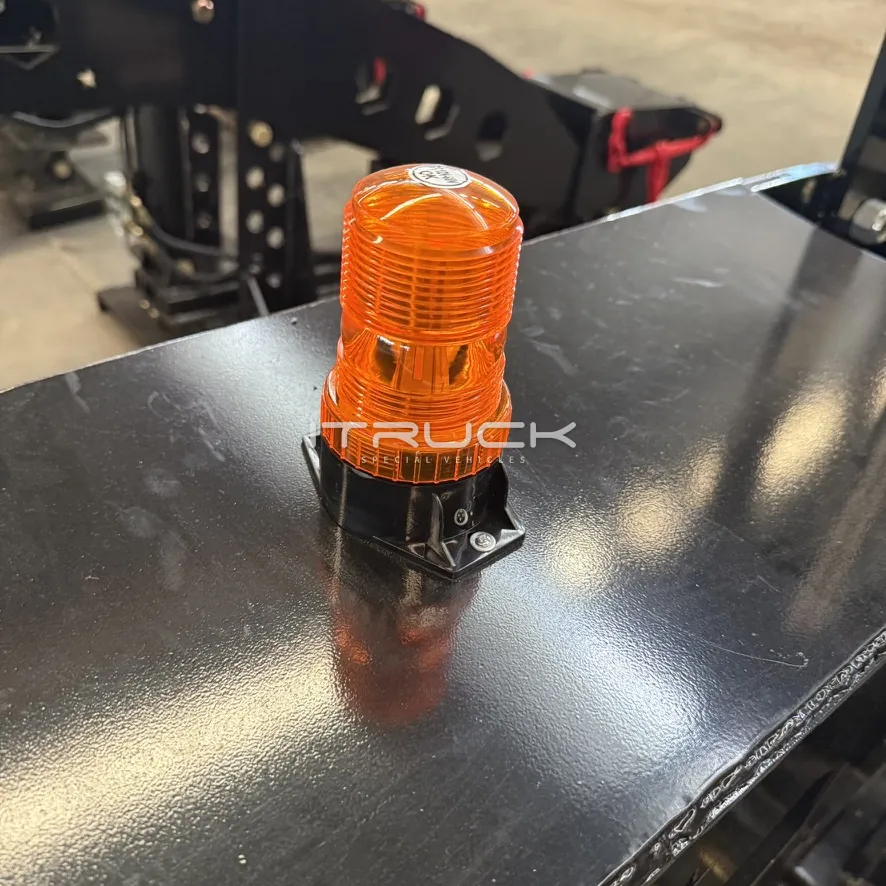

Amber strobe light mounted on top of the frame
Strobe light

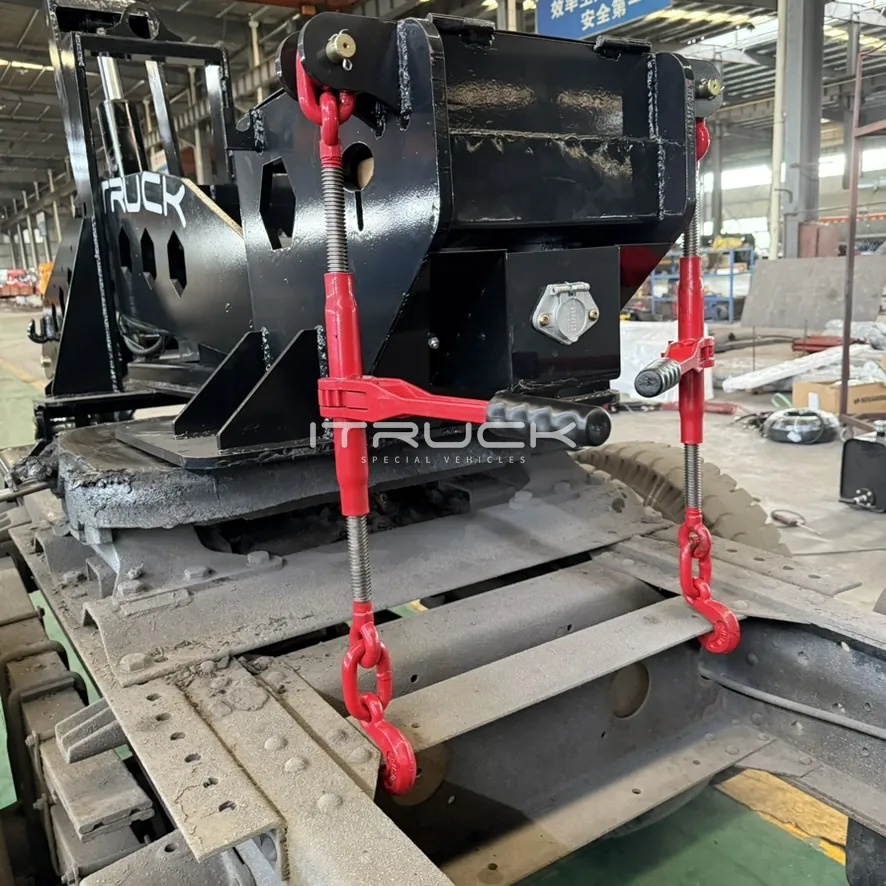

Ratchet tie-downs holding the unit to the fifth wheel plate
Ratchet tie-down detail
1 / 12

Photos are for reference only. Options may be shown.

Fifth Wheel Wrecker · Electric Hydraulics

Fifth Wheel Wrecker 4T / 8T

A self-contained tow system that mounts on the host vehicle's fifth wheel by a 50 mm kingpin, with its own electric hydraulic power unit and wireless remote — no PTO needed.

4 / 8 tLift capacity
8–16 tTow rating
~700 / ~1,000 kgNet weight
12 / 24 VPower
  • Lead time30 days after deposit
  • Container loading9–12 per 20' GP · 40' HQ: 4T up to 30, 8T up to 26 (weight-limited), unpacked and stacked
  • Price basisEXW Suizhou · FCA on request
Request a Quote WhatsApp Us
Technical Specifications

Specifications by rating

Item4T8T
Lift capacity4 t8 t
Tow rating8–10 t16 t
Overall dimensions3,100 × 980 × 1,380 mm
Approx. net weight~700 kg~1,000 kg
Electrical system12 V / 24 V
Kingpin50 mm (2")

All tonnages are metric tons (1,000 kg).

Standard Equipment

What comes with every unit

Mounting

  • Mounts on the host vehicle's fifth wheel — 50 mm (2") kingpin

Hydraulics

  • Boom lift cylinder ×1
  • Electric hydraulic power unit — 12 V standard, 24 V optional
  • Hose set ×1
  • Battery connections ×2 — battery not included (restricted for sea freight), source locally

Control

  • Wireless remote control ×1 set

Attachments

  • Ratchet tie-downs ×2

Lights

  • Strobe light ×1

Painting

  • Standard primer
  • Epoxy topcoat
Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

Custom colors are matched as closely as possible from a RAL code or sample photo; a slight difference cannot be excluded.

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.

Will it fit your truck?
Will it fit your truck?
Get the measurement guide (PDF) →
Fifth Wheel & DTU Range

Other fifth wheel & DTU units

DTU 10T10 t DTU 16–25T16–25 t DTU 30T30 t Fifth Wheel 16T / 25T16–25 t

All fifth wheel & DTU units →

Send us your chassis details —
we'll spec the Fifth Wheel 4T / 8T and quote in 24 h.
Request a Quote WhatsApp Us

Need the complete truck, not just the equipment?

We build finished vehicles too — 11 wrecker models and 10 flatbed carriers on Isuzu, Dongfeng, Howo, Foton, Iveco and Shacman chassis, LHD or RHD, driven off the ship and straight to work. Same factory in Suizhou, same people you are talking to here. Mounting equipment on a chassis you already run usually costs far less import duty; a complete truck saves you sourcing the chassis and finding a body shop.
