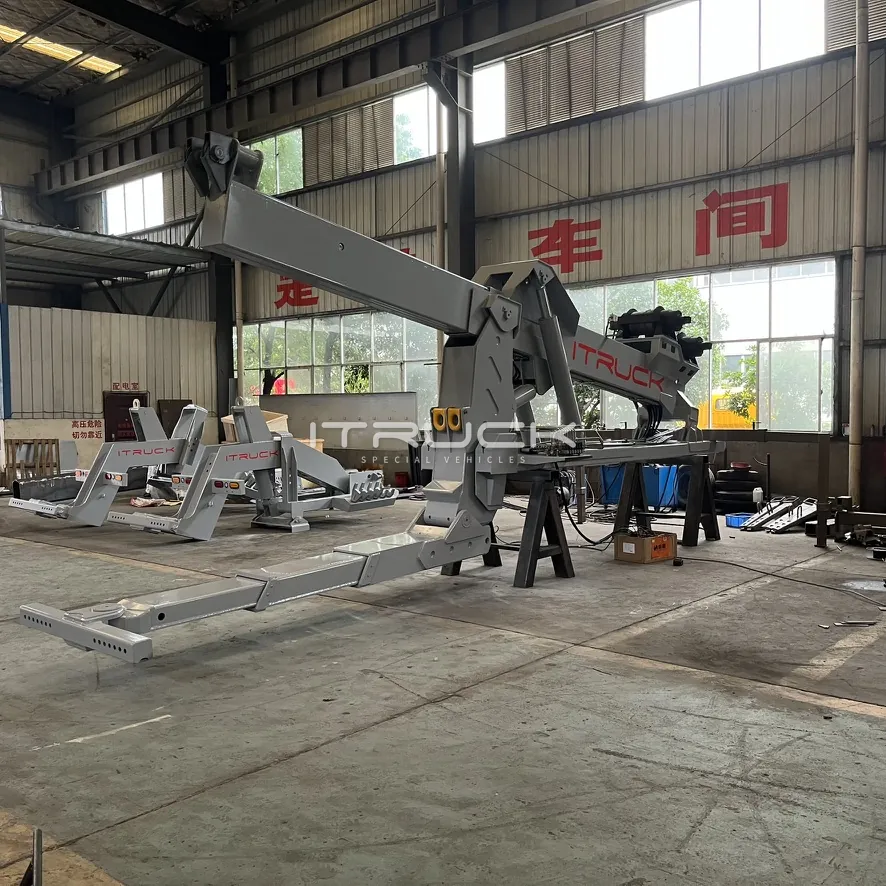

Grey heavy DTU with the underlift fully extended across the floor
Underlift fully extended

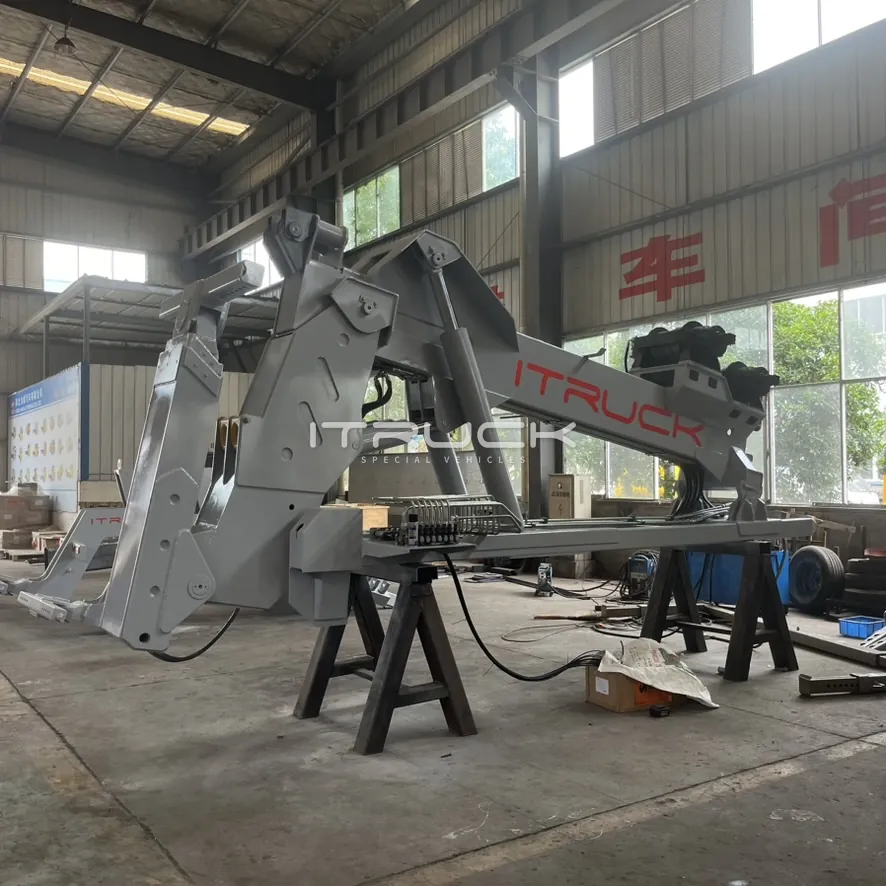

Grey heavy detachable tow unit on stands, boom and underlift stowed
On stands, stowed

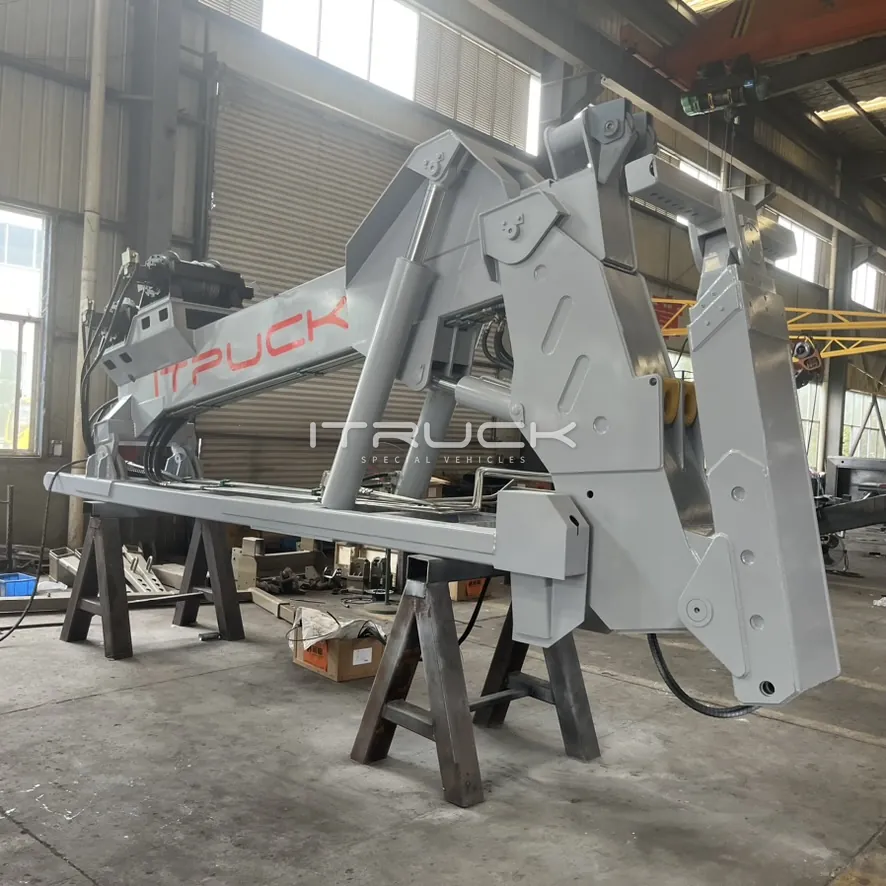

Heavy DTU rear three-quarter view showing the boom frame
Rear three-quarter view

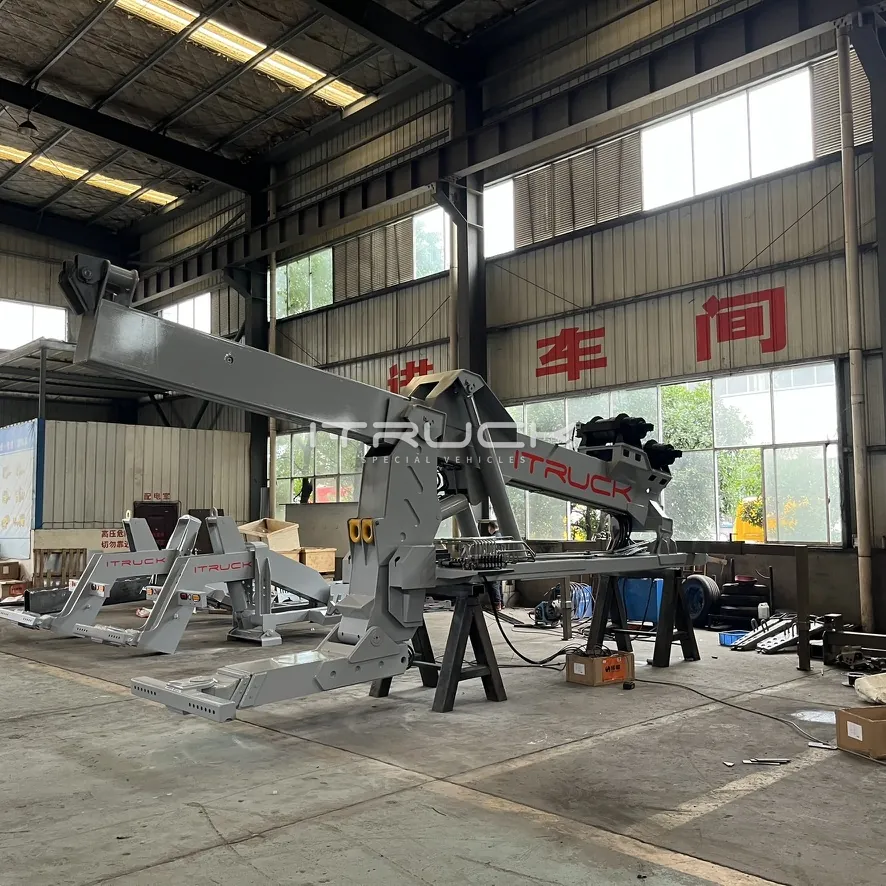

Grey DTU side view with the underlift extended
Side view, underlift out

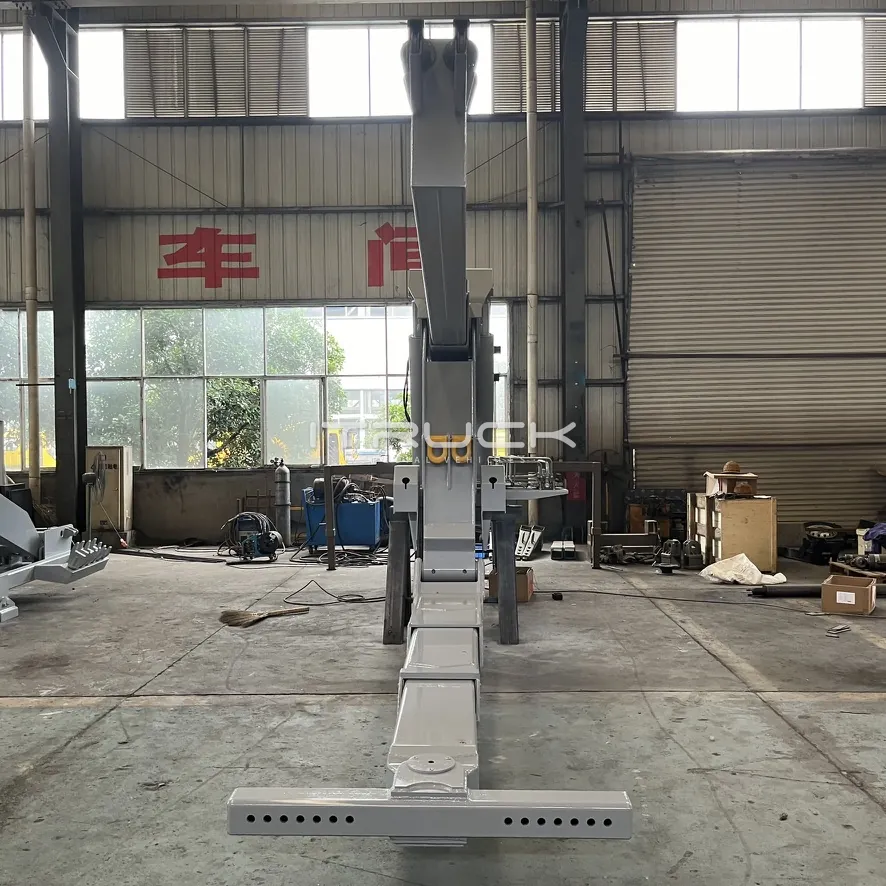

Heavy DTU rear view with underlift and crossbar extended
Rear view, underlift extended

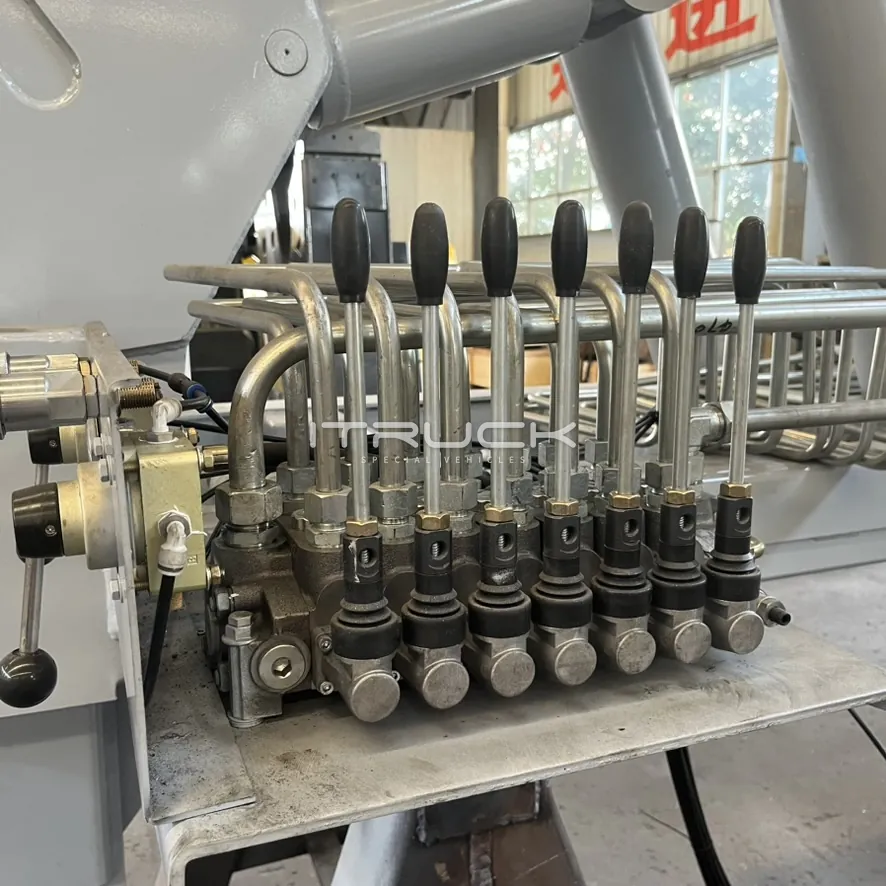

Multi-lever hydraulic control valve bank on the DTU
Control valve bank

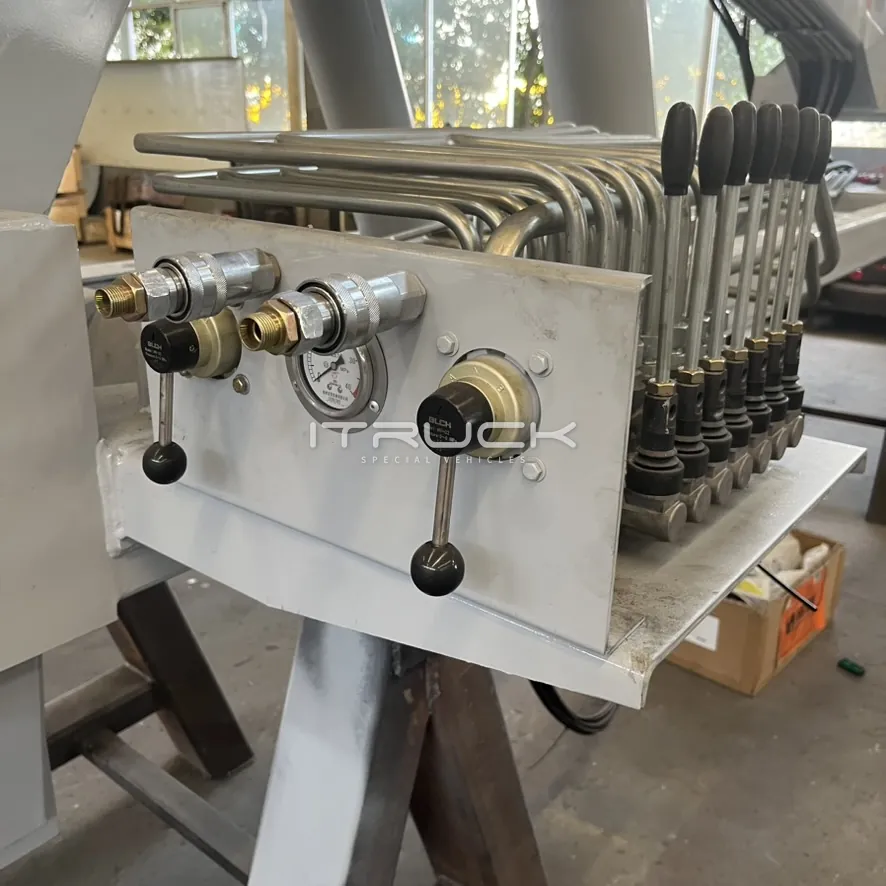

Manual control station with levers and pressure gauge
Manual control station

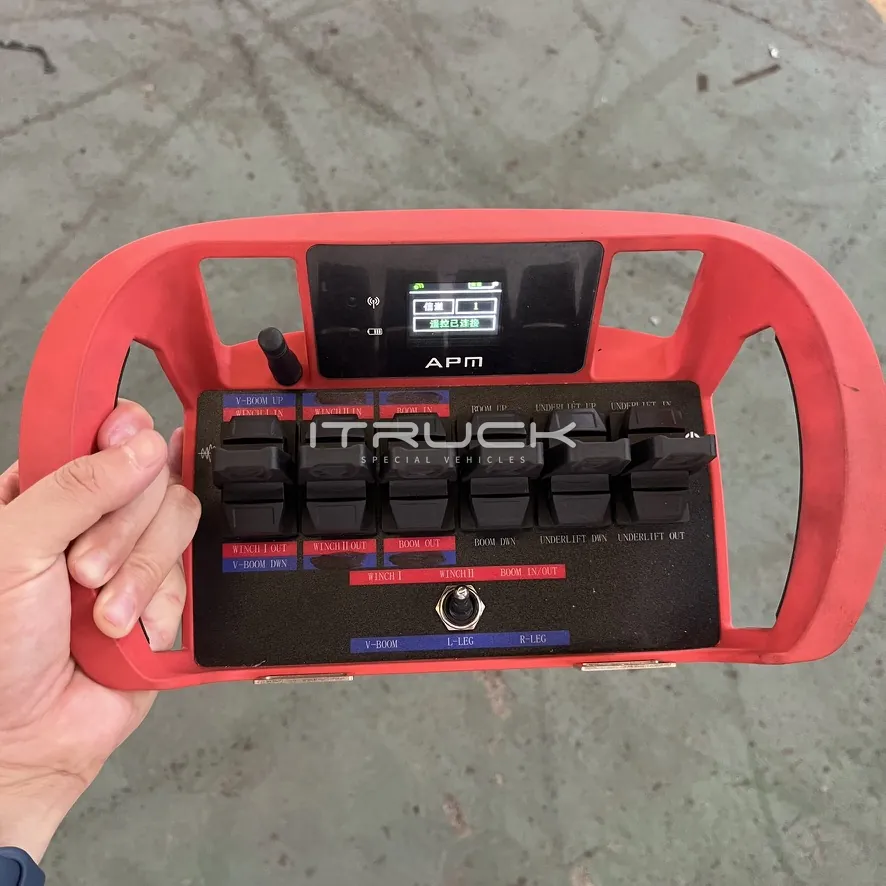

Handheld push-button radio remote control transmitter
Radio remote control

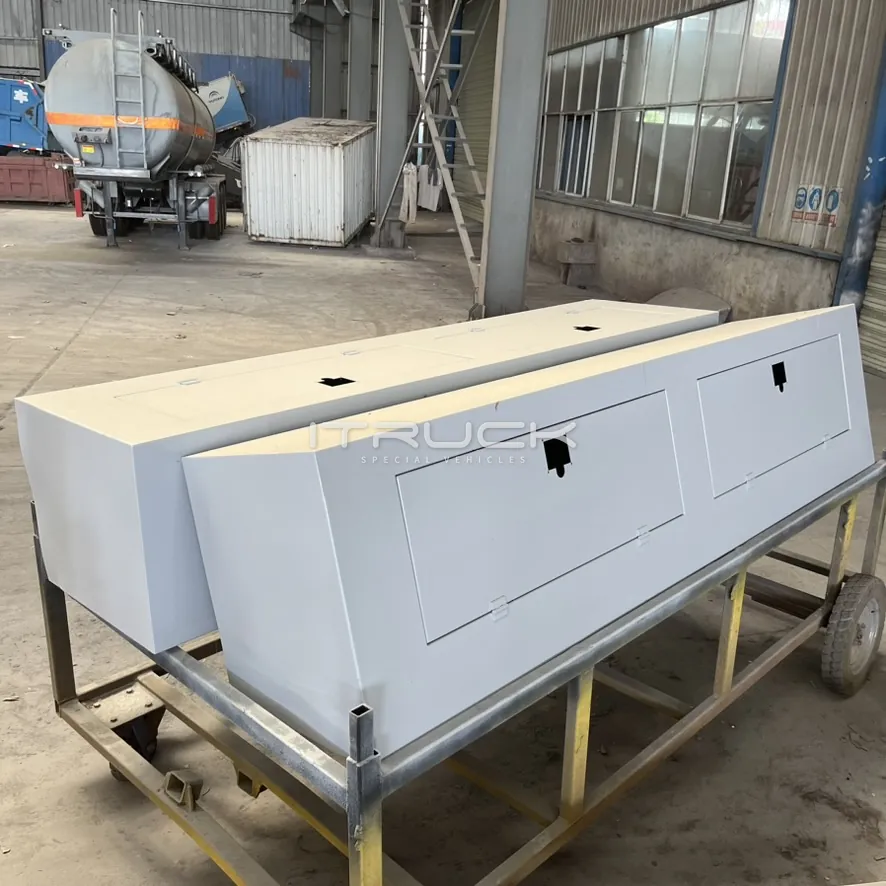

Pair of grey toolboxes on a cart before fitting
Toolboxes before fitting

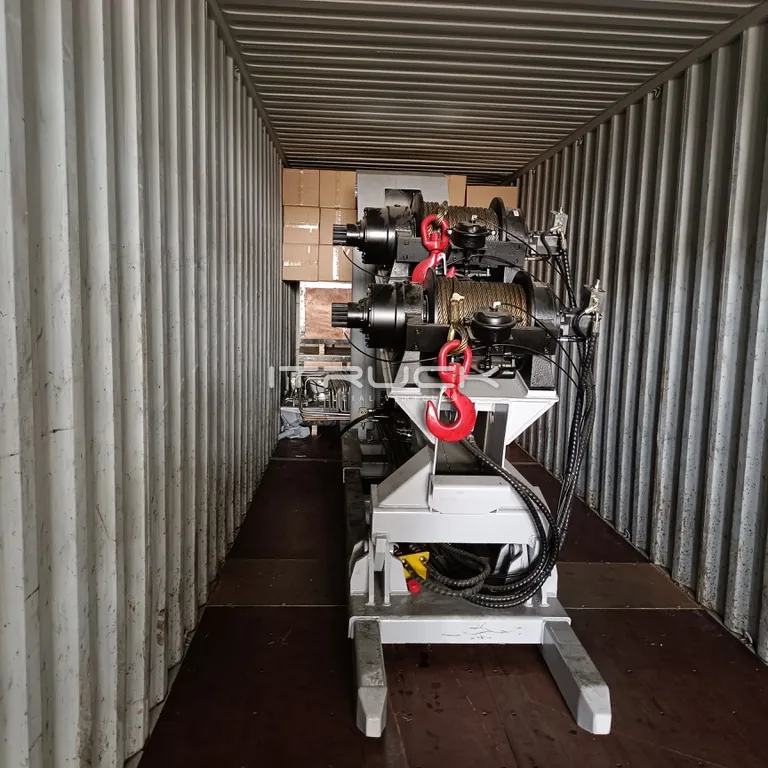

Heavy DTU with twin winches loaded in a shipping container
Loaded in a container
1 / 10

Photos are for reference only. Options may be shown.

Detachable Tow Unit · Heavy Duty

Detachable Tow Unit 30T

The heaviest unit in our DTU range: a 30 t two-stage boom, a 25 t three-stage underlift and twin 15 t winches on a bolt-on subframe, for heavy truck and bus recovery.

30 tBoom lift capacity
25 tUnderlift capacity
50–75 tTowing capacity
2 × 15 tMain winches
  • Lead time50–80 days after deposit and drawing approval
  • Container loadingAssembled: 2 per 40' HQ · knock-down: 2 per 20' GP or 4 per 40' HQ
  • Price basisEXW Suizhou · FCA on request
Technical Specifications

Specifications by rating

Item30T
Underlift capacity — retracted25 t
Underlift length — retracted1,650 mm
Underlift capacity — extended6.5 t
Underlift length — extended3,150 mm
Underlift down-tilt−10°
Towing capacity50–75 t
Boom lift capacity — retracted30 t
Boom lift capacity — extended (33–35°)7.8 t
Boom stages2
Main winches — line pull each2 × 15 t
Winch typePlanetary
Cable length45 m
Cable diameter20 mm
Tow bar size1,400 × 127 × 12.7 mm
Forks56 mm
Fork receiver57 mm
Height — cylinders retracted / in service~2,000 / 2,680 mm
Approx. net weight~8 t

All tonnages are metric tons (1,000 kg).

Every unit is built to the chassis; final dimensions, weights and reach figures follow the chassis specification.

Extended-boom lifting figures require the rear hydraulic stabilizer legs to be fitted and deployed.

Standard Equipment

What comes with every unit

Winches

  • Main winches 2 × 15 t, planetary — DOT certified

Boom

  • HG70 steel boom, 2-stage, hexagonal section

Underlift

  • HG70 steel underlift, 3-stage

Toolboxes

  • Toolboxes ×2, carbon steel Q235

Subframe

  • Carbon steel Q355B subframe

Hook-ups

  • Air and electrical hook-ups — 12 V or 24 V, DOT

Hydraulics

  • Hydraulic pump — splined 6- or 13-tooth, or keyed single shaft, DOT
  • Hoses and connectors — DOT
  • Control valves — DOT
  • Cylinders — DOT

Control

  • Radio remote control — push-button transmitter, standard
  • Manual control stations ×2 — one each side, English markings

Attachments

  • Forks ×5 sets — 4 for axles, 1 for suspension
  • Fork receivers and U-shaped tire holder ×1 set each
  • Safety chains ×2, with chain pockets on the toolbox
  • D-rings ×2–4

Lights

  • Tail lights ×2 per side — DOT

Painting

  • Standard primer
  • Epoxy topcoat
  • E-coat — optional
  • Toolboxes wrapped to protect the paint in transit
Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

Knock-down shipping (toolboxes removed, boom and underlift detached) fits more units per container but adds unloading and assembly at destination.

Custom colors are matched as closely as possible from a RAL code or sample photo; a slight difference cannot be excluded.

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.

Fifth wheel wrecker / DTU
Fifth wheel wrecker / DTU
01Frame width
Outside edges of both frame rails.
Frame width
02Frame height
Ground to top of frame.
03Fifth wheel to frame end
Fifth wheel centre to rear frame end.
04Fifth wheel height
Frame top to highest fifth wheel point.
05System voltage
Confirm with the chassis manufacturer.
12 V / 24 V

Keep the fifth wheel installed when measuring.

Schematic - not to scale · mm / in
