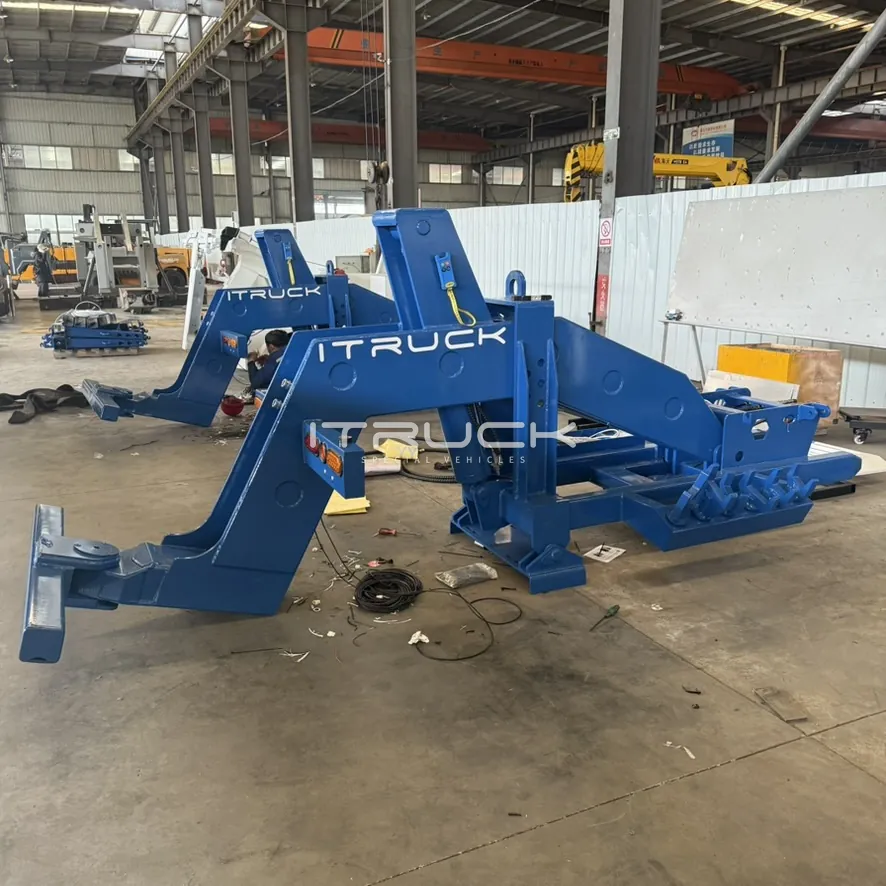

Blue heavy fifth wheel wrecker with the underlift extended
Heavy unit, underlift out

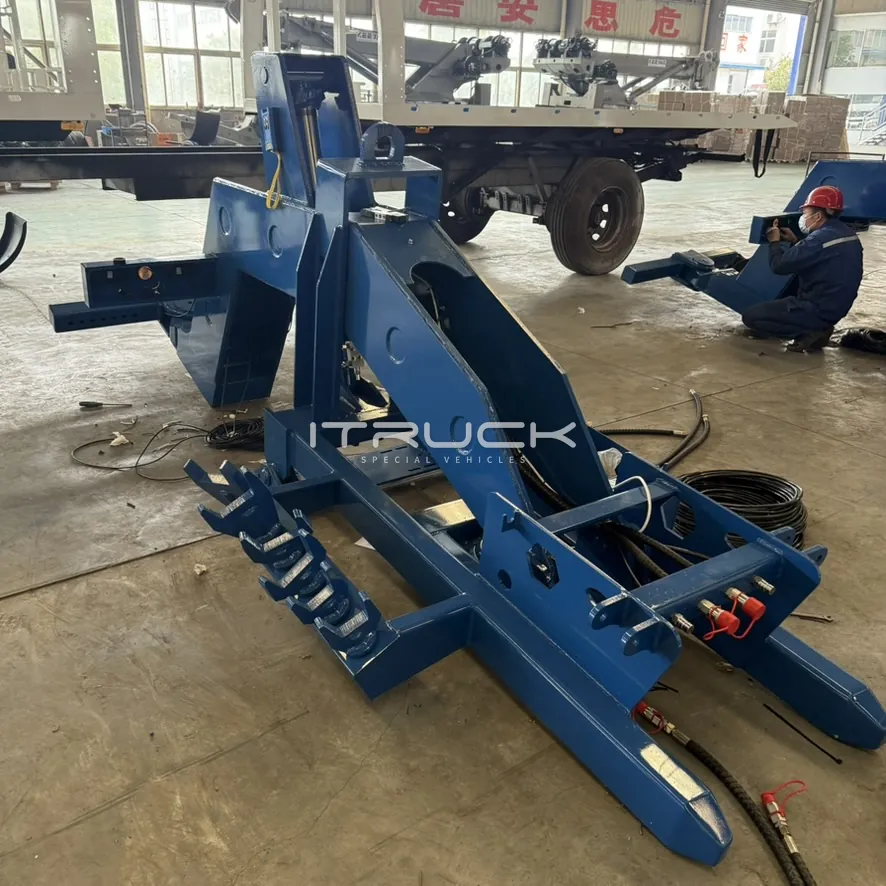

Heavy fifth wheel wrecker frame with fork rack and hydraulic couplings
Fork rack and couplings

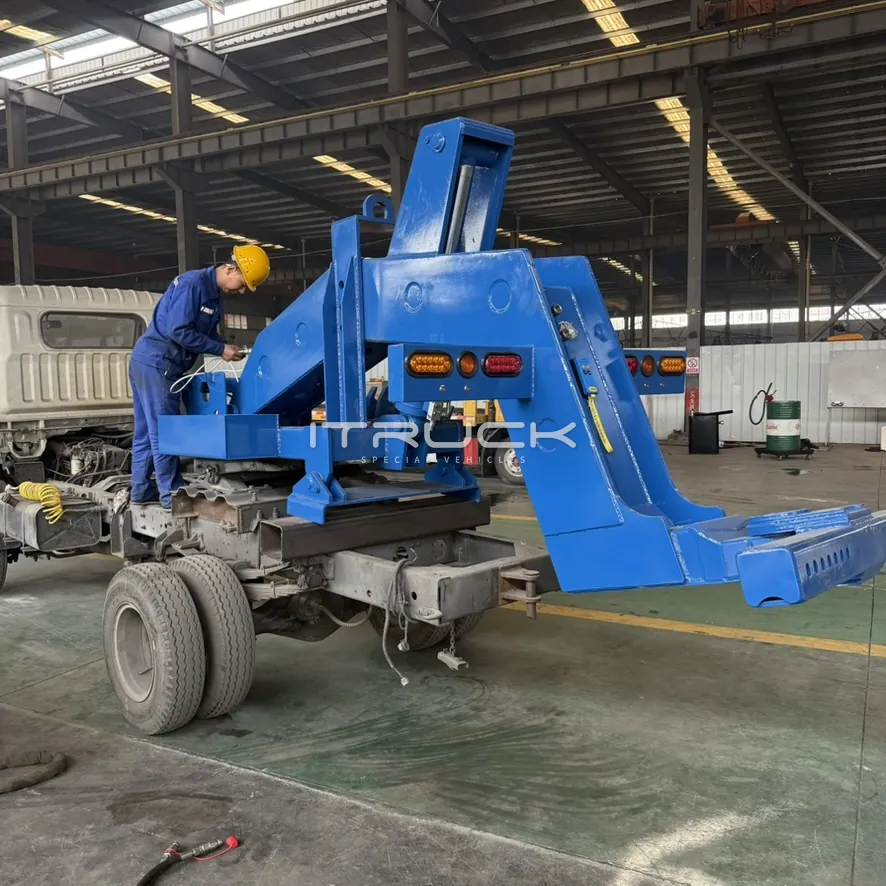

Heavy fifth wheel wrecker coupled to a truck in the workshop
Coupled to a truck

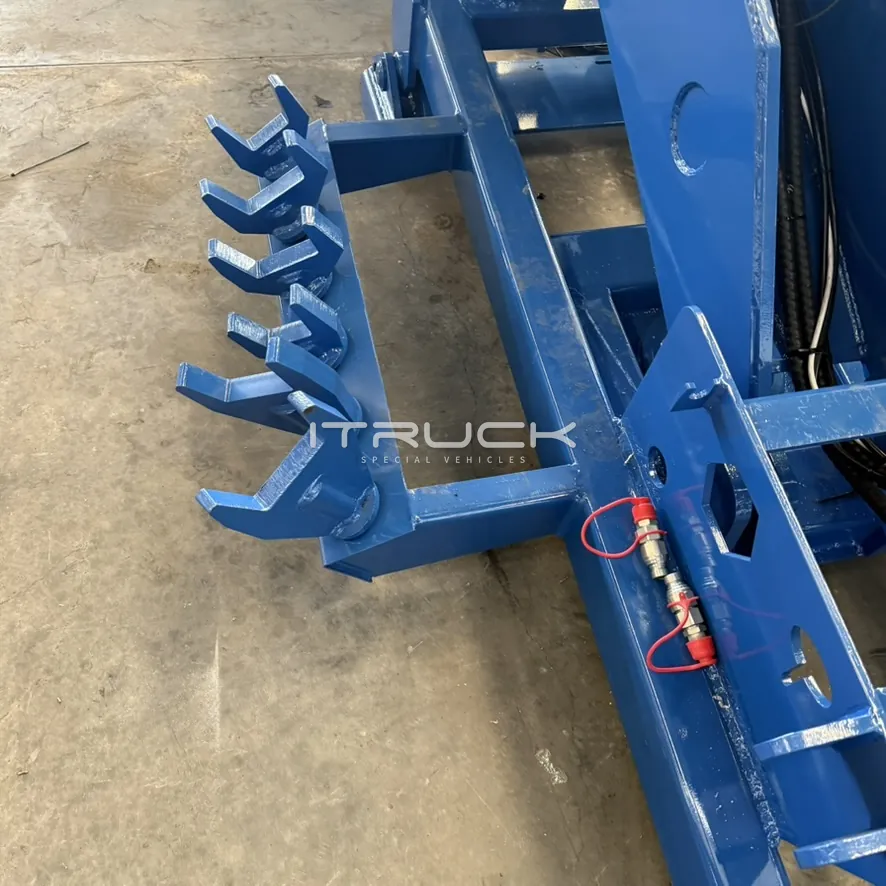

Fork sets stored in a rack on the wrecker frame
Fork rack

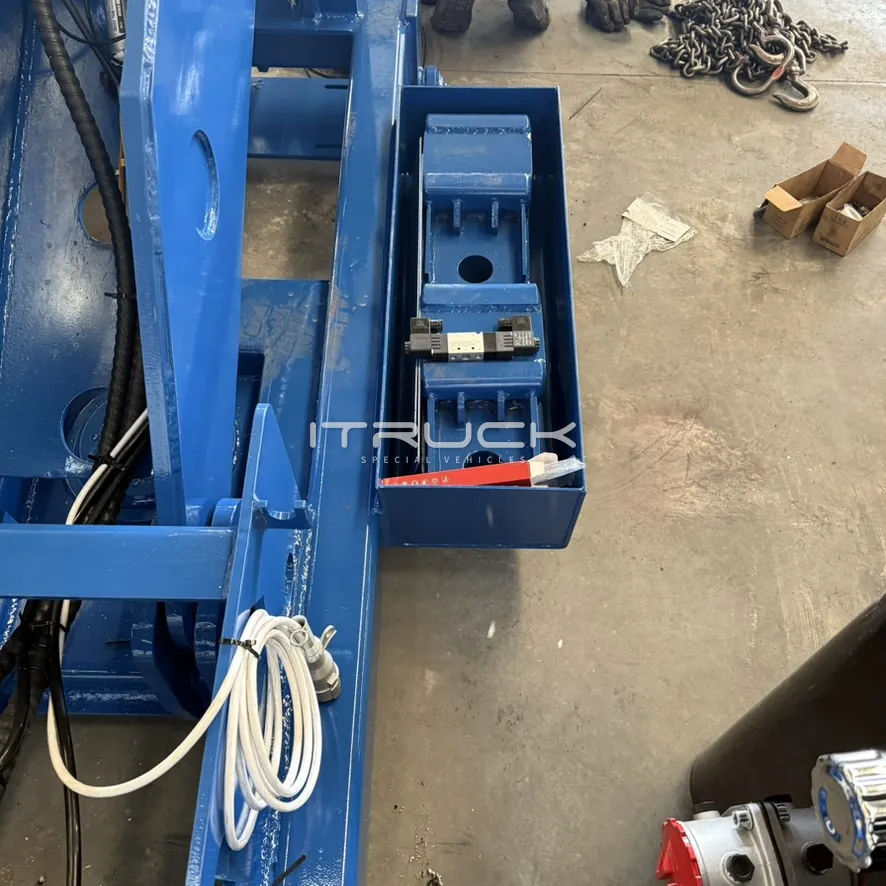

Storage tray with fork receiver on the underlift frame
Storage tray on the frame

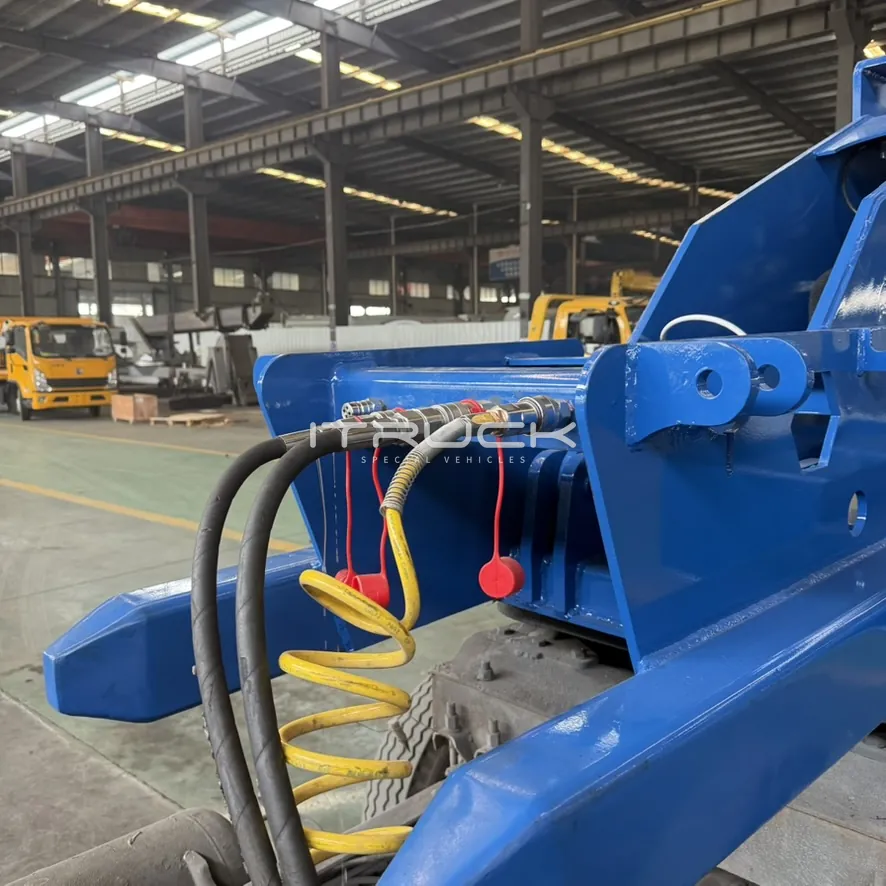

Hydraulic and air quick connectors on the wrecker frame
Quick connectors

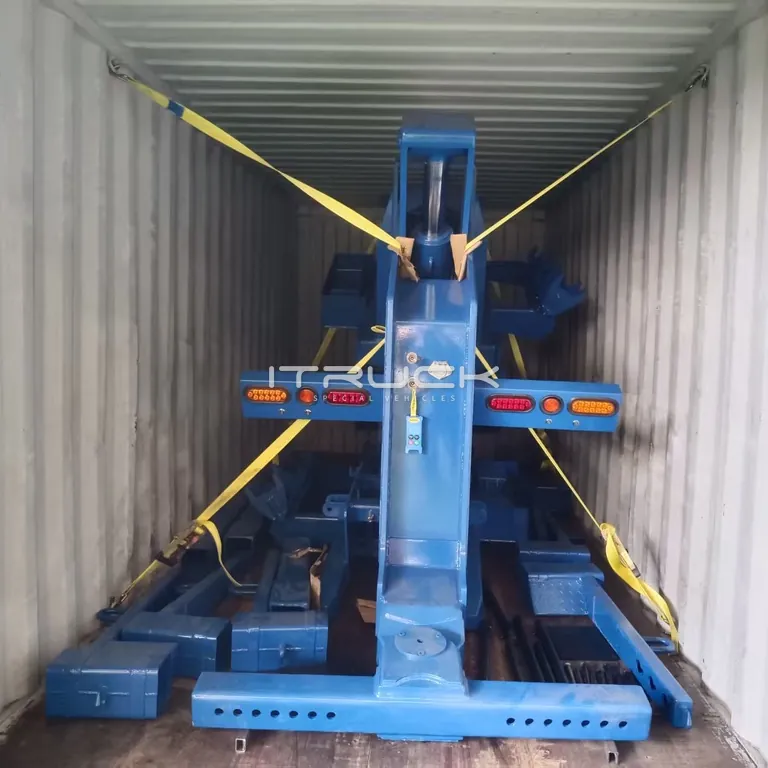

Heavy fifth wheel wrecker strapped inside a shipping container
Loaded in a container

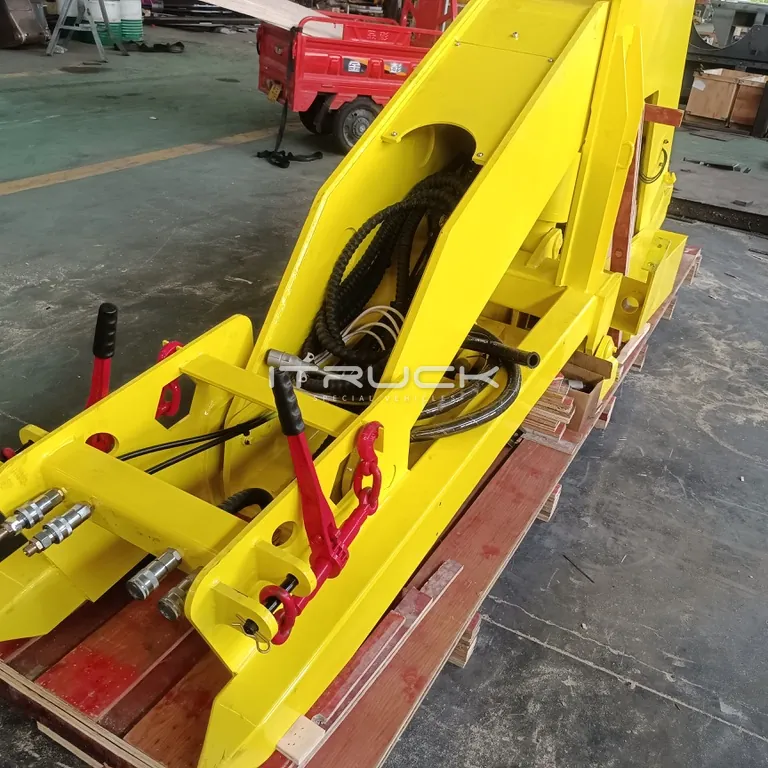

Yellow fifth wheel wrecker frame with hydraulic lines on a pallet
Yellow build on a pallet

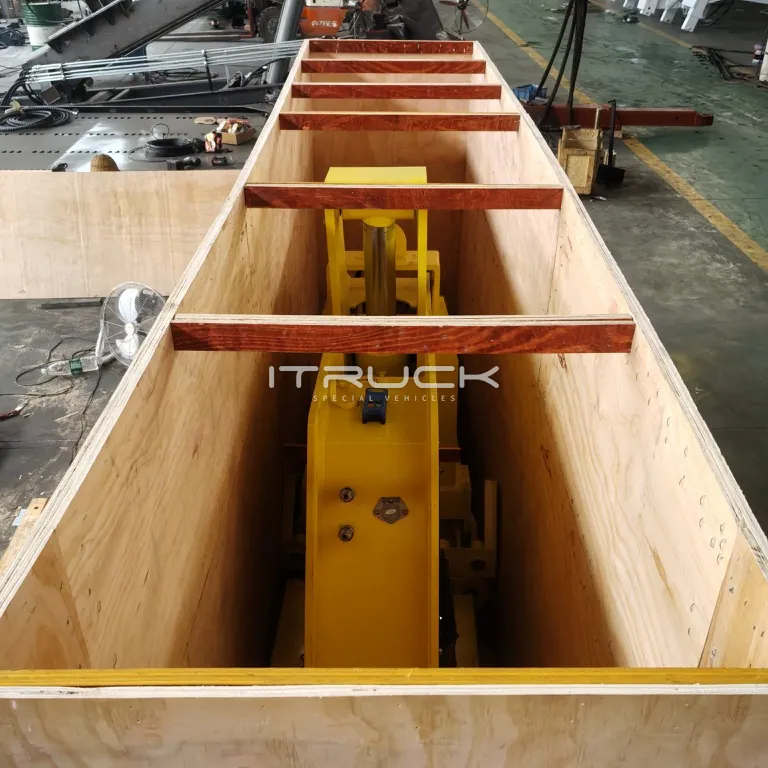

Yellow fifth wheel wrecker packed in an open wooden crate
Wooden crating

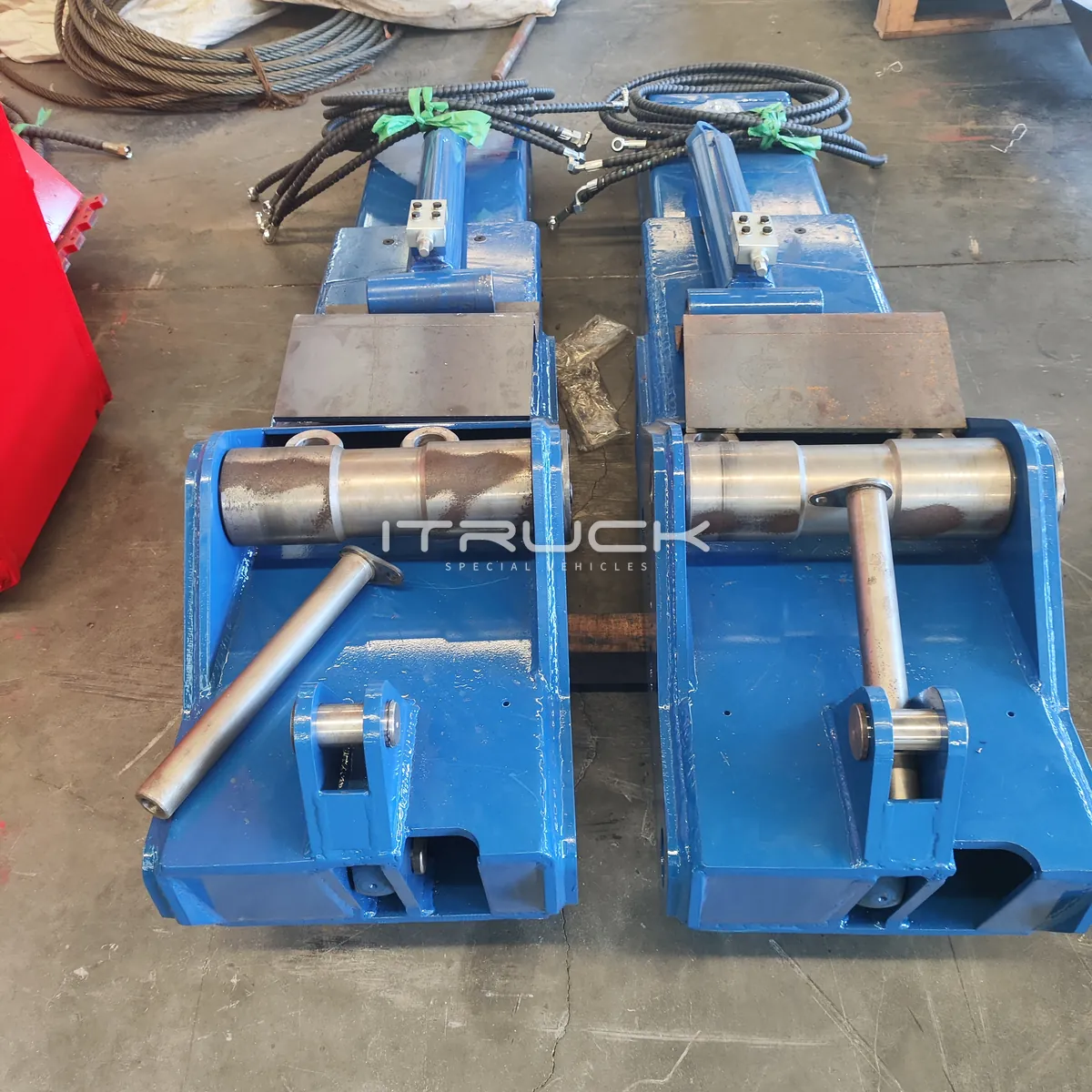

Pair of blue mounting blocks with pivot pins and hoses
Mounting blocks and pins
1 / 10

Photos are for reference only. Options may be shown.

Fifth Wheel Wrecker · Heavy Duty

Fifth Wheel Wrecker 16T / 25T

A PTO-driven tow system that couples to a tractor's fifth wheel and turns it into a heavy wrecker, with a standard underlift or a telescopic underlift that extends from 1,290 to 2,435 mm.

16 / 25 tLift capacity
32 / 50 tTow rating
1,290 / 2,435 mmTelescopic underlift, retracted / extended
PTODrive
  • Lead time30 days after deposit
  • Container loading6 per 20' GP · 12 per 40' HQ, unpacked and stacked
  • Price basisEXW Suizhou · FCA on request
Request a Quote WhatsApp Us
Technical Specifications

Specifications by rating

Item16T25T16T Telescopic25T Telescopic
Lift capacity16 t25 t16 t25 t
Tow rating32 t50 t32 t50 t
Underlift length — retracted / extended—1,290 / 2,435 mm
Overall dimensions4,100 × 1,560 × 1,850 mm
Approx. net weight~1,500 kg~1,800 kg~2,200 kg~2,500 kg
Kingpin50 mm (2")
Pump drivePTO

All tonnages are metric tons (1,000 kg).

Telescopic: the underlift must be fully lowered and unfolded before lifting or towing. The folding cylinder only stows the underlift and must never lift a load.

Standard Equipment

What comes with every unit

Mounting

  • Mounts on the host vehicle's fifth wheel — 50 mm (2") kingpin
  • Telescopic underlift extension (Telescopic)

Underlift

  • Underlift arm — 1,290 mm retracted / 2,435 mm extended (Telescopic)
  • Telescopic cylinder ×1 — underlift extension (Telescopic)
  • Folding cylinder ×1 — stows the underlift only; lifting is by the main cylinder (Telescopic)

Hydraulics

  • Boom lift cylinder ×1
  • PTO-driven pump
  • Hose set ×1

Control

  • Wireless remote control ×1 set
  • Manual control — both sides

Attachments

  • Forks ×3 sets
  • Fork receiver ×1 set
  • Ratchet tie-downs ×2

Hook-ups

  • Hydraulic quick connectors ×2
  • Pneumatic quick connectors ×2
  • Electrical connector ×1

Lights

  • Lights ×6 sets

Painting

  • Standard primer
  • Epoxy topcoat
Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

Custom colors are matched as closely as possible from a RAL code or sample photo; a slight difference cannot be excluded.

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.

Will it fit your truck?
Will it fit your truck?
Get the measurement guide (PDF) →
