Boom and underlift combined on one body — recover, load and tow from a single unit. Built to fit your chassis, HG70 high-tensile booms, planetary DOT winches, shipped to 35+ countries.
An integrated wrecker combines a fixed recovery boom and a hydraulic underlift (wheel-lift) on the same body, so a single truck can winch a casualty, lift it by the wheels and tow it away — no second vehicle needed. Unlike a rotator, the boom is fixed (non-slewing) — for continuous 360° rotation see our rotator range. iTruck builds the full integrated line: light 3–6 ton pickup-mount wrecker bodies at the entry end, and boom-equipped units from 8 to 50 ton for medium and heavy recovery. Every unit is engineered to your chassis — Isuzu, Hino, Freightliner, Kenworth, Dongfeng and more.
| Model | Boom lift (33°) | Wheel-lift | Towing | Main winch | Boom height | CA min 1 | Rear axles 2 |
|---|---|---|---|---|---|---|---|
| 3 T | 3,000 kg | 3,000 kg | 6 t | 1 × 4 t | — | pickup mount | single |
| 6 T | 6,000 kg | 6,000 kg | 12 t | 1 × 6 t | — | ≈3,500 mm | single |

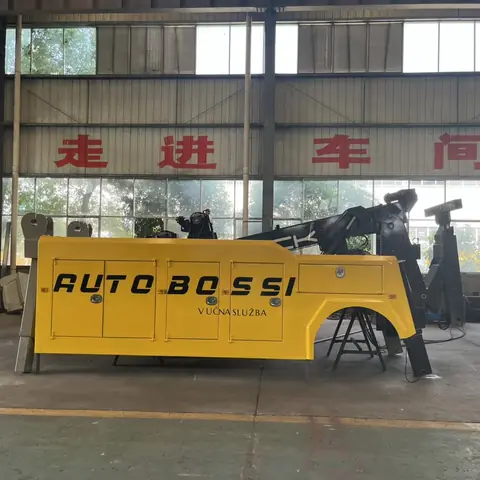

| 8 T | 8,000 kg | 8,000 kg | 16–24 t | 1 × 8 t | 6.2 m | ≥4,500 mm | single |
| 12 T | 12,000 kg | 8,000 kg | 16–24 t | 2 × 8 t | 6.2 m | ≥4,500 mm | single |
| 16 T | 16,000 kg | 10,000 kg | 20–30 t | 2 × 8 t | 6.5 m | ≥5,000 mm | single |
| 16 T | 16,000 kg | 13,000 kg | 24–36 t | 2 × 8 t | 6.5 m | ≥5,000 mm | single |
| 16 T | 16,000 kg | 16,000 kg | 32–48 t | 2 × 8 t | 6.5 m | ≥5,000 mm | single |

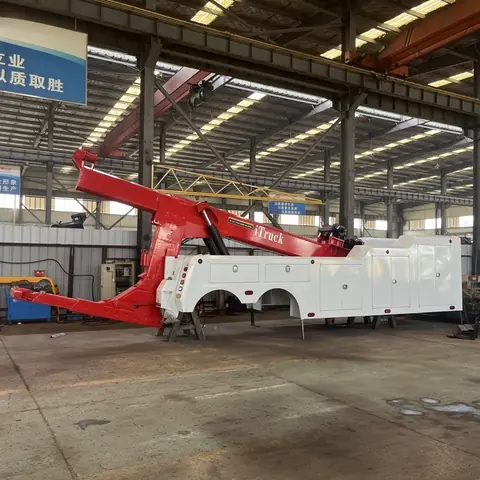

| 20 T | 20,000 kg | 16,000 kg | 32–48 t | 2 × 10 t | 7.1 m | ≥5,000 mm | tandem |
| 20 T | 20,000 kg | 20,000 kg | 40–60 t | 2 × 10 t | 7.1 m | ≥5,000 mm | tandem |
| 25 T | 20,000 kg | 25,000 kg | 50–75 t | 2 × 10 t | 7.1 m | ≥5,000 mm | tandem / 4-axle |
| 30 T | 30,000 kg | 25,000 kg | 50–75 t | 2 × 15 t | 9.0 m | ≥5,000 mm | tandem / 4-axle |
| 30 T | 30,000 kg | 28,000 kg | 56–85 t | 2 × 15 t | 9.0 m | ≥5,000 mm | tandem / 4-axle |

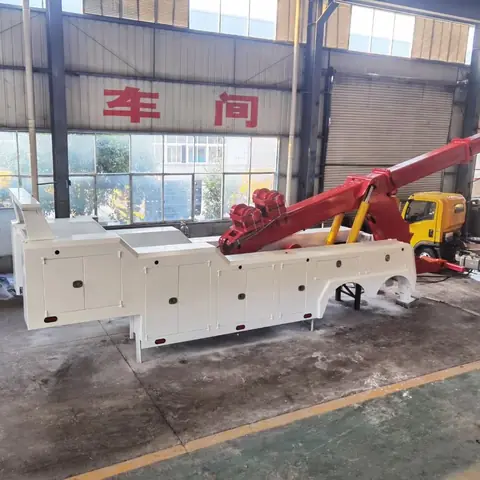

| 40 T | 40,000 kg | 28,000 kg | 56–85 t | 2 × 20 t | 9.0 m | >5,500 mm | 4 / 5-axle |
| 50 T | 50,000 kg | 28,000 kg | 56–85 t | 2 × 25 t | 9.5 m | >5,500 mm | 4 / 5-axle |
All winches are planetary and DOT-certified. The same boom can be paired with different wheel-lift capacities — e.g. a 16 T boom with a 10, 13 or 16 T wheel-lift — so lift capacity is matched to your typical casualty.
1 CA = distance from the cab to the centre of the last axle (not to the rear of the body); heavier units need more margin to reduce later modification. 2 Rear-axle setup is on the finished chassis — integrated units run a single rear axle up to 16 T and a rear tandem from 20 T; 40–50 T use a 4- or 5-axle chassis. Extended / mid-boom ratings and wire specs are on each model's full spec sheet — send your recovery weight and chassis and we'll spec the exact unit.
High-tensile HG70 steel — 2-stage hexagon boom, 3-stage underlift. Q355B structural subframe.
Planetary main winches, DOT-certified, 45 m wire rope. Single or twin winch by model.
Italian Hydrocontrol control valves and Henan Huibo cylinders — all DOT-standard hydraulics.
Manual controls both sides with English marking; wireless button remote optional.
LED side and tail lights to DOT standard, stainless light rack, 12V/24V air & electrical hook-ups.
Epoxy surface paint standard; EP electrophoresis coating on subframe/boom/underlift optional.

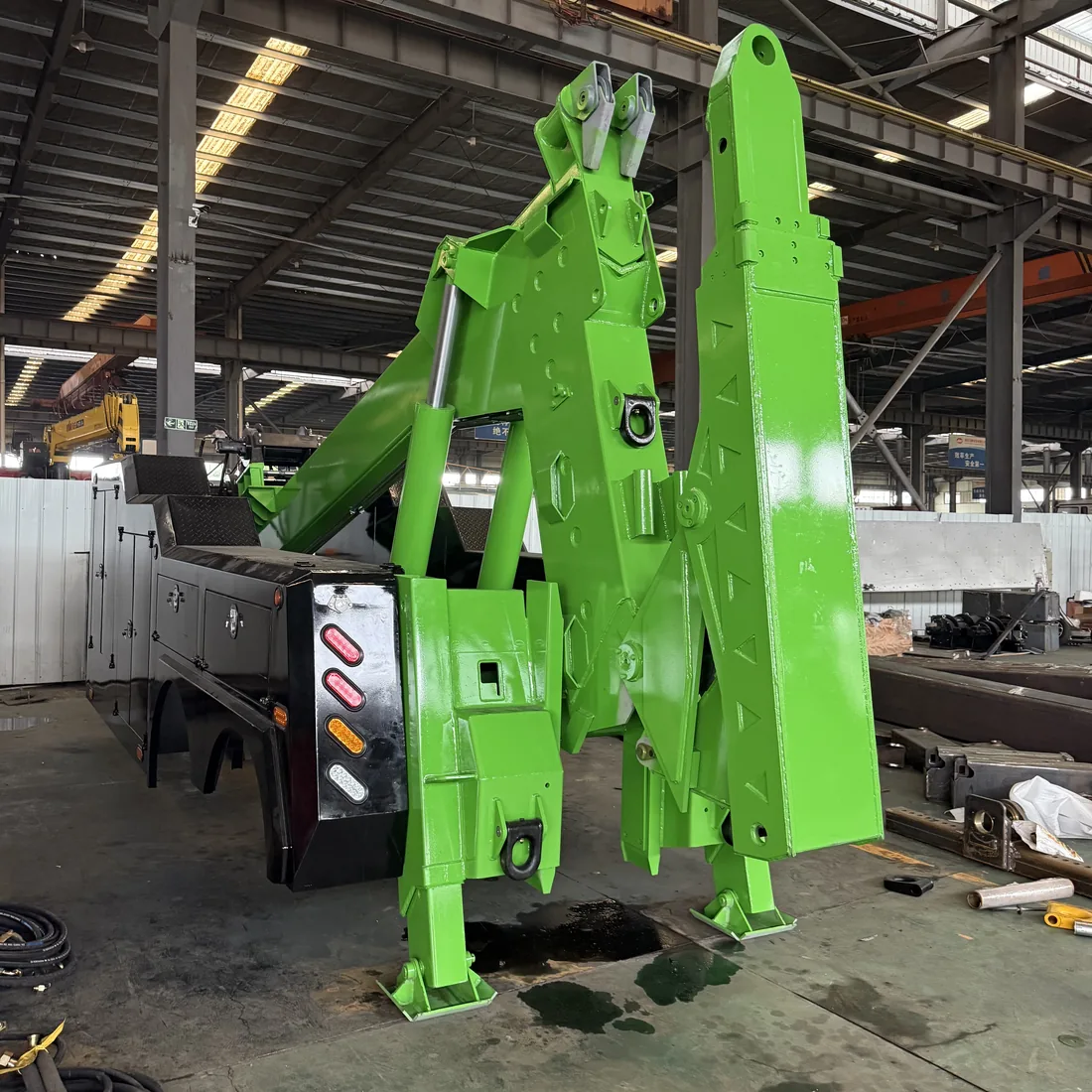

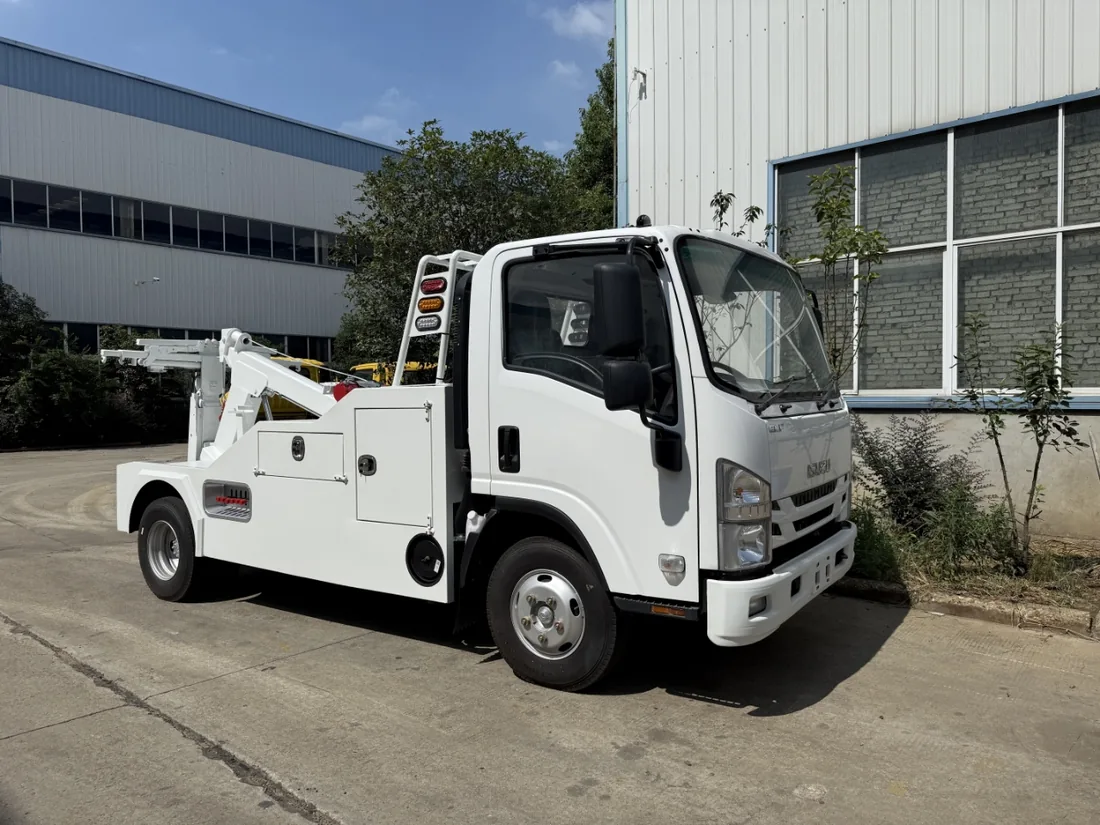

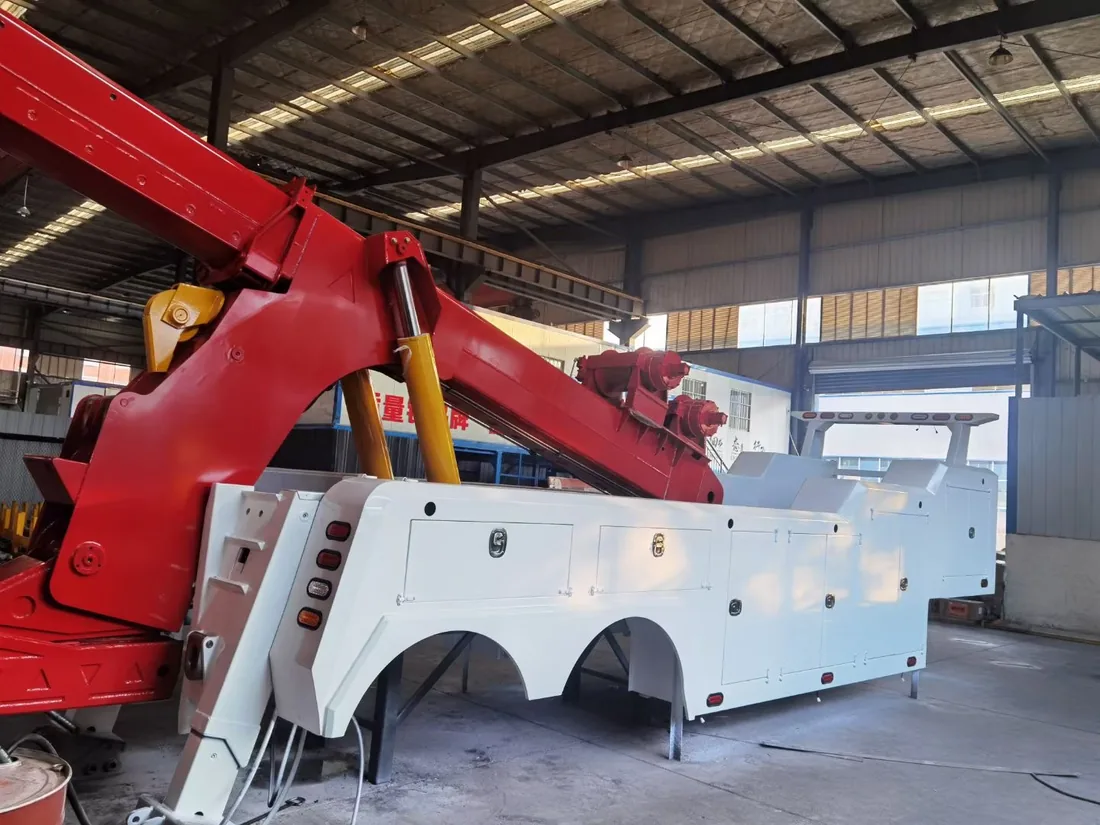

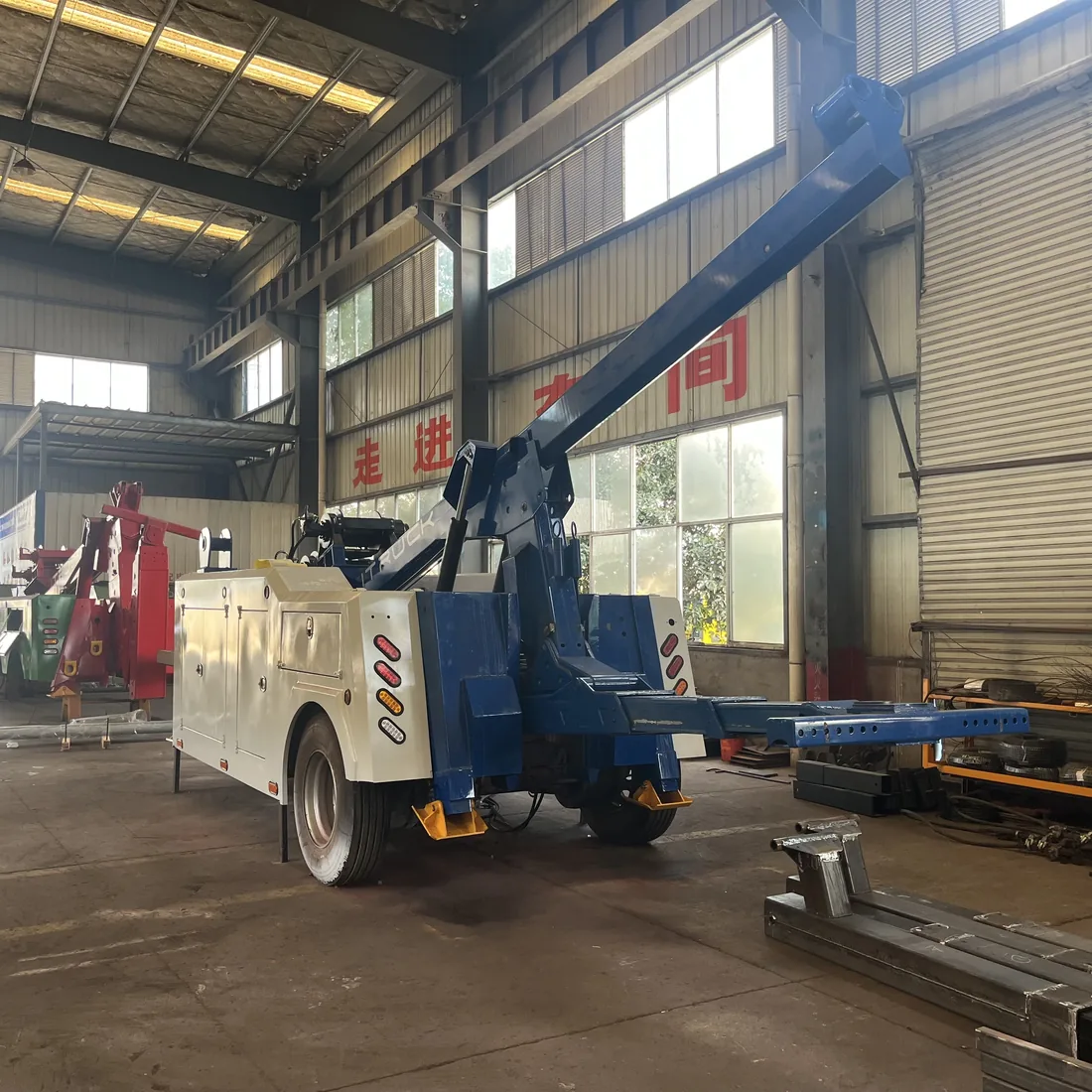

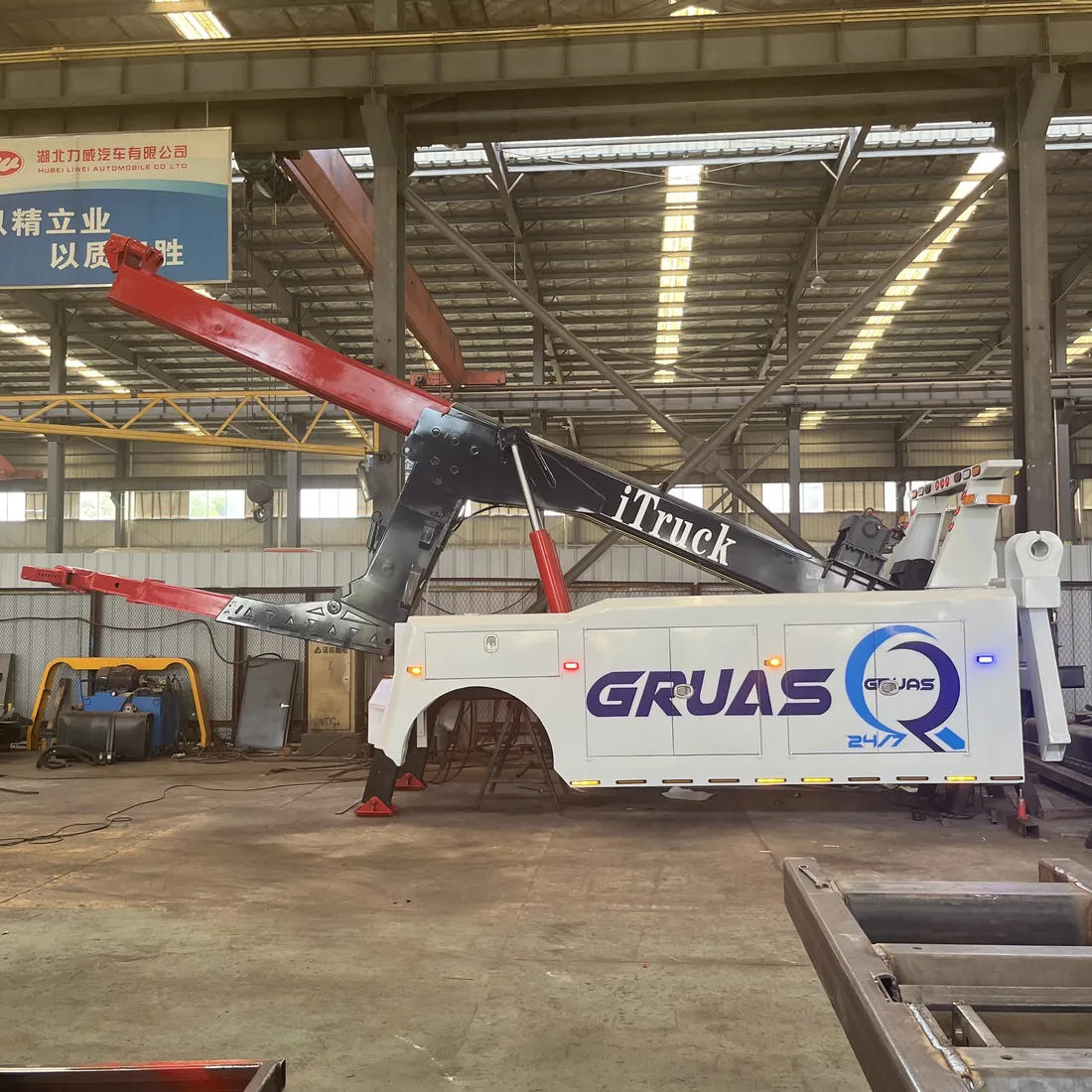

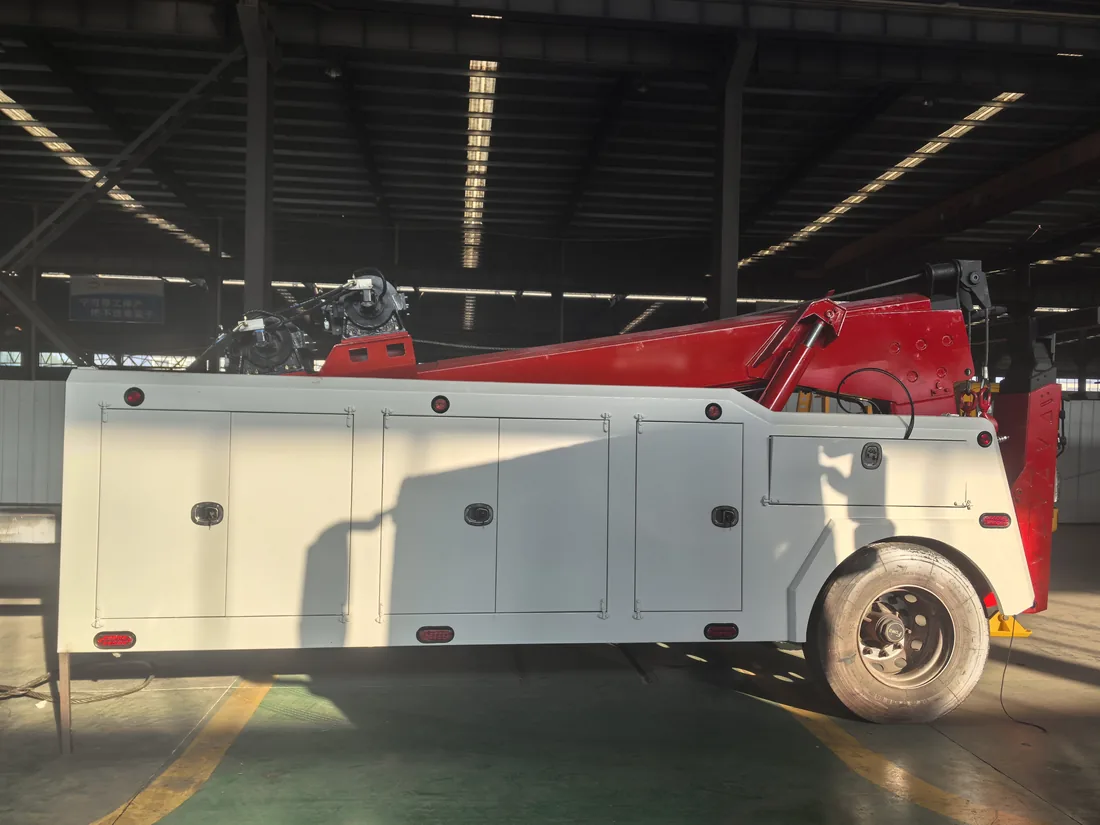

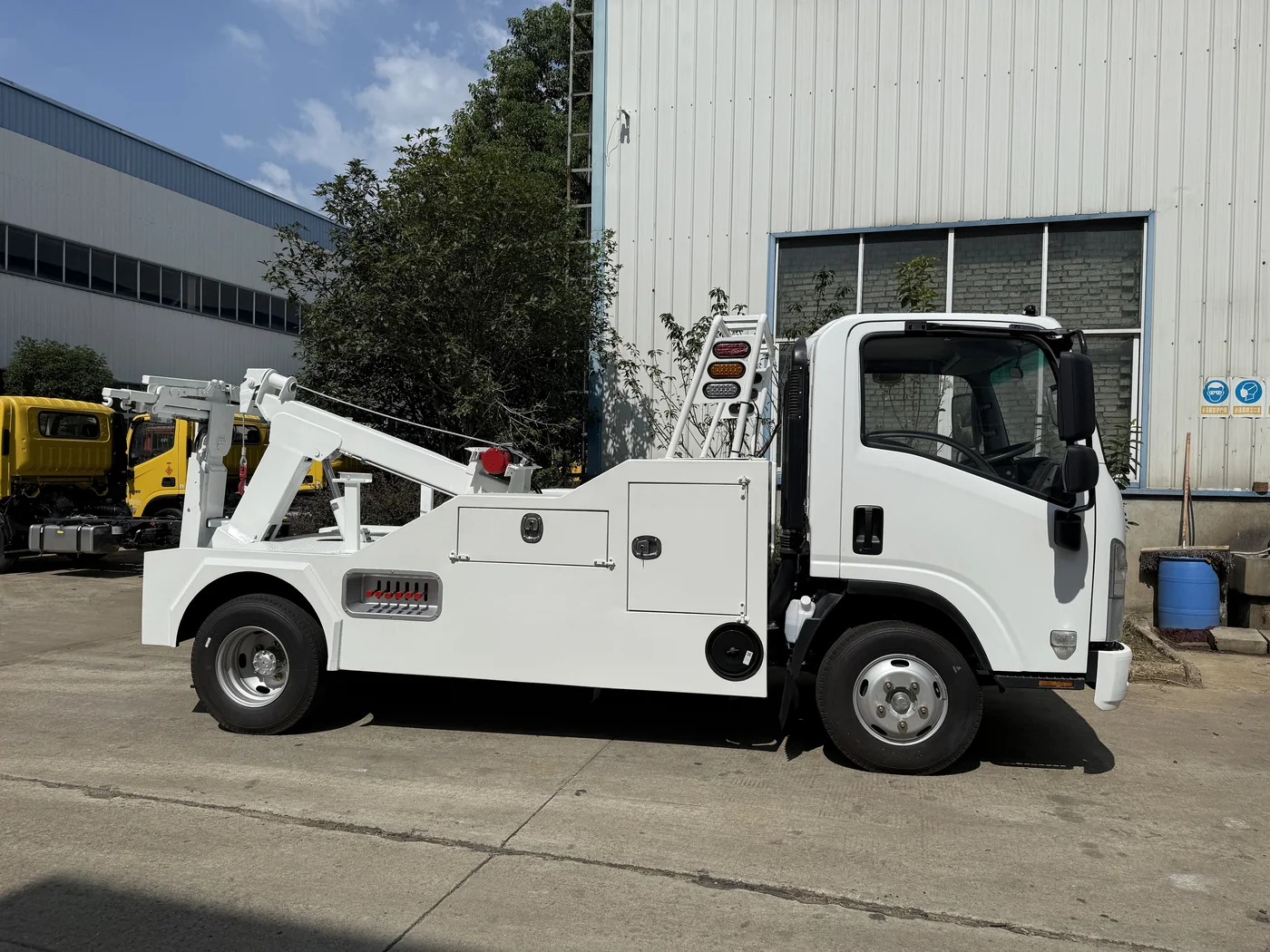

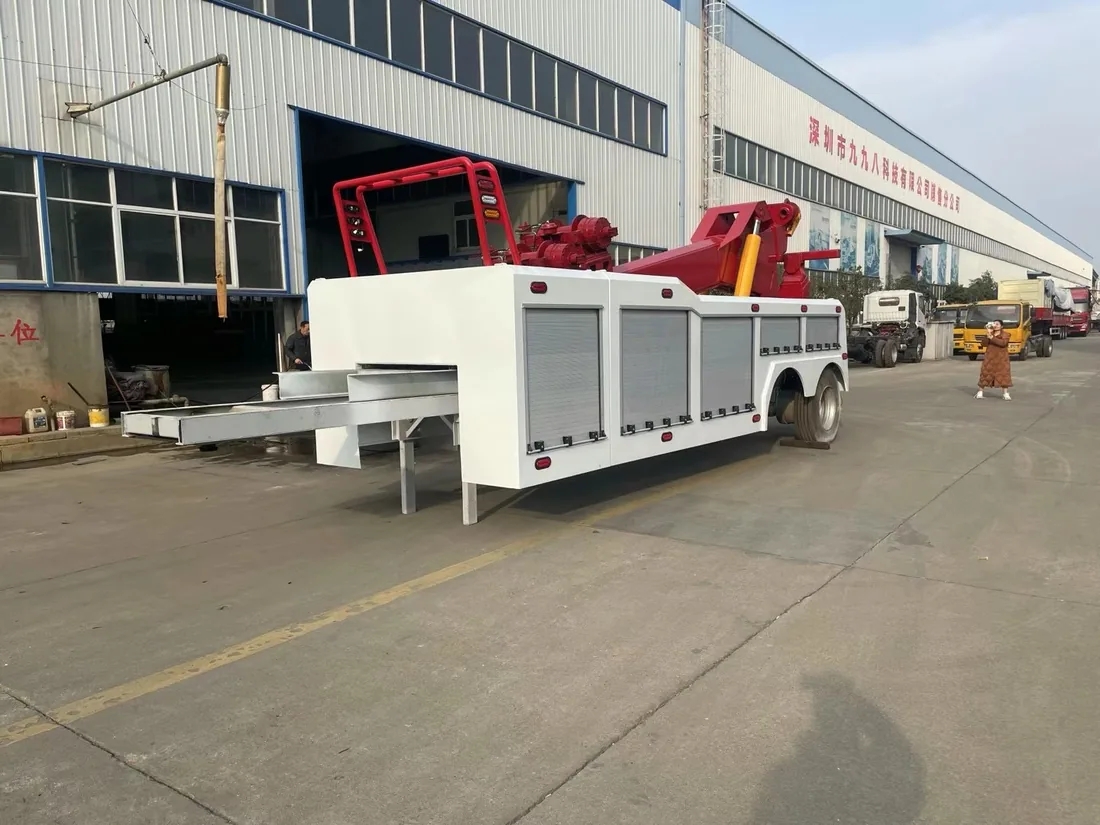

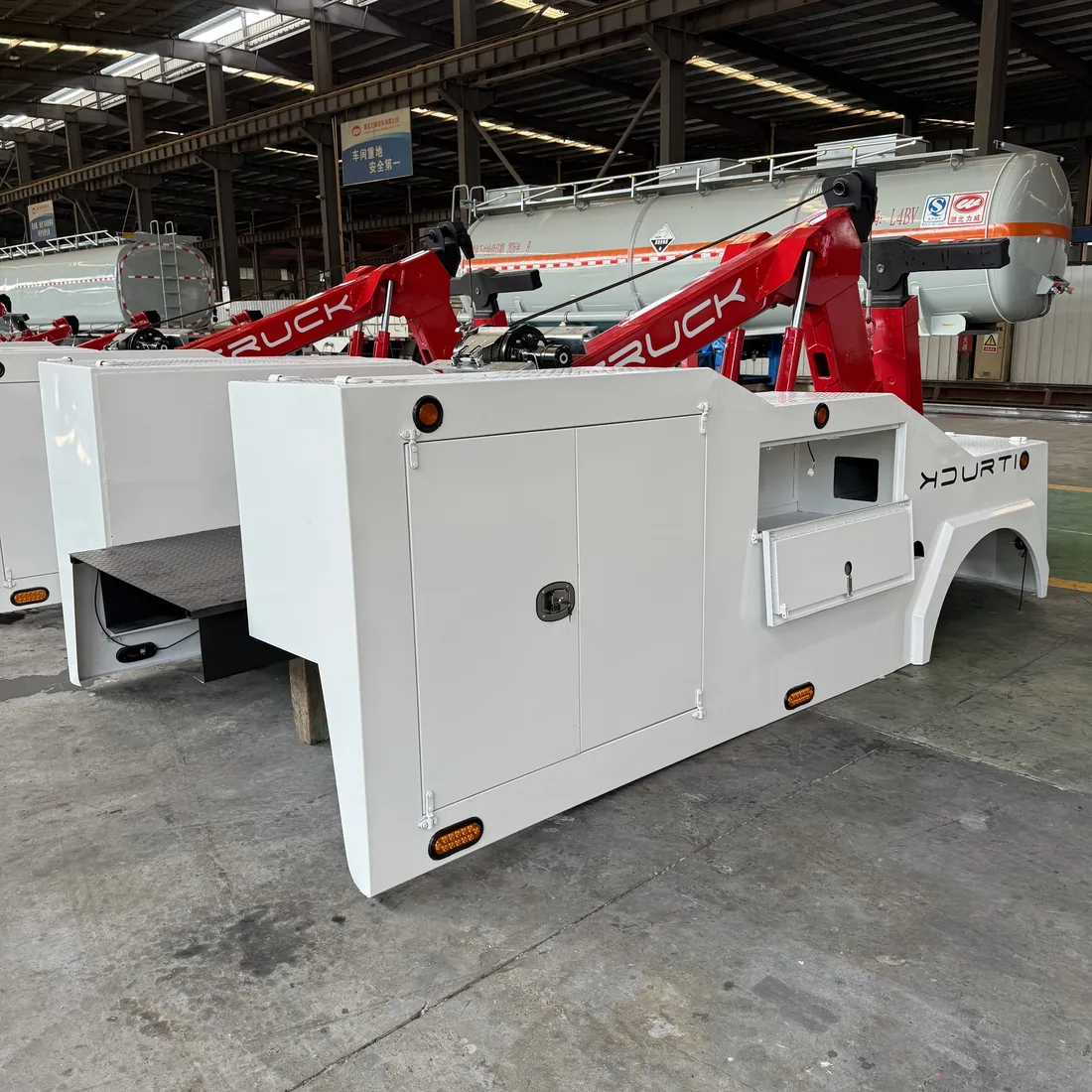

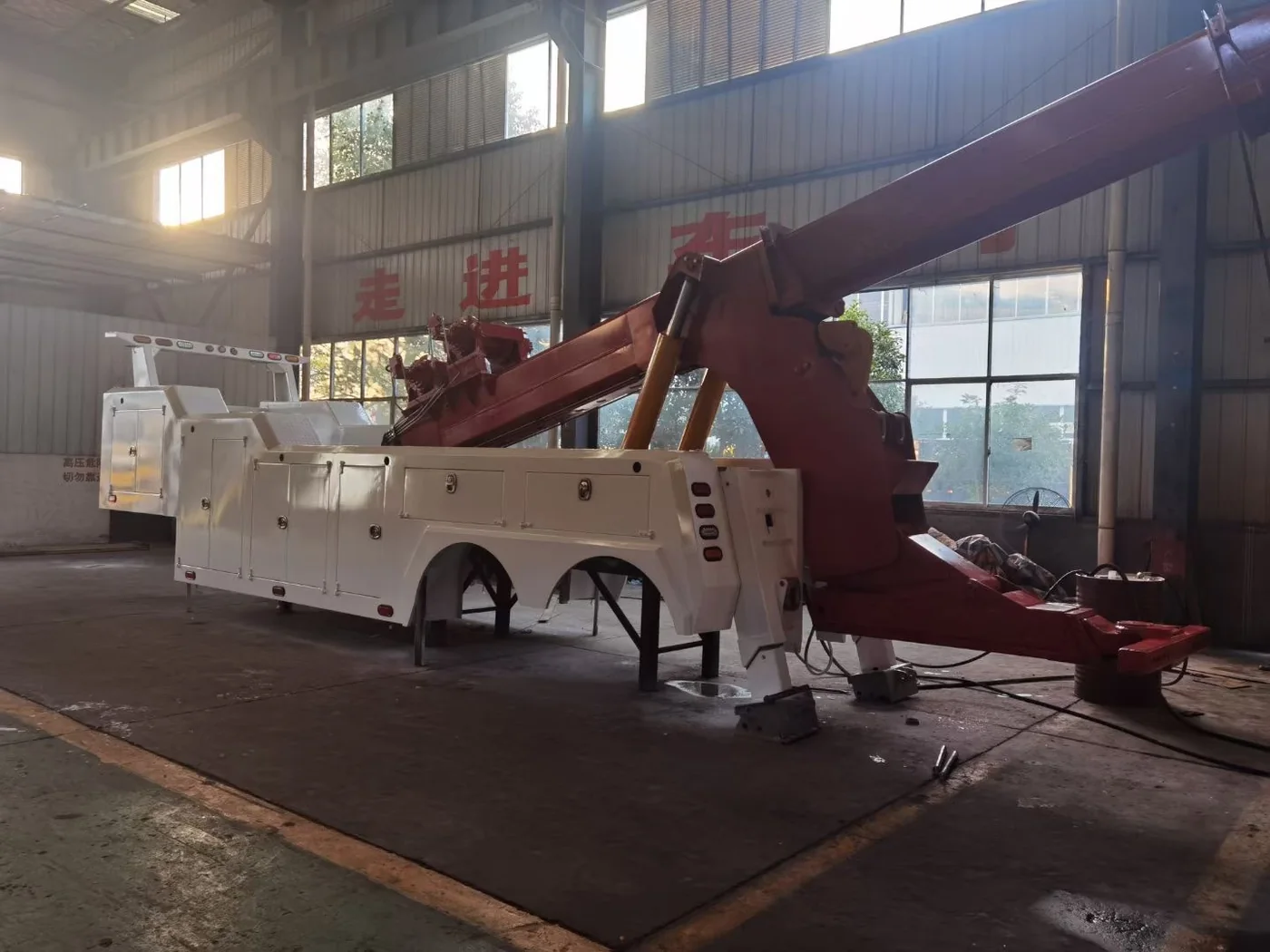

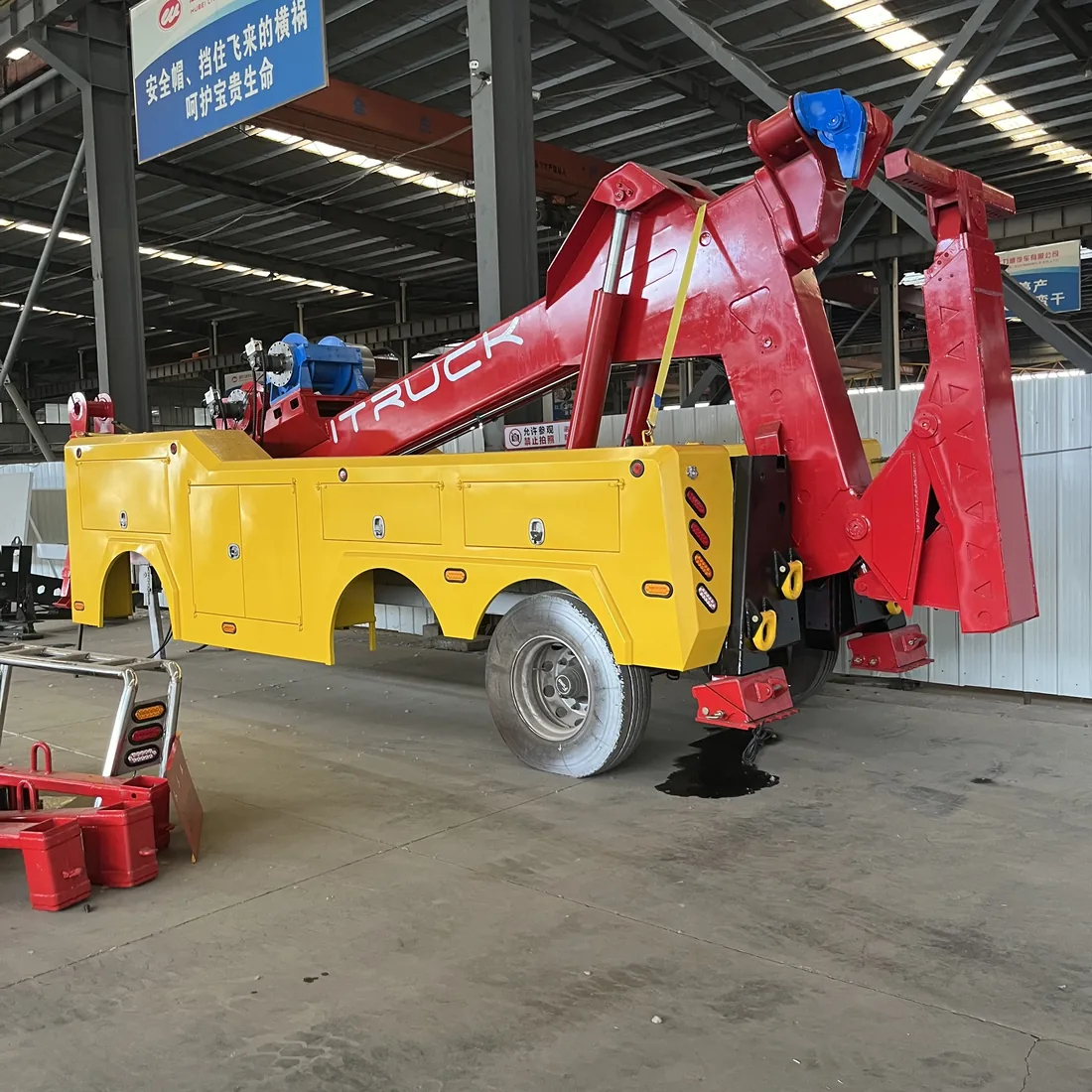

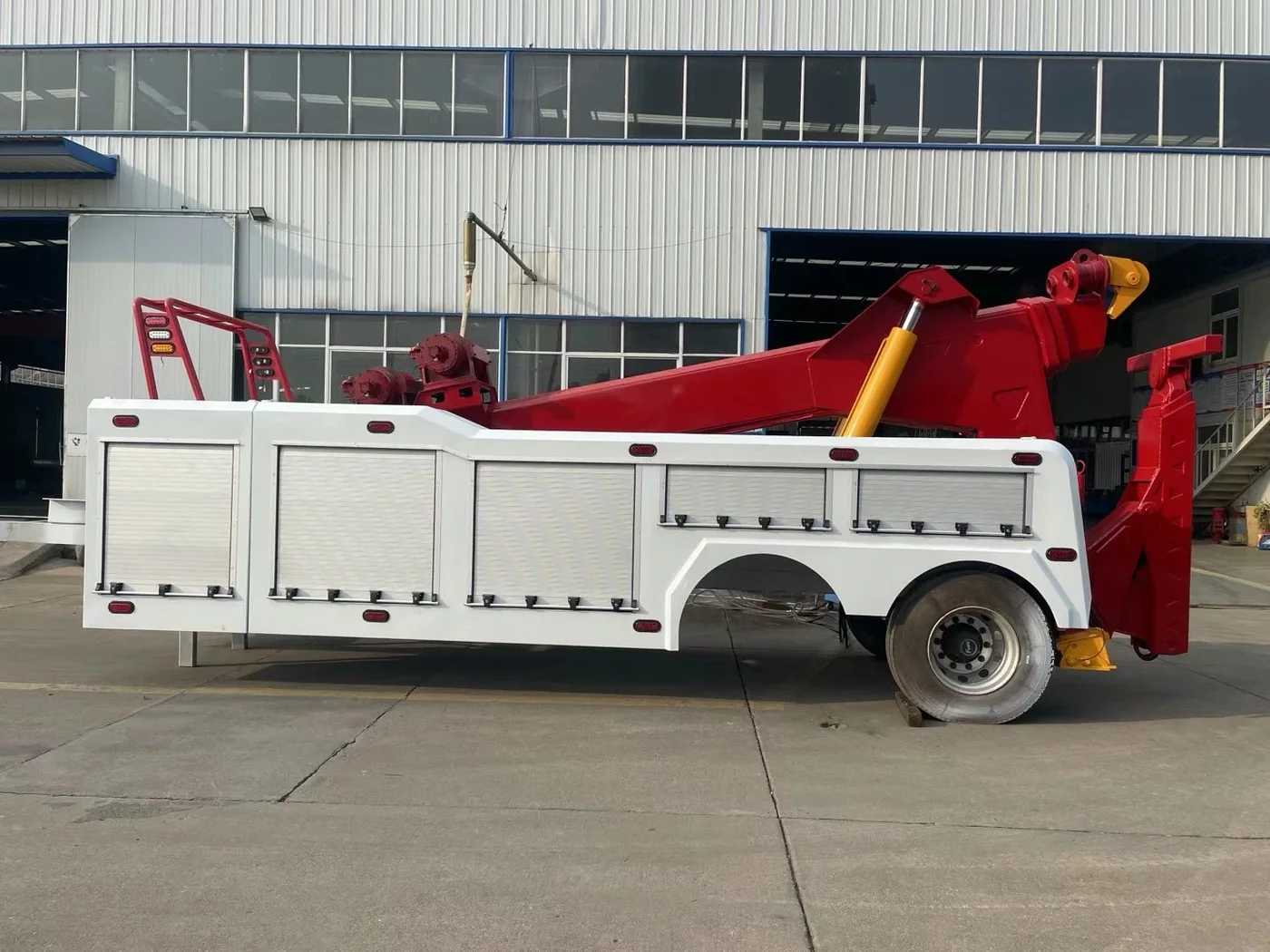

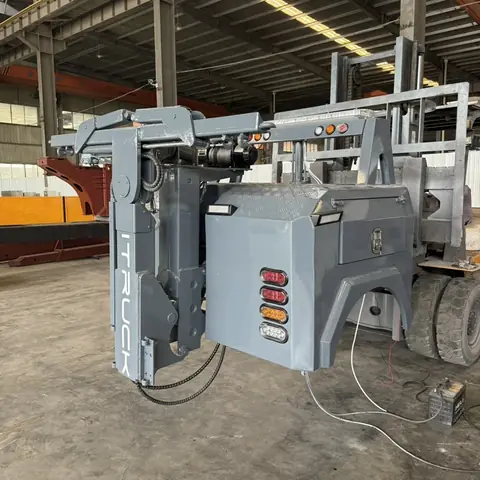

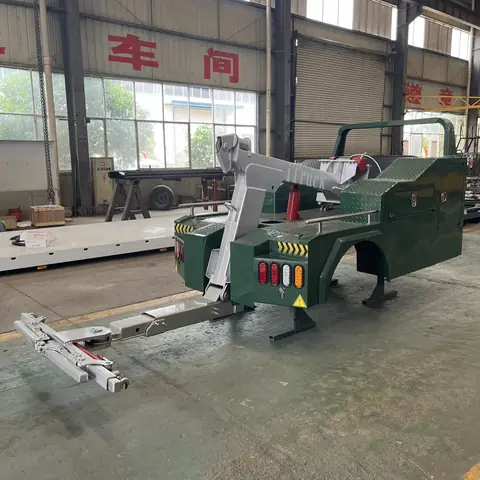

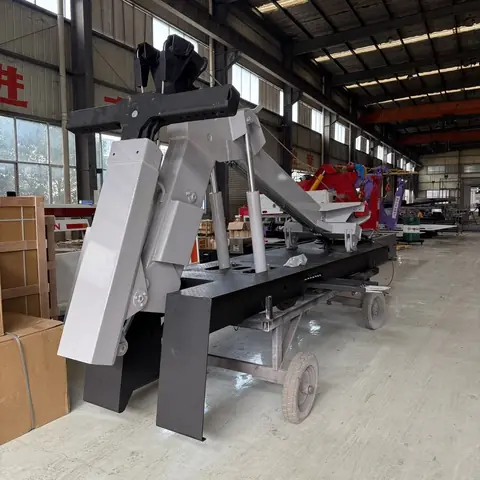

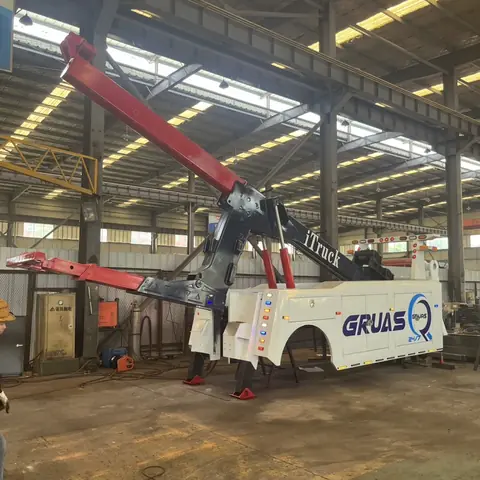

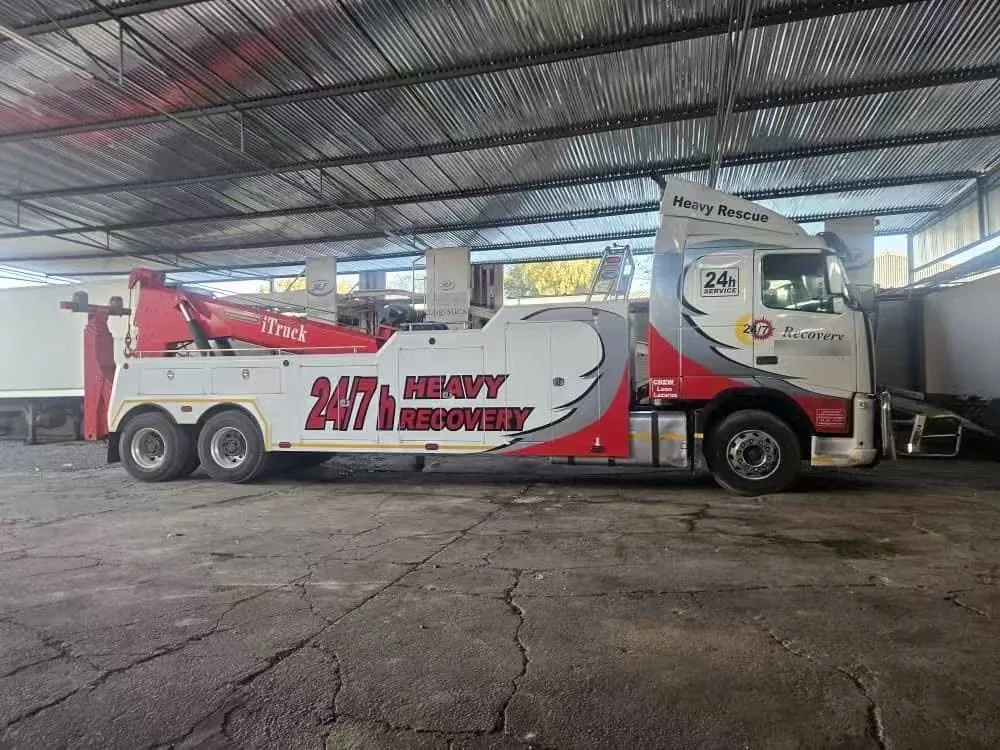

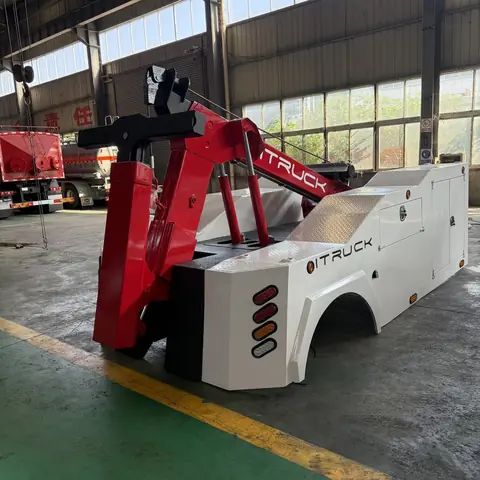

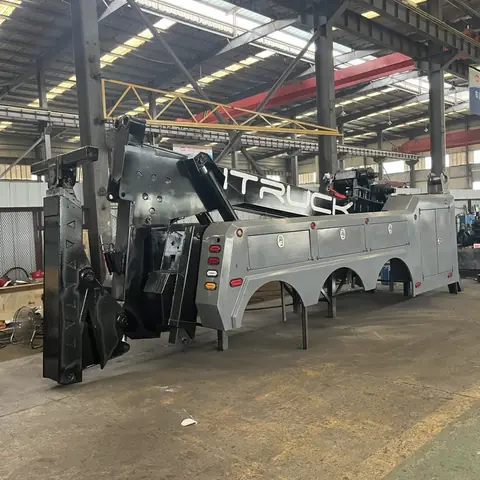

Real units off our Suizhou line — light 3-ton pickup mounts up to 40-ton heavy recovery, in customer colours and liveries. Built to order across 39 countries, so no two leave the same.
