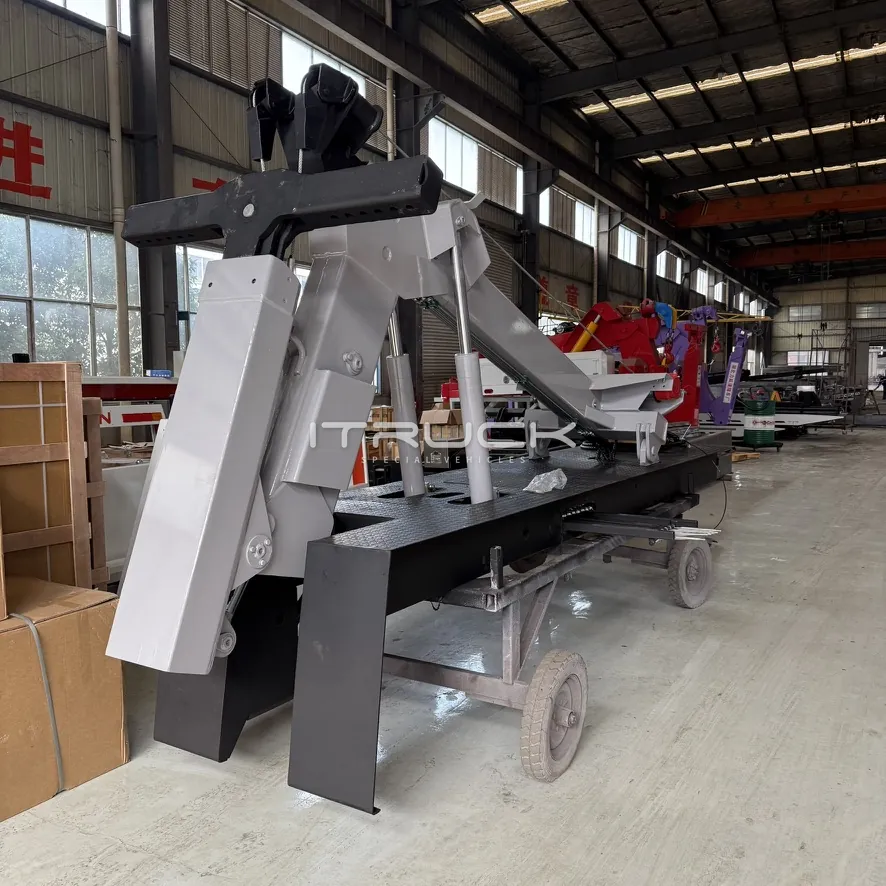

6T integrated wrecker boom and wheel lift on its subframe
Boom and subframe before painting the body

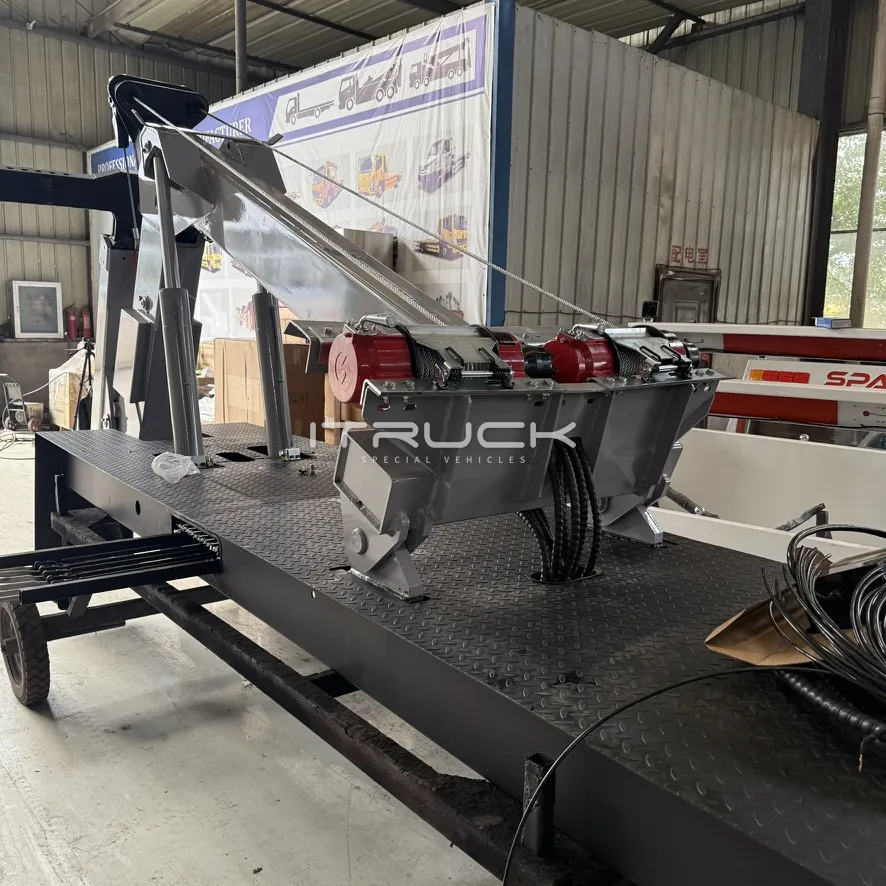

Twin winches on the boom of the 6T wrecker
Twin 4 t winches on the boom
1 / 2

Photos are for reference only. Options may be shown.

Integrated Wrecker Body · Light Duty

Integrated Wrecker 6T with 8T Wheel Lift

A 6T boom paired with a heavier 8 t wheel lift and two 4 t winches, for light duty operators who tow more than they lift.

8 tWheel lift
6 tBoom lift
2 × 4 tWinches
2-stageBoom & wheel lift
  • Lead time30 days after deposit
  • Container loading1 per 20' GP · 2 per 40' HQ
  • Price basisEXW Suizhou · FCA on request
Technical Specifications

Specifications by rating

Item6T / 8T
Wheel lift capacity8 t
Boom lift capacity6 t
Tow rating16 t
Winch line pull2 × 4 t
Boom2-stage
Wheel lift2-stage
Approx. net weight~3.5 t

All tonnages are metric tons (1,000 kg).

Standard Equipment

What comes with every unit

Boom

  • 2-stage boom

Underlift

  • 2-stage wheel lift, 8 t capacity

Hydraulics

  • Boom extension cylinder ×1 · boom lift cylinders ×2
  • Wheel lift cylinders — extension ×1, folding ×1
  • Multi-spool control valve ×1
  • Dual counterbalance valve — boom lift
  • Pump ×1 · hoses ×1 set

Winches

  • Winches — 2 × 4 t

Body & Subframe

  • Subframe — carbon steel Q235, required for chassis mounting

Control

  • Manual control — one side
  • Wireless remote control — optional

Toolboxes

  • Toolboxes — one per side

Attachments

  • Dollies ×2
  • Wheel grids ×2 · L-arms ×2
  • Forks ×3 pairs · fork receivers ×1 pair
  • Tie-down straps ×4

Lights

  • Lights ×1 set

Painting

  • Standard primer
  • Epoxy topcoat
  • Decals and markings in English
  • Protective wrap on the toolbox paint
Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

Custom colors are matched as closely as possible from a RAL code or sample photo; a slight color difference cannot be excluded.

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.

Integrated / Rotator
Integrated / Rotator
01Wheelbase
Front axle to first rear axle.
02CA clearance
Rear edge of exhaust to first rear axle.
03Frame width
Outside edges of both frame rails.
Frame width
04Frame height
Ground to top of frame.
05System voltage
Confirm with the chassis manufacturer.
12 V / 24 V

Record consecutive axle spacing for 6×4 and 8×4 chassis.

Schematic - not to scale · mm / in
