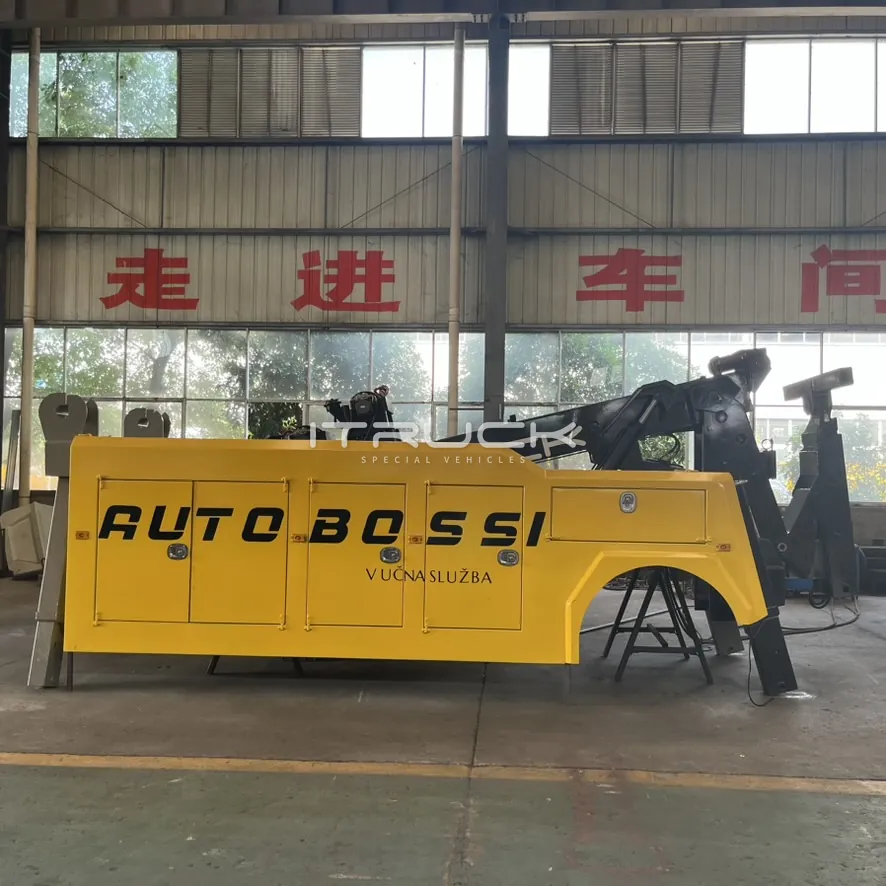

Yellow 12T integrated wrecker body side view with boom
Side view, body and boom

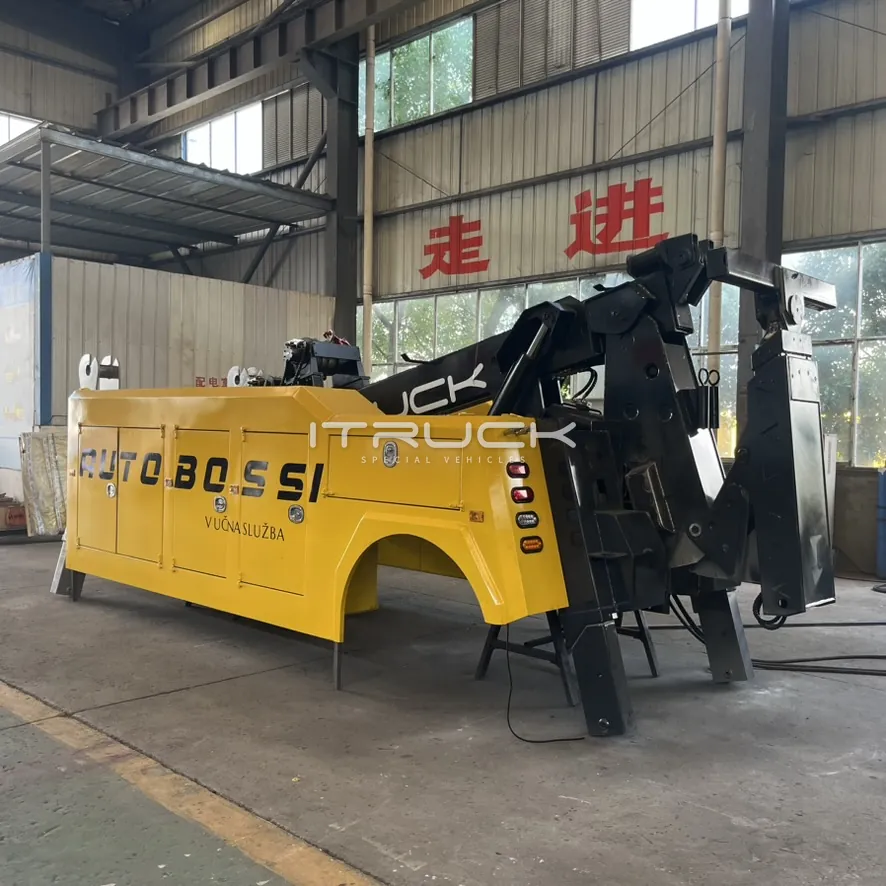

12T integrated wrecker body rear quarter with underlift folded
Rear quarter, underlift folded

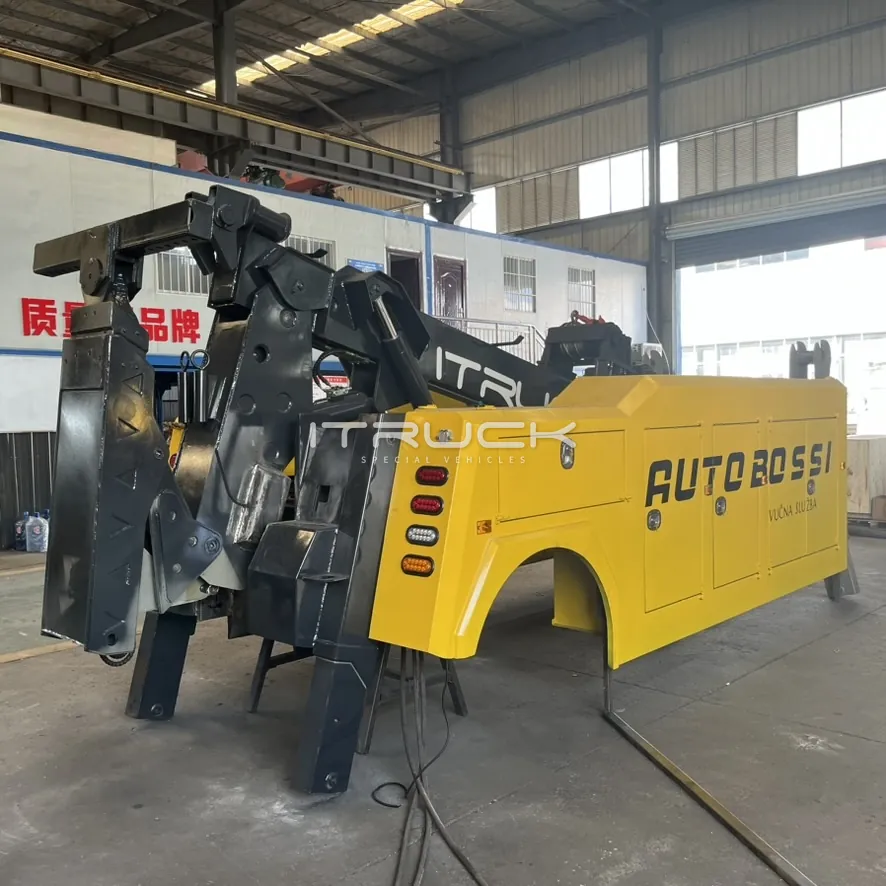

Rear of 12T wrecker with folded underlift and stabilizer legs
Underlift and stabilizer legs

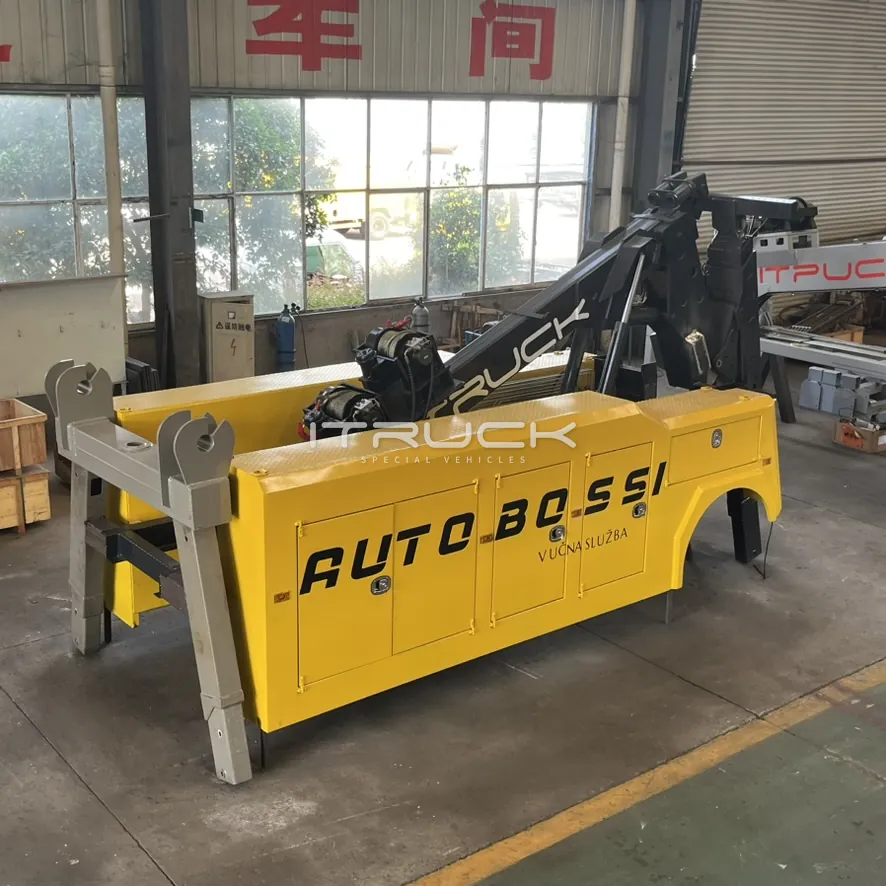

12T integrated wrecker body with twin winches and boom
Twin winches and boom

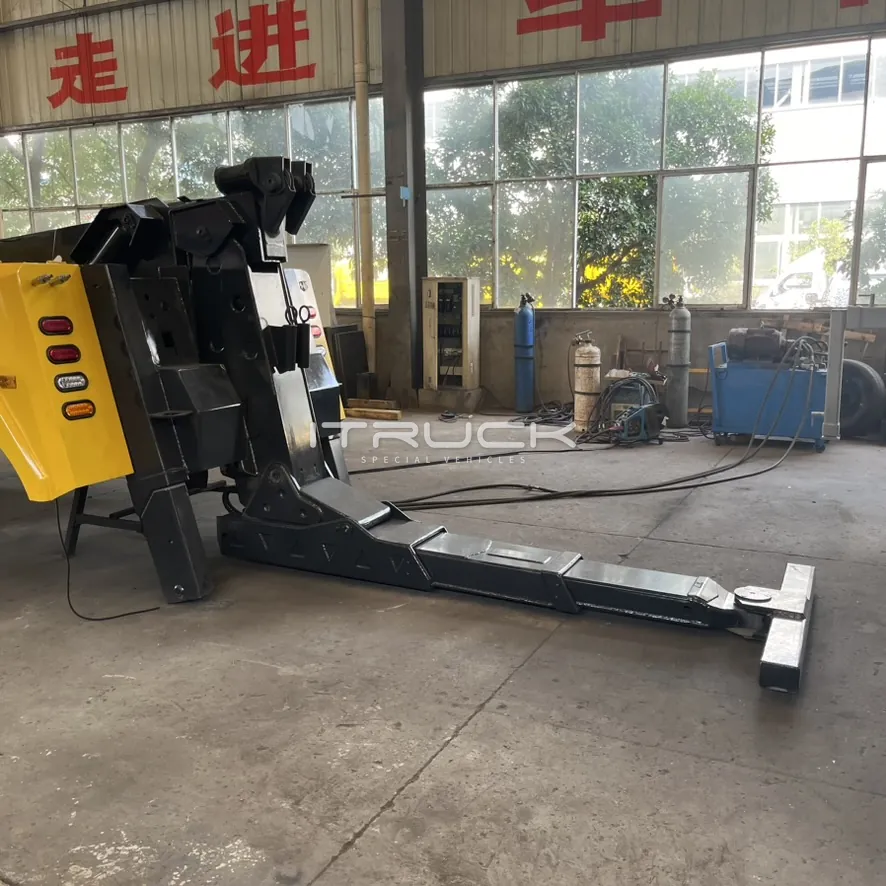

3-stage underlift fully extended behind the wrecker body
Underlift fully extended

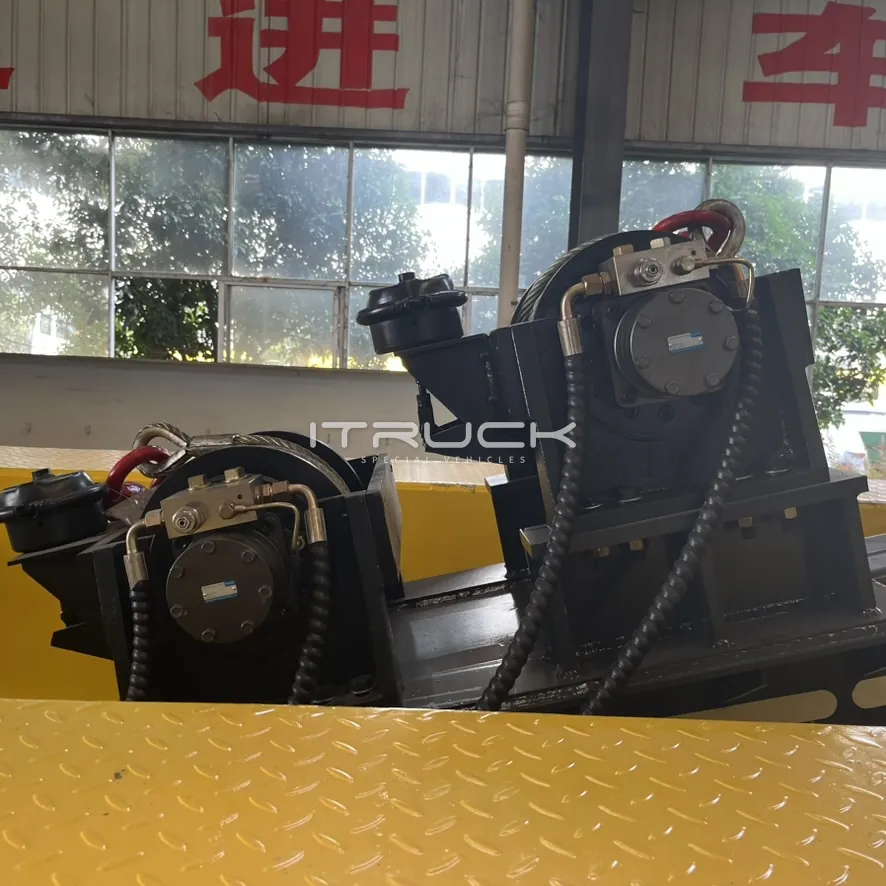

Twin planetary winches mounted on the 12T body
Twin planetary winches

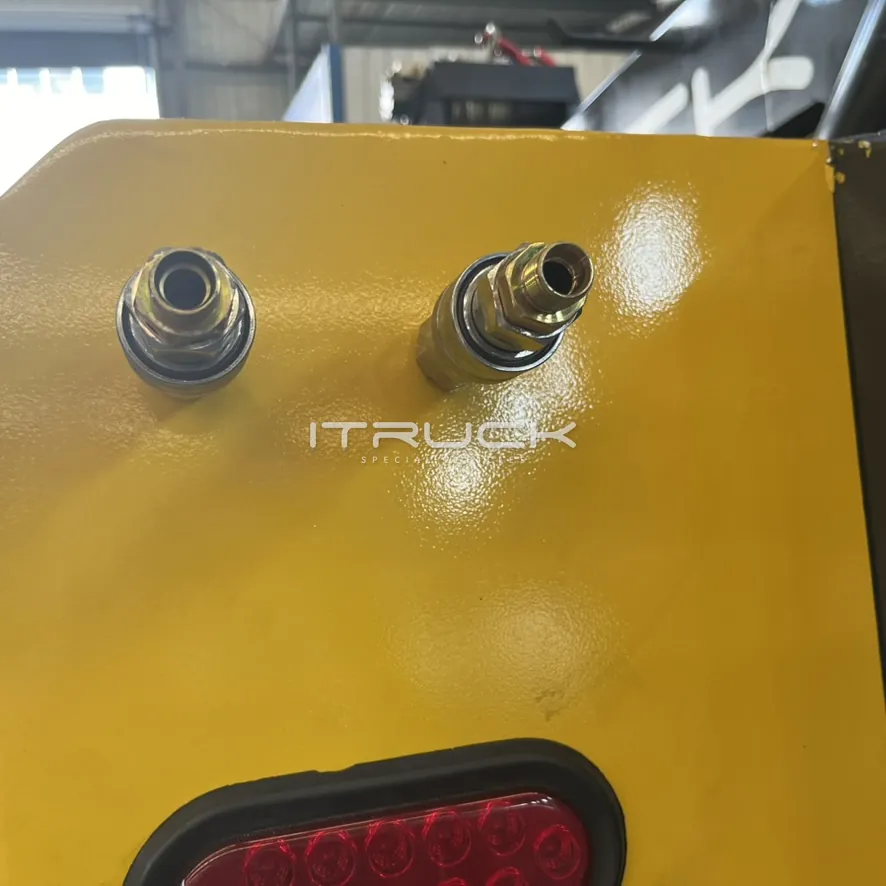

Air hookup couplings on the rear body panel
Air hookups on the rear panel

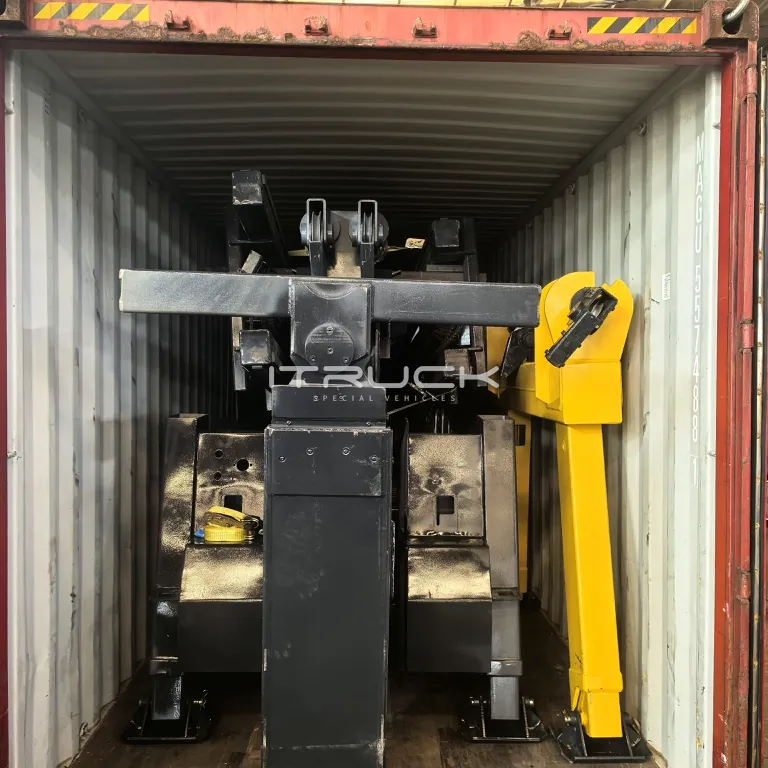

12T wrecker body loaded in a shipping container
Loaded in a container
1 / 8

Photos are for reference only. Options may be shown.

Integrated Wrecker Body · 8T8D / 8T12D

Integrated Wrecker 8T / 12T

An HG70 2-stage hexagonal boom and 3-stage underlift on a Q355B subframe, with DOT-certified planetary winches: one 8 t winch on the 8T, two on the 12T.

1 × 8 t / 2 × 8 tMain winches
8 tUnderlift
8 / 12 tBoom lift
16–24 tTow rating
  • Lead time60 days after deposit and drawing approval
  • Container loading1 per 20' GP · 2 per 40' HQ
  • Price basisEXW Suizhou · FCA on request
Request a Quote WhatsApp Us
Technical Specifications

Specifications by rating

Item8T12T
Boom lift capacity — retracted, at 33°8,000 kg12,000 kg
Boom lift capacity — extended, at 33°3,500 kg5,500 kg
Max. boom elevation33°
Max. lifting height6,200 mm
Underlift capacity — retracted8,000 kg
Underlift capacity — extended3,500 kg
Underlift retracted length1,505 mm
Underlift extended length2,760 mm
Underlift tilt — below horizontal−10°
Tow rating16–24 t
Main winches1 × 8 t2 × 8 t
Winch typePlanetary
Cable length45 m
Cable diameter16 mm
Tow bar length1,400 mm
Tow bar section127 × 127 mm
Tow bar pin / pin bore48 / 49 mm
Approx. net weight~4.5 t~5 t

All tonnages are metric tons (1,000 kg).

Standard Equipment

What comes with every unit

Boom

  • HG70 steel, 2-stage hexagonal boom

Underlift

  • HG70 steel, 3-stage underlift

Winches

  • Main winches 1 × 8 t (12T: 2 × 8 t) — planetary, DOT certified

Body & Subframe

  • Subframe — carbon steel Q355B
  • Hydraulic rear stabilizer legs
  • Air hookups — DOT
  • Electrical hookups — 12 V or 24 V, DOT

Hydraulics

  • Hydraulic pump — 6/13-tooth spline or single shaft, DOT
  • Hoses and connectors — DOT
  • Control valves — DOT
  • Cylinders — DOT

Control

  • Manual controls — dual-side operation, English labels
  • Push-button wireless remote — optional

Toolboxes

  • Toolboxes — one per side, carbon steel Q235, stainless steel handles

Attachments

  • Fork sets ×5 — 4 axle-lift, 1 suspension-lift
  • Fork receiver ×1 set · U-shape tire holder ×1 set
  • Safety chains ×2 — stored in toolbox chain pockets

Lights

  • Side lights — 8 per side, DOT
  • Tail lights — 4 per side, DOT
  • Full-size stainless steel LED light pylon

Painting

  • Standard primer
  • Epoxy topcoat
  • Decals and markings in English
  • Protective wrap on the toolbox paint
Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

Photos show the 12T build.

Custom colors are matched as closely as possible from a RAL code or sample photo; a slight color difference cannot be excluded.

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.

Will it fit your truck?
Will it fit your truck?
Get the measurement guide (PDF) →
