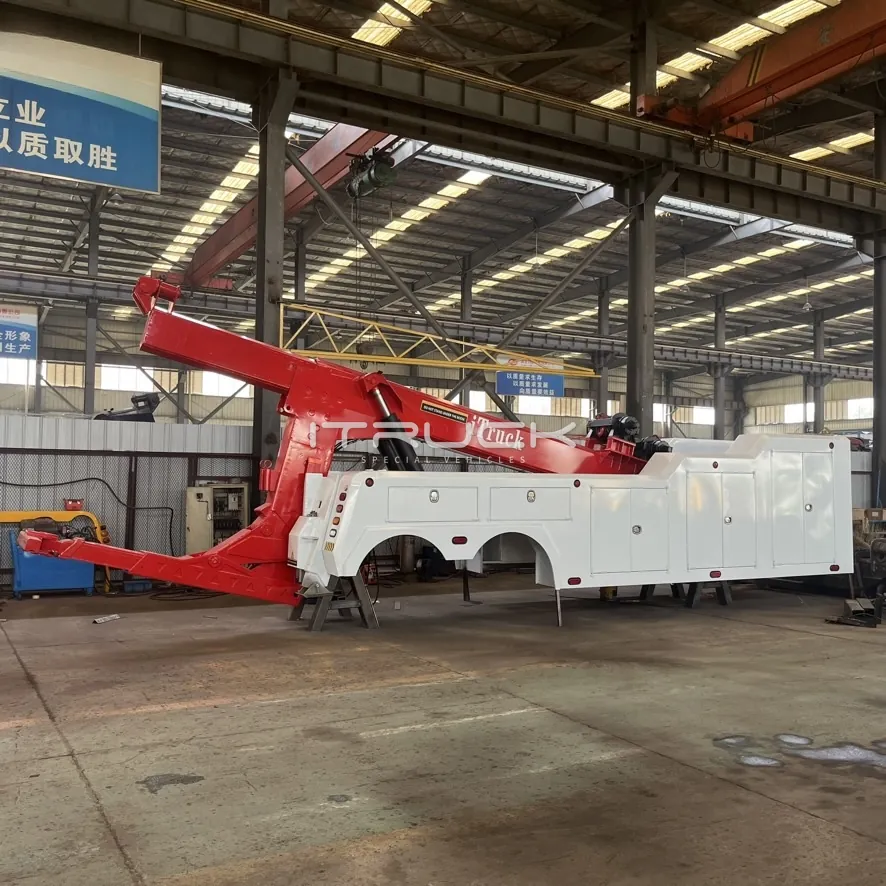

20 t integrated wrecker body with red boom and underlift extended
Red boom, underlift extended

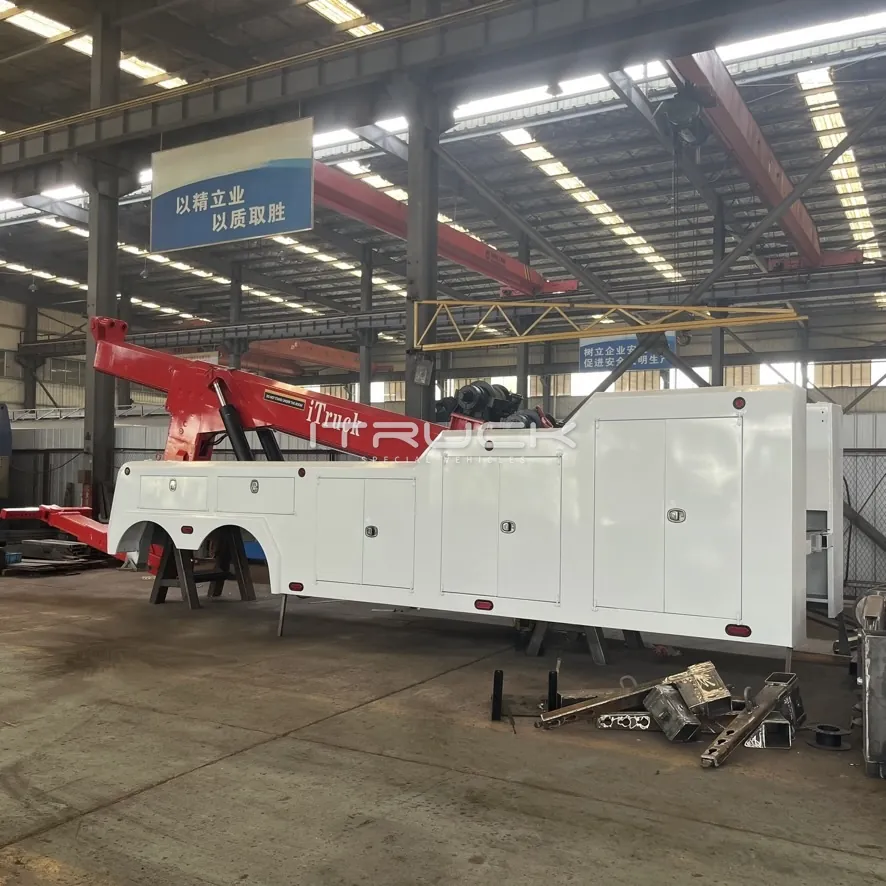

Long white tandem-axle wrecker body with full-length toolboxes
Tandem body with side toolboxes

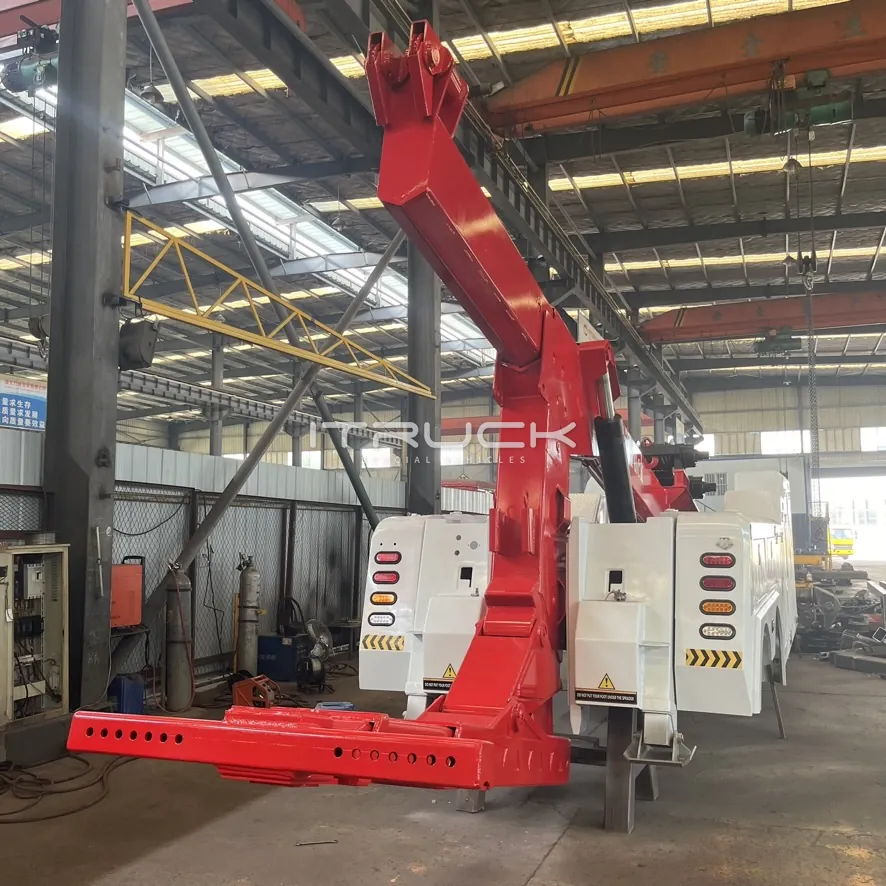

Rear view with boom raised upright and underlift crossbar extended
Boom upright, underlift crossbar

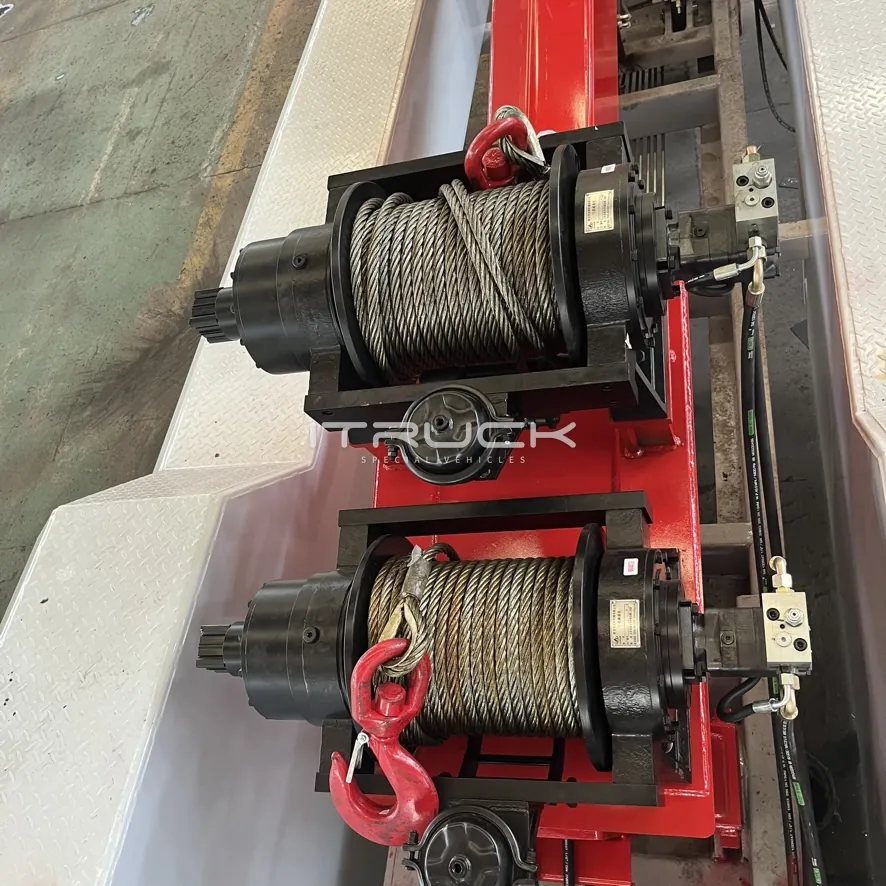

Twin planetary main winches with wire rope mounted on the boom
Twin planetary main winches

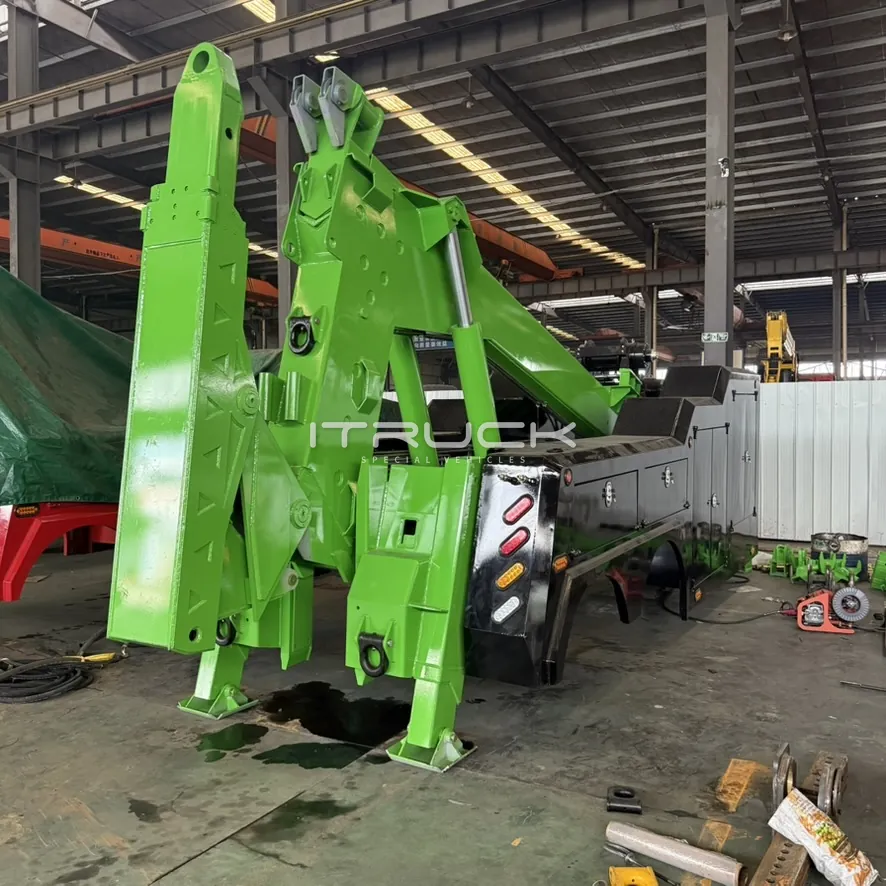

Green boom and underlift assembly on the chassis during build
Green build during assembly

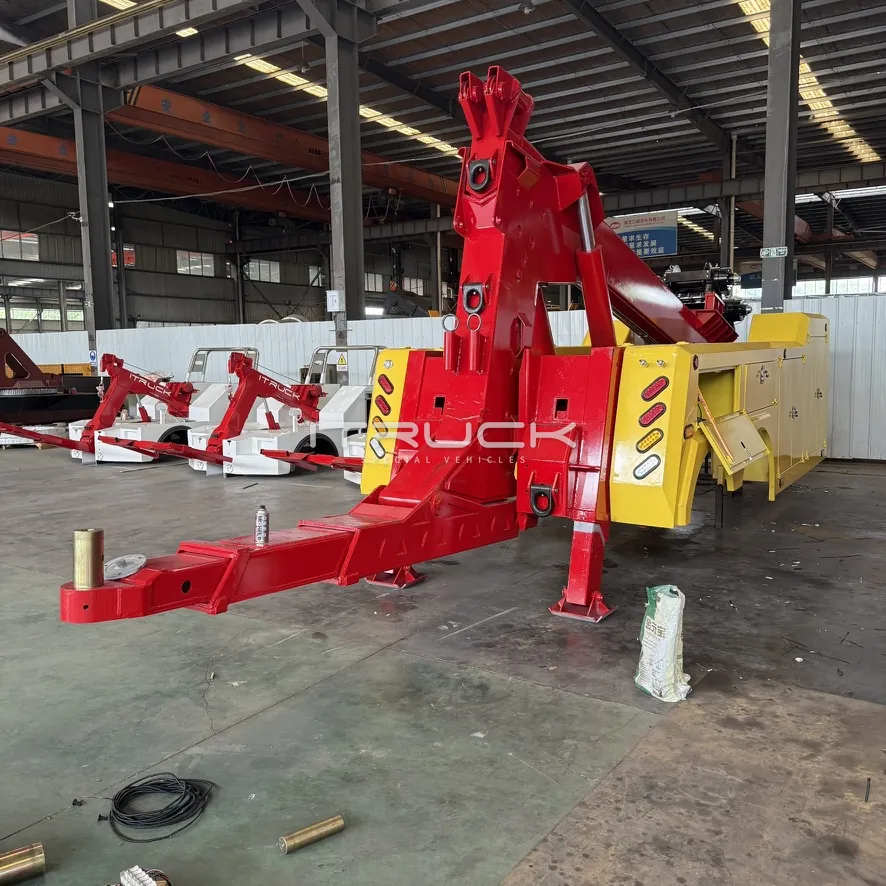

Red boom and extended underlift on a yellow wrecker body
Red boom, yellow body

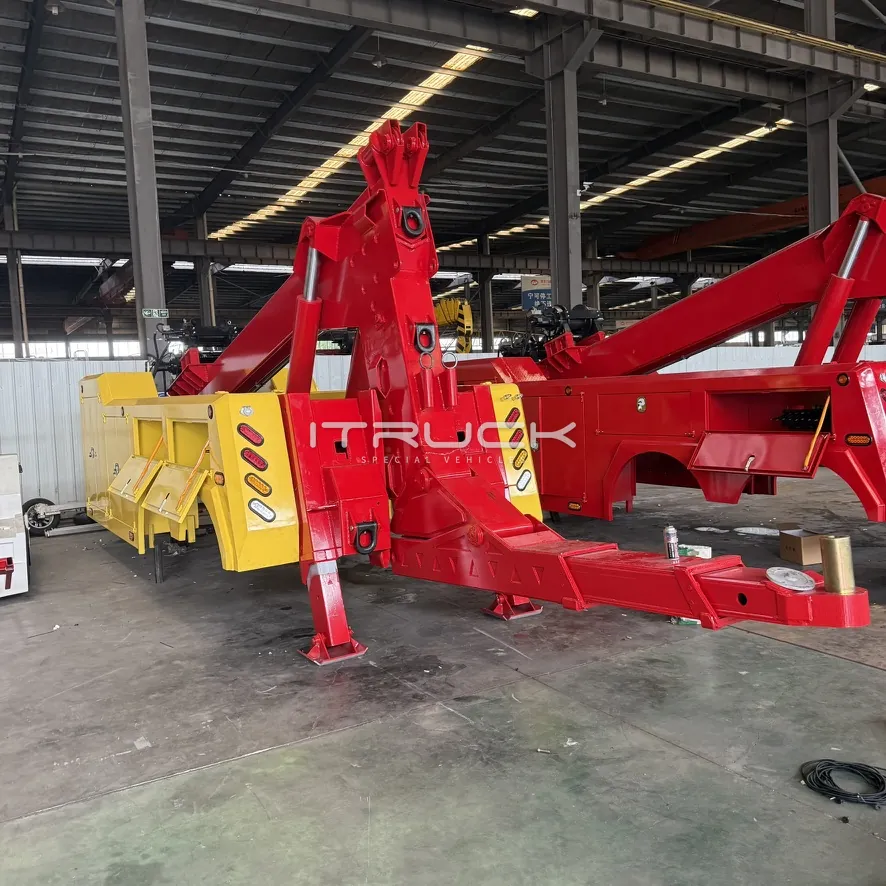

Red and yellow integrated wrecker body from the rear quarter
Rear quarter, red and yellow build

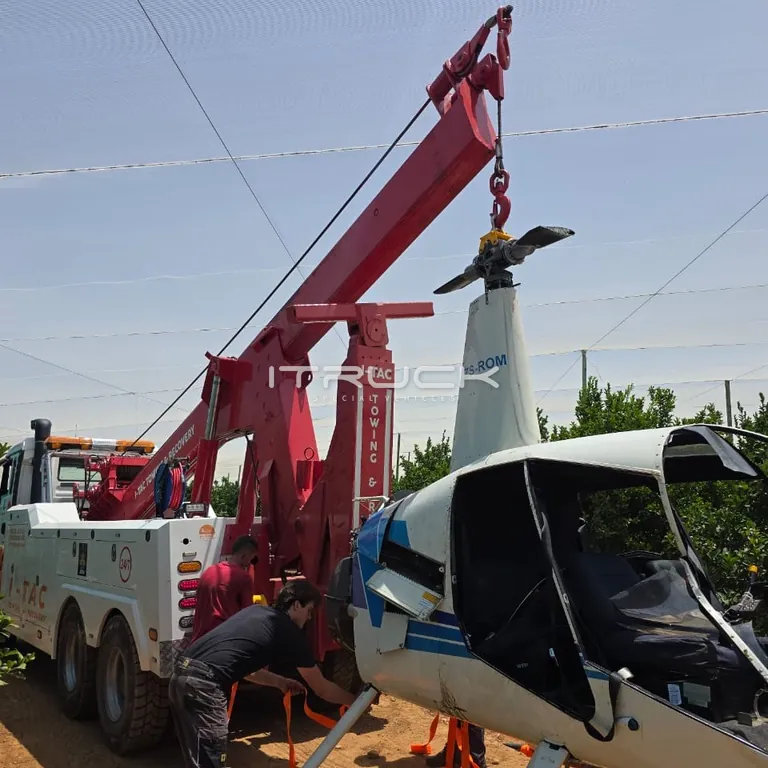

Integrated wrecker boom lifting a damaged helicopter on site
Boom lift on a recovery job

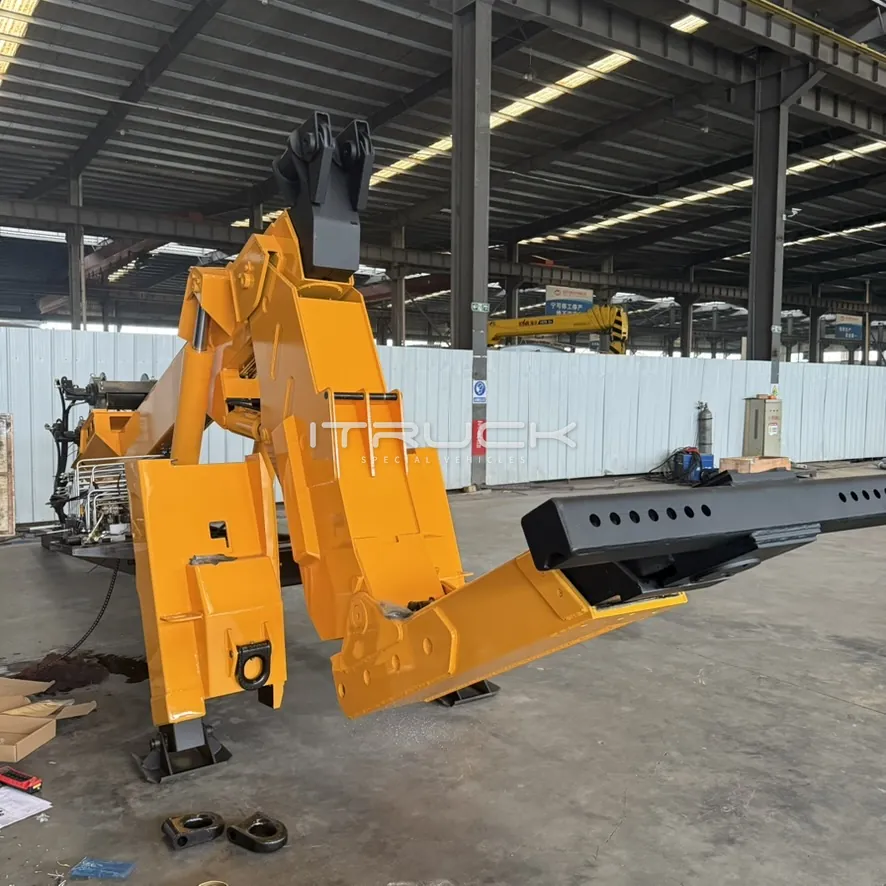

Yellow boom and underlift assembly before body fitting
Boom and underlift assembly

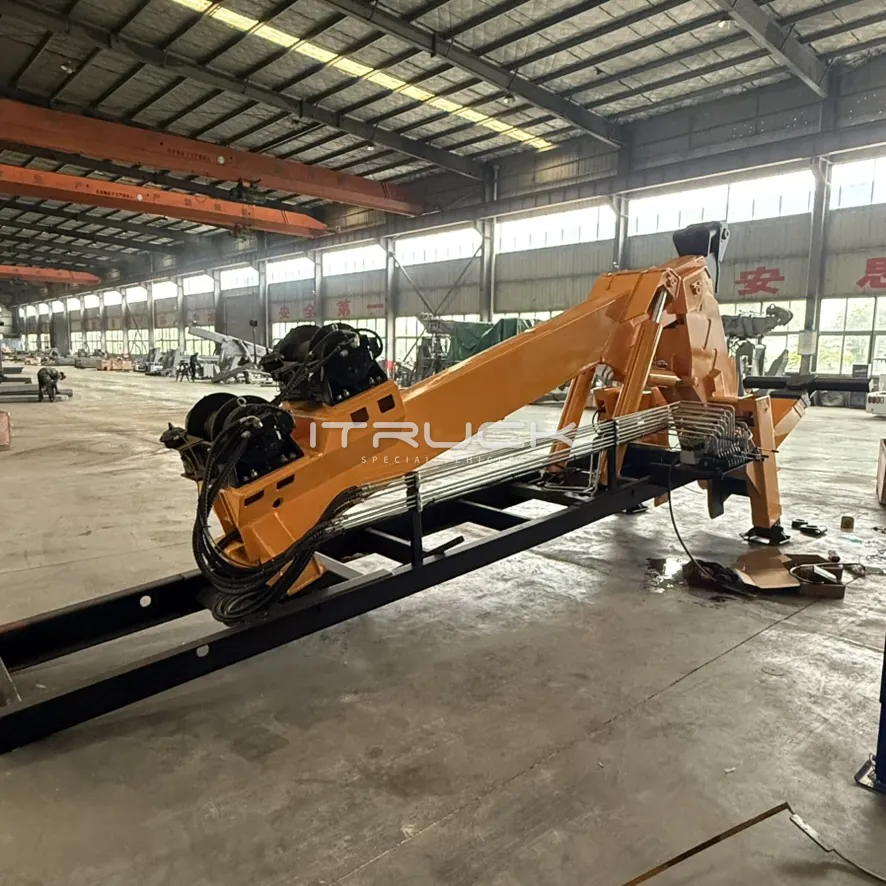

Yellow boom and subframe with twin winches and hydraulic hoses
Boom, subframe and winches

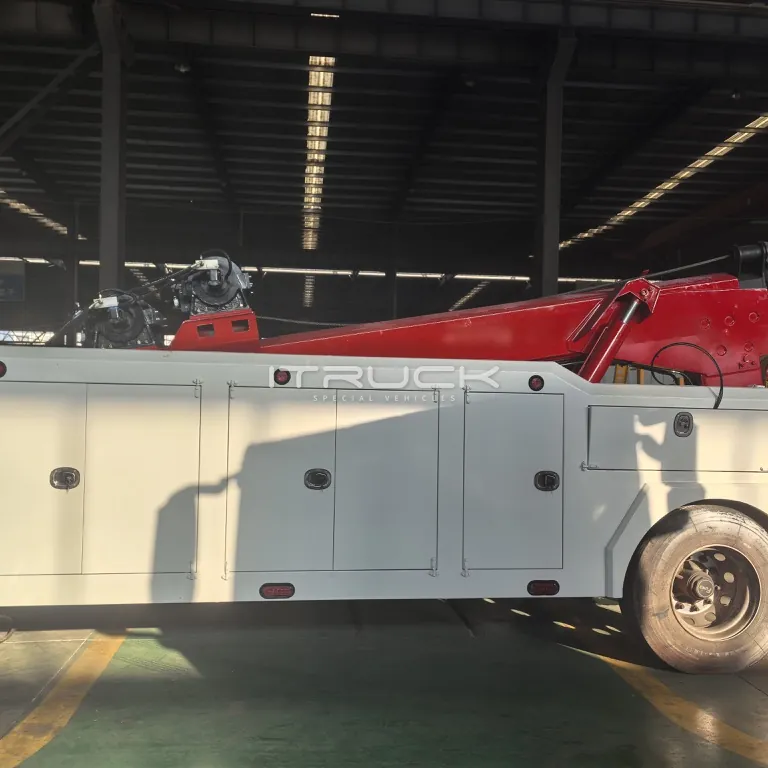

Side view of white wrecker body with red boom on chassis
Side view on chassis

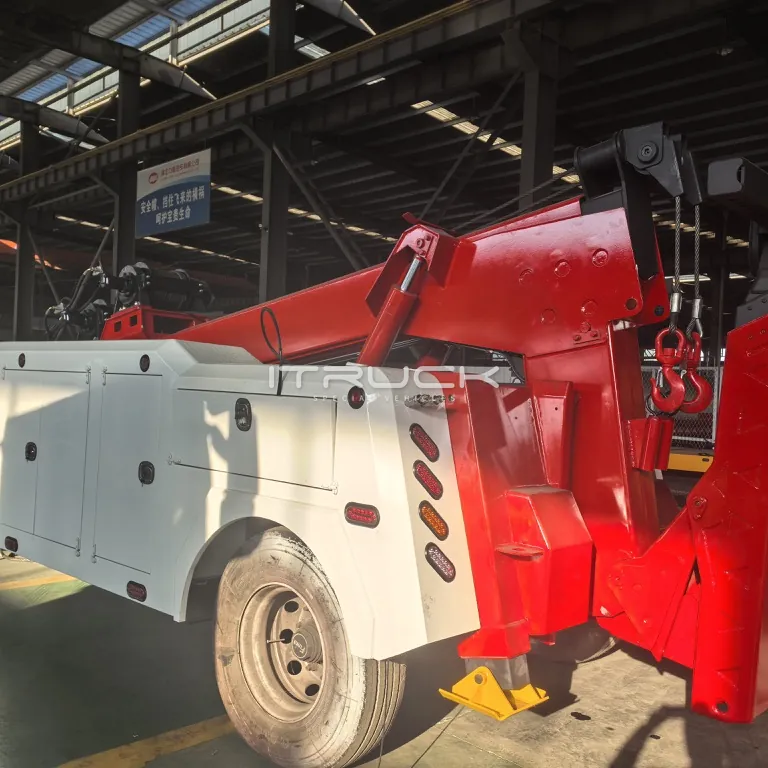

Rear quarter of white and red wrecker body with boom stowed
Rear quarter, boom stowed
1 / 12

Photos are for reference only. Options may be shown.

Integrated Wrecker Body · Heavy Duty

Integrated Wrecker 20T

A heavy-duty boom-and-underlift body built to your chassis: a 20 t HG70 boom with twin 10 t planetary winches, and a 3-stage underlift in a 16, 20 or 25 t rating for tow ratings of 32–75 t.

2 × 10 tMain winches
16 / 20 / 25 tUnderlift capacity
20 tBoom lift capacity
32–75 tTow rating
  • Lead time120 days after deposit and drawing approval
  • Container loading1 per 40' HQ
  • Price basisEXW Suizhou · FCA on request
Request a Quote WhatsApp Us
Technical Specifications

Specifications by rating

Item16T UL20T UL25T UL
Underlift capacity — retracted16,000 kg20,000 kg25,000 kg
Underlift retracted length1,505 mm1,550 mm1,650 mm
Underlift capacity — extended4,500 kg5,500 kg6,500 kg
Underlift extended length3,150 mm
Underlift tilt below horizontal−10°
Tow rating32–48 t40–60 t50–75 t
Boom lift capacity — retracted, at 33°20,000 kg
Boom lift capacity — extended, at 33°7,500 kg
Max. boom elevation33°
Max. lifting height7,100 mm
Main winches (quantity)2
Winch line pull10 t
Winch typePlanetary
Winch cable length45 m
Winch cable diameter18 mm
Tow bar length1,400 mm
Tow bar section127 × 127 mm
Tow bar pin56 mm
Tow bar pin bore57 mm
Approx. net weight~7 t

All tonnages are metric tons (1,000 kg).

One 20 t boom, three underlift ratings: 16 t, 20 t or 25 t (UL = underlift).

Standard Equipment

What comes with every unit

Boom

  • Boom — HG70 steel, 2-stage hexagonal

Underlift

  • Underlift — HG70 steel, 3-stage

Winches

  • Main winches 2 × 10 t — planetary, DOT certified

Subframe

  • Subframe — Q355B carbon steel
  • Rear stabilizer legs — hydraulic

Hydraulics

  • Hydraulic pump — 6/13-tooth spline or single shaft, DOT
  • Hoses and connectors — DOT
  • Control valves — Italian-made, DOT
  • Hydraulic cylinders — DOT

Control

  • Manual control — dual-side operation, English labels
  • Wireless push-button remote control — included

Toolboxes

  • Toolboxes ×2 — one per side, Q235 carbon steel, stainless steel handles

Attachments

  • Fork sets ×5 — 4 axle-lift, 1 suspension-lift
  • Fork receiver and U-shape tire holder — 1 set each
  • Safety chains ×2 — stored in toolbox chain pockets
  • D-rings ×2–4

Lights

  • Side lights — 8 per side, DOT
  • Tail lights — 4 per side, DOT
  • Light pylon — full size, stainless steel, LED

Painting

  • Standard primer
  • Epoxy topcoat
  • Decals and markings in English
  • Protective wrap on toolbox paint

Accessories

  • Air hookups — DOT
  • Electrical hookups — 12 V or 24 V, DOT
Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

Custom colors are matched as closely as possible from a RAL code or sample photo; a slight color difference cannot be excluded.

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.

Will it fit your truck?
Will it fit your truck?
Get the measurement guide (PDF) →
