Rotator Wreckers 16–100 Ton — 360° Continuous Rotation Recovery

What it is

Recover from any angle — no repositioning

A rotator carries its boom on a slewing turret that rotates a full 360° continuously, so the operator can lift a casualty, swing it clear and set it down anywhere around the truck without moving the chassis. That makes it the tool for overturned trucks, off-road recovery and tight highway scenes where a fixed-boom integrated wrecker can't reach. iTruck builds rotators from 16 to 100 ton with multi-stage HG70 booms, a hydraulic underlift for towing, and full outrigger stabilisation — every unit engineered to your chassis.

Model Range

Rotator line-up & capacities

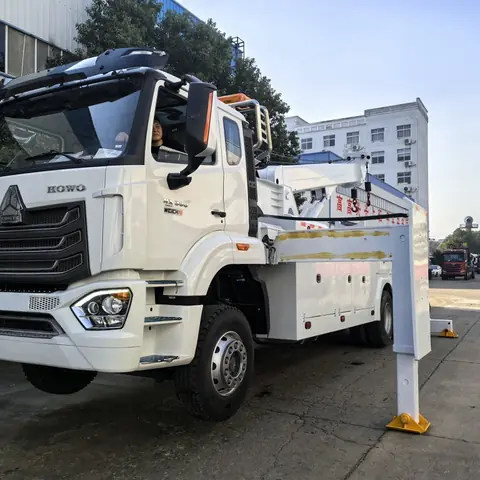

Rotator 16T / 20T16–20 tLead time 120 days

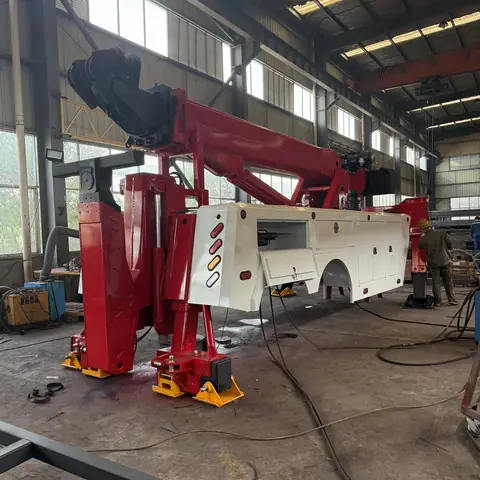

Rotator 30T / 40T30–40 tLead time 120 days

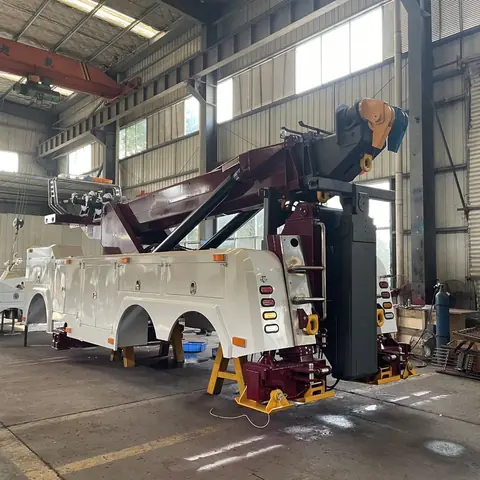

Rotator 50T50 tLead time 120 days

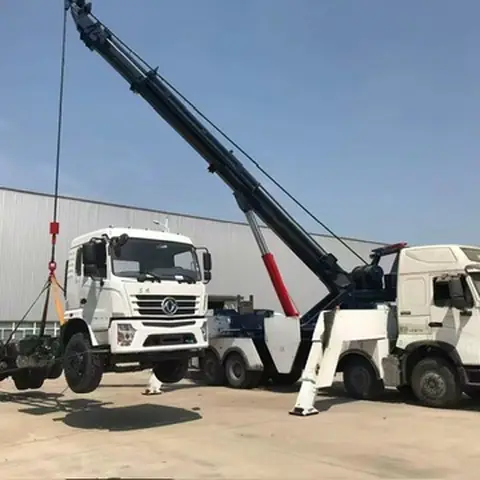

Rotator 50T 4-Stage50 tLead time 120 days

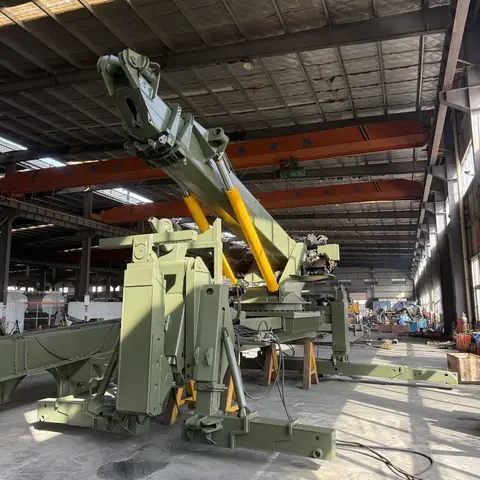

Rotator 50T Turret Slide50 tLead time 120 days

Rotator 75T / 100T75–100 tLead time 150 days

Model	Boom lift capacity	Underlift capacity	Main winches	Lead time

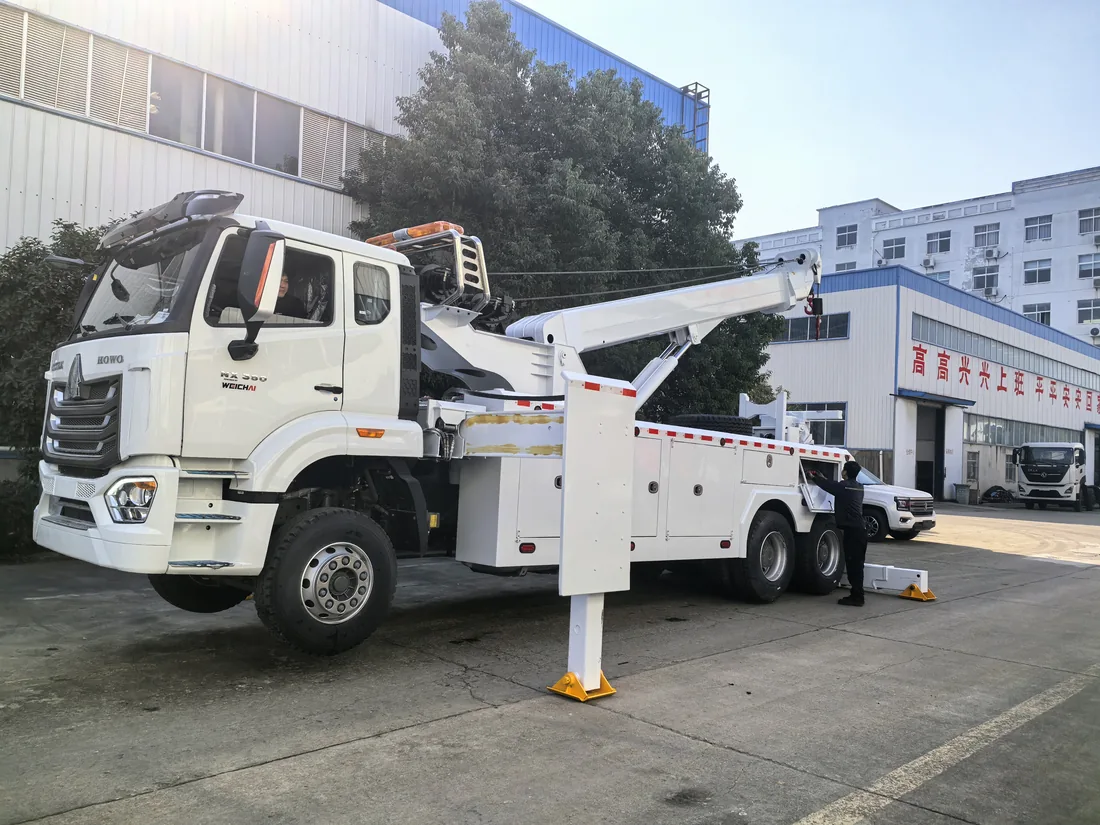

Rotator 16T / 20T	16 / 20 t	16 t	2 × 8 / 2 × 10 t	120 days

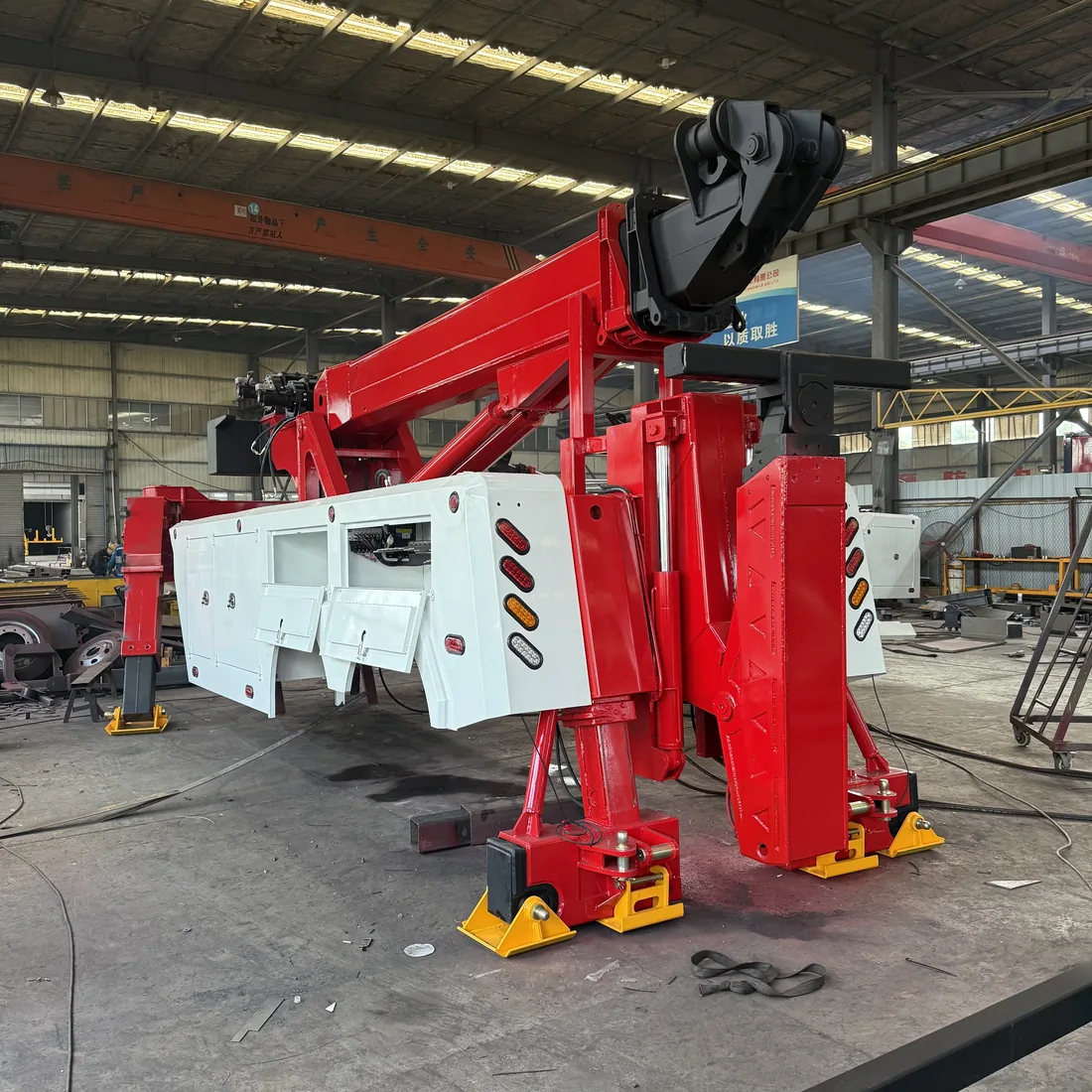

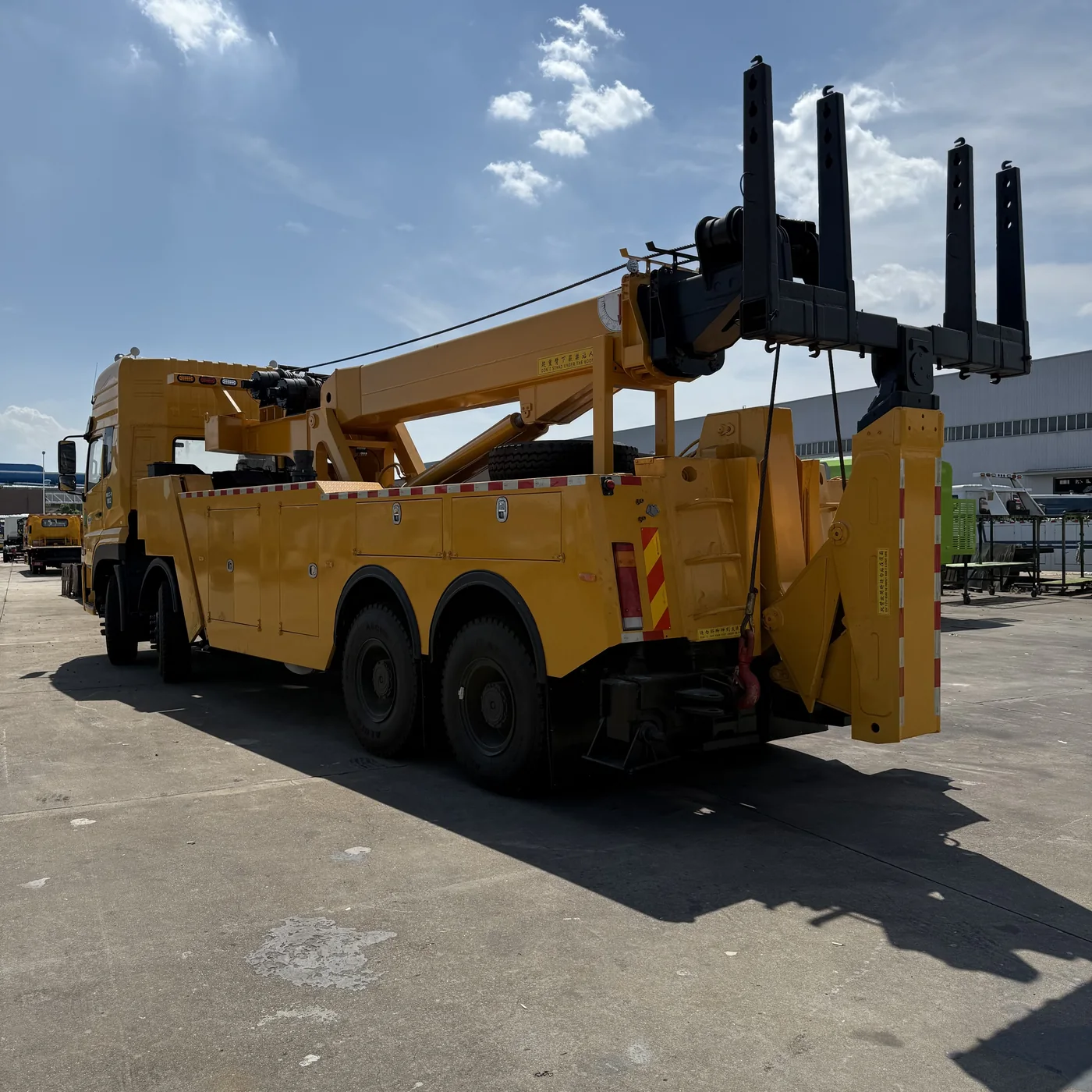

Rotator 30T / 40T	30 / 40 t	16 / 25 t	2 × 15 / 2 × 20 t	120 days

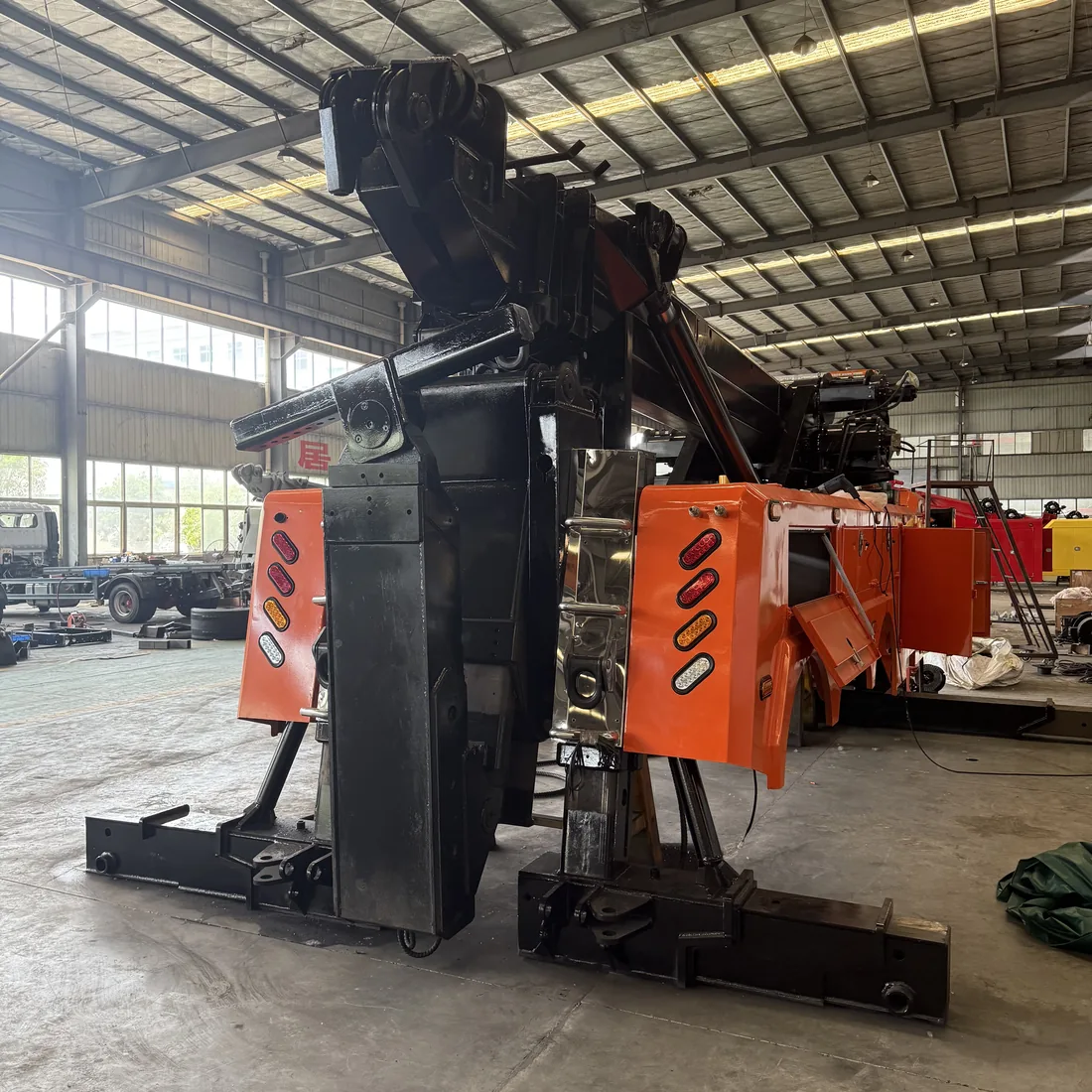

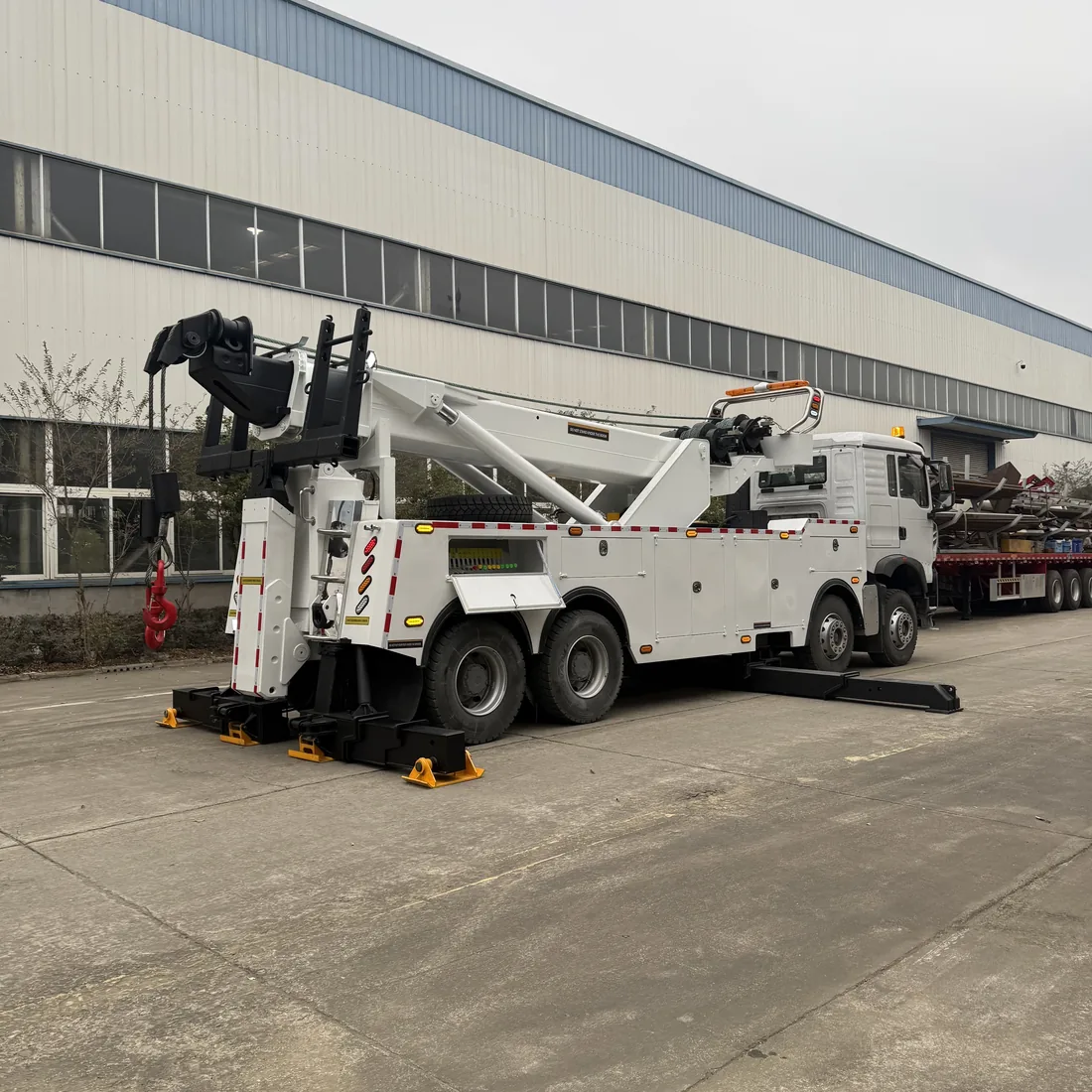

Rotator 50T	50 t	28 t	2 × 15 t	120 days
Rotator 50T 4-Stage	50 t	28 t	2 × 15 t	120 days

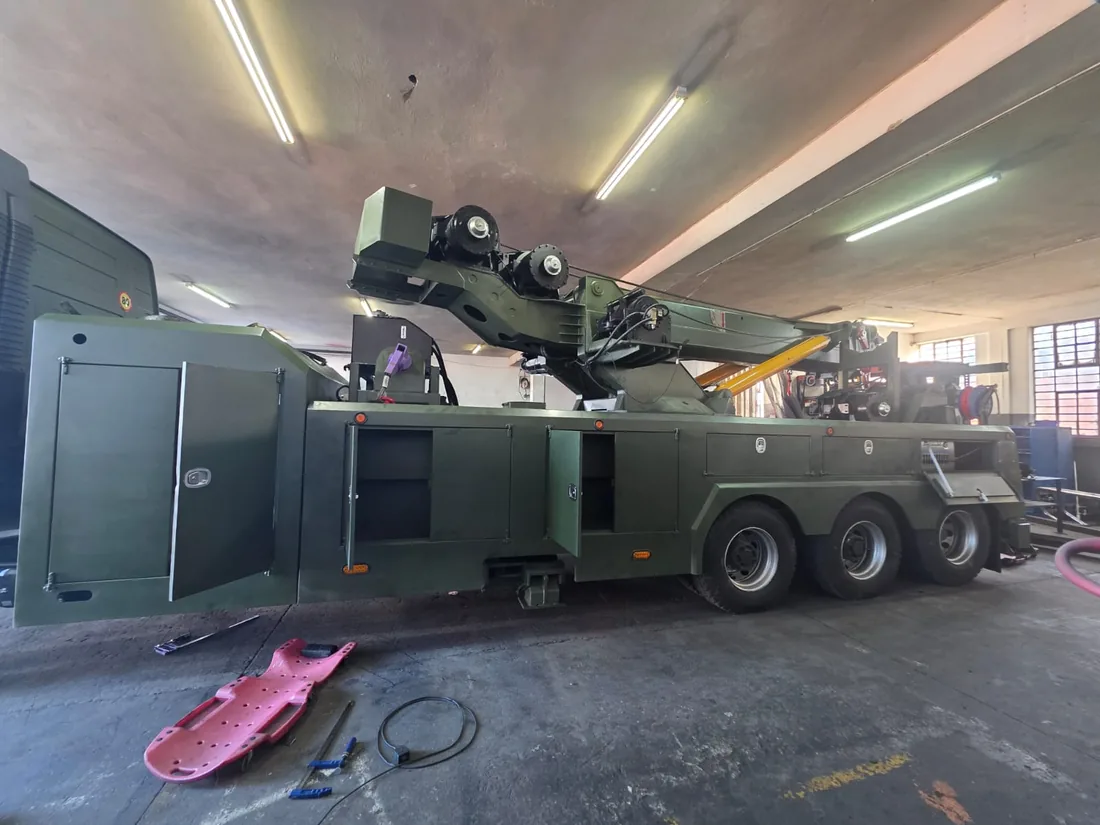

Rotator 50T Turret Slide	50 t	28 t	2 × 25 t	120 days

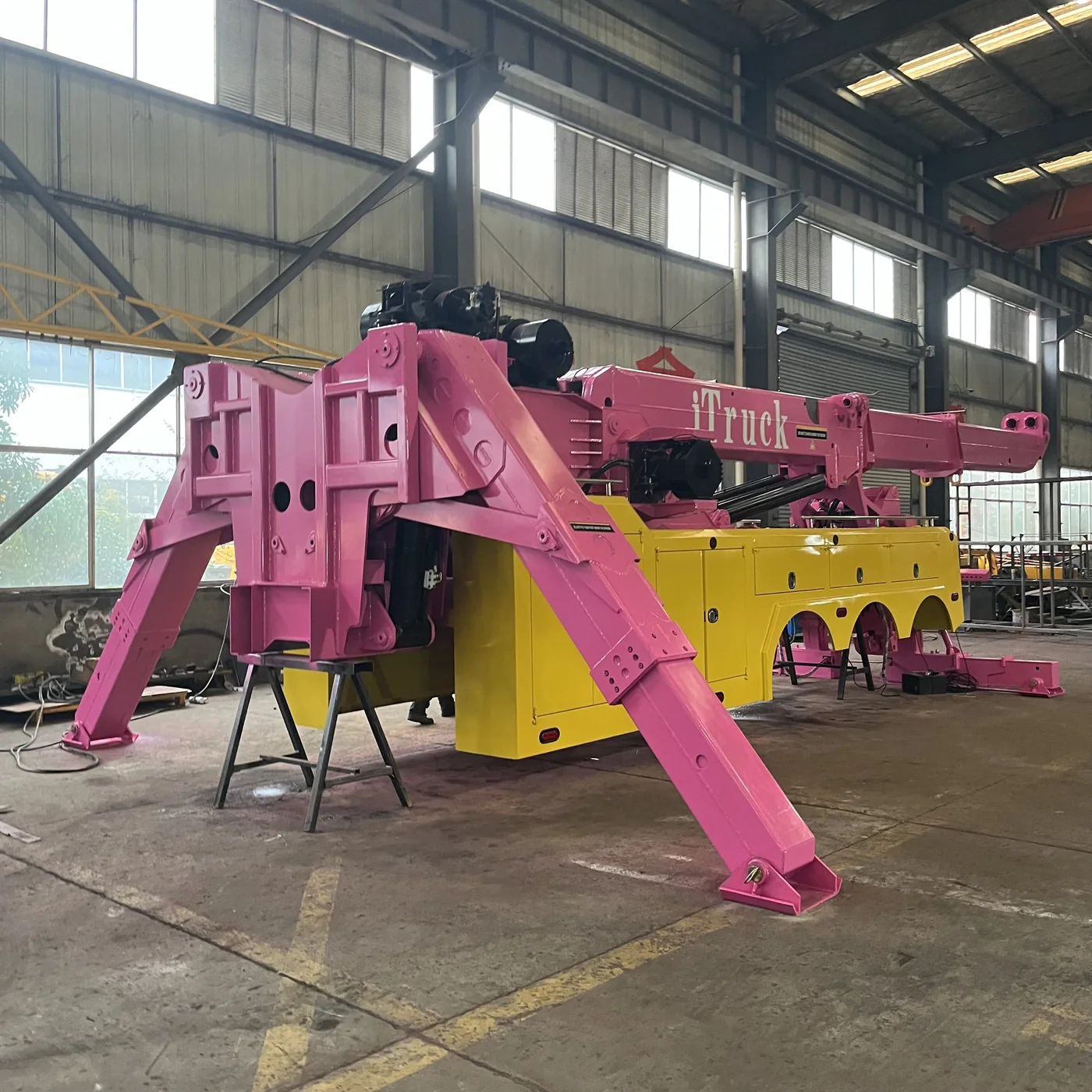

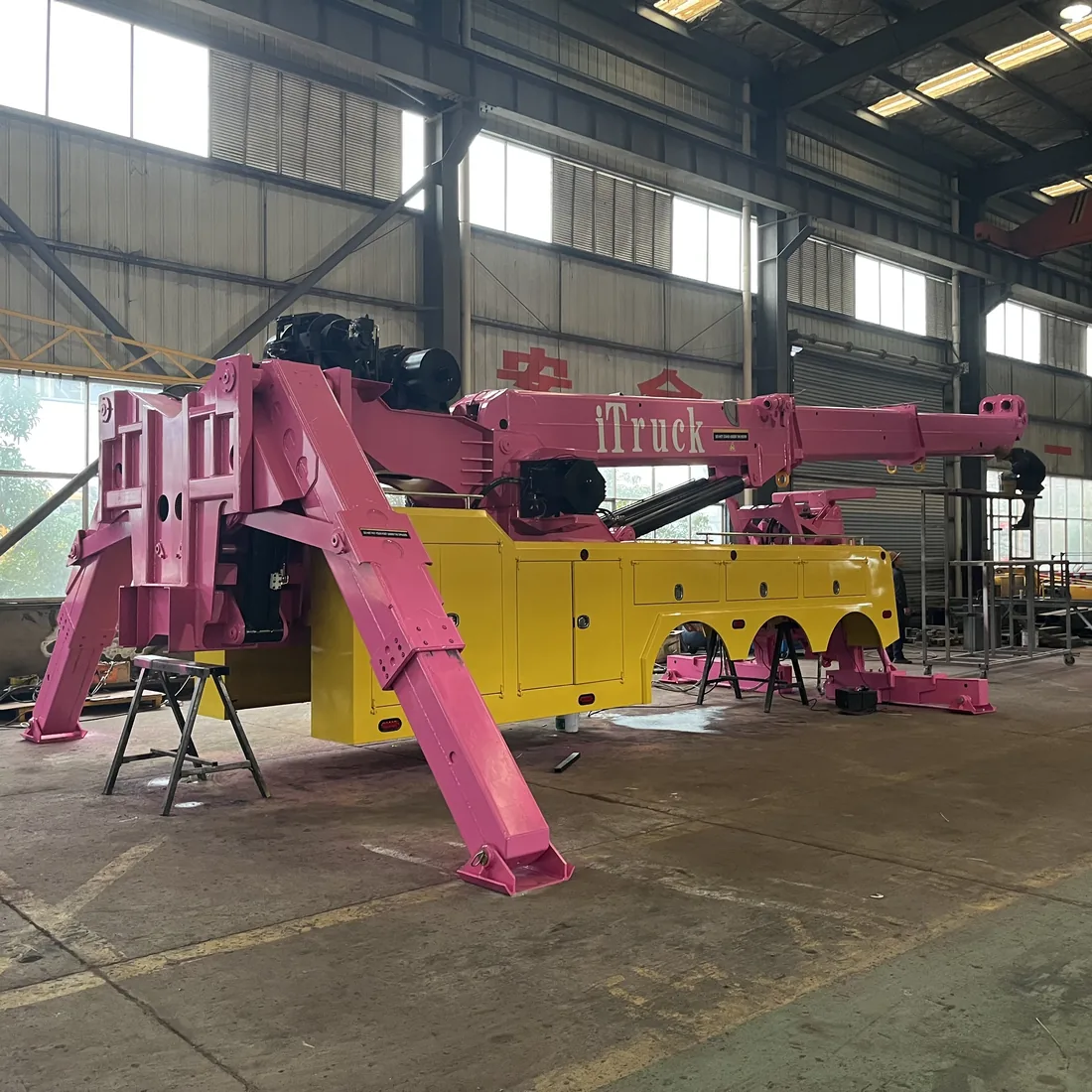

Rotator 75T / 100T	75 / 100 t	28 t	2 × 30 / 2 × 50 t	150 days

Warranty: structure (boom, underlift, subframe) 3 years; hydraulic, electrical and wear parts 2 years, from the date of shipment, normal wear excluded. 6 t and 8 t light rotators are also available on request — contact us for specifications.
Boom lift is the retracted rating; all booms rotate 360° continuously and tilt to 65°. Booms are HG70 — 2-stage on 16–20 T, 3-stage from 30 T. A turret-slide boom (extra horizontal reach, ~13 m on 50 T) and a 4-stage boom (up to 15 m reach on 50 T) are optional. Winches are planetary, DOT-certified; extra drag / side winches optional.

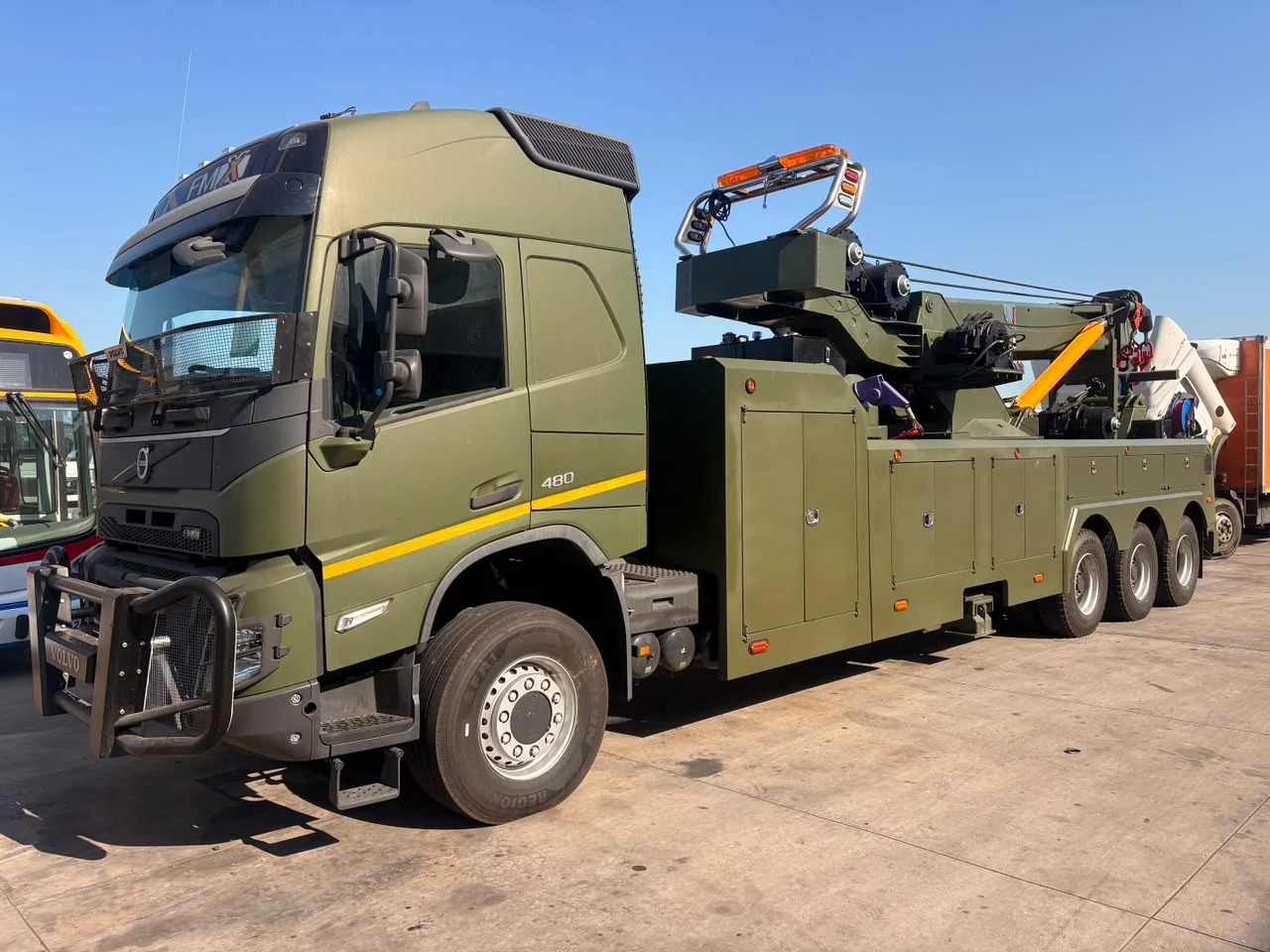

CA = distance from the cab to the centre of the last axle (not to the rear of the body); heavier units need more margin. Rear-axle setup is on the finished chassis — rotators run a rear tandem up to 30 T, a tri-axle at 40–50 T and a 5-axle chassis at 75–100 T. Full per-model spec sheets (extended ratings, outrigger spread, wire specs) on request — send your recovery weight and chassis and we'll spec the exact unit.

Standard Build

What comes on every rotator

🔄

360° continuous rotation

Slewing turret with hydraulic rotation drive — lift and place from any angle without moving the truck.

⚙

Multi-stage HG70 boom

High-tensile HG70 boom, 2- to 4-stage by model, reaching 7.7 m up to 15 m; max tilt 65°.

🛠

Twin planetary winches

Two main planetary winches (DOT), 8 t to 50 t line pull by model. Extra drag / side winches optional.

🦿

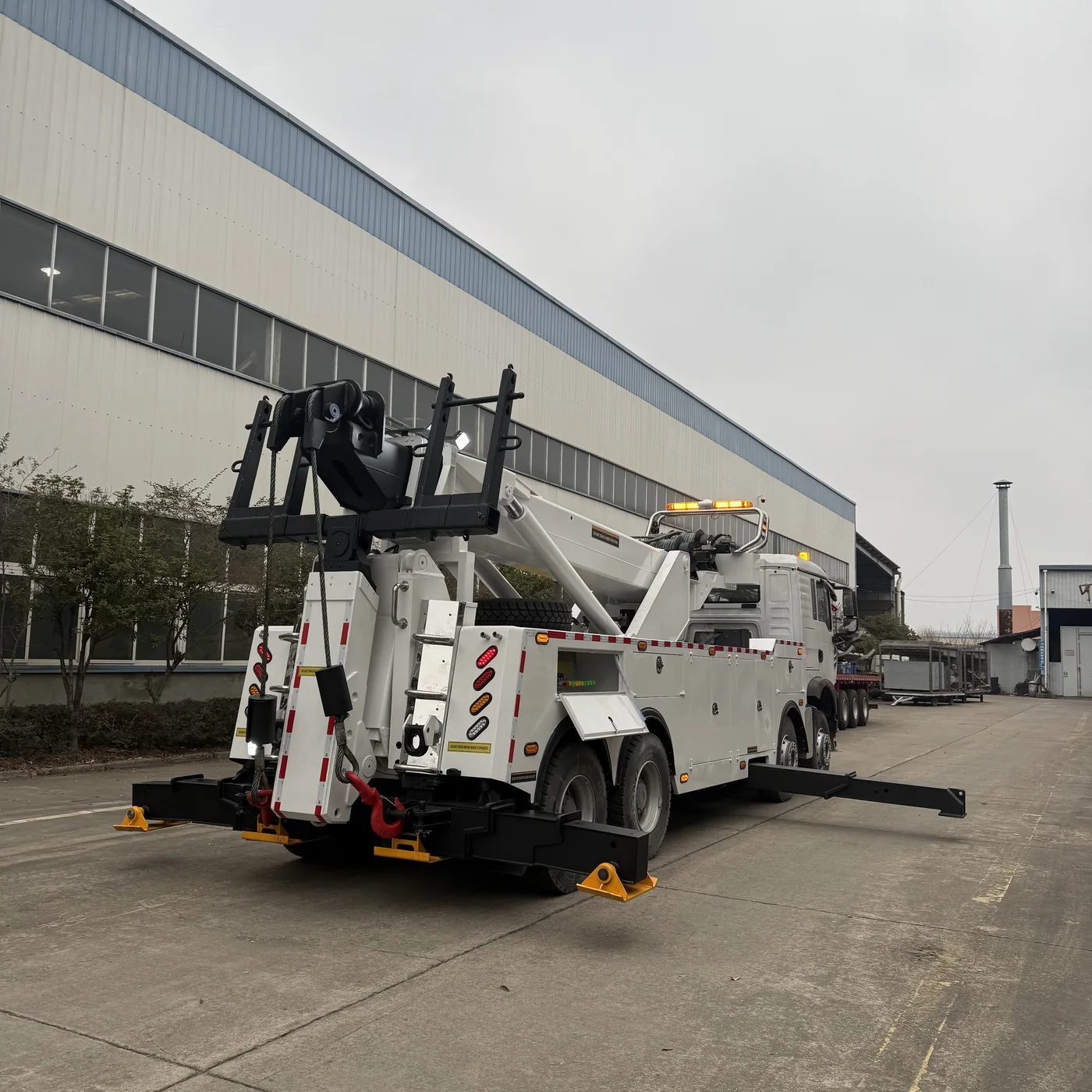

Full outrigger stability

Hydraulic front and rear outriggers for a stable lifting base on uneven ground and highway shoulders.

✓

Italian control valves

Italian-made control valves and hydraulic cylinders — all DOT-standard hydraulics.

🎛

Wireless + manual control

Wireless remote for rotation and boom, plus manual controls both sides. Underlift for towing after recovery.

Rotator wreckers
16 – 100 ton
