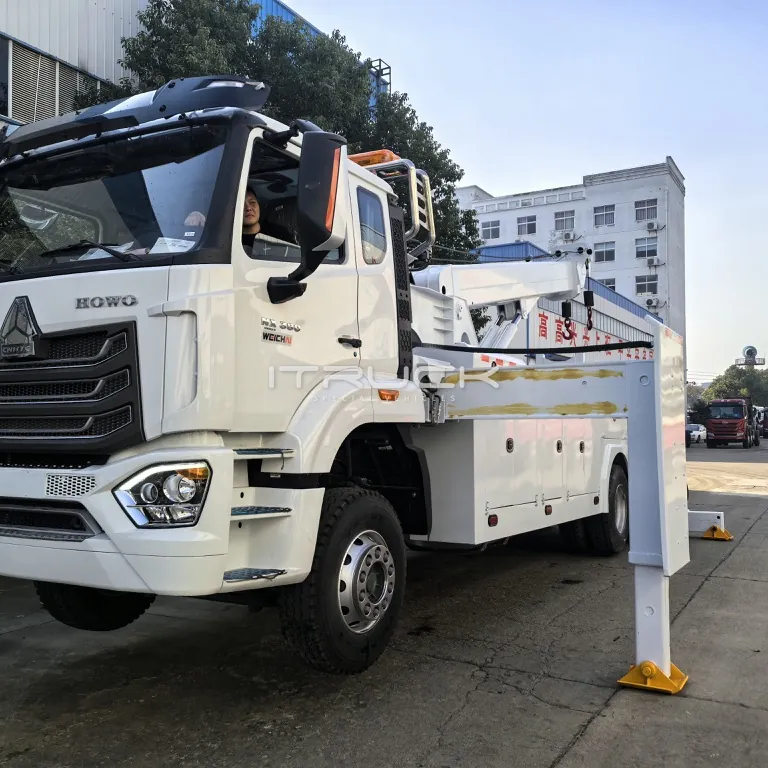

Name: Rotator Wrecker 16T / 20T
Brand: iTruck

Technical Specifications

Specifications by rating

Item	16T	20T
Boom lift capacity — retracted	16 t	20 t
Boom lift capacity — extended (55–58°)	4.5 t	6.5 t

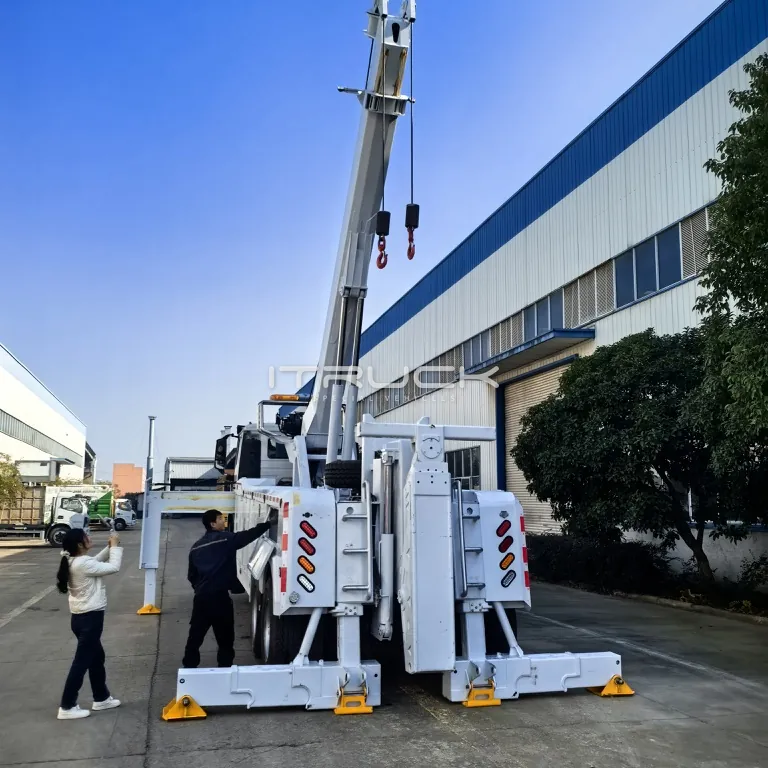

Max. boom elevation	65°
Max. lifting height	7,727 mm	9,600 mm
Hook reach at max. lifting height (from folded underlift)	4,200 mm
Boom stages	2
Underlift capacity — retracted	16,000 kg
Underlift length — retracted	1,550 mm
Underlift capacity — extended	4,500 kg
Underlift length — extended	3,150 mm
Underlift down-tilt	−10°
Towing capacity	32–48 t
Main winches	2 × 8 t	2 × 10 t
Winch type	Planetary
Cable length	45 m
Cable diameter	16 mm
Tow bar size	1,400 × 127 × 12.7 mm
Forks	56 mm
Fork receiver	57 mm
Approx. net weight	~12 t	14–15 t

All tonnages are metric tons (1,000 kg).

Every unit is built to the chassis; final dimensions, weights and reach figures follow the chassis specification.

Standard Equipment

What comes with every unit

Winches

Main winches 2 × 8 t (20T: 2 × 10 t) — planetary, DOT certified

Boom

Boom — HG70 steel, 2-stage

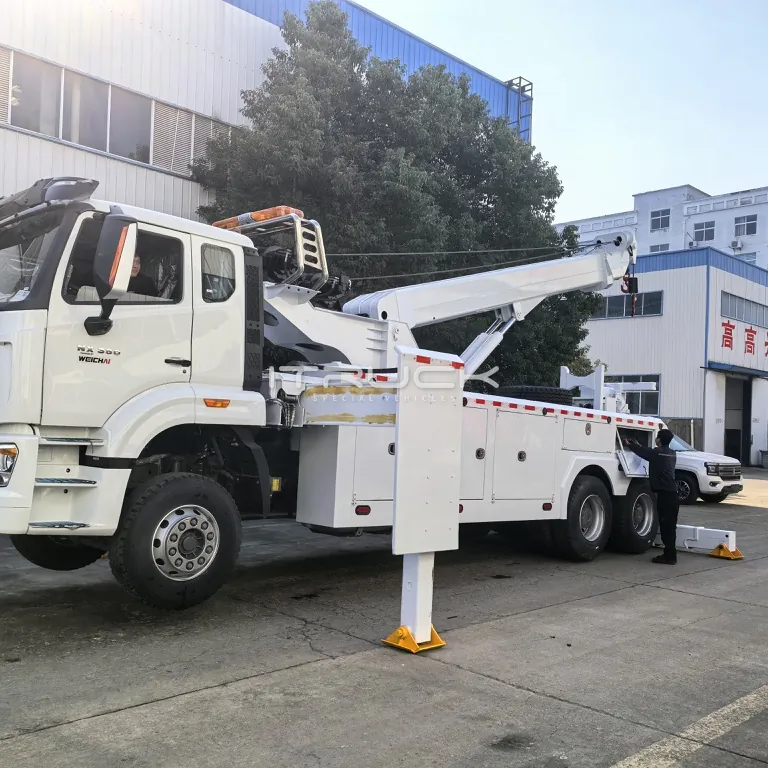

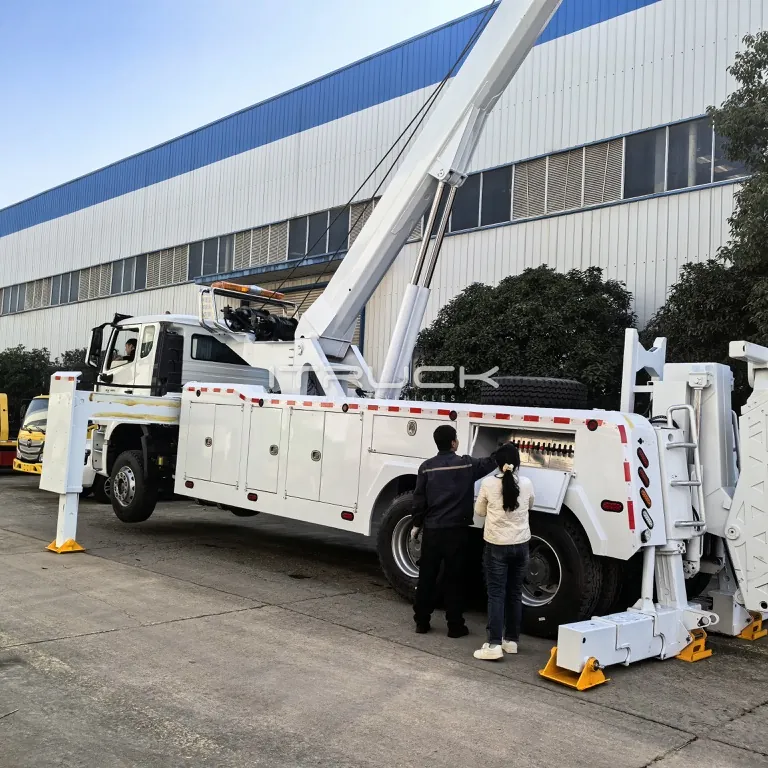

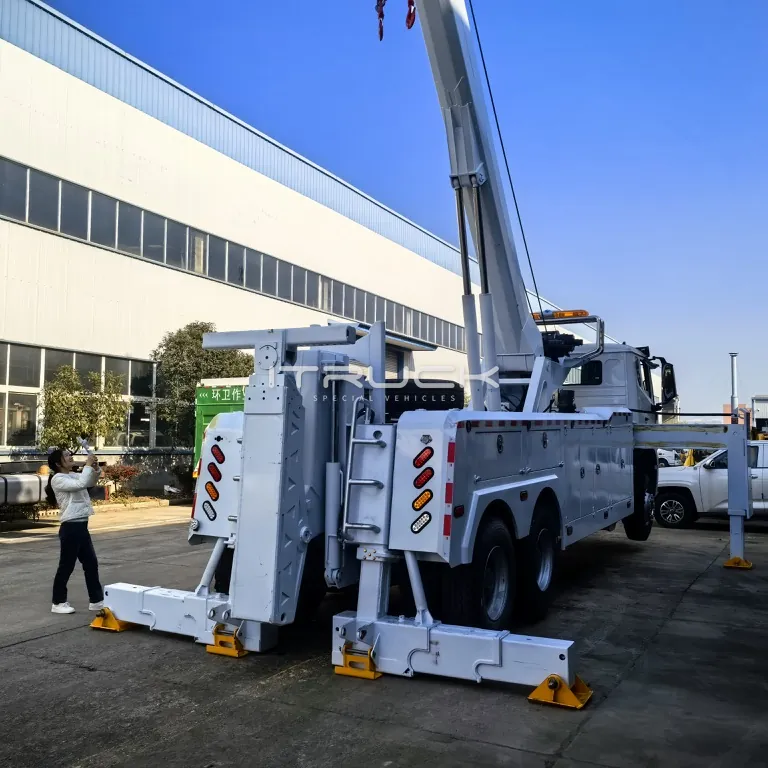

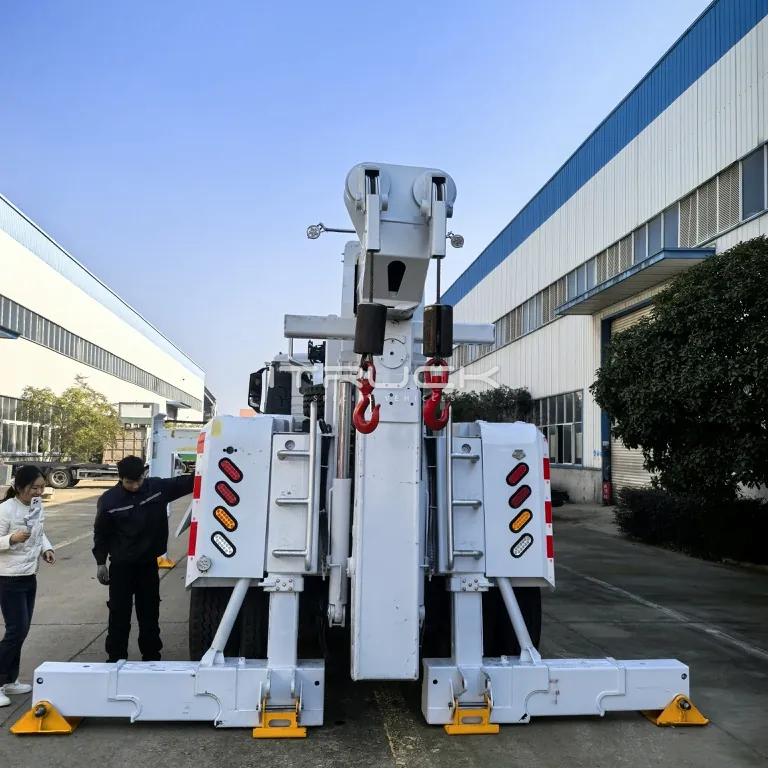

Hydraulic outriggers — front and rear

Underlift

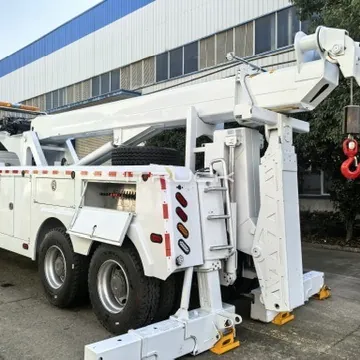

Underlift — HG70 steel, 3-stage

Hydraulics

Hydraulic pump — splined 6- or 13-tooth, or keyed single shaft, DOT
Hoses and connectors — DOT
Control valves — Italian-made, DOT
Hydraulic cylinders — DOT

Control

Radio remote control — push-button transmitter, standard
Manual control stations ×2 — one each side, English markings

Toolboxes

Toolboxes ×2 — one each side, Q235 carbon steel, stainless steel handles

Attachments

Forks — 5 sets: 4 for axles, 1 for suspension
Fork receivers and U-shaped tire holder — 1 set each
Safety chains ×2, with chain pockets on the toolbox
D-rings ×6–8

Lights

LED light rack — full size, stainless steel
Side marker lights — 8 per side, DOT
Tail lights — 4 per side, DOT

Accessories

Subframe — Q355B carbon steel
Air and electrical hook-ups — 12 V or 24 V, DOT

Painting

Toolboxes e-coated; remaining parts primed and topcoated
Epoxy topcoat
Toolboxes wrapped to protect the paint in shipping

Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

Chest-mounted joystick remote control
Full e-coat
Additional drag or side winches
Aluminum toolboxes
Light bar
Custom attachments
Custom color — RAL code or sample photo

Custom colors are matched as closely as possible from a RAL code or sample photo; a slight color difference cannot be excluded.

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.

Get the measurement guide (PDF) →
