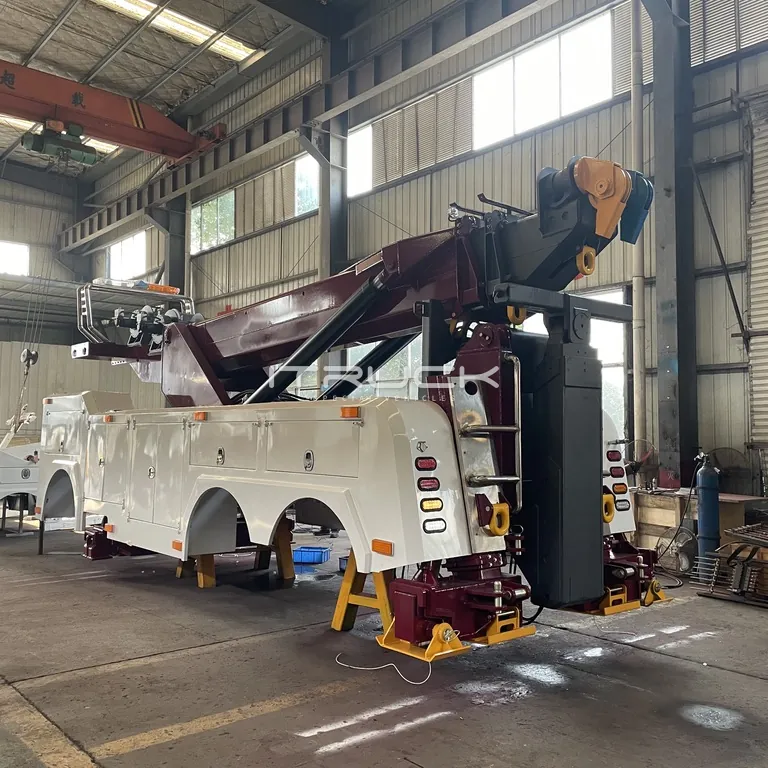

50 ton rotator body in the workshop with boom and rear outriggers
Body on the build line

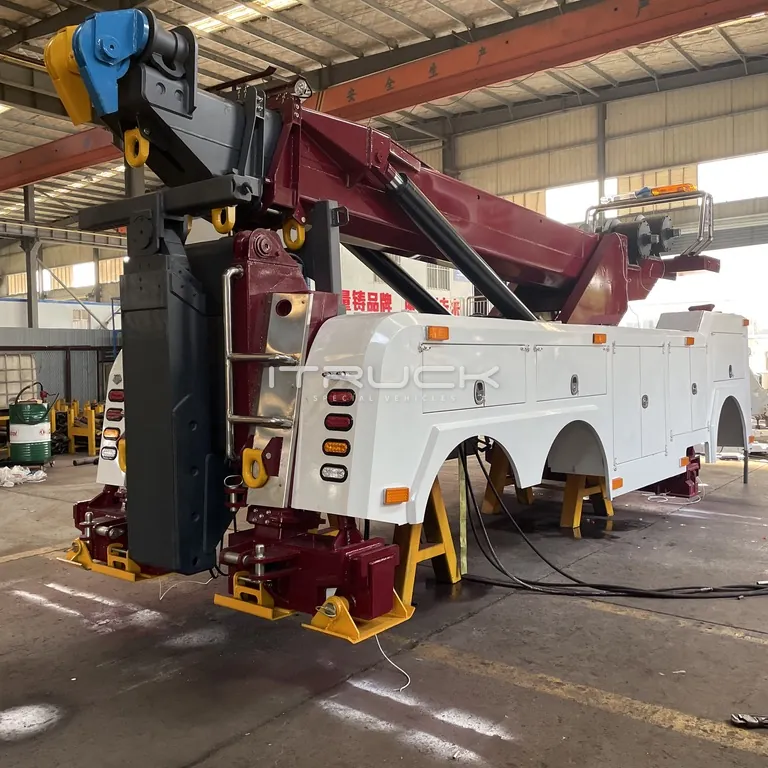

Rear quarter of the rotator body showing boom head and outriggers
Rear quarter, boom head

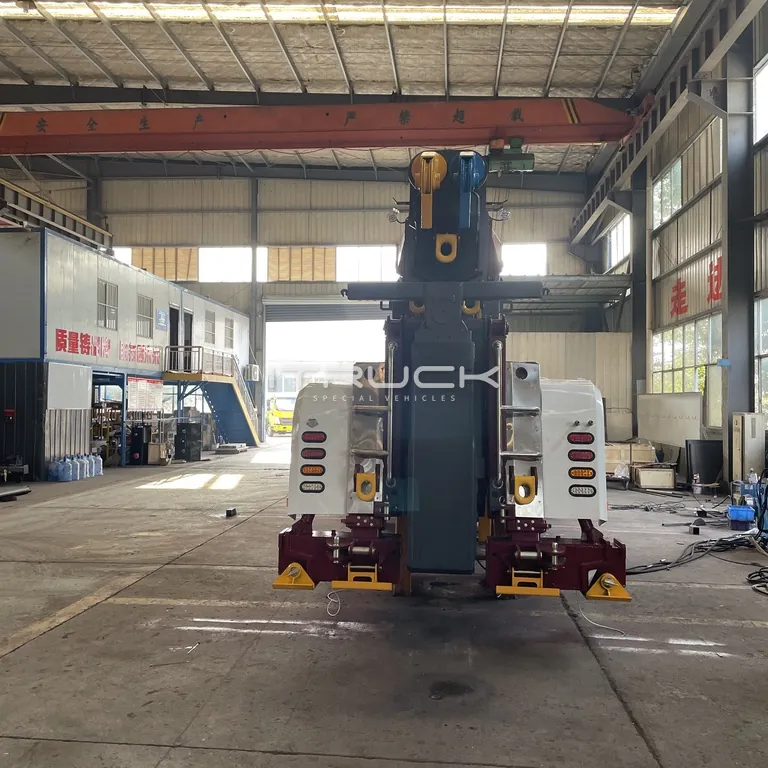

Rotator body seen straight from the rear in the workshop
Rear view in the workshop

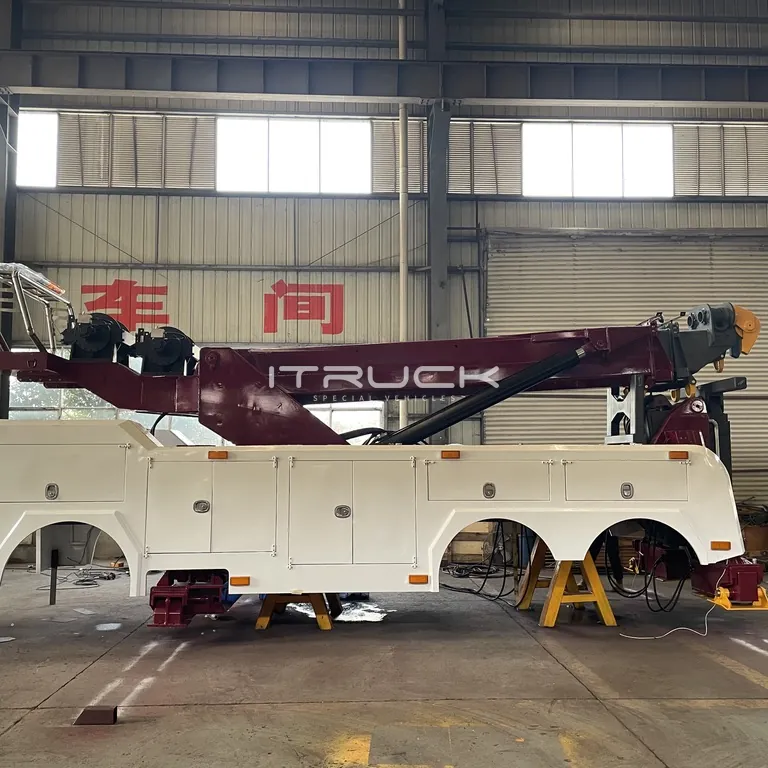

Side view of the rotator body with boom and toolboxes
Side view, boom stowed

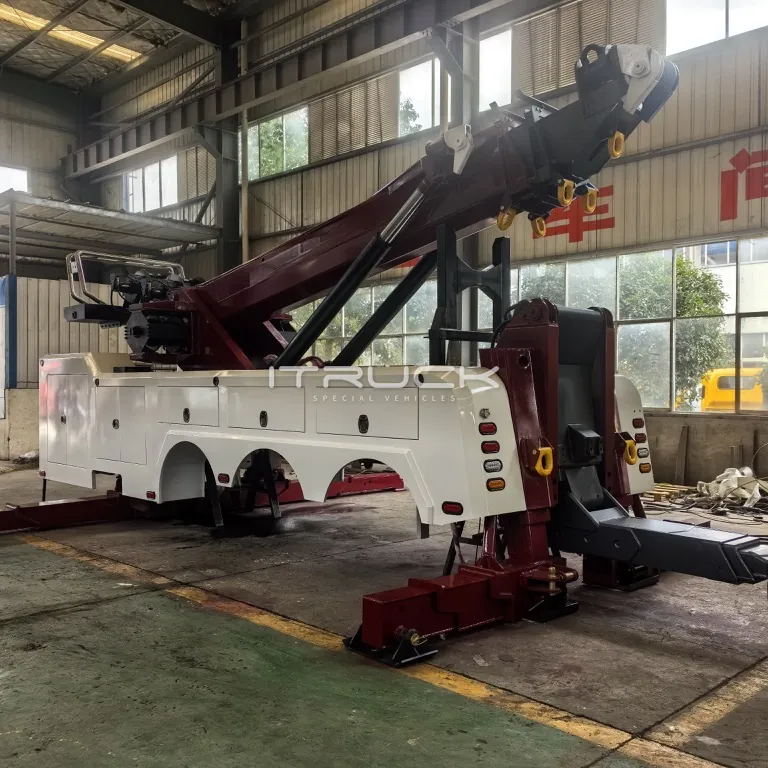

Rotator body with boom raised and front outriggers spread
Boom raised, outriggers spread

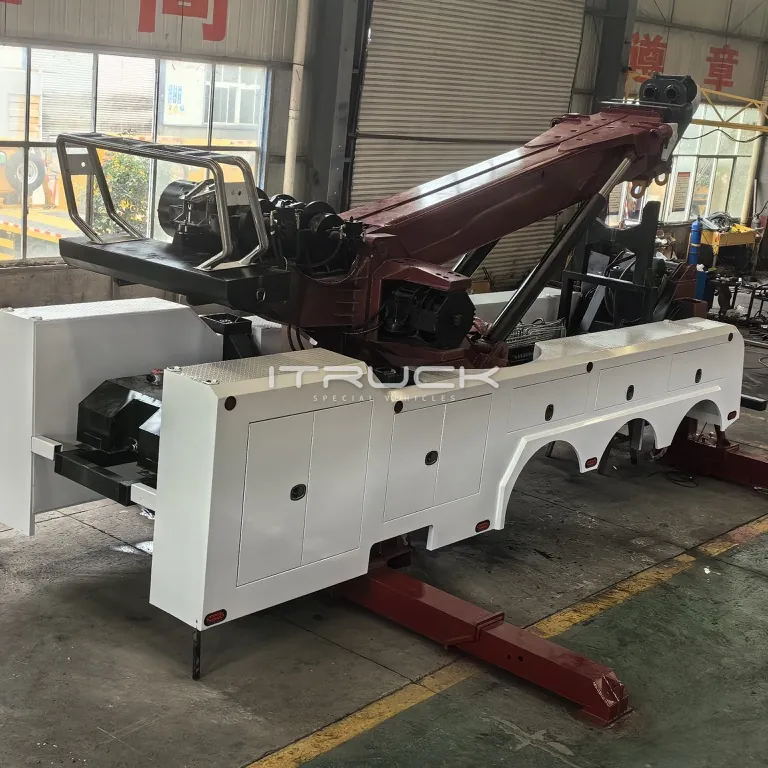

Rotator turret with winches and front outriggers extended
Turret, winches and front outriggers

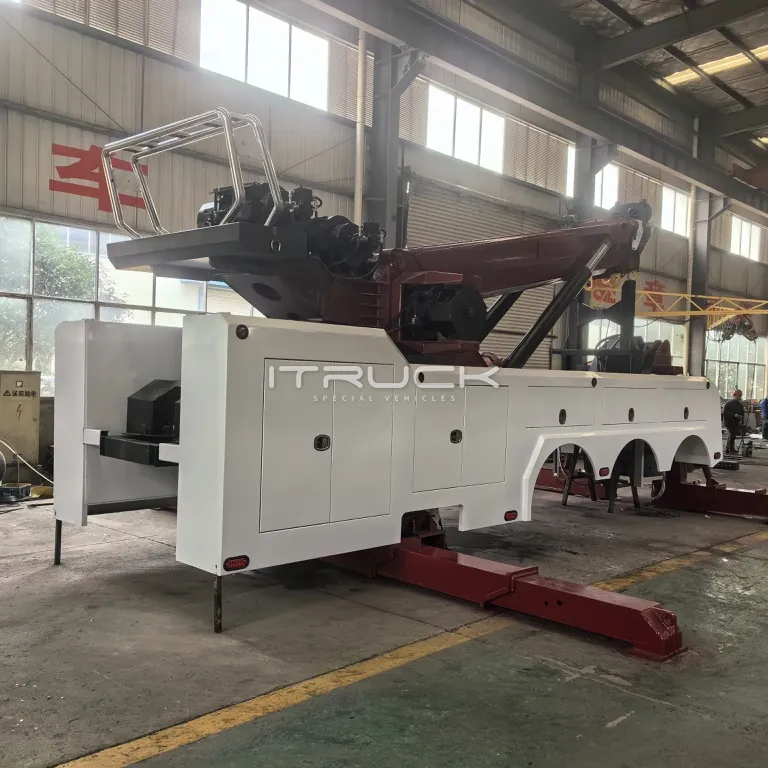

Rotator body from the front quarter with winches on the turret
Front quarter, turret winches

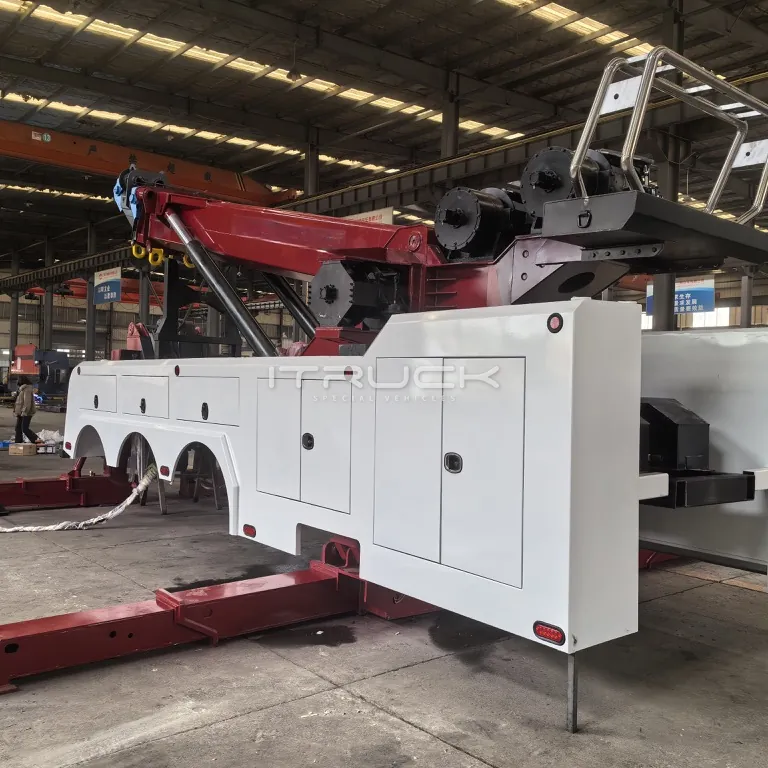

Rotator body side view with front outriggers swung out
Front outriggers swung out

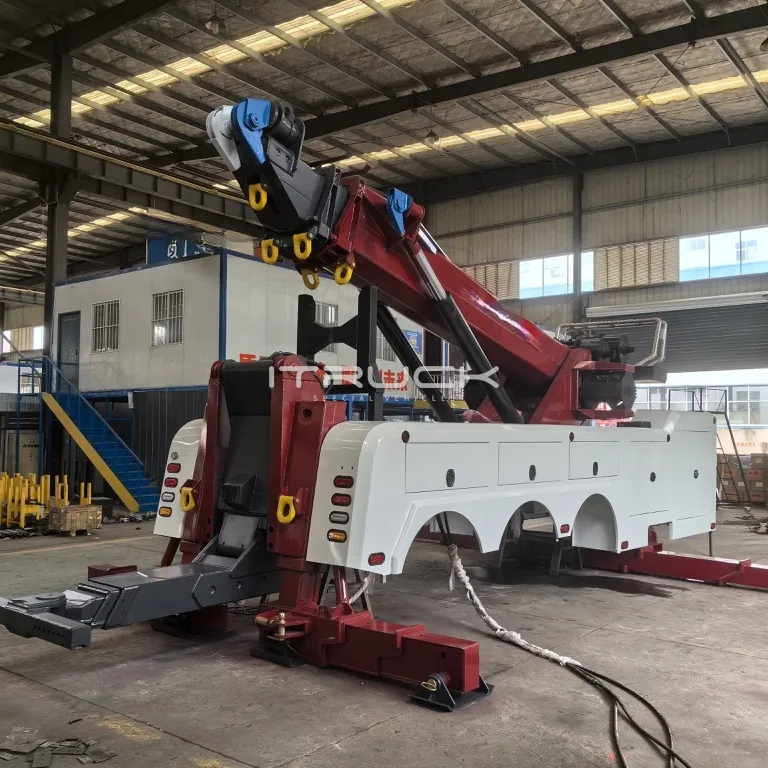

Rotator body rear quarter with underlift and rear outriggers down
Underlift and rear outriggers

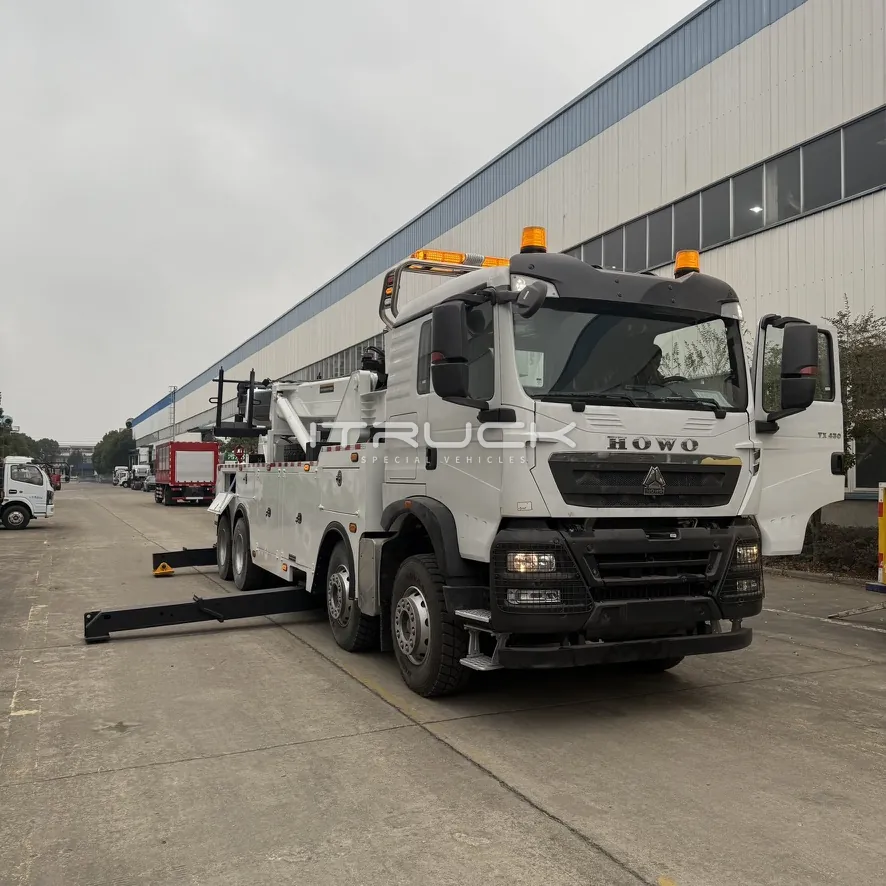

White 50 ton rotator wrecker on an eight-wheel chassis, front view
Finished truck, front view

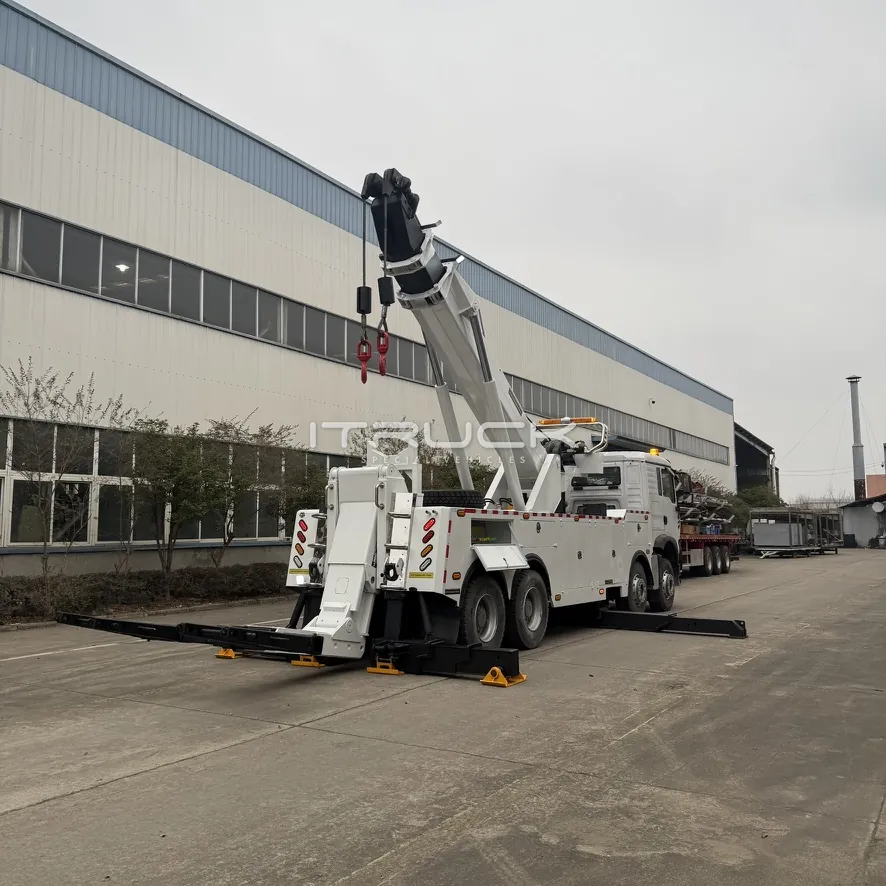

Finished rotator wrecker with boom raised and outriggers deployed
Boom raised on the finished truck

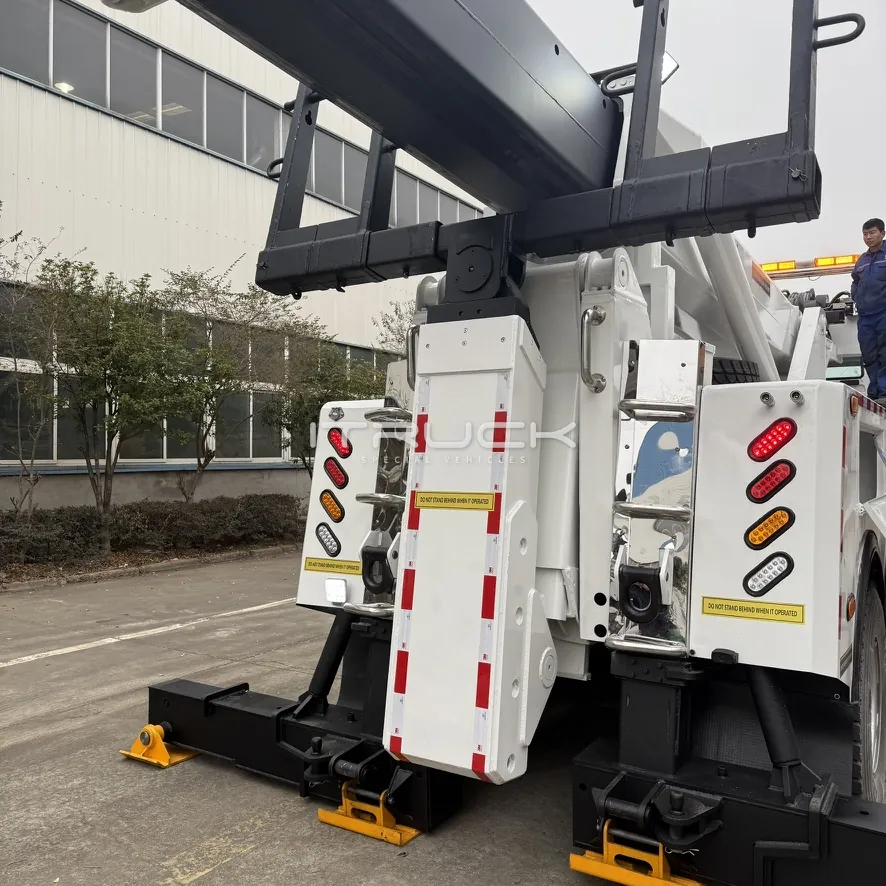

Rear of the finished rotator with tail lights and outrigger pads
Rear lights and outriggers
1 / 12

Photos are for reference only. Options may be shown.

Rotator Wrecker Body · Heavy Duty

Rotator Wrecker 50T

A heavy-duty 50 t rotator with a 3-stage HG70 boom, a 28 t underlift and four planetary winches, for recovering loaded trucks, trailers and buses.

50 tBoom lift capacity
28 tUnderlift capacity
2 × 15 t + 2 × 10 tMain + auxiliary winches
HG70Boom and underlift steel
  • Lead time120 days after deposit and drawing approval
  • Container loading1 per 40' HQ
  • Price basisEXW Suizhou · FCA on request
Request a Quote WhatsApp Us
Technical Specifications

Specifications by rating

Item50T
Boom lift capacity — retracted50 t
Boom lift capacity — extended (55–58°)12 t
Max. boom elevation65°
Max. lifting height12,000 mm
Hook reach at max. lifting height (from folded underlift)5,100 mm
Boom stages3
Underlift capacity — retracted28,000 kg
Underlift length — retracted1,746 mm
Underlift capacity — extended8,310 kg
Underlift length — extended3,492 mm
Underlift down-tilt−10°
Main winches2 × 15 t
Auxiliary winches2 × 10 t
Winch typePlanetary
Cable length — main / auxiliary45 / 45 m
Cable diameter — main / auxiliary20 / 18 mm
Tow bar size1,400 × 127 × 12.7 mm
Forks56 mm
Fork receiver57 mm
Approx. net weight20–21 t

All tonnages are metric tons (1,000 kg).

Every unit is built to the chassis; final dimensions, weights and reach figures follow the chassis specification.

Standard Equipment

What comes with every unit

Winches

  • Main winches 2 × 15 t — planetary, DOT certified
  • Auxiliary winches 2 × 10 t — planetary, DOT certified

Boom

  • Boom — HG70 steel, 3-stage
  • Hydraulic outriggers — front and rear

Underlift

  • Underlift — HG70 steel, 3-stage

Hydraulics

  • Hydraulic pump — splined 6- or 13-tooth, or keyed single shaft, DOT
  • Hoses and connectors — DOT
  • Control valves — Italian-made, DOT
  • Hydraulic cylinders — DOT

Control

  • Radio remote control — push-button transmitter, standard
  • Manual control stations ×2 — one each side, English markings

Toolboxes

  • Toolboxes ×2 — one each side, Q235 carbon steel, stainless steel handles

Attachments

  • Forks — 5 sets: 4 for axles, 1 for suspension
  • Fork receivers and U-shaped tire holder — 1 set each
  • Safety chains ×2, with chain pockets on the toolbox
  • D-rings ×6–8

Lights

  • LED light rack — full size, stainless steel
  • Side marker lights — 8 per side, DOT
  • Tail lights — 4 per side, DOT

Accessories

  • Subframe — Q355B carbon steel
  • Air and electrical hook-ups — 12 V or 24 V, DOT

Painting

  • Toolboxes e-coated; remaining parts primed and topcoated
  • Epoxy topcoat
  • Toolboxes wrapped to protect the paint in shipping
Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

Custom colors are matched as closely as possible from a RAL code or sample photo; a slight color difference cannot be excluded.

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.
