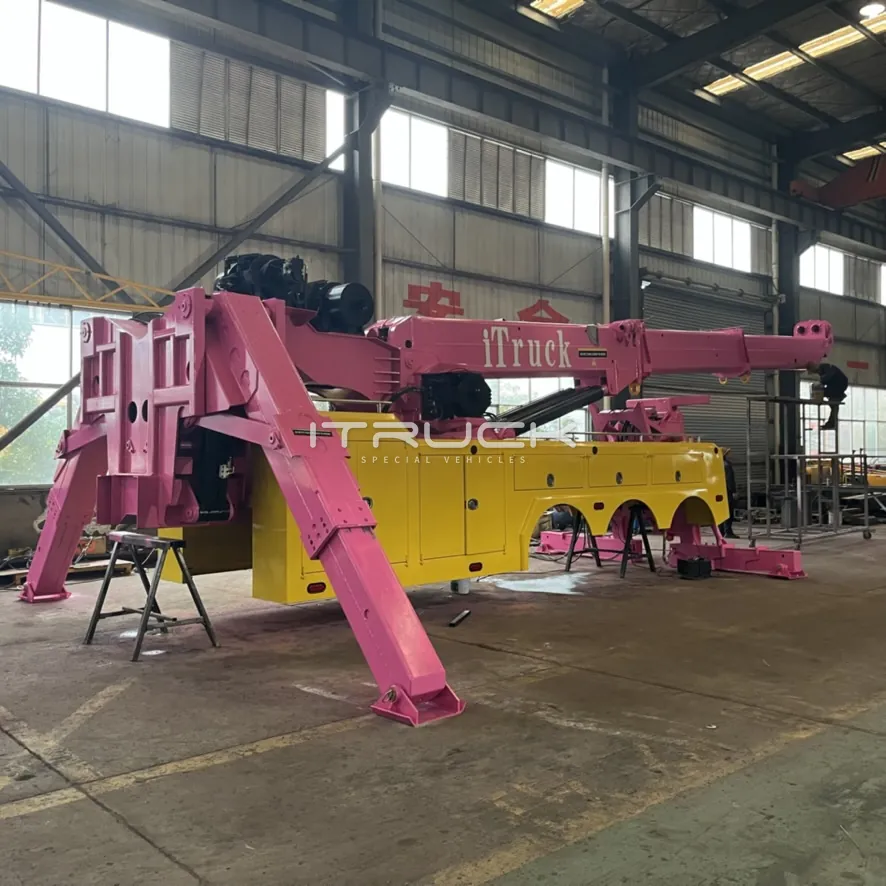

Heavy rotator body in pink and yellow with outriggers deployed
Body on the build line

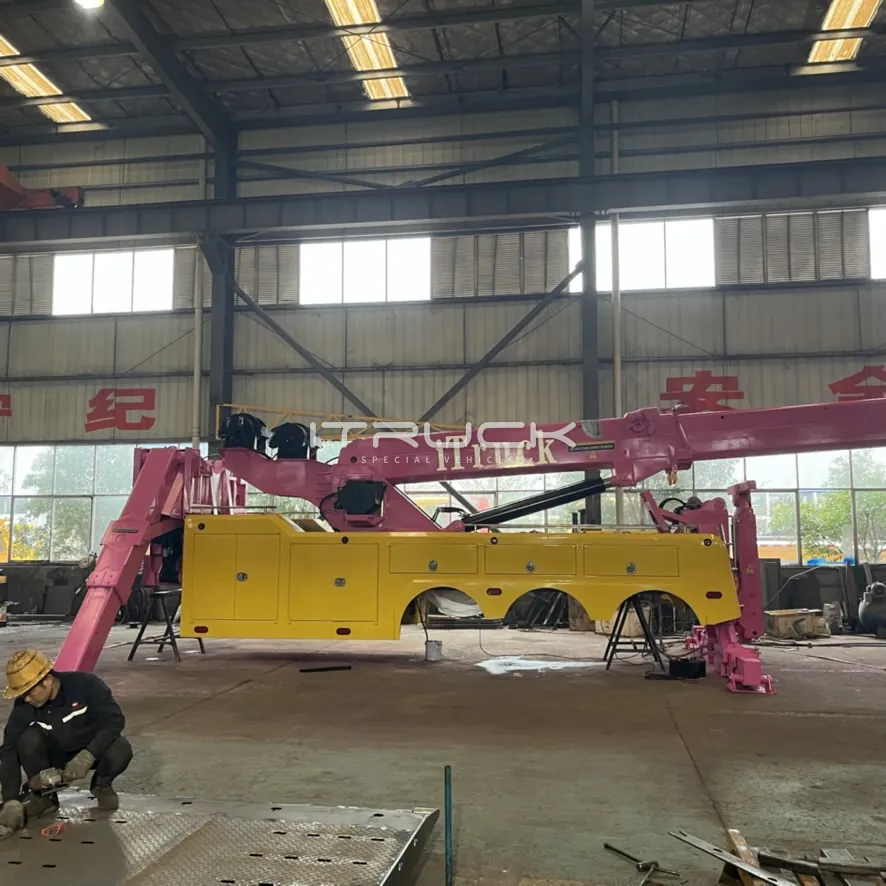

Side view of the heavy rotator body with long boom and front outriggers
Side view, boom stowed

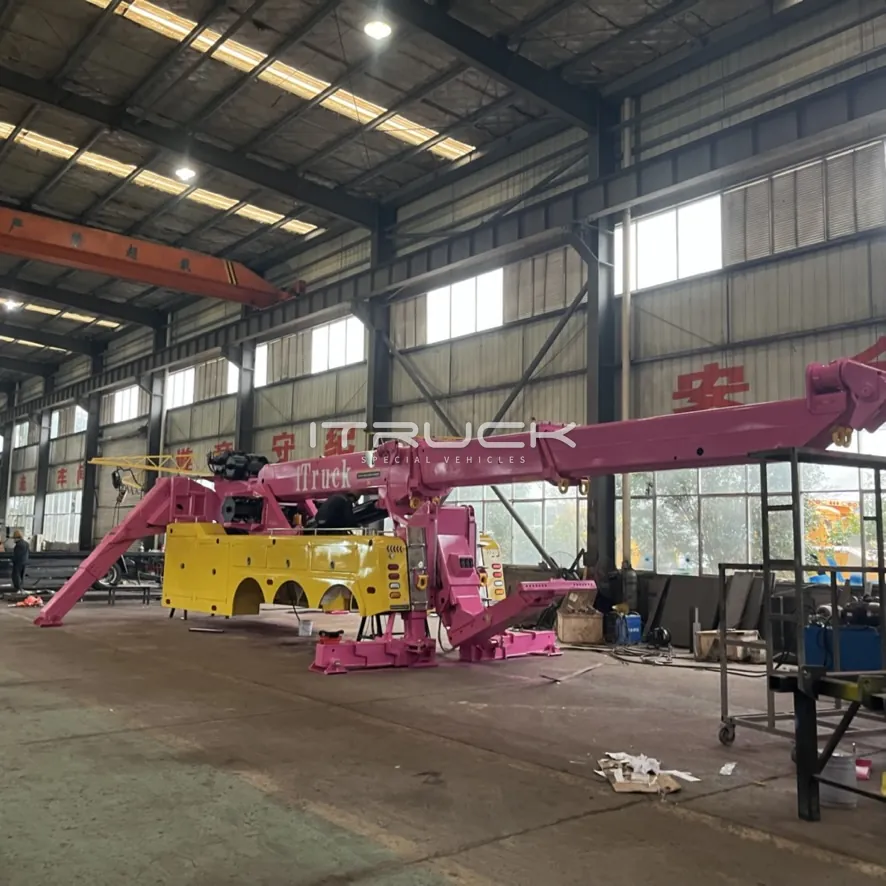

Heavy rotator body with front and rear outriggers spread
Outriggers spread

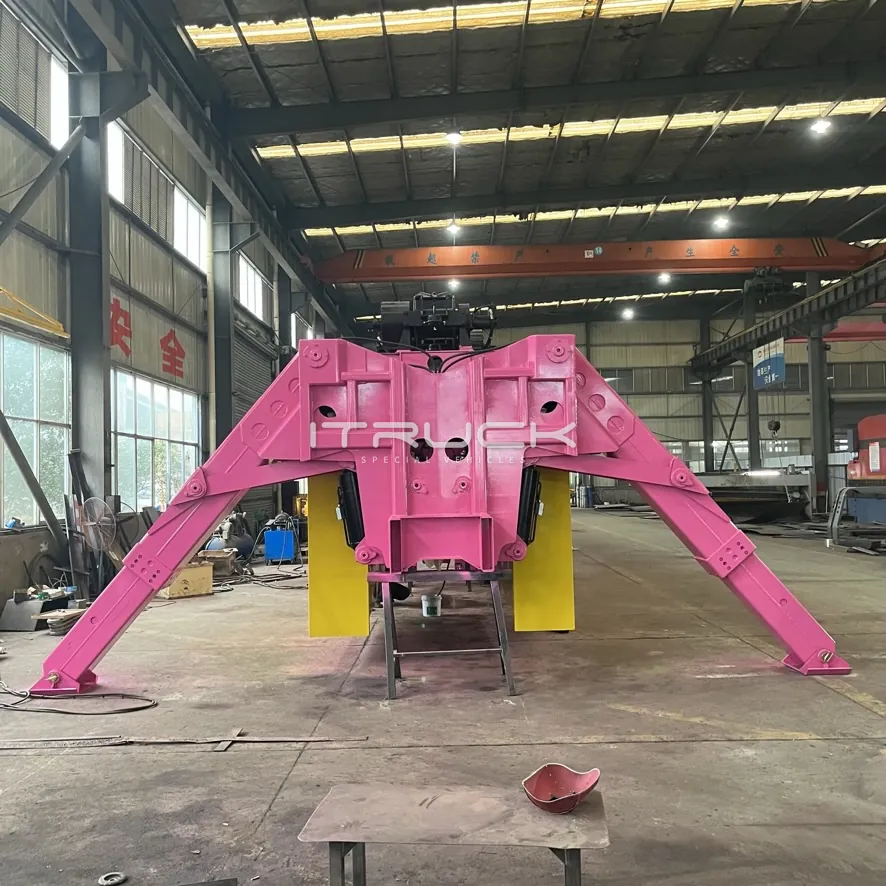

Front of the rotator turret with outrigger legs spread wide
Front outriggers spread wide

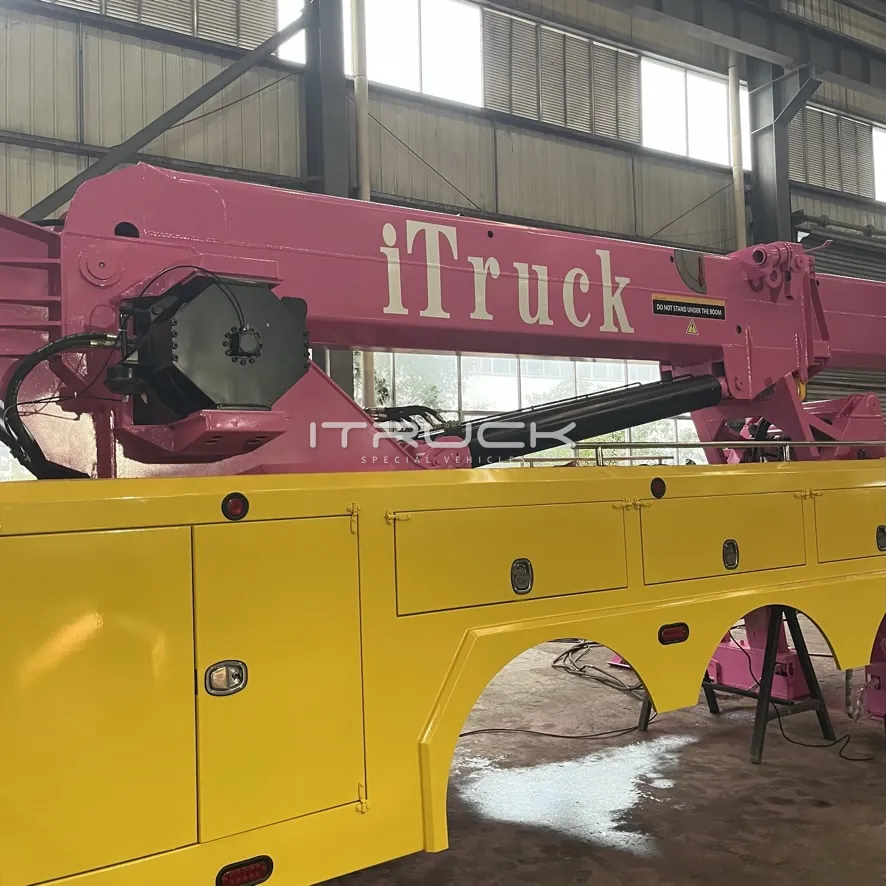

Boom base and winch drum on the heavy rotator turret
Boom base and winch drum

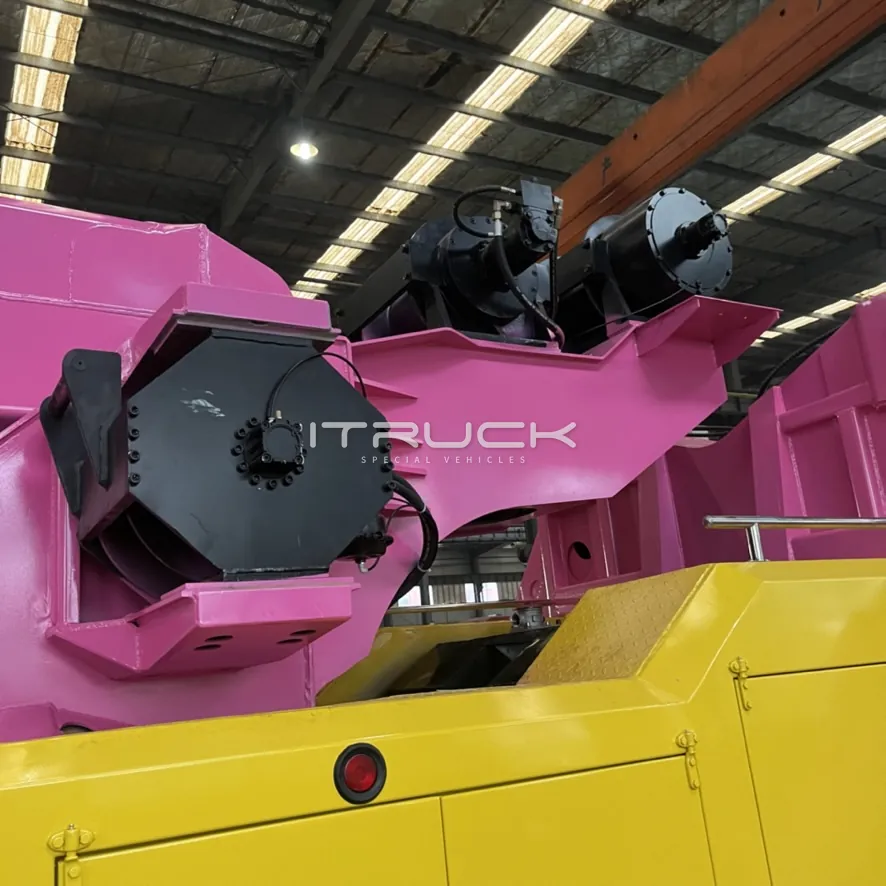

Planetary winches mounted on the rotator turret
Winches on the turret

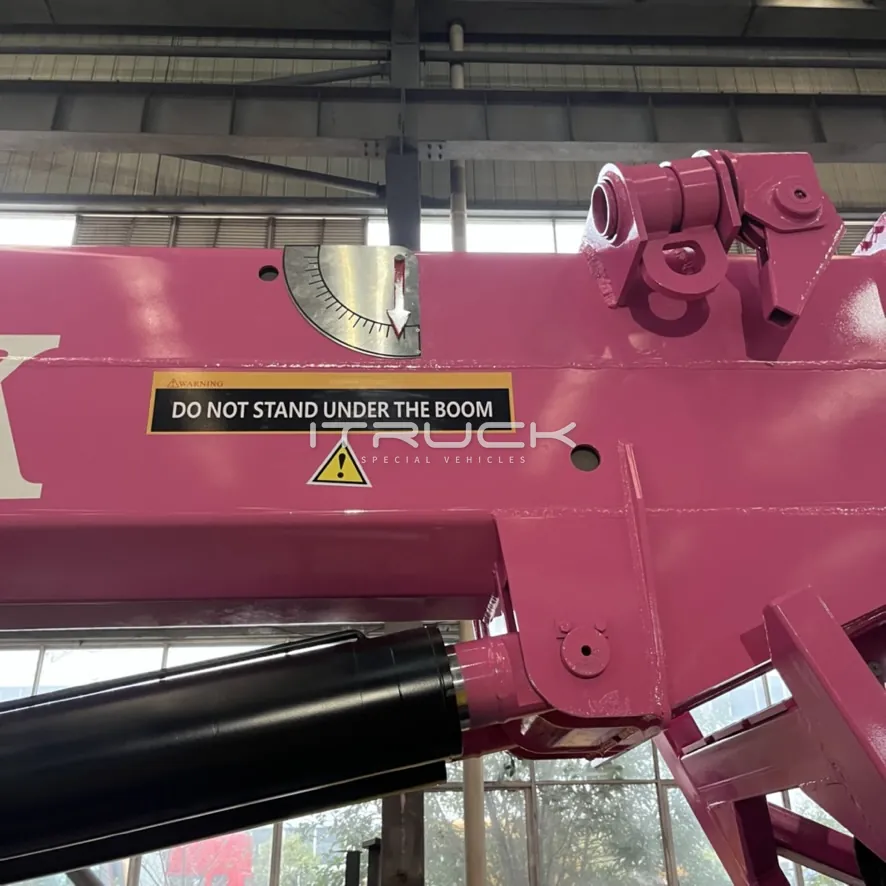

Boom angle indicator and safety decal on the rotator boom
Boom angle indicator

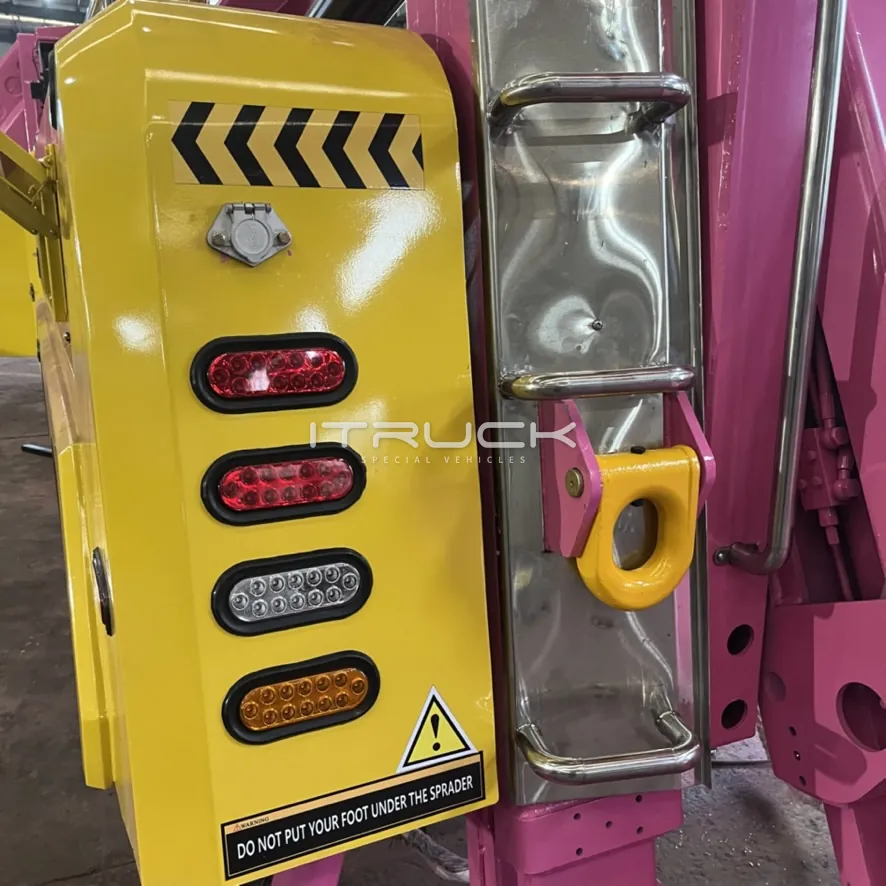

Rear tail lights, recovery eye and ladder on the rotator body
Rear lights and recovery eye
Push-button radio remote control on the rotator
Radio remote control
1 / 9

Photos are for reference only. Options may be shown.

Rotator Wrecker Body · Heavy Duty

Rotator Wrecker 75T / 100T

Our heaviest rotators: a 3-stage HG70 boom lifting 75 or 100 t, main winches up to 2 × 50 t and a 28 t underlift, for the heaviest trucks, buses and loaded trailers.

75 / 100 tBoom lift capacity
28 tUnderlift capacity
2 × 30 / 2 × 50 tMain winches
13,029 mmMax. lifting height
  • Lead time150 days after deposit and drawing approval
  • Container loading2 × 40' HQ per unit
  • Price basisEXW Suizhou · FCA on request
Request a Quote WhatsApp Us
Technical Specifications

Specifications by rating

Item75T100T
Boom lift capacity — retracted75 t100 t
Boom lift capacity — extended (55–58°)15 t20 t
Max. boom elevation65°
Max. lifting height13,029 mm
Hook reach at max. lifting height (from folded underlift)5,219 mm
Boom stages3
Underlift capacity — retracted28,000 kg
Underlift length — retracted1,746 mm
Underlift capacity — extended8,310 kg
Underlift length — extended3,492 mm
Underlift down-tilt−10°
Main winches2 × 30 t2 × 50 t
Auxiliary winches2 × 10 tOptional
Winch typePlanetary
Cable length — main60 m
Cable diameter — main26 mm30 mm
Tow bar size1,400 × 127 × 12.7 mm
Forks56 mm
Fork receiver57 mm
Approx. net weight~25 t~30 t

All tonnages are metric tons (1,000 kg).

Every unit is built to the chassis; final dimensions, weights and reach figures follow the chassis specification.

Shipped in two 40' HQ containers per unit — weight and toolbox length exceed one container.

Standard Equipment

What comes with every unit

Winches

  • Main winches 2 × 30 t (100T: 2 × 50 t) — planetary, DOT certified
  • Auxiliary winches 2 × 10 t on the 75T — optional on the 100T

Boom

  • Boom — HG70 steel, 3-stage
  • Hydraulic outriggers — front and rear

Underlift

  • Underlift — HG70 steel, 3-stage

Hydraulics

  • Hydraulic pump — splined 6- or 13-tooth, or keyed single shaft, DOT
  • Hoses and connectors — DOT
  • Control valves — Italian-made, DOT
  • Hydraulic cylinders — DOT

Control

  • Radio remote control — push-button transmitter, standard
  • Manual control stations ×2 — one each side, English markings

Toolboxes

  • Toolboxes ×2 — one each side, Q235 carbon steel, stainless steel handles

Attachments

  • Forks — 5 sets: 4 for axles, 1 for suspension
  • Fork receivers and U-shaped tire holder — 1 set each
  • Safety chains ×2, with chain pockets on the toolbox
  • D-rings ×6–8

Lights

  • LED light rack — full size, stainless steel
  • Side marker lights — 8 per side, DOT
  • Tail lights — 4 per side, DOT

Accessories

  • Subframe — Q355B carbon steel
  • Air and electrical hook-ups — 12 V or 24 V, DOT

Painting

  • Toolboxes e-coated; remaining parts primed and topcoated
  • Epoxy topcoat
  • Toolboxes wrapped to protect the paint in shipping
Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

Custom colors are matched as closely as possible from a RAL code or sample photo; a slight color difference cannot be excluded.

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.

Will it fit your truck?
Will it fit your truck?
Get the measurement guide (PDF) →
