Name: Rotator Wrecker 30T / 40T
Brand: iTruck

Technical Specifications

Specifications by rating

Item	30T	40T
Boom lift capacity — retracted	30 t	40 t
Boom lift capacity — extended (55–58°)	9 t	9.5 t
Max. boom elevation	65°
Max. lifting height	11,000 mm	11,500 mm
Hook reach at max. lifting height (from folded underlift)	4,200 mm	5,000 mm
Boom stages	3
16 t underlift — capacity retracted / extended	16,000 / 4,500 kg
16 t underlift — length retracted / extended	1,550 / 3,150 mm
16 t underlift — towing capacity	32–48 t
25 t underlift — capacity retracted / extended	25,000 / 6,500 kg
25 t underlift — length retracted / extended	1,650 / 3,150 mm
25 t underlift — towing capacity	50–75 t
Main winches	2 × 15 t	2 × 20 t
Winch type	Planetary
Cable length	45 m
Cable diameter	20 mm	26 mm
Front legs	Swing-out	Swing-out or straight-down
Leg span, front / rear (centre to centre)	6.0 / 4.35 m	6.0 / 4.35 m swing-out · 6.5 / 4.35 m straight-down
Approx. net weight	16–18 t	18–20 t

All tonnages are metric tons (1,000 kg).

30T is supplied with the 16 t underlift; 40T with the 16 t or 25 t underlift.

Standard Equipment

What comes with every unit

Winches

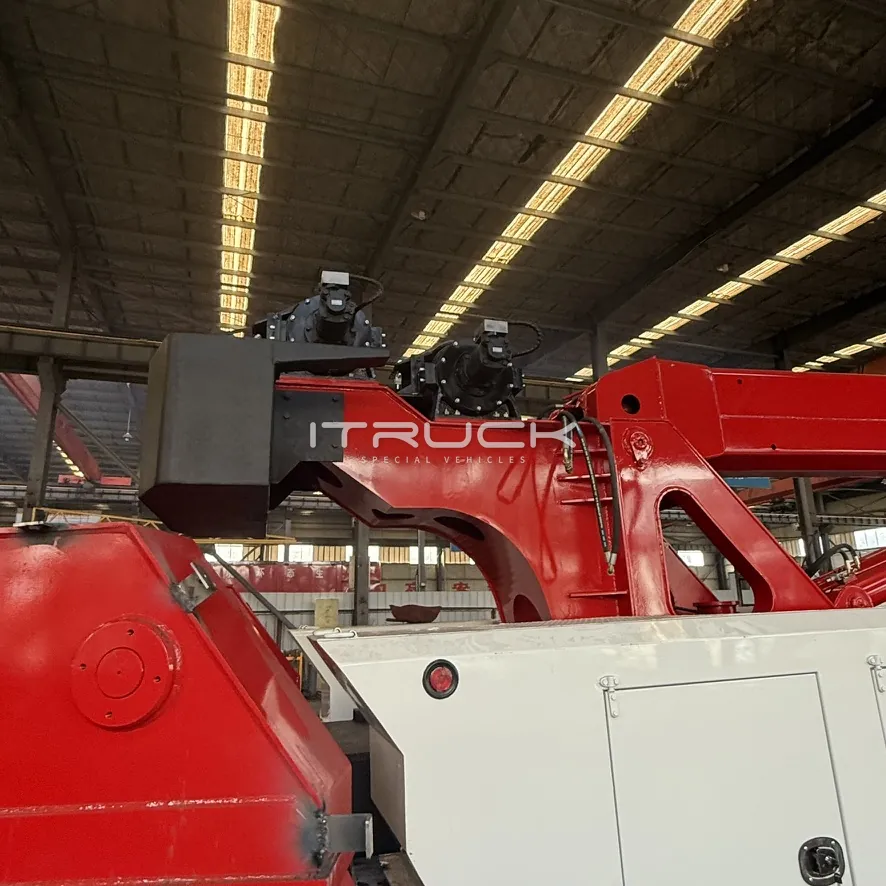

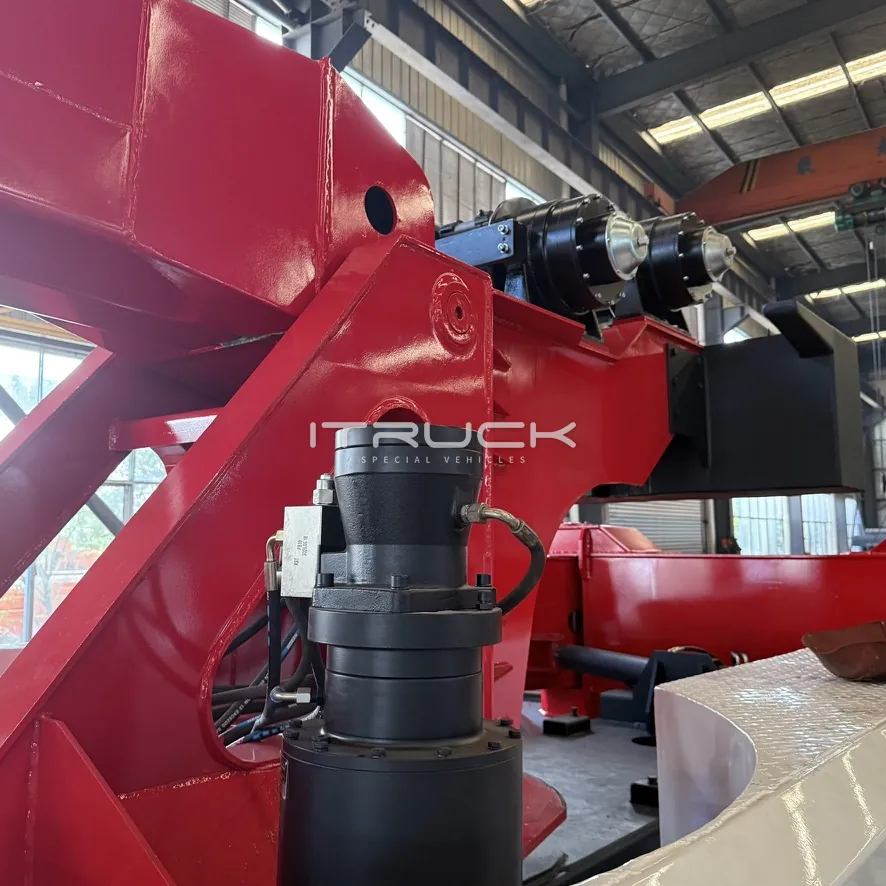

Main winches 2 × 15 t (40T: 2 × 20 t) — planetary, DOT certified

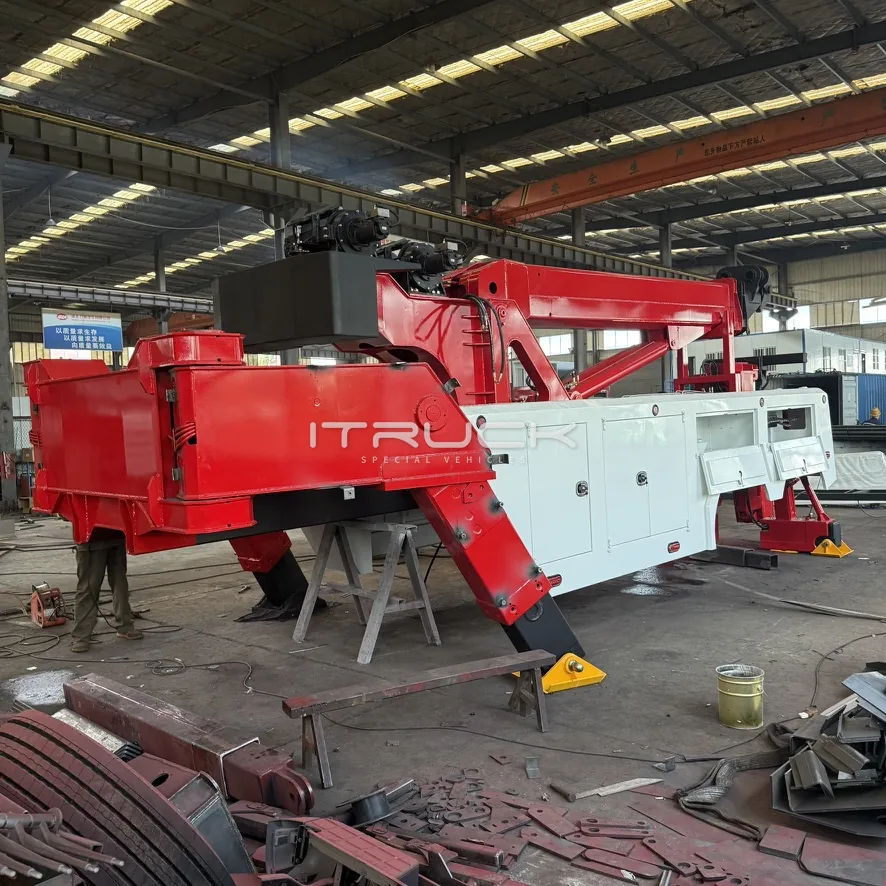

Boom

Boom — HG70 steel, 3-stage

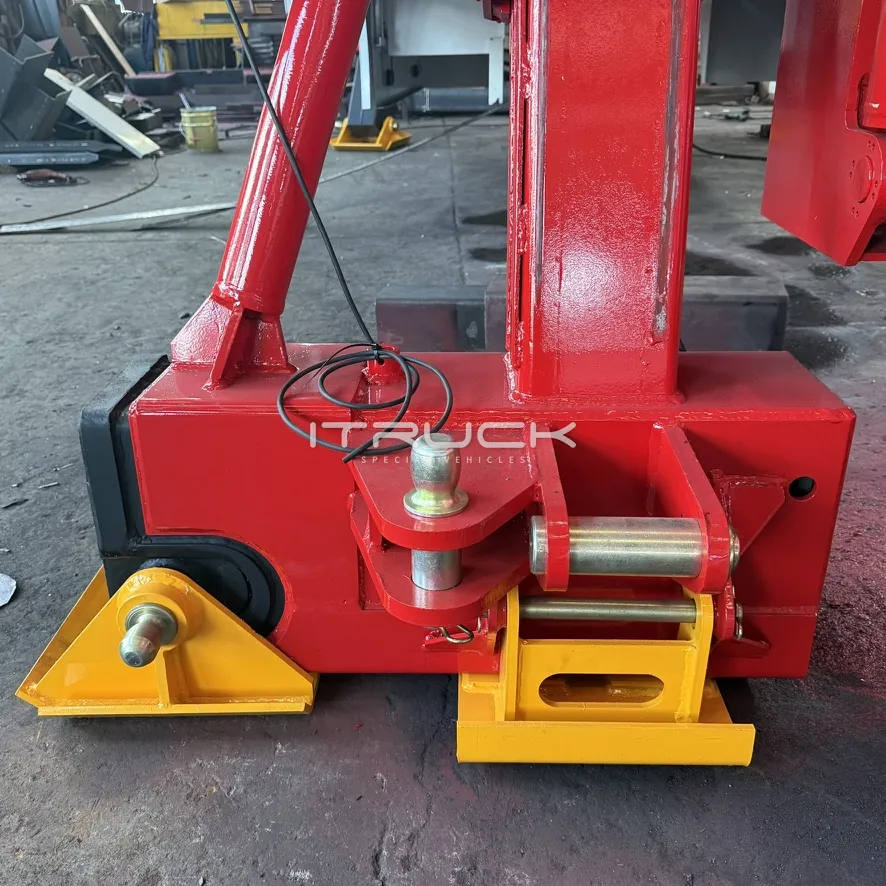

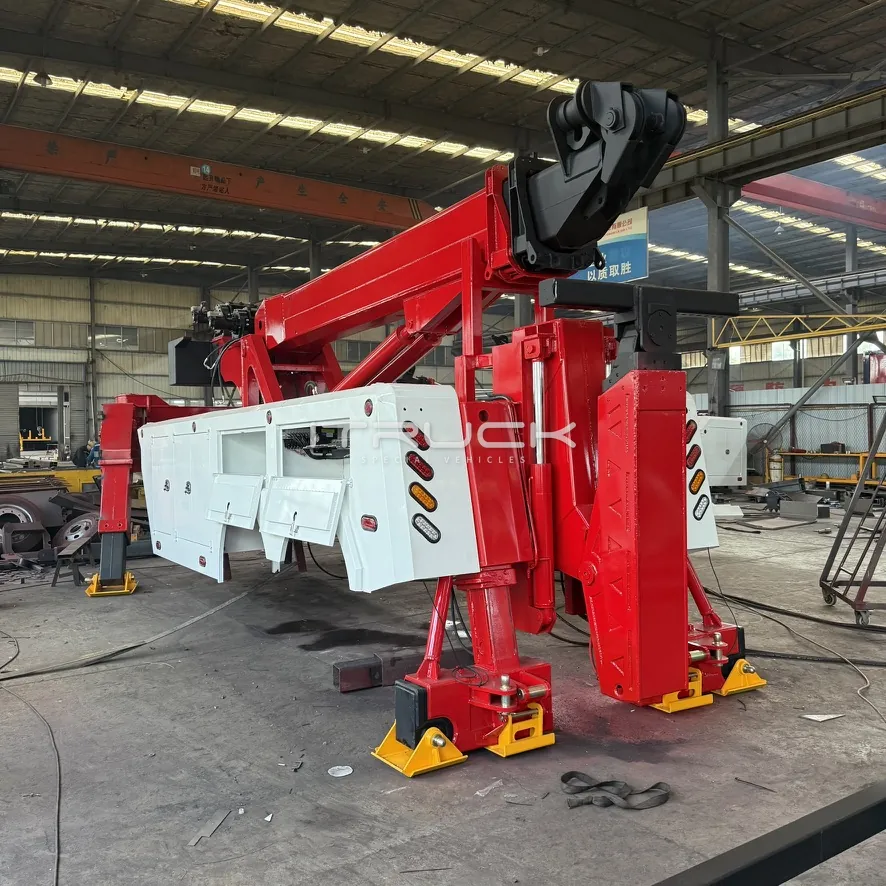

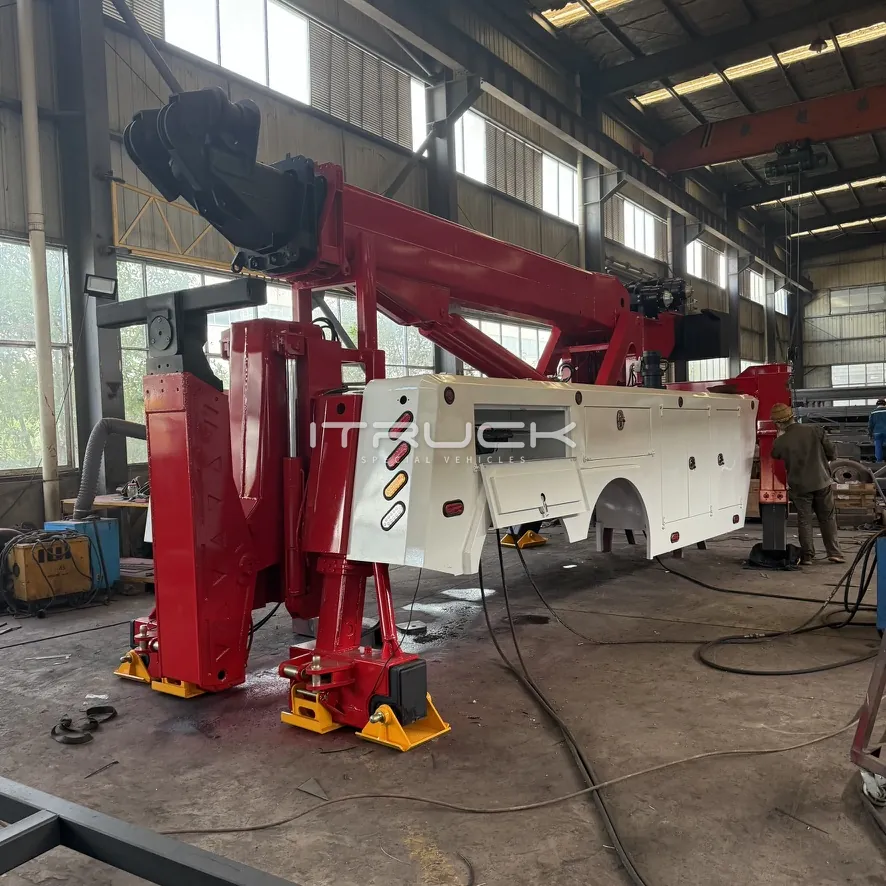

Hydraulic outriggers — front and rear

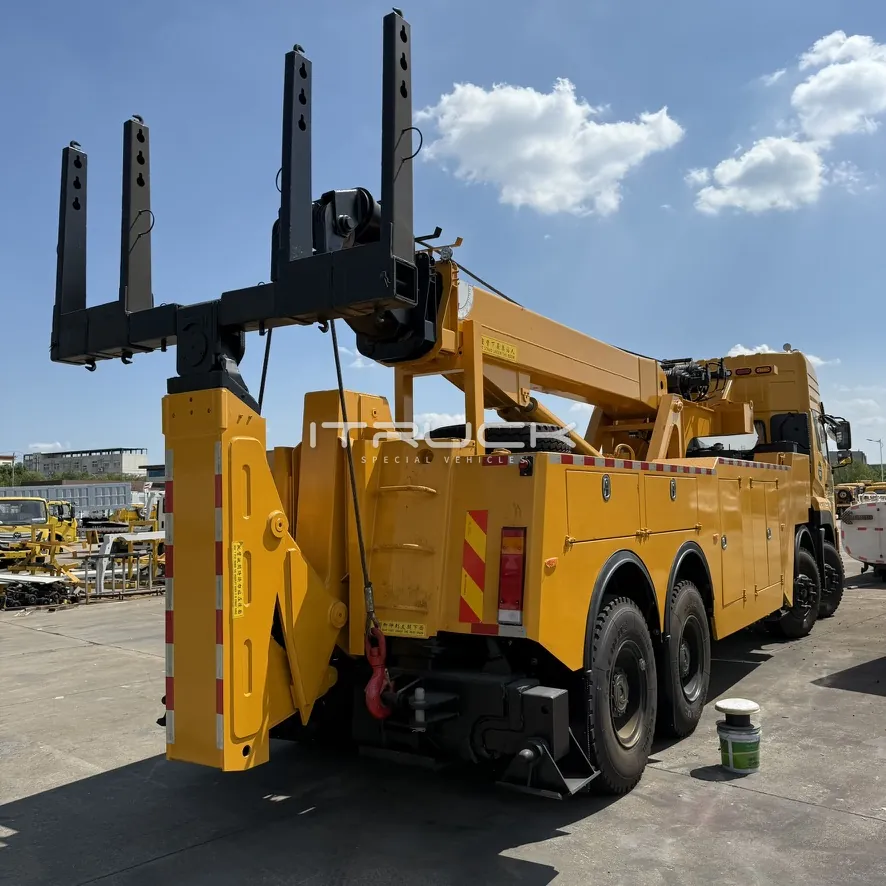

Underlift

Underlift — HG70 steel, 3-stage

Hydraulics

Hydraulic pump — splined 6- or 13-tooth, or keyed single shaft, DOT
Hoses and connectors — DOT
Control valves — Italian-made, DOT
Hydraulic cylinders — DOT

Control

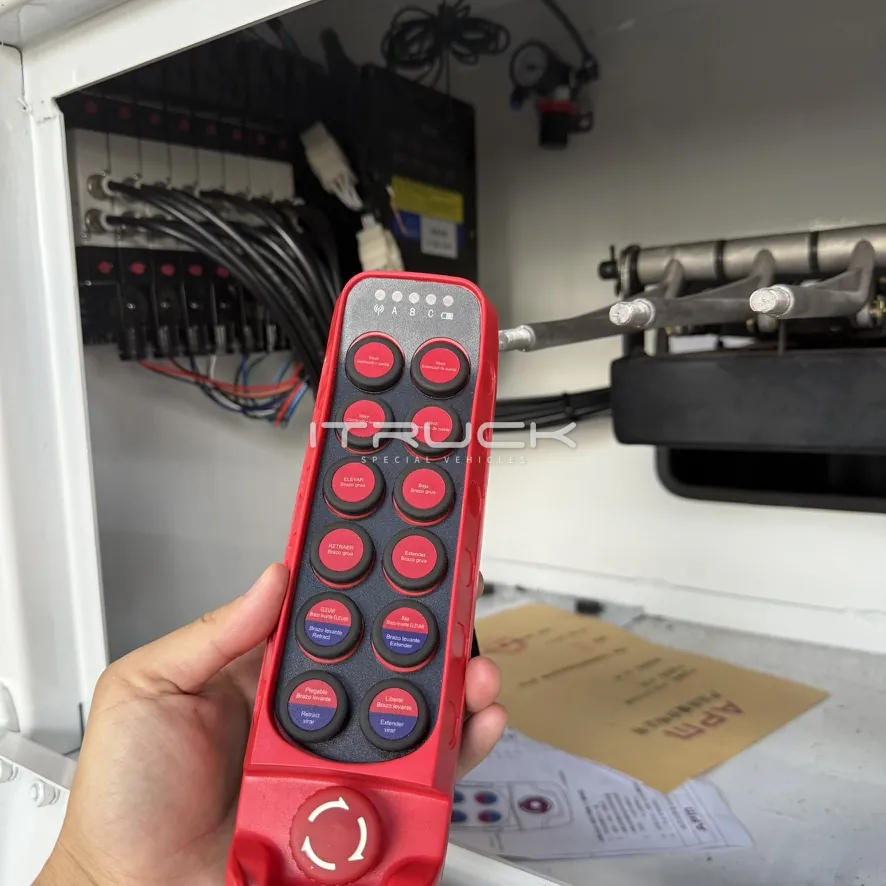

Radio remote control — push-button transmitter, standard
Manual control stations ×2 — one each side, English markings

Toolboxes

Toolboxes ×2 — one each side, Q235 carbon steel, stainless steel handles

Attachments

Forks — 5 sets: 4 for axles, 1 for suspension
Fork receivers and U-shaped tire holder — 1 set each
Safety chains ×2, with chain pockets on the toolbox
D-rings ×6–8

Lights

LED light rack — full size, stainless steel
Side marker lights — 8 per side, DOT
Tail lights — 4 per side, DOT

Accessories

Subframe — Q355B carbon steel
Air and electrical hook-ups — 12 V or 24 V, DOT

Painting

Toolboxes e-coated; remaining parts primed and topcoated
Epoxy topcoat
Toolboxes wrapped to protect the paint in shipping

Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

25 t underlift (40T)
Straight-down front legs (40T)
Chest-mounted joystick remote control
Full e-coat
Additional drag or side winches
Aluminum toolboxes
Light bar
Custom attachments
Custom color — RAL code or sample photo

Custom colors are matched as closely as possible from a RAL code or sample photo; a slight color difference cannot be excluded.

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.
