Wrecker bodies, built to your chassis

iTruck supplies a comprehensive range of premium wrecker bodies — deck wreckers, integrated wreckers, rotators, fifth-wheel wreckers and DTU units. Every body is custom-built to match your truck chassis, your operating requirements and your local regulations. Nothing here is a shelf product.

10+Years exporting
800+Workers
80Engineers
39Countries shipped

Four product lines, 3 to 100 tons

We build across the full recovery range, from a 3-ton pickup underlift to a 100-ton rotator. Boom structures, winch configurations, underlift capacities, storage systems and recovery accessories are all specified per order.

Flatbed carrier deck

Flatbed Carriers

4–20 t · carriers & tilt trays
  • Standard Chinese-style wrecker beds
  • American-style rollback beds
  • Australian-style tilt trays
  • Double-deck carriers
  • Full-down and ground-loading beds
  • Rotating beds
  • Other customised deck designs
Integrated wrecker body

Integrated Wreckers

3–50 t · boom & underlift
  • Pickup underlifts
  • Hide-away underlifts
  • Light-duty integrated wreckers
  • Medium-duty integrated wreckers
  • Heavy-duty integrated wreckers
Rotator wrecker

Rotators

16–100 t · 360° continuous
  • 6 t, 8 t, 16 t, 20 t, 30 t, 40 t
  • 50 t, 75 t, 100 t
  • Multi-stage HG70 booms
  • Twin planetary winches, full outriggers
  • Turret-slide and 4-stage boom options
Fifth wheel wrecker and DTU

Fifth Wheel & DTU

4–30 t · saddle-mount & demountable
  • Fifth-wheel boom wreckers
  • Detachable Towing Units (DTU)
  • Customised fifth-wheel towing systems
  • Fixed underlift units without boom

Complete wreckers with chassis are also available. Chassis brands include ISUZU, HOWO, Foton, Dongfeng, SHACMAN, JAC, FAW, JMC and BYD, among others.

Will it fit your truck? Send us five measurements

Truck chassis vary in dimensions and specifications, so our wrecker bodies are not built as universal units. With accurate chassis measurements we build the body to fit your truck correctly. Use the drawings below — they show exactly what to measure for each body type.

Download the chassis measurement guide

5 printable sheets in English and Spanish. No form required. Click a drawing below to enlarge it.

Download PDF (5 pages) ↓

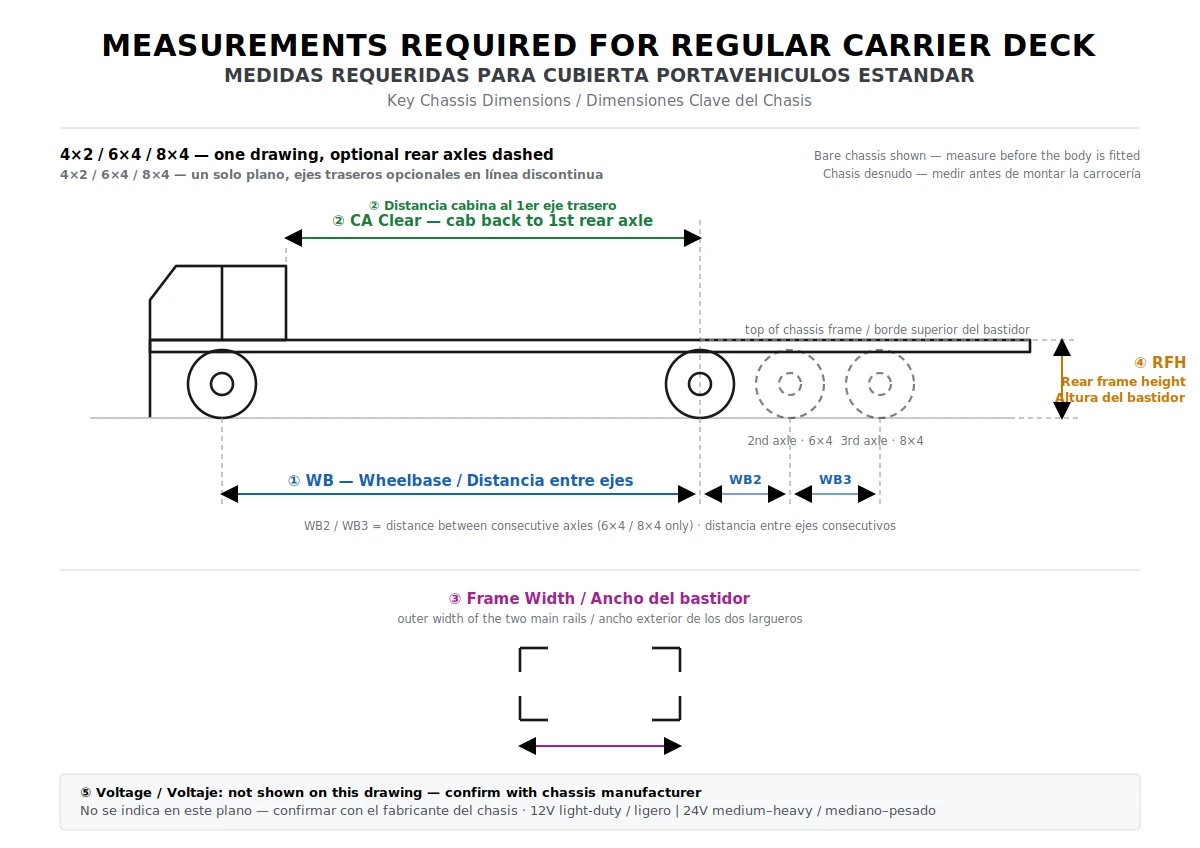

Carrier deck
Carrier deck
01Wheelbase
Front axle to first rear axle.
02CA clearance
Rear edge of exhaust to first rear axle.
03Frame width
Outside edges of both frame rails.
Frame width
04Frame height
Ground to top of frame.
05System voltage
Confirm with the chassis manufacturer.
12 V / 24 V

Record consecutive axle spacing for 6×4 and 8×4 chassis.

Schematic - not to scale · mm / in

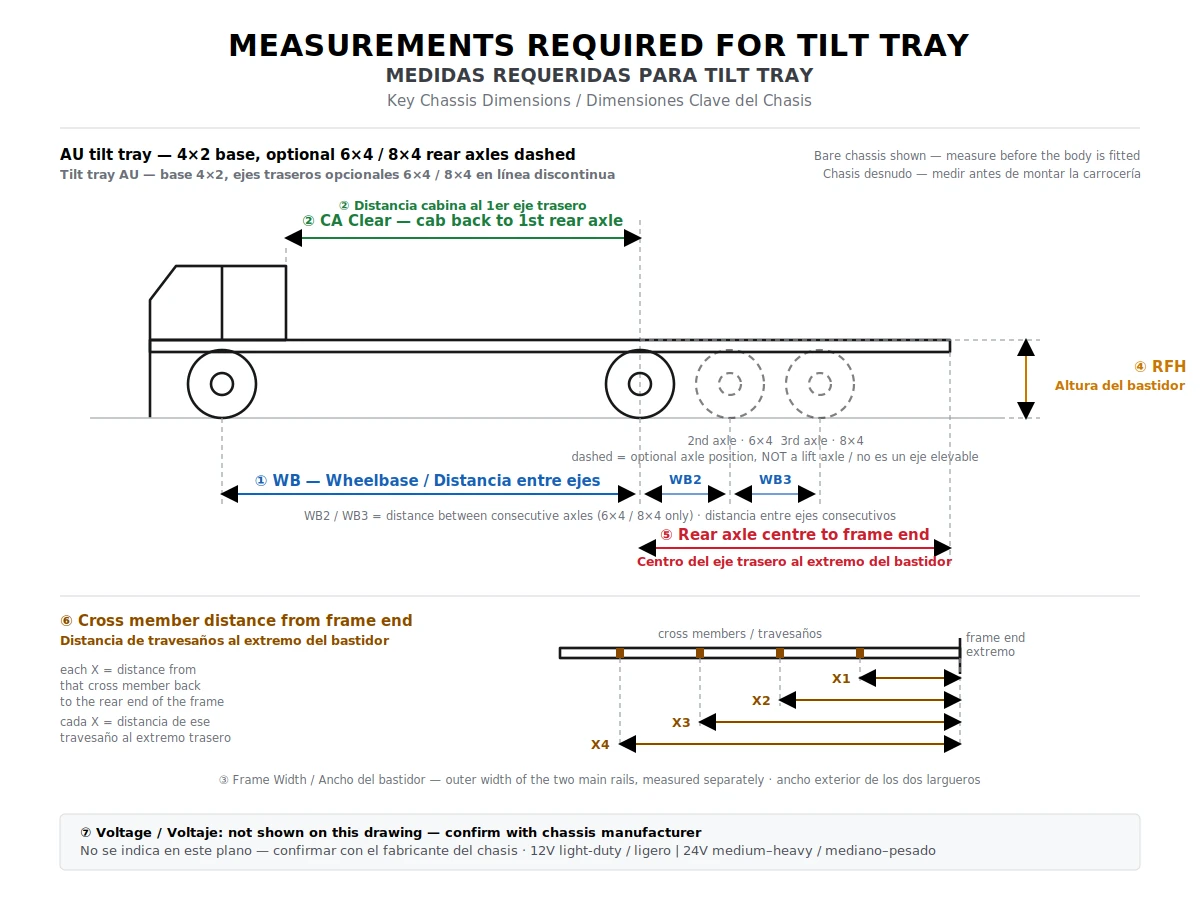

Tilt tray
Tilt tray
01Wheelbase
Front axle to first rear axle.
02CA clearance
Rear edge of exhaust to first rear axle.
03Frame width
Outside edges of both frame rails.
04Frame height
Ground to top of frame.
05Rear axle to frame end
First rear axle to rear frame end.
06Cross member positions
Each X: cross member to rear frame end.
07System voltage
Confirm with the chassis manufacturer.
12 V / 24 V

06Frame plan view

Frame plan view

Record consecutive axle spacing for 6×4 and 8×4 chassis.

Schematic - not to scale · mm / in

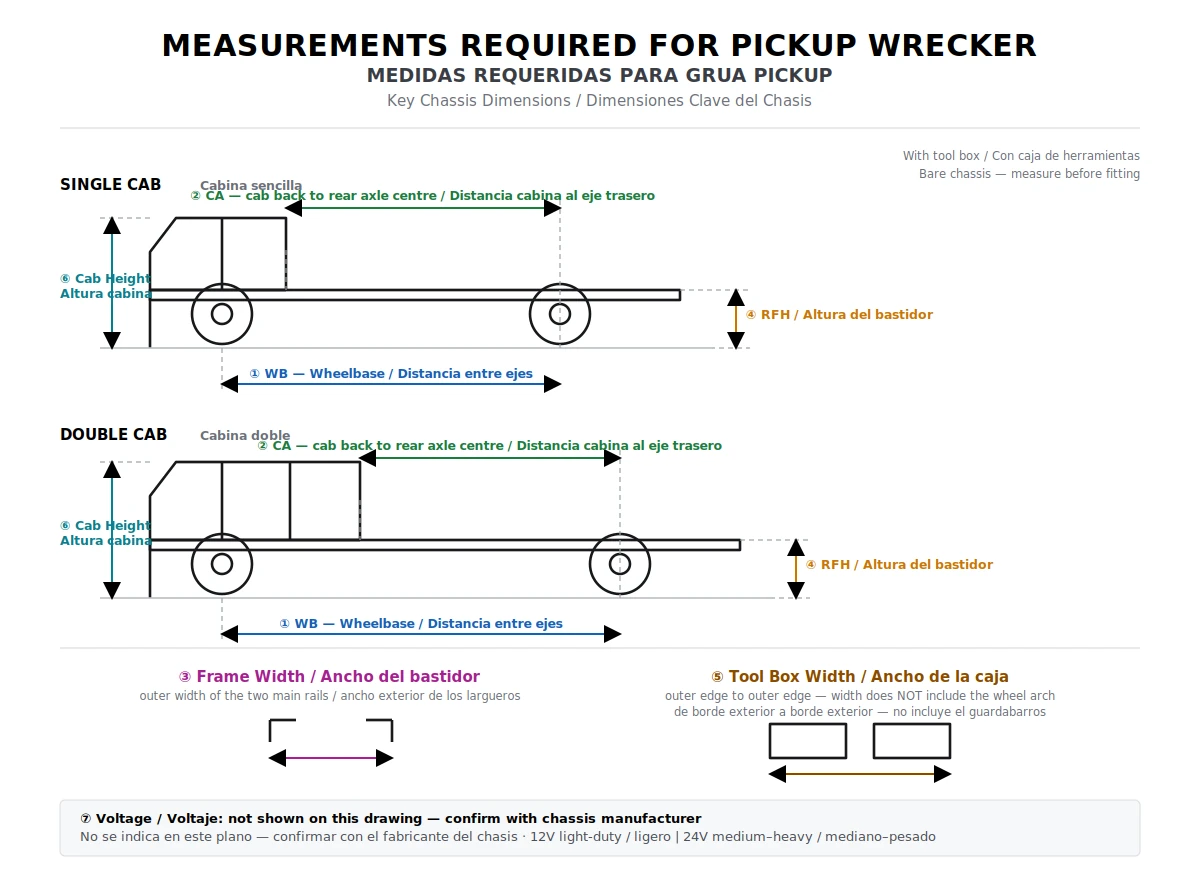

Pickup wrecker

Single cab

Single cab

Double cab

Double cab
01Wheelbase
Front axle to rear axle.
02CA clearance
Rear of cab to rear axle centre.
03Frame width
Outside edges of both frame rails.
Frame width
04Frame height
Ground to top of frame.
05System voltage
Confirm with the chassis manufacturer.
12 V / 24 V

Schematic - not to scale · mm / in

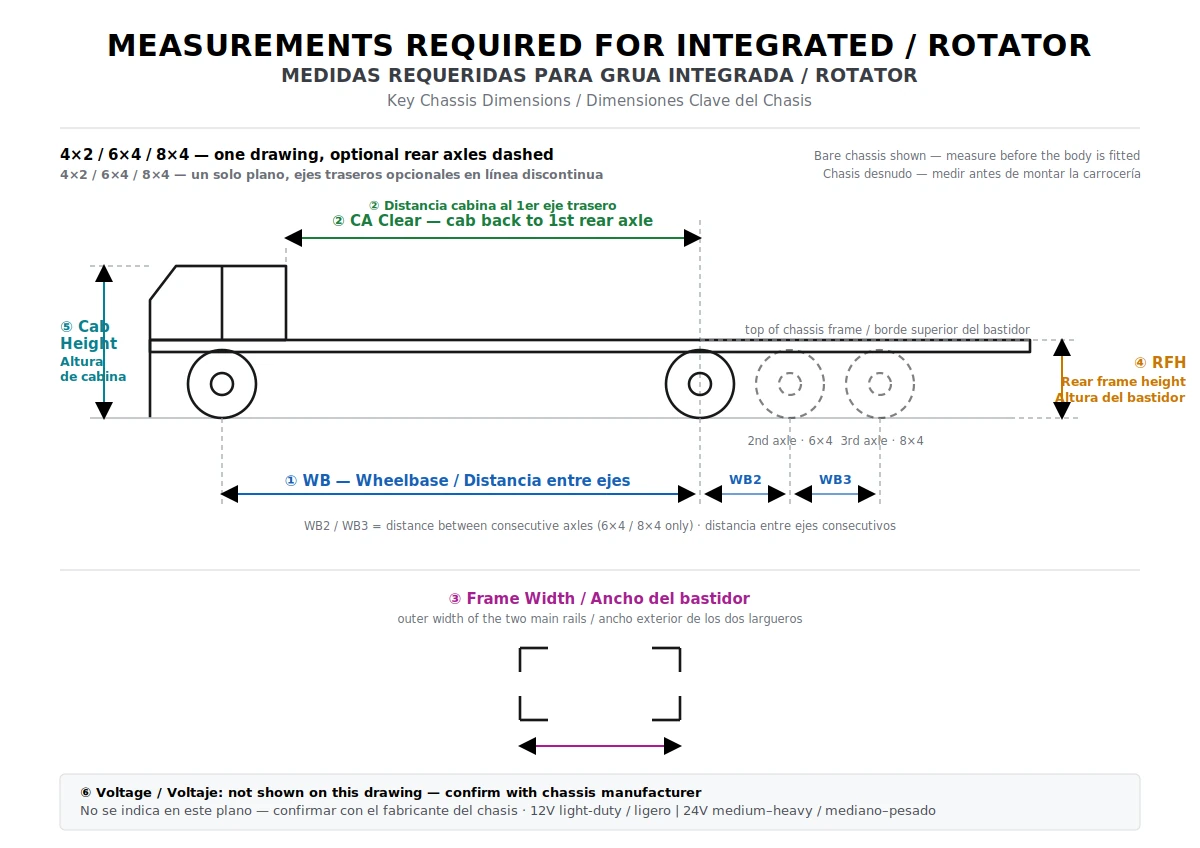

Integrated / Rotator
Integrated / Rotator
01Wheelbase
Front axle to first rear axle.
02CA clearance
Rear edge of exhaust to first rear axle.
03Frame width
Outside edges of both frame rails.
Frame width
04Frame height
Ground to top of frame.
05System voltage
Confirm with the chassis manufacturer.
12 V / 24 V

Record consecutive axle spacing for 6×4 and 8×4 chassis.

Schematic - not to scale · mm / in

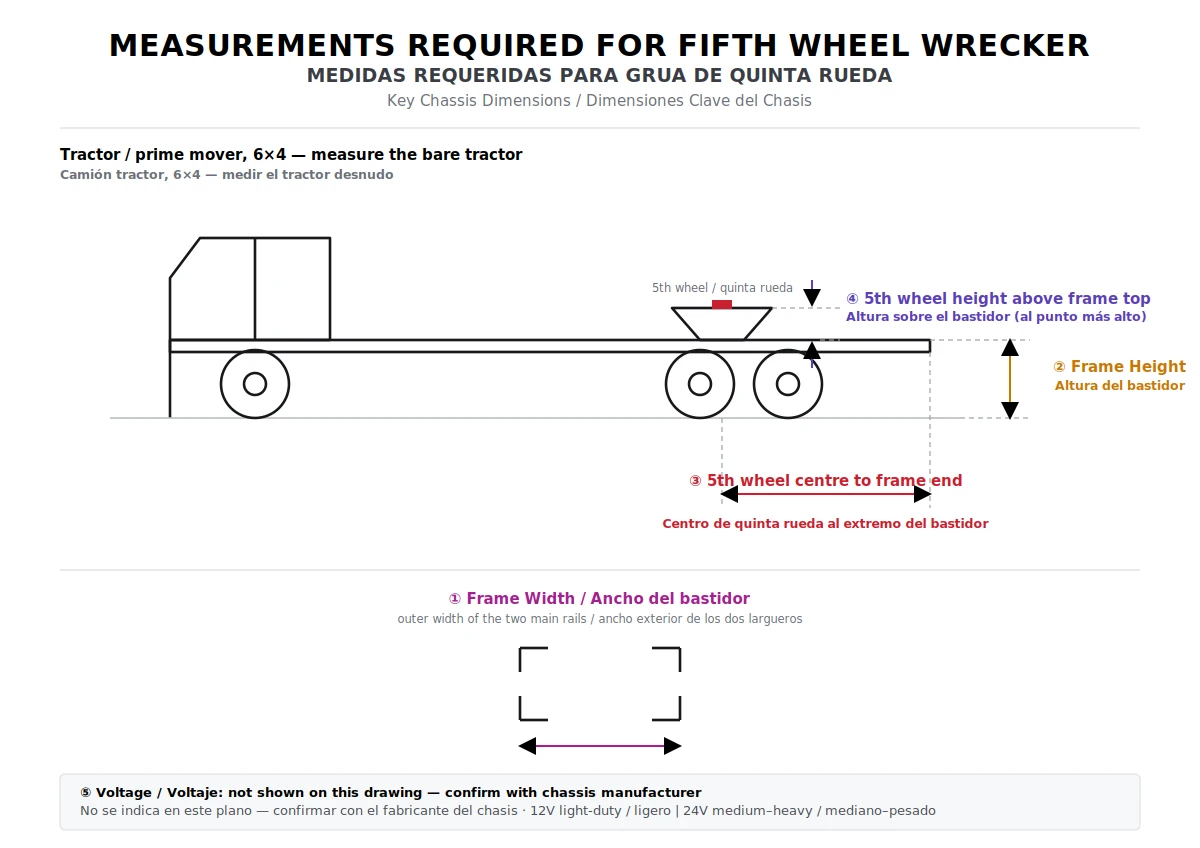

Fifth wheel wrecker / DTU
Fifth wheel wrecker / DTU
01Frame width
Outside edges of both frame rails.
Frame width
02Frame height
Ground to top of frame.
03Fifth wheel to frame end
Fifth wheel centre to rear frame end.
04Fifth wheel height
Frame top to highest fifth wheel point.
05System voltage
Confirm with the chassis manufacturer.
12 V / 24 V

Keep the fifth wheel installed when measuring.

Schematic - not to scale · mm / in

Need help with chassis fitment?

The PDF above is ready to download. If you would like us to follow up, leave your name and email below, or send your measurements and chassis photos on WhatsApp.

One email, no newsletter. We reply to measurement questions within 24 hours.

Frequently asked questions

The questions buyers actually ask us before an order — answered in full, including the parts that cost money.

Will the wrecker body fit my truck? Is it a standard model?
Truck chassis vary in dimensions and specifications, so our wrecker bodies are not manufactured as universal standard units. With accurate chassis measurements and technical information, we customise the body to fit your truck correctly.

The following can be customised:
  • Lifting and towing capacity
  • Overall dimensions and working range
  • Steel thickness and materials
  • Body style and paint colour
  • Hydraulic configuration
  • Components, accessories, toolboxes and storage
Both minor details and major design changes are possible, provided the final design complies with your local regulations and safety requirements.
Is the wrecker body complete? Are all parts included? Is the PTO included?
The wrecker body is supplied as a complete unit with the main structural, hydraulic, electrical and operating components. The hydraulic system is normally supplied from the hydraulic pump onward.

The PTO is not included. It must match your truck's specific transmission, so it is usually purchased and installed locally. Please send us the required pump shaft specification and rotation direction so we can prepare the correct hydraulic pump configuration.
Can you customise the colour and logo?
Yes. Paint colour and logo are customised to your requirement. Please send:
  • Your colour or colour code
  • A clear logo image or vector file
  • Preferred logo size and position
Electrophoretic coating (E-coating) is available as an option for improved corrosion resistance and longer service life.
How long does manufacturing take?
Estimated build times:
  • Standard flatbed wrecker — 20–30 days
  • Complex flatbed or light-duty integrated — 30–45 days
  • Integrated 16T / 20T — 60 days
  • Integrated 30T — 60–90 days
  • Integrated 40T / 50T or rotator — 3–4 months
The final schedule depends on the model, specification, customisation and current factory workload.
What are the payment terms?
Production begins after we receive a 50% deposit. The balance is paid after production is completed and before shipment. Payment is normally by T/T bank transfer.

In-stock parts are a separate case — those are paid in full before shipment, and can be paid by card as well as T/T.
How much does shipping cost?
It depends on quantity, dimensions, weight, destination and delivery method. For one or two small units we can either deliver to your freight forwarder in China (you pay the domestic transport), or quote LCL shipping to your destination port. For multiple units or heavy equipment we quote a full container to your port, or door-to-door where that is available.

Typical container arrangements
  • 20 ft — wrecker beds under 20 ft, light-duty integrated under 16 t, DTU units, hide-away underlifts, fifth-wheel wreckers
  • 40 ft high-cube — three or more beds, beds over 20 ft, heavy-duty integrated over 16 t, rotators over 16 t
The final loading plan is confirmed against the exact dimensions, weight and quantity of your order.
What other costs will I need to pay?
Besides the body price and international freight, the buyer normally pays:
  • Customs clearance fees
  • Import duties and taxes
  • Port handling charges
  • Local inland transport
  • Installation, where applicable
  • Local inspection, certification or registration fees
These vary by country. We will tell you what we know about your market, but we cannot quote them for you.

Exception — door-to-door in-stock parts rates are DDP: customs clearance and import duties are included, so there is nothing further to pay on arrival. The list above applies to custom-built wrecker bodies and to every other delivery term.
Do you provide an installation manual or drawings?
The body is delivered with most major components already assembled and installed. The main installation work is:
  • Mounting the subframe and body onto the chassis
  • Connecting the hydraulic system
  • Connecting the electrical system
  • Connecting the air system, where applicable
  • Installing and matching the PTO
Our technical team provides installation drawings, technical instructions and remote support when required.
What is the warranty period?
  • Flatbed carriers — 1 year
  • Integrated wreckers, fifth wheel units and DTUs — structure 2 years (40–50 T integrated: 3 years); hydraulic, electrical and wear parts 1 year
  • Rotators — structure 3 years; hydraulic, electrical and wear parts 2 years
  • In-stock accessories — 1 year
The warranty covers manufacturing defects under normal operating and maintenance conditions. Damage from incorrect installation, overloading, improper operation, accidents, unauthorised modification or insufficient maintenance is not covered. Detailed terms are confirmed in the sales contract.
Can I visit your workshop? Are there units available for inspection?
Yes — you are welcome to visit. We normally have light-duty and medium-duty wreckers in stock or under production. Heavy-duty integrated wreckers and rotators may not always be available, because most are custom-built against confirmed orders.

During a visit you can inspect our workmanship and welding, structural design, steel and aluminium materials, hydraulic components, electrical systems, paint and surface treatment, parts and accessories, and the production line itself.

Please contact us in advance so we can arrange the visit and confirm which units are available to see.
