Name: Rotator Wrecker 50T Turret Slide
Brand: iTruck

Technical Specifications

Specifications by rating

Item	50T Turret Slide
Boom lift capacity — retracted	50 t
Boom lift capacity — extended (55–58°)	12 t
Max. boom elevation	65°
Max. lifting height	13,000 mm
Hook reach at max. lifting height (from folded underlift)	5,100 mm
Turret slide travel	2–2.5 m, set by the chassis
Boom stages	3
Underlift capacity — retracted	28,000 kg
Underlift length — retracted	1,746 mm
Underlift capacity — extended	8,310 kg
Underlift length — extended	3,492 mm
Underlift down-tilt	−10°
Main winches	2 × 25 t
Auxiliary winches	2 × 15 t
Rear drag winch	1 × 25 t
Side puller winches	2 × 10 t
Winch type	Planetary
Cable diameter — main / aux / drag / side	26 / 20 / 26 / 18 mm
Cable length	45 m
Tow bar size	1,400 × 127 × 12.7 mm
Forks	56 mm
Fork receiver	57 mm
Approx. net weight	25–26 t

All tonnages are metric tons (1,000 kg).

Every unit is built to the chassis; final dimensions, weights and reach figures follow the chassis specification.

Standard Equipment

What comes with every unit

Winches

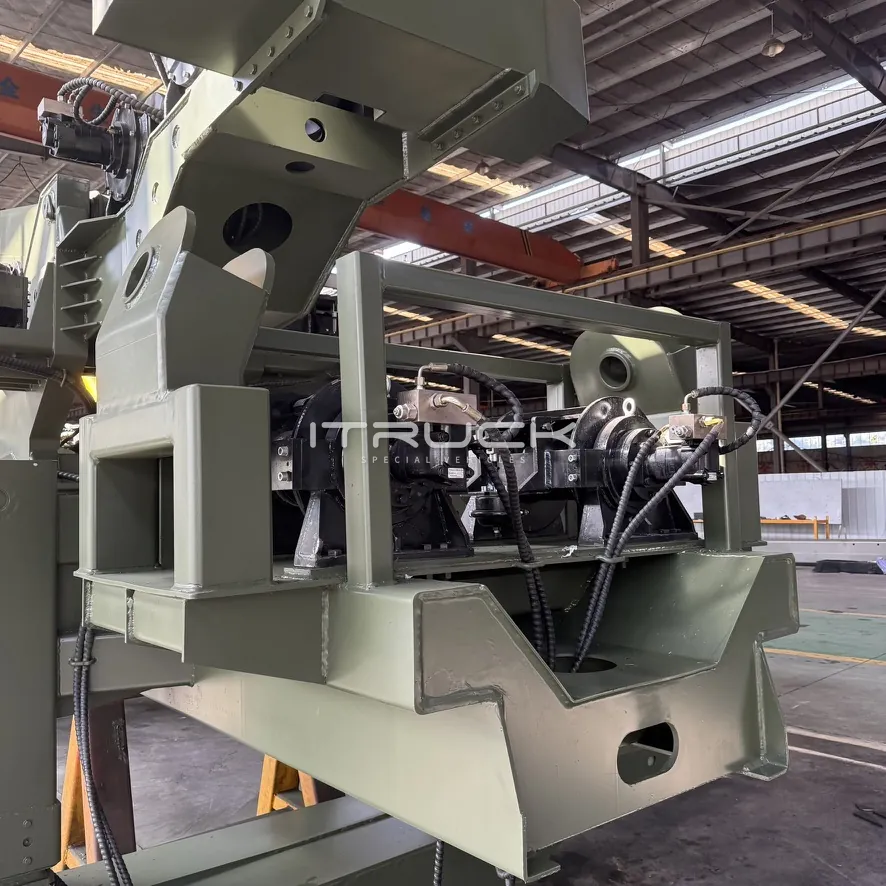

Main winches 2 × 25 t — planetary, DOT certified
Auxiliary winches 2 × 15 t — planetary, DOT certified
Rear drag winch 1 × 25 t — planetary, DOT certified
Side puller winches 2 × 10 t — planetary, DOT certified

Boom

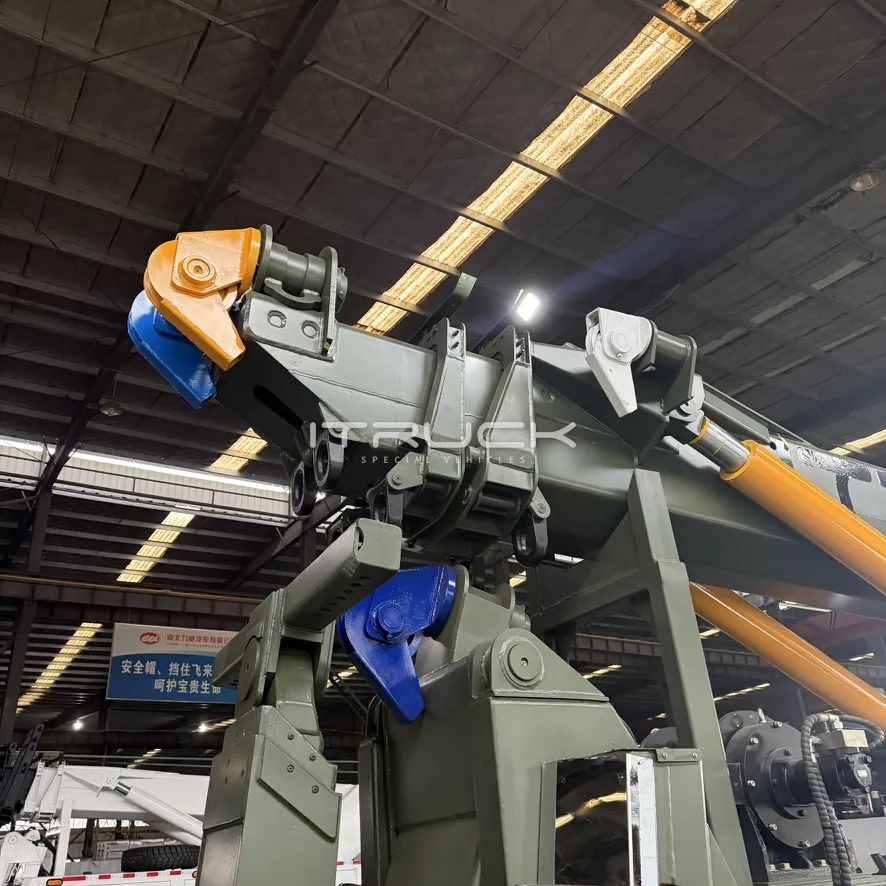

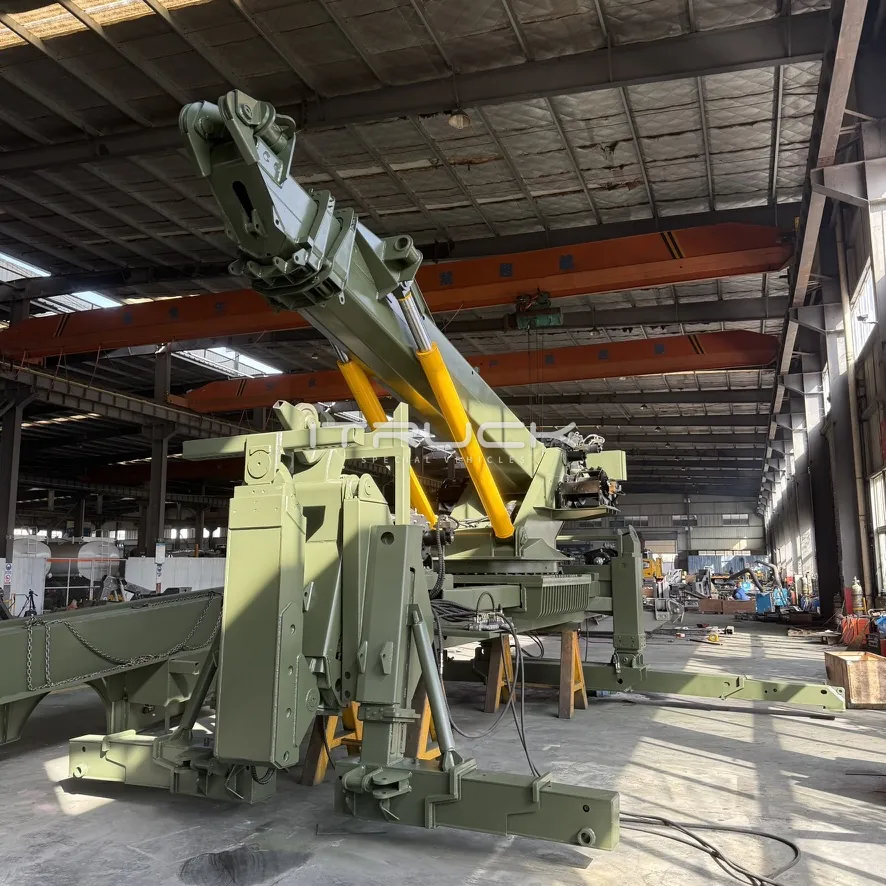

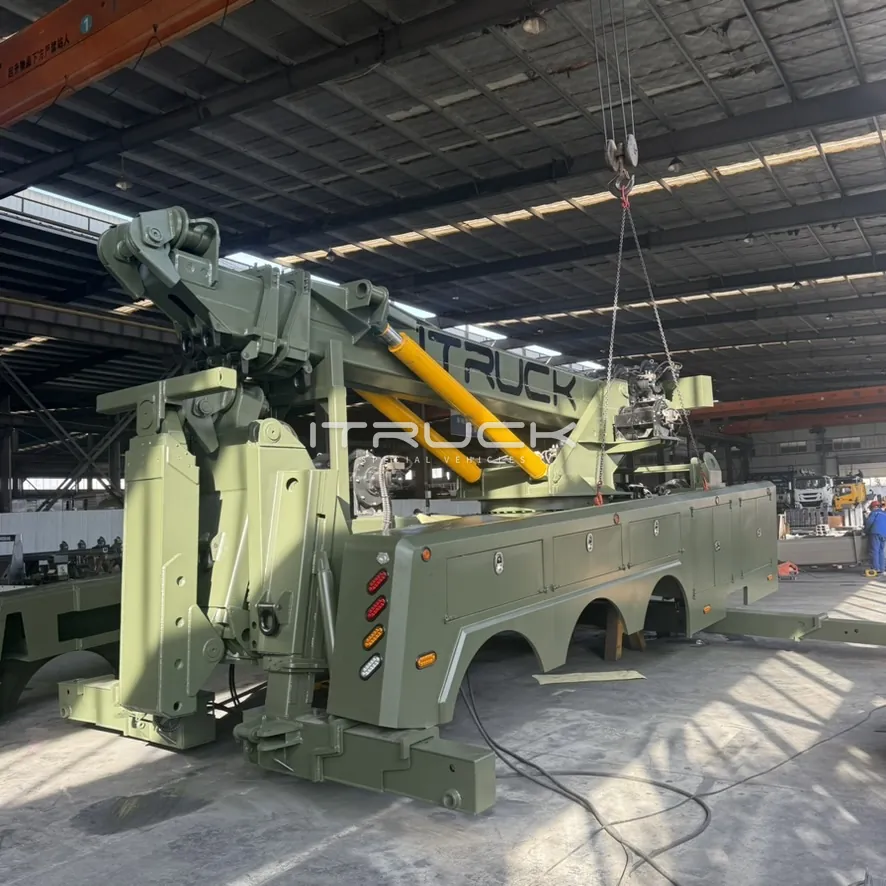

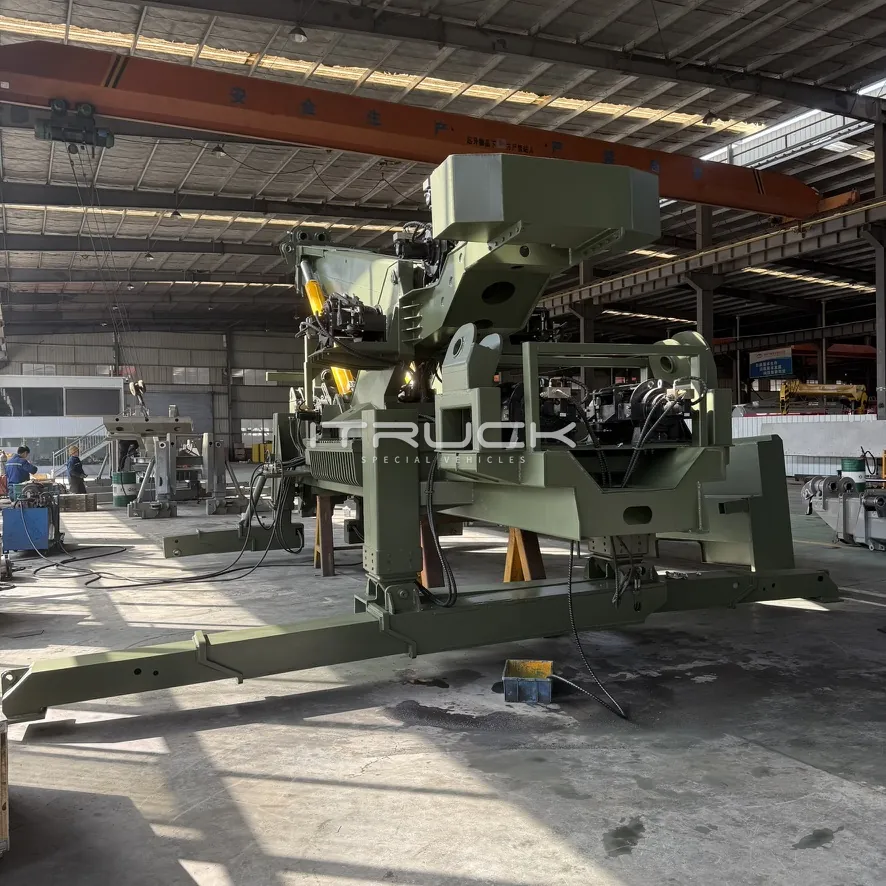

Boom with turret slide — HG70 steel, 3-stage; turret slides 2–2.5 m along the subframe

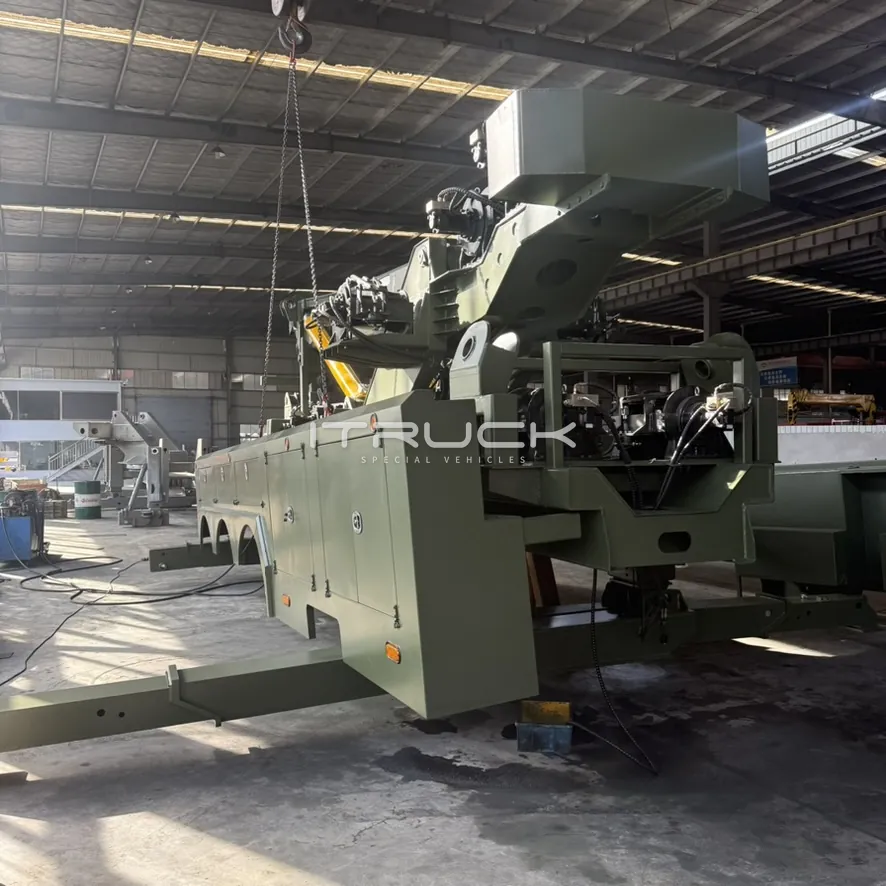

Hydraulic outriggers — front and rear

Underlift

Underlift — HG70 steel, 3-stage

Hydraulics

Hydraulic pump — splined 6- or 13-tooth, or keyed single shaft, DOT
Hoses and connectors — DOT

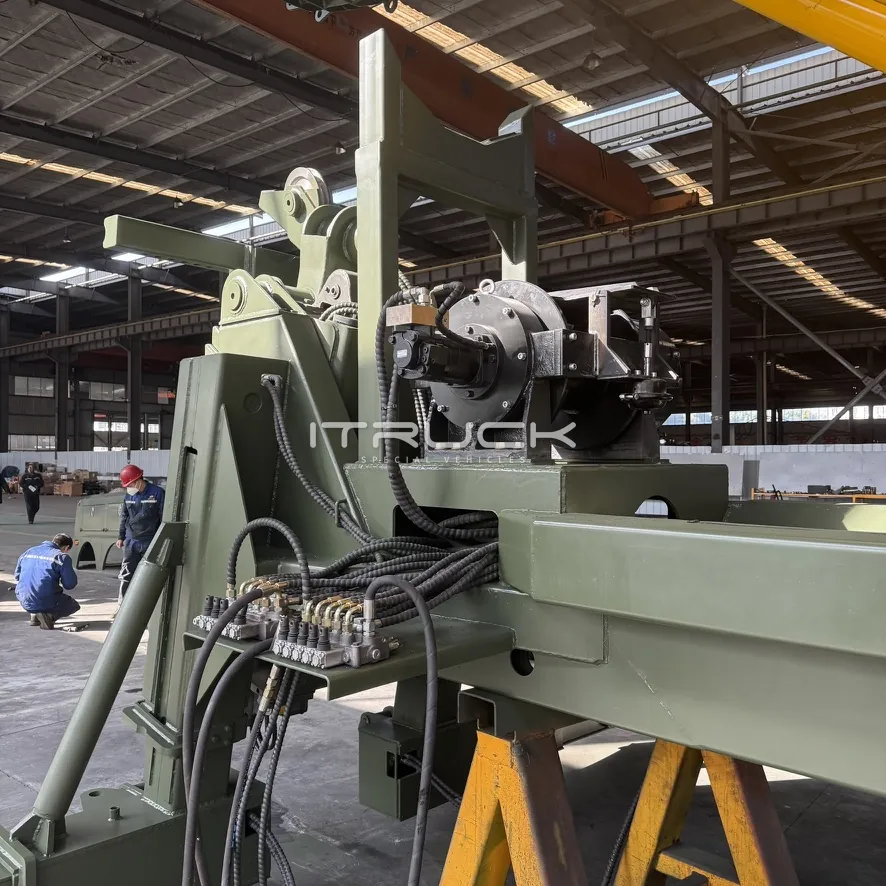

Control valves — Italian-made, DOT
Hydraulic cylinders — DOT

Control

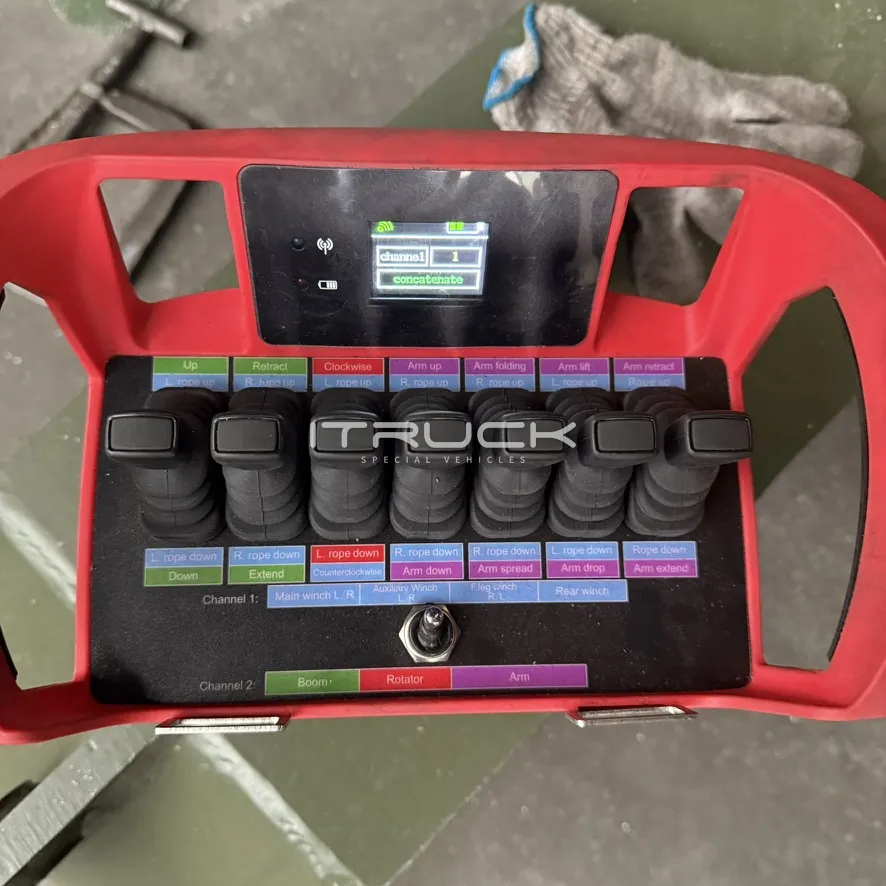

Radio remote control — chest-mounted joystick, dual channel, standard
Manual control stations ×2 — one each side, English markings

Toolboxes

Toolboxes ×2 — one each side, Q235 carbon steel, stainless steel handles

Attachments

Forks — 5 sets: 4 for axles, 1 for suspension
Fork receivers and U-shaped tire holder — 1 set each
Safety chains ×2, with chain pockets on the toolbox
D-rings ×6–8

Lights

LED light rack — full size, stainless steel
Side marker lights — 8 per side, DOT
Tail lights — 4 per side, DOT

Accessories

Subframe — Q355B carbon steel
Air and electrical hook-ups — 12 V or 24 V, DOT

Painting

Toolboxes e-coated; remaining parts primed and topcoated
Epoxy topcoat
Toolboxes wrapped to protect the paint in shipping

Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

Full e-coat
Additional drag or side winches
Aluminum toolboxes
Light bar
Custom attachments
Custom color — RAL code or sample photo

Custom colors are matched as closely as possible from a RAL code or sample photo; a slight color difference cannot be excluded.
