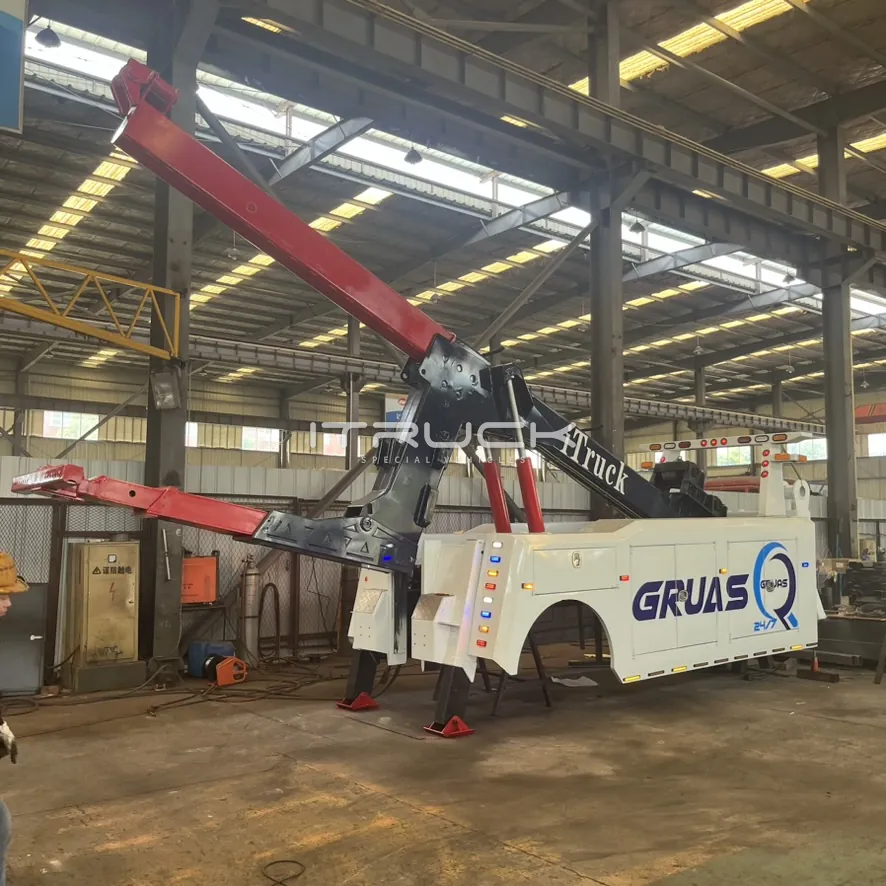

16 t integrated wrecker body with boom raised and underlift extended
Boom raised, underlift extended

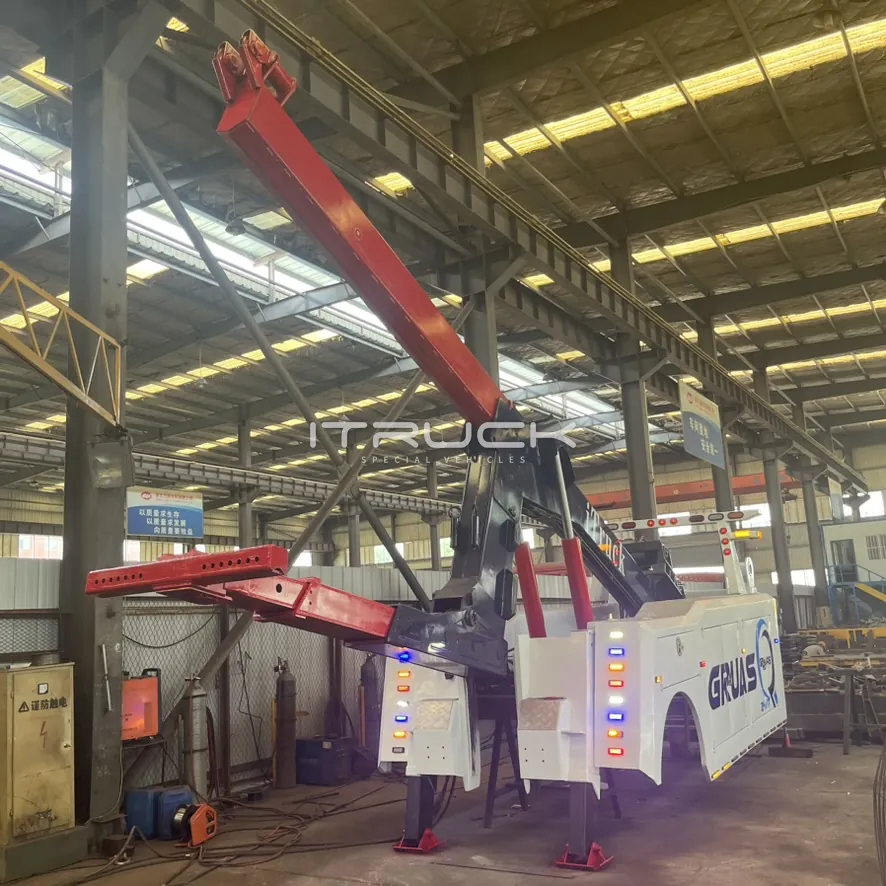

Integrated wrecker body from the rear quarter, stabilizer legs down
Rear quarter, stabilizer legs down

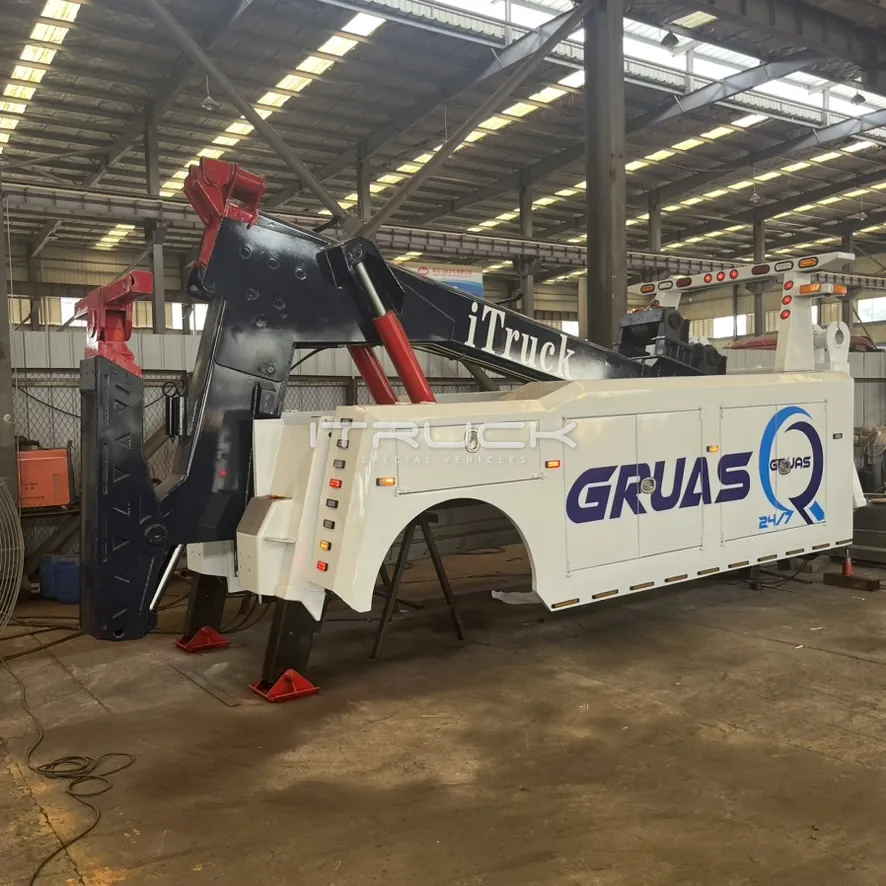

Finished wrecker body with underlift folded and boom lowered
Underlift folded, ready to fit

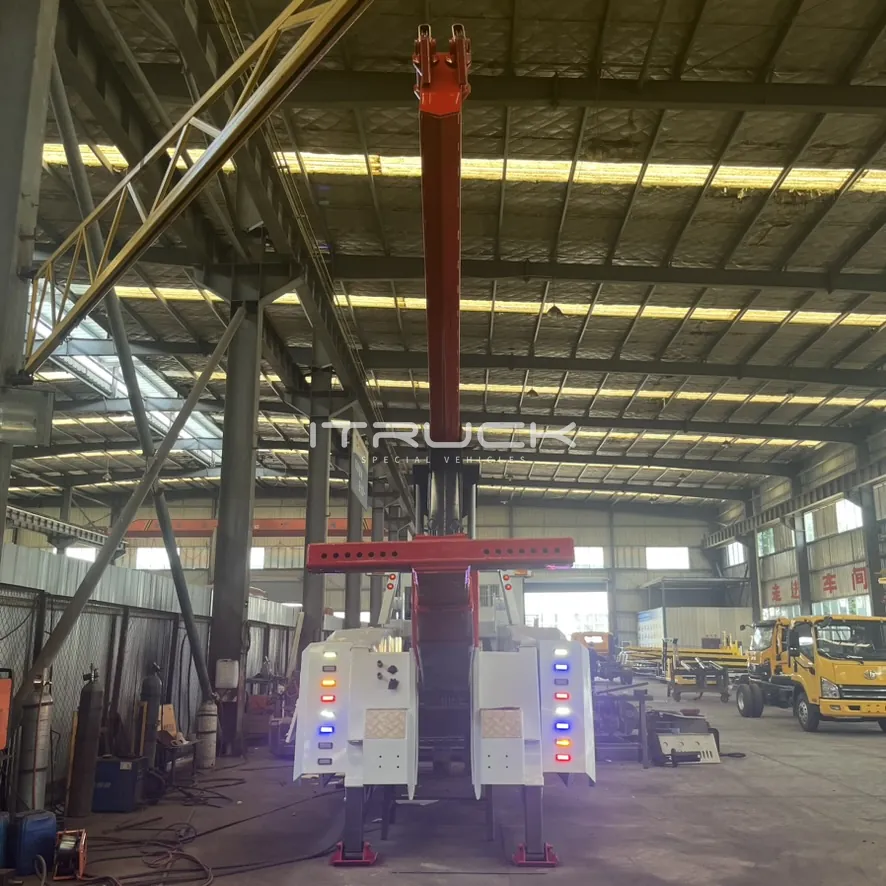

Rear view of the wrecker with boom raised fully upright
Rear view, boom fully raised

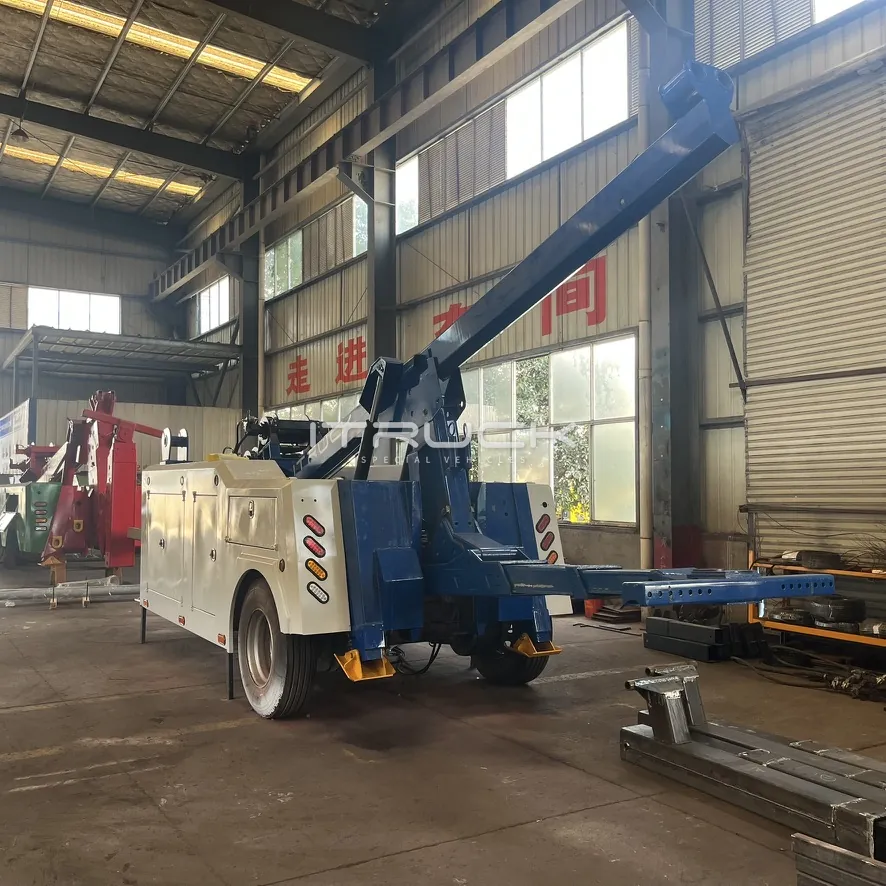

Blue and white integrated wrecker on chassis with underlift extended
On chassis, underlift extended

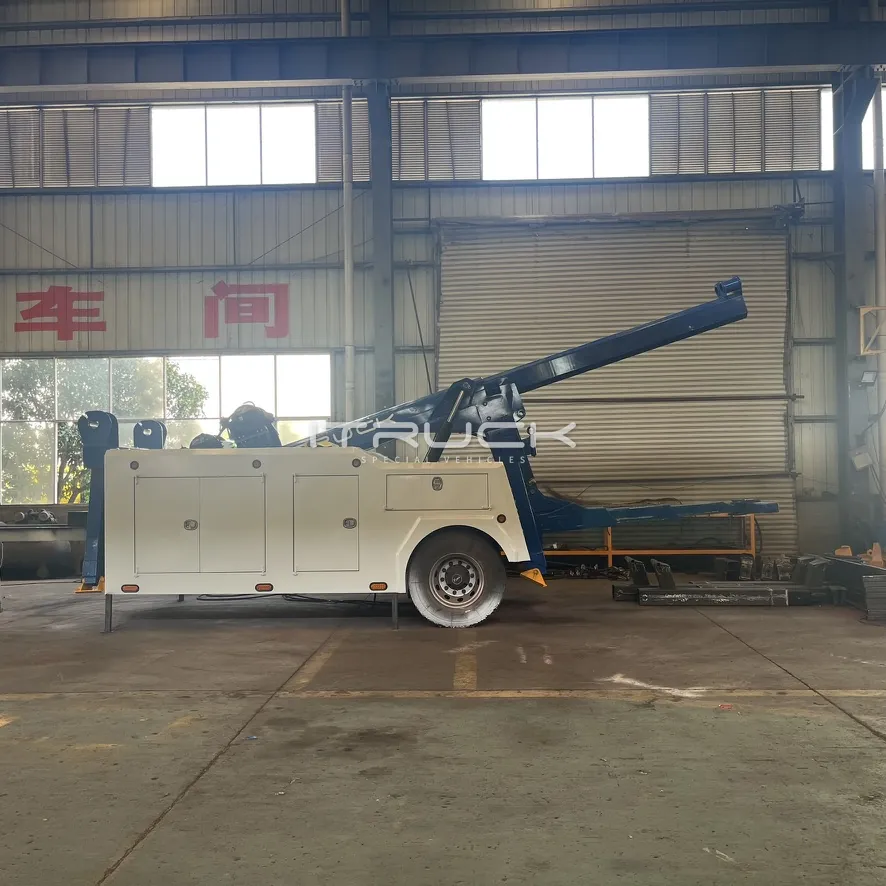

Side view of integrated wrecker body with boom raised
Side view, boom raised

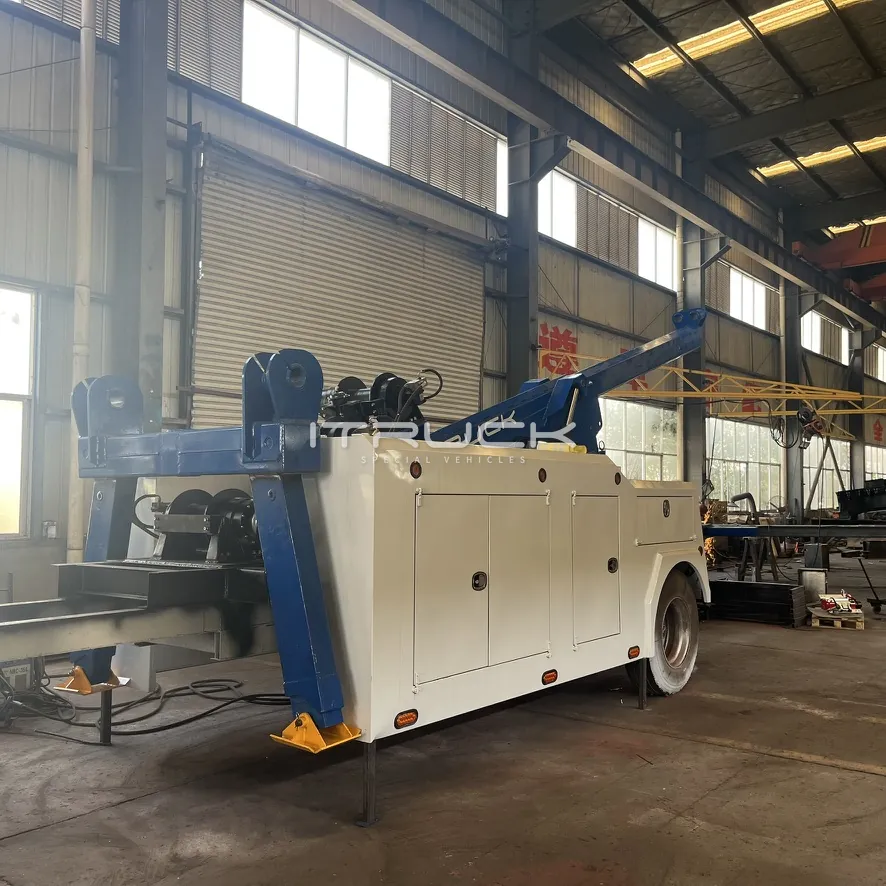

Integrated wrecker body with rear stabilizer legs lowered
Rear stabilizer legs lowered

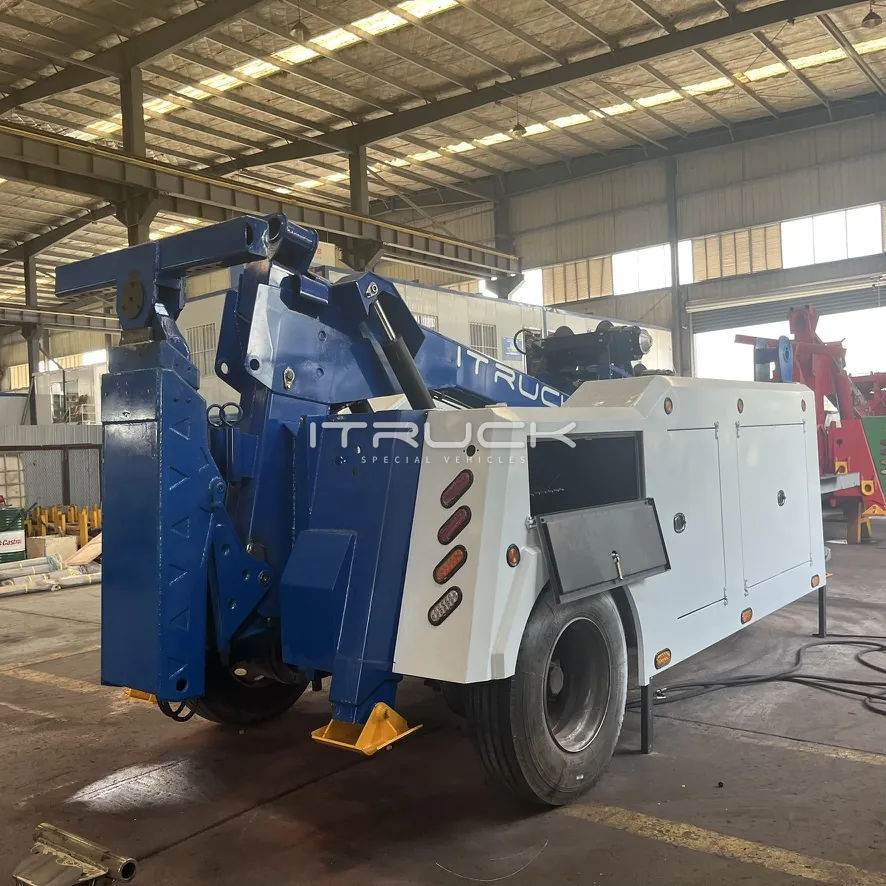

Rear close-up of boom base, stowed underlift and stabilizer legs
Boom base and stowed underlift

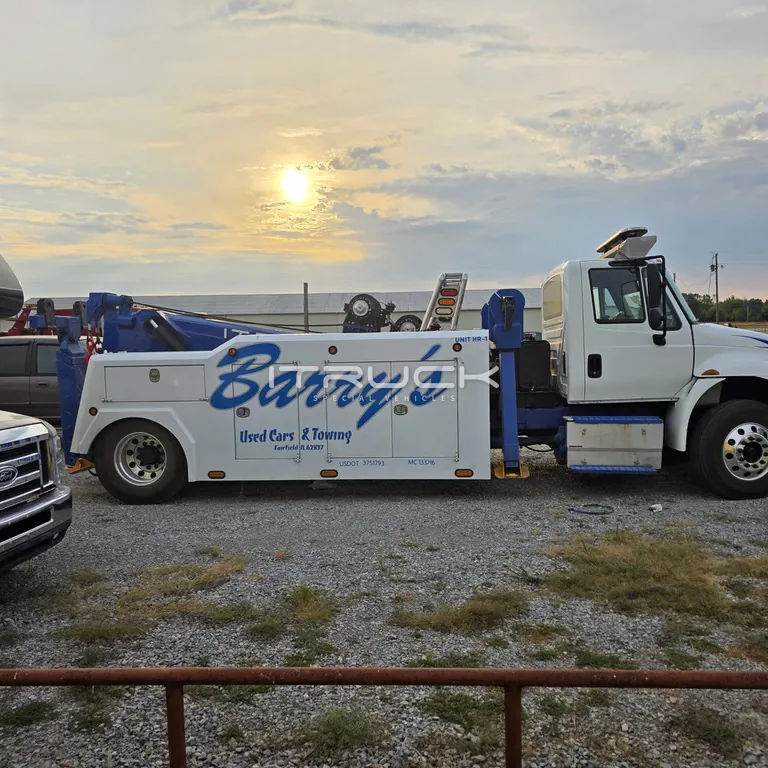

Integrated wrecker fitted to a conventional-cab truck chassis
Fitted to a conventional-cab chassis

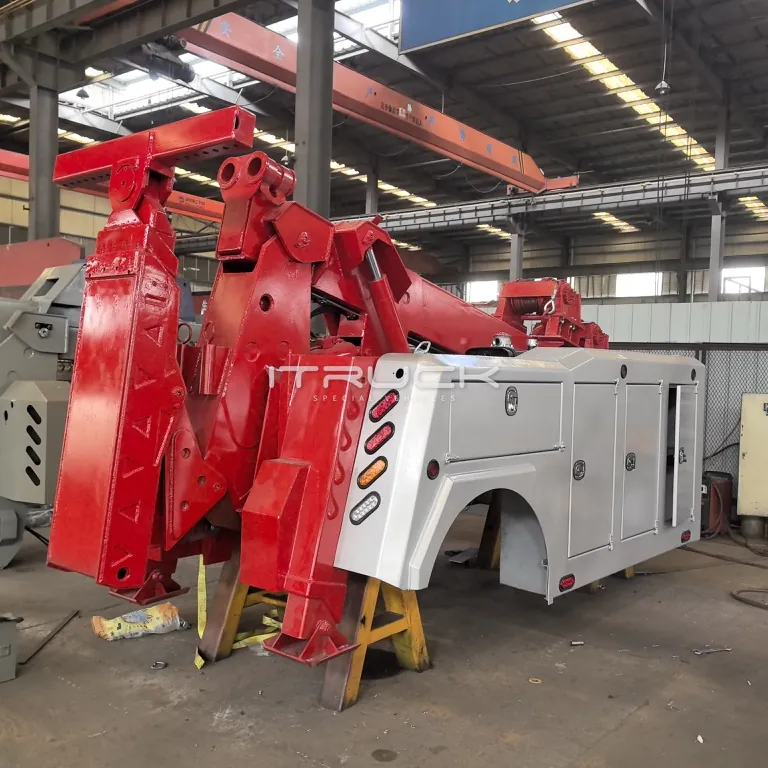

Red boom and underlift assembly with body panels during build
Boom and body during assembly

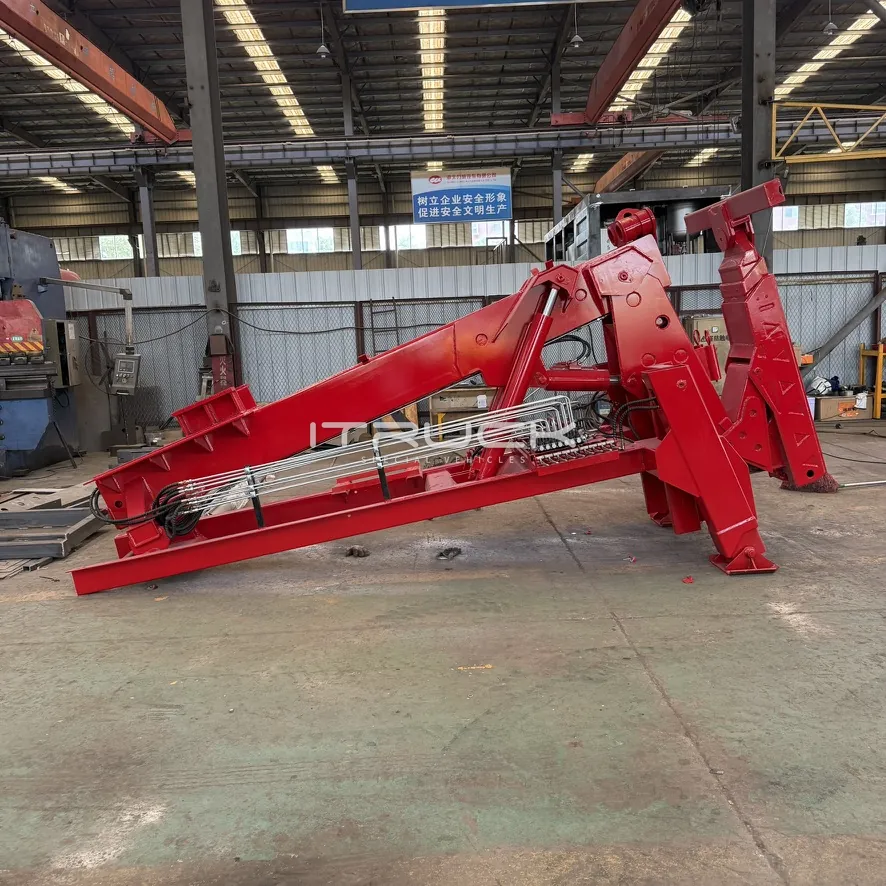

Red boom, underlift and subframe assembly before body fitting
Boom and underlift assembly

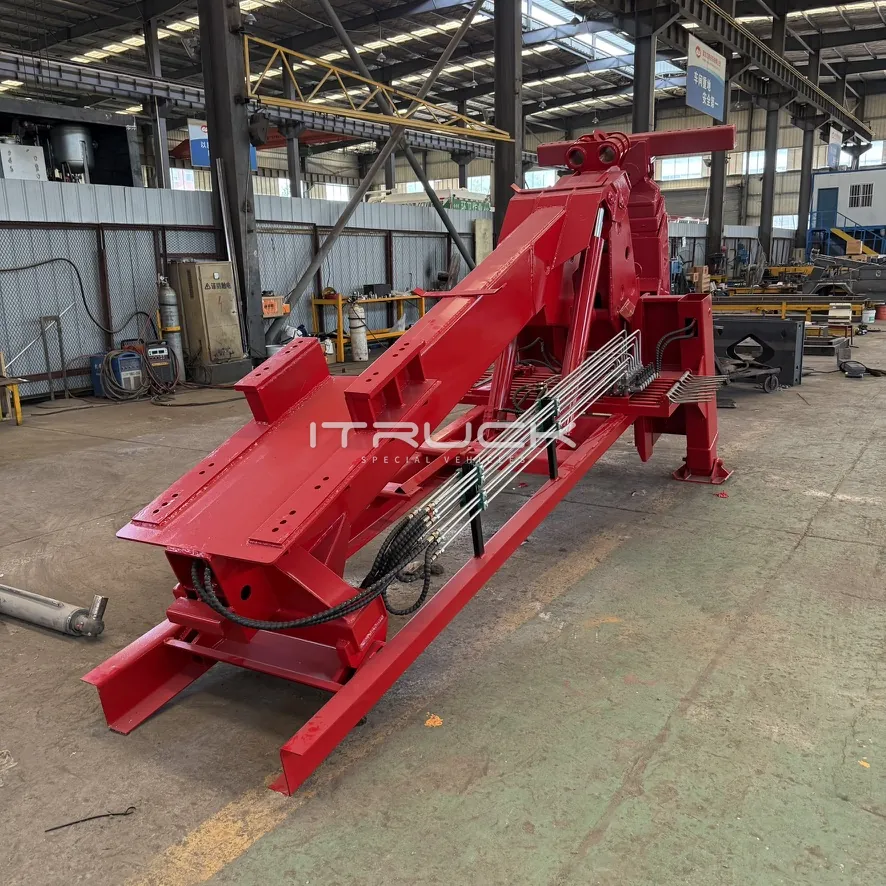

Boom and subframe assembly with hydraulic hoses routed
Subframe and hydraulic hoses

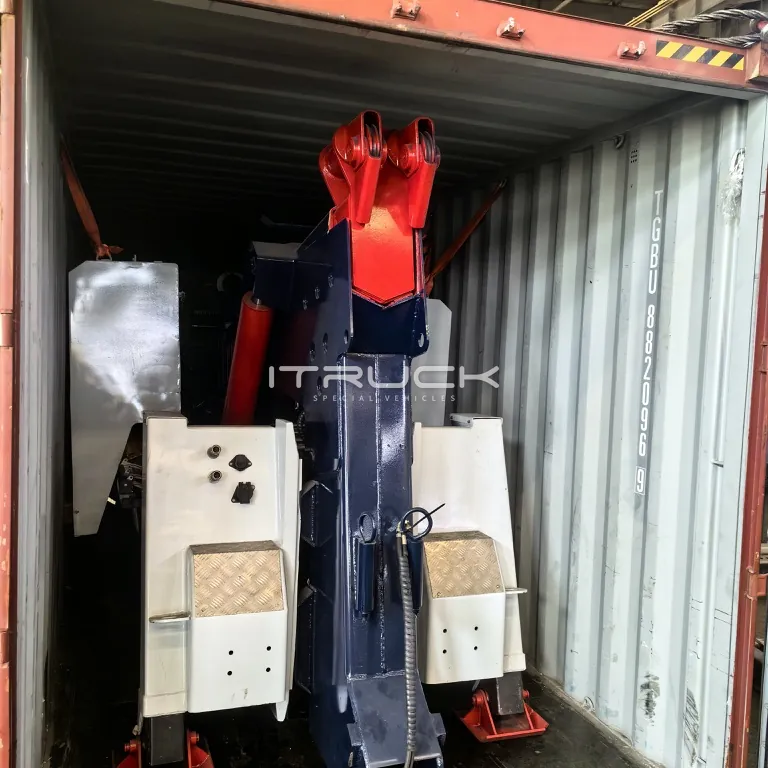

Integrated wrecker body loaded in a shipping container
Loaded in a container
1 / 13

Photos are for reference only. Options may be shown.

Integrated Wrecker Body · Medium Duty

Integrated Wrecker 16T

A medium-duty boom-and-underlift body built to your chassis: a 16 t HG70 boom with twin 8 t planetary winches, and a 3-stage underlift in a 10, 13 or 16 t rating for tow ratings of 20–48 t.

2 × 8 tMain winches
10 / 13 / 16 tUnderlift capacity
16 tBoom lift capacity
20–48 tTow rating
  • Lead time90 days after deposit and drawing approval
  • Container loading1 per 20' GP, subject to drawing review · 2 per 40' HQ
  • Price basisEXW Suizhou · FCA on request
Request a Quote WhatsApp Us
Technical Specifications

Specifications by rating

Item10T UL13T UL16T UL
Underlift capacity — retracted10,000 kg13,000 kg16,000 kg
Underlift retracted length1,505 mm
Underlift capacity — extended3,800 kg4,200 kg4,500 kg
Underlift extended length2,760 mm3,150 mm
Underlift tilt below horizontal−10°
Tow rating20–30 t24–36 t32–48 t
Boom lift capacity — retracted, at 33°16,000 kg
Boom lift capacity — extended, at 33°6,000 kg
Max. boom elevation33°
Max. lifting height6,500 mm
Main winches (quantity)2
Winch line pull8 t
Winch typePlanetary
Winch cable length45 m
Winch cable diameter16 mm
Tow bar length1,400 mm
Tow bar section127 × 127 mm
Tow bar pin56 mm
Tow bar pin bore57 mm
Approx. net weight~6 t

All tonnages are metric tons (1,000 kg).

One 16 t boom, three underlift ratings: 10 t, 13 t or 16 t (UL = underlift).

Standard Equipment

What comes with every unit

Boom

  • Boom — HG70 steel, 2-stage hexagonal

Underlift

  • Underlift — HG70 steel, 3-stage

Winches

  • Main winches 2 × 8 t — planetary, DOT certified

Subframe

  • Subframe — Q355B carbon steel
  • Rear stabilizer legs — hydraulic

Hydraulics

  • Hydraulic pump — 6/13-tooth spline or single shaft, DOT
  • Hoses and connectors — DOT
  • Control valves — Italian-made, DOT
  • Hydraulic cylinders — DOT

Control

  • Manual control — dual-side operation, English labels
  • Wireless push-button remote control — optional

Toolboxes

  • Toolboxes ×2 — one per side, Q235 carbon steel, stainless steel handles

Attachments

  • Fork sets ×5 — 4 axle-lift, 1 suspension-lift
  • Fork receiver and U-shape tire holder — 1 set each
  • Safety chains ×2 — stored in toolbox chain pockets
  • D-rings ×2–4

Lights

  • Side lights — 8 per side, DOT
  • Tail lights — 4 per side, DOT
  • Light pylon — full size, stainless steel, LED

Painting

  • Standard primer
  • Epoxy topcoat
  • Decals and markings in English
  • Protective wrap on toolbox paint

Accessories

  • Air hookups — DOT
  • Electrical hookups — 12 V or 24 V, DOT
Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

Custom colors are matched as closely as possible from a RAL code or sample photo; a slight color difference cannot be excluded.

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.

Will it fit your truck?
Will it fit your truck?
Get the measurement guide (PDF) →
