Specifications by rating

Item	4T	5T	6T	8T
Winch line pull	4 t	5 t	6 t	8 t
Deck lift capacity	4 t	5 t	6 t	8 t
Deck load capacity — extended	4 t	5 t	6 t	8 t
Wheel lift / stabilizer capacity	3 t	5 t		5 or 8 t
Platform (L × W)	~5,600–6,000 × 2,500 mm	~6,500–7,500 × 2,500 mm	~7,500 × 2,500 mm	~6,000–9,000 × 2,500 mm
Platform material	Q345R / G70 / NM500 / Hardox 450
Steel thickness	4 mm	5 mm		6 mm
Deck plate	Smooth
Approx. net weight	2.5–3.0 t	~3.0 t	~3.3 t	3.5–4.0 t

All tonnages are metric tons (1,000 kg).

The 8T is built with either a 5 t or an 8 t wheel lift.

Standard Equipment

What comes with every unit

Platform

Q345R low-alloy steel, smooth plate — G70, NM500 or Hardox 450 available
Deck size set by your chassis and requirement
Secondary subframe bolted on — no welding to the chassis rails, engineer-certified

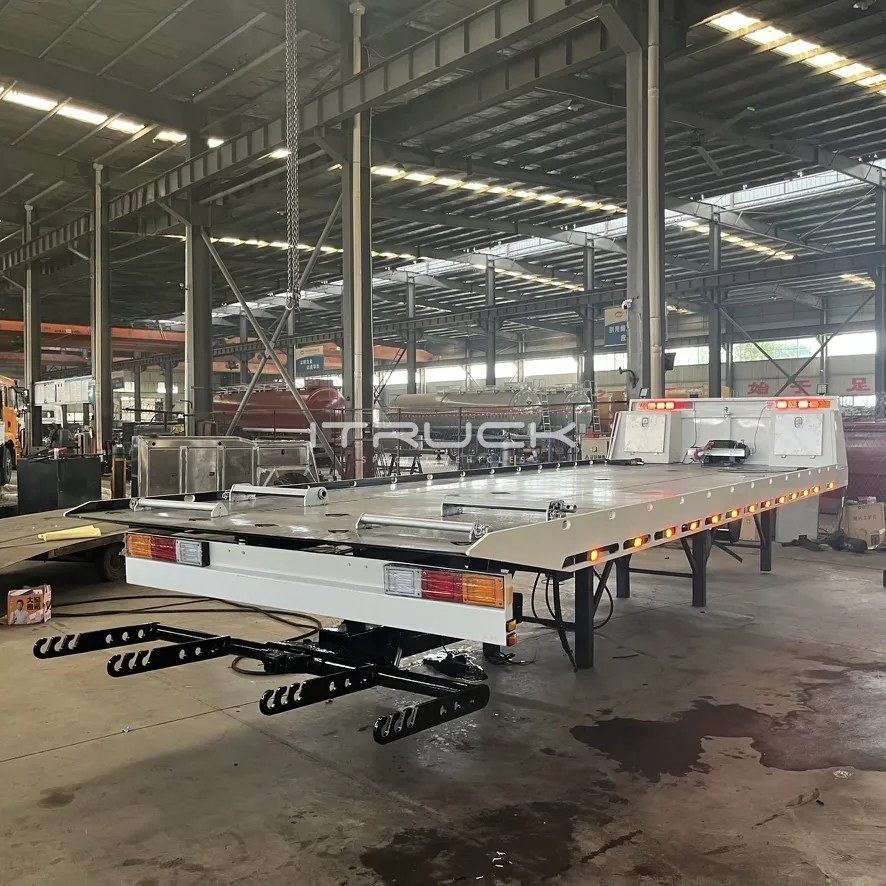

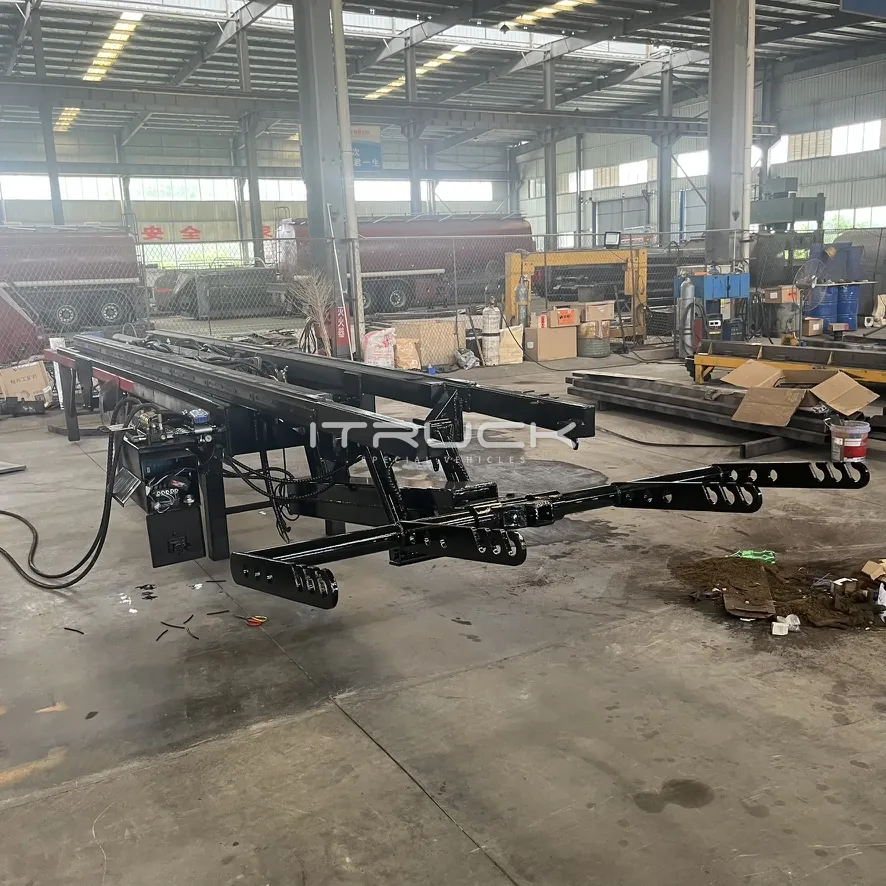

Subframe with wheel lift / stabilizer, built to match the chassis
Deck travel stop, welded to the secondary subframe

Hydraulics

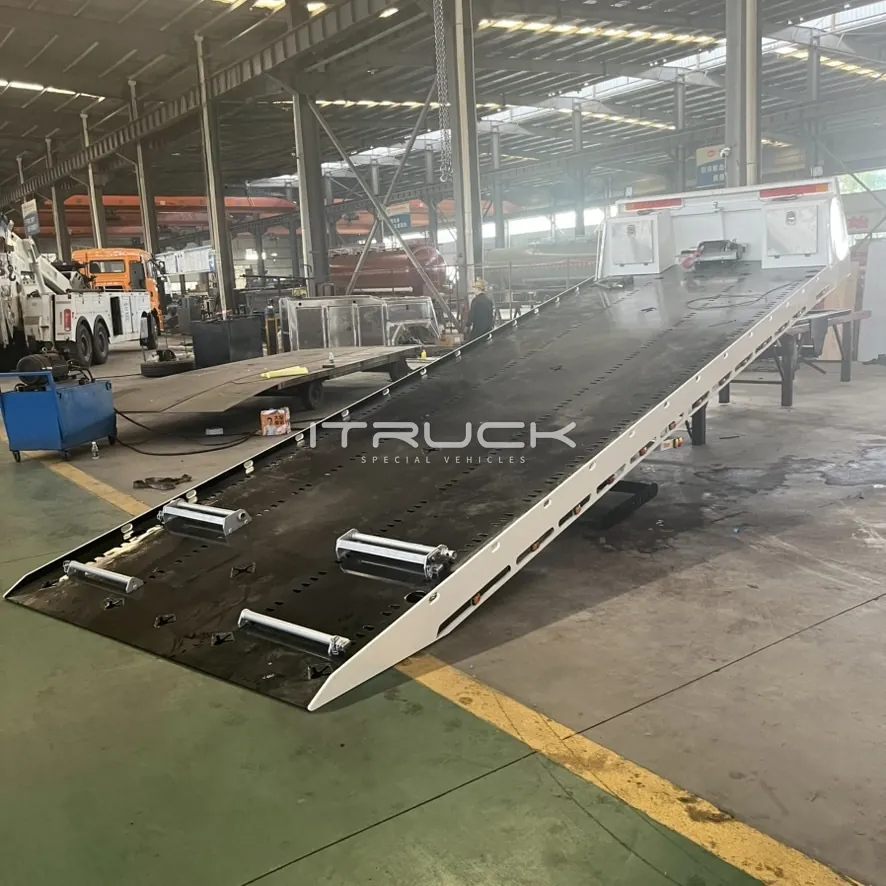

Deck slide cylinder ×1 · deck tilt cylinders ×2, inside the mainframe
Wheel lift / stabilizer cylinders ×2

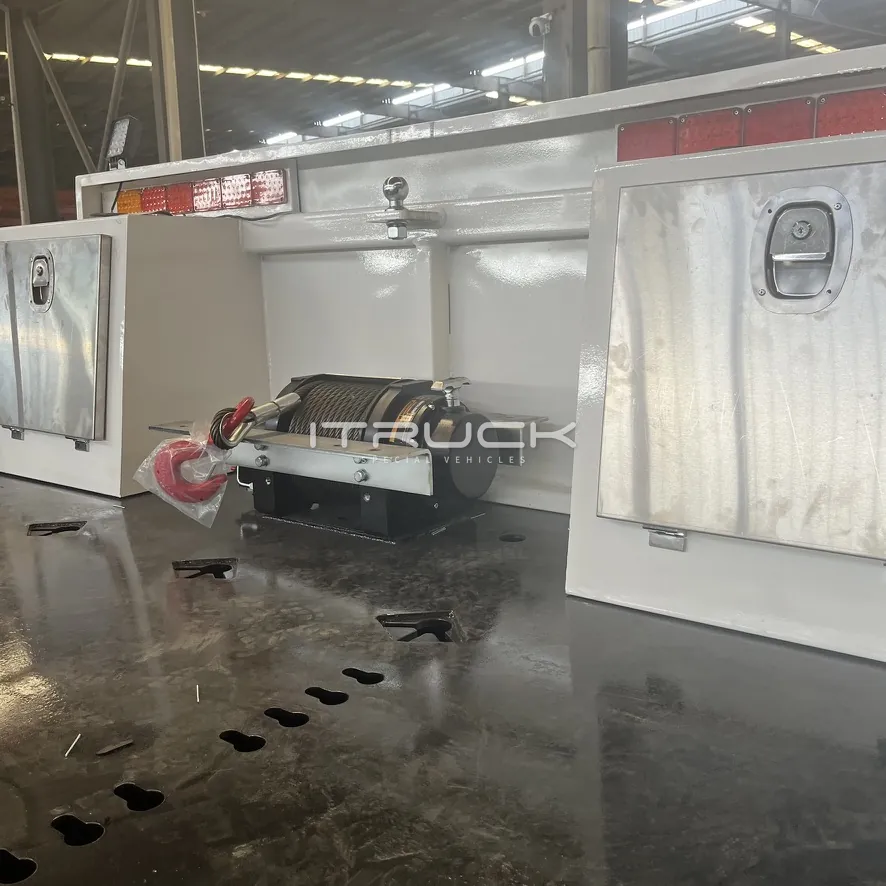

Hydraulic winch — center mounted
Hydraulic pump and reservoir

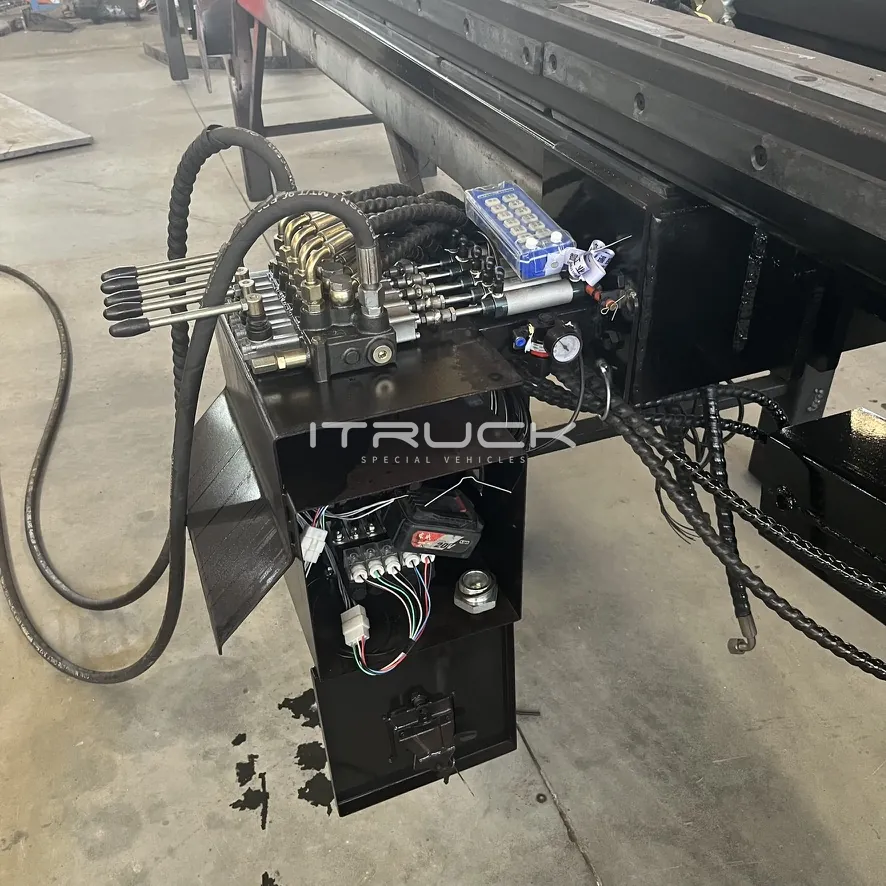

Multi-spool control valve
Two-way safety valves ×3 — deck tilt, wheel lift, deck slide
Hoses and sleeves, center-mounted hose guide

Control

Wireless remote control — standard
Manual control station — stainless box, passenger side

Lights

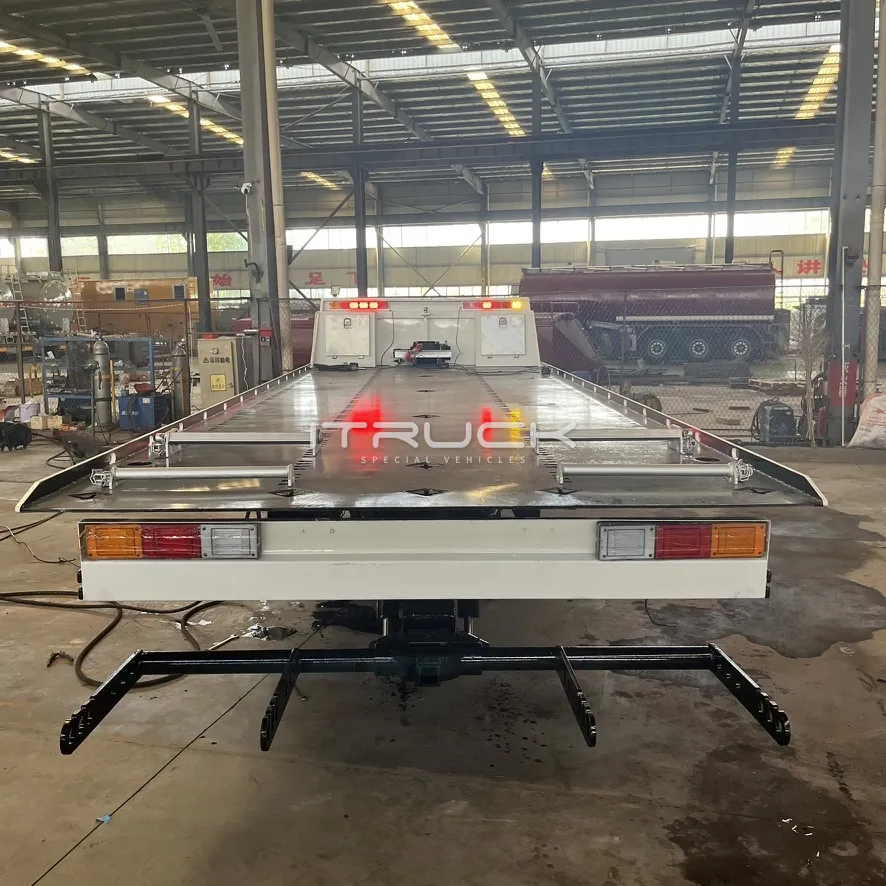

Light bar with siren and speaker — CE certified

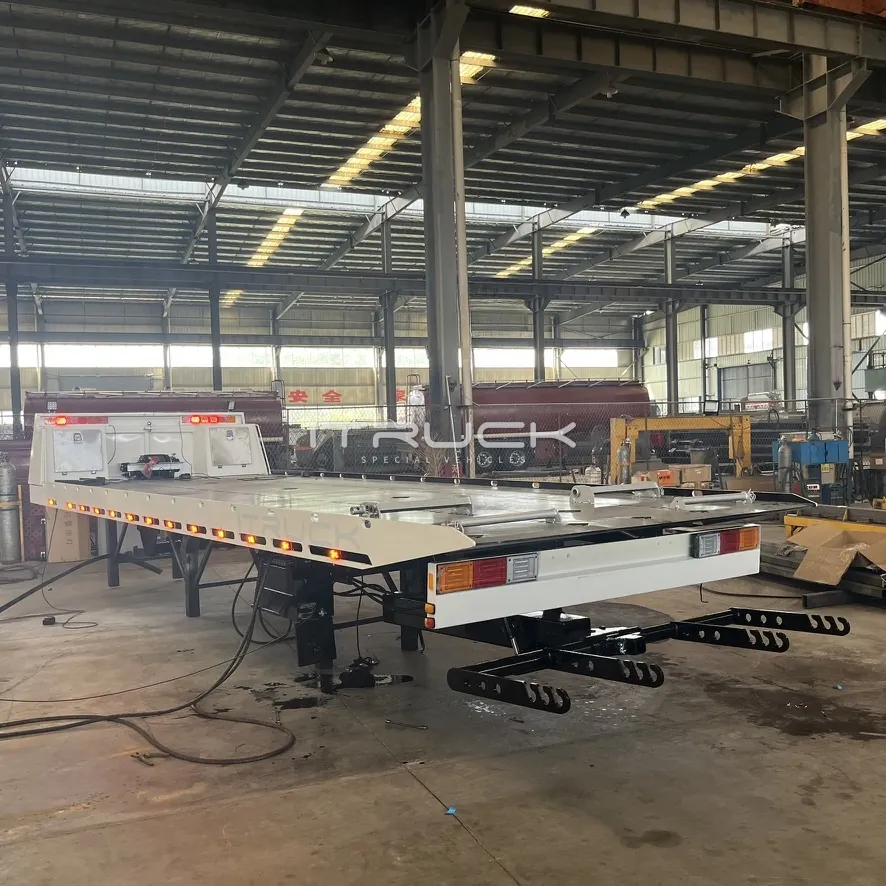

Side marker lights ×16, red / yellow — ADR certified
Brake lights ×2 — ADR certified

Accessories

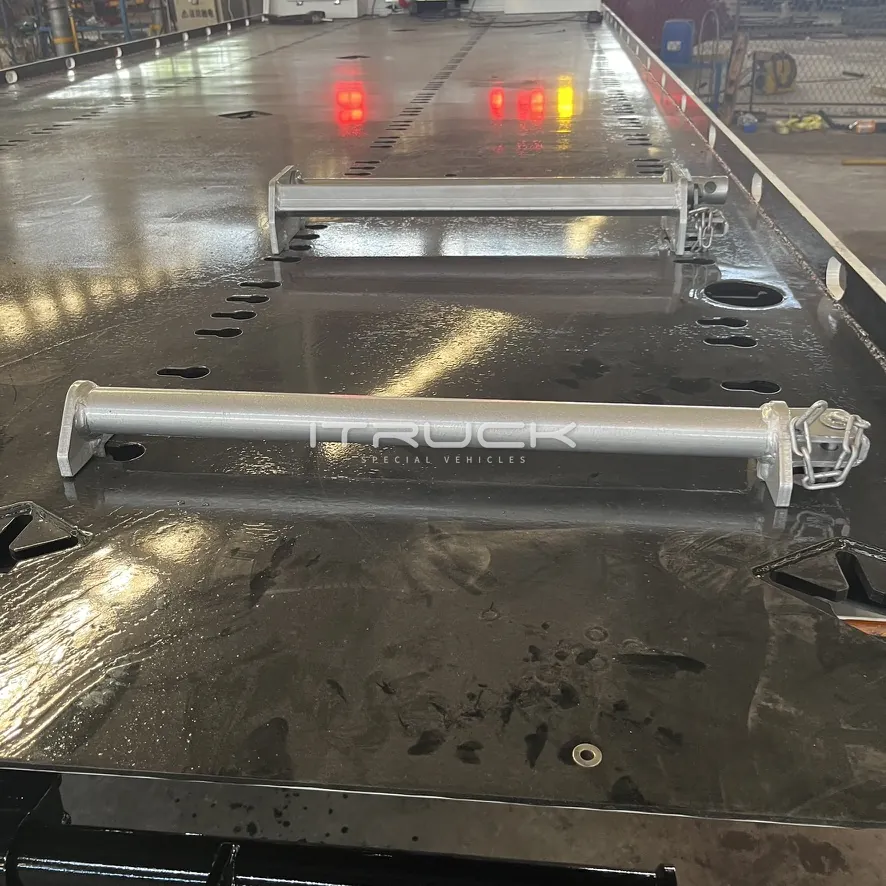

QuickLash tie-downs ×2 · wheel dollies ×2

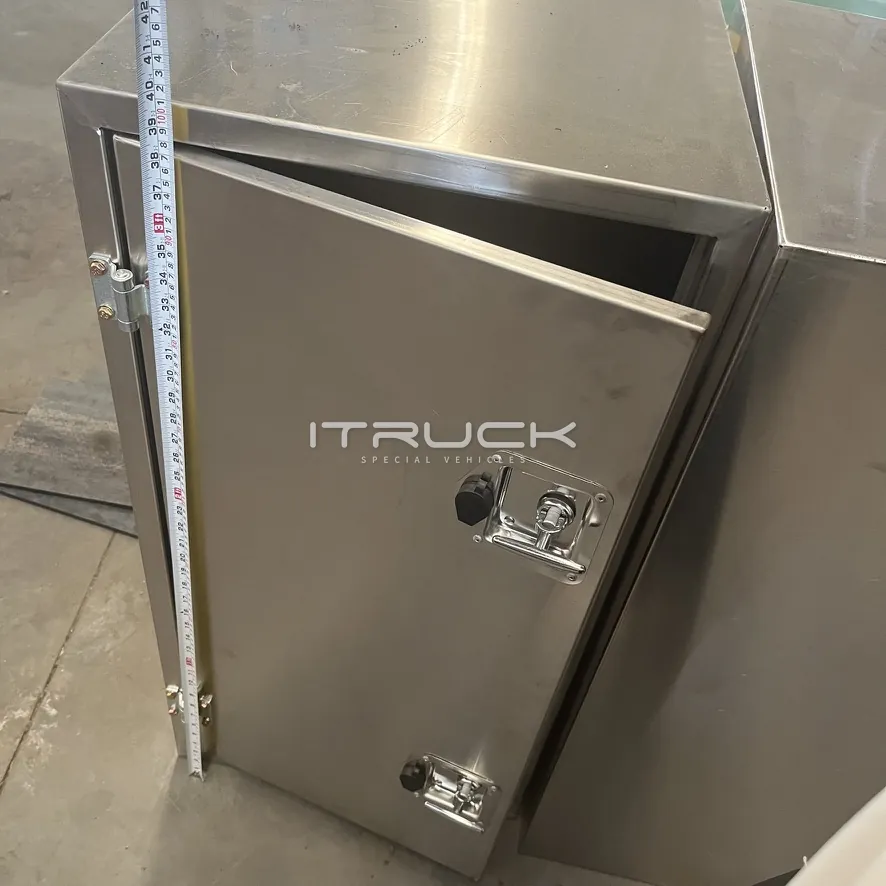

Stainless toolboxes ×2 · stainless mud flaps ×2

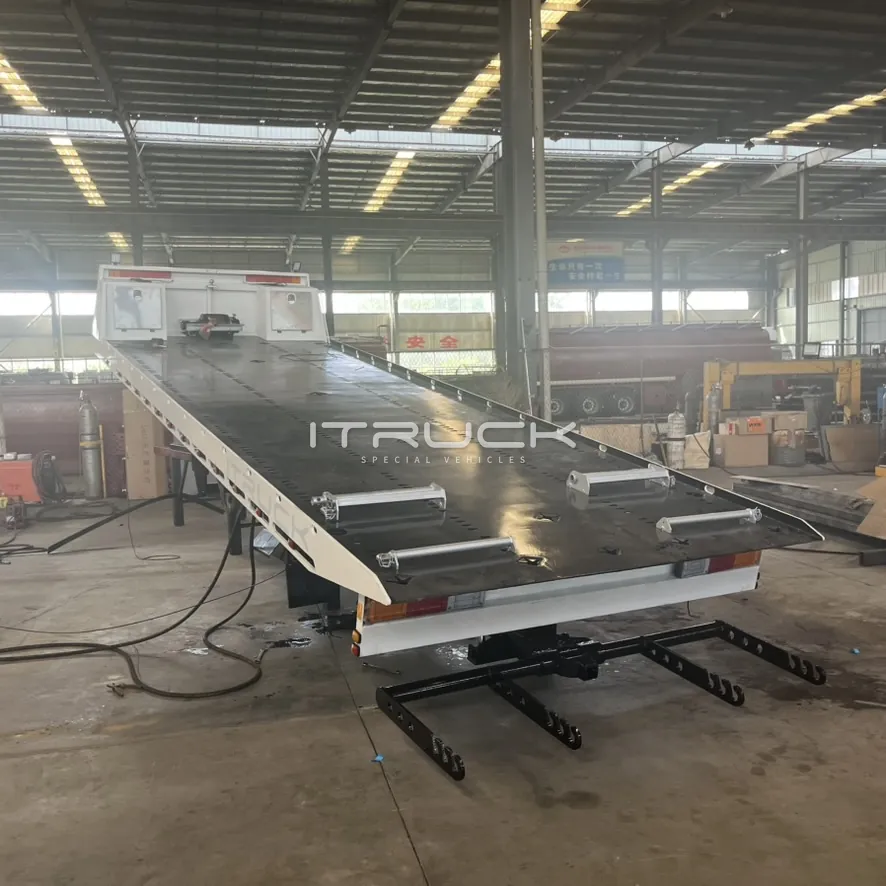

Side fences ×2 · headboard, style as required
Container locking pins ×4, where the bed length allows
Square-tube toolbox and fence brackets

Painting

Standard primer
Epoxy topcoat
E-coat — optional

Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

Supplied without wheel lift
Bed supporting racks
Folding rear deck section — manual or hydraulic
Retractable deck extension
Thicker platform plate
Laser-cut deck holes to your pattern
Side rail — square tube or steel plate
Lightweight or heavy-duty reinforced build
E-coat painting
Custom color — RAL code or sample photo

We supply drawings and documents for engineer certification; final sign-off needs correct local installation.

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.

Get the measurement guide (PDF) →
