Specifications by rating

Item	4T	5T	6T	8T
Winch line pull	4 t	5 t	6 t	8 t
Deck lift capacity	4 t	5 t	6 t	8 t
Deck load capacity — extended	4 t	5 t	6 t	8 t
Wheel lift capacity	3 t	5 t		5 or 8 t
Wheel lift towing capacity	6 t	10 t		10 or 16 t
Platform (L × W)	~5,600 × 2,350 mm	~6,500 × 2,500 mm	~7,000 × 2,500 mm	~7,000–8,000 × 2,500 mm
Platform material	Q235 checkered / Q345R smooth
Steel thickness	3 mm	4 mm	5 mm	6 mm
Approx. net weight	2.0–2.5 t	~2.5 t	~2.8 t	3.0–3.5 t

All tonnages are metric tons (1,000 kg).

The 8T is built with either a 5 t or an 8 t wheel lift.

Standard Equipment

What comes with every unit

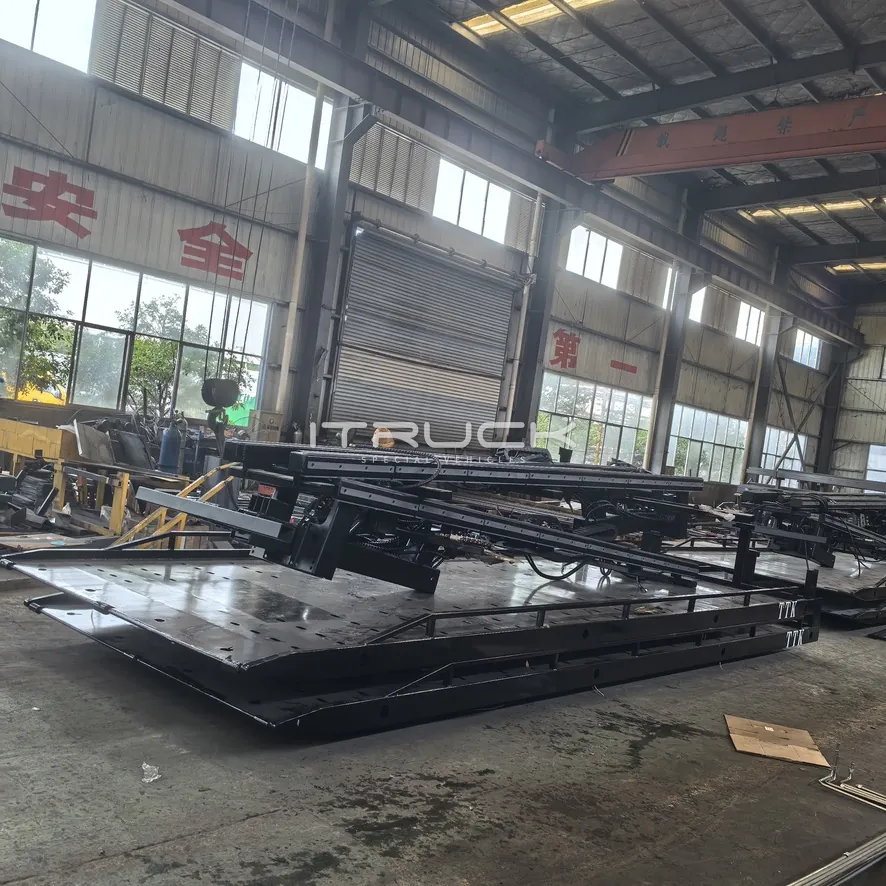

Platform

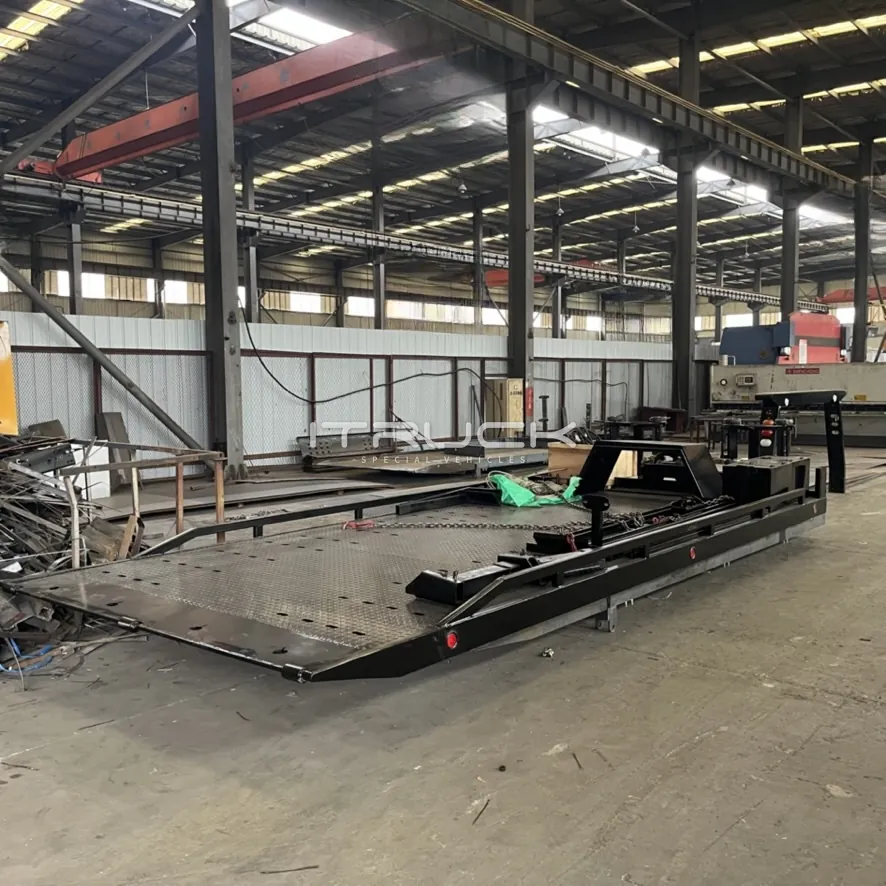

Q235 carbon steel, checkered plate — or Q345R, smooth plate
Q345R yields ≈345 MPa against ≈235 MPa for Q235 — stiffer and more dent-resistant at the same thickness
Deck size set by your chassis and requirement

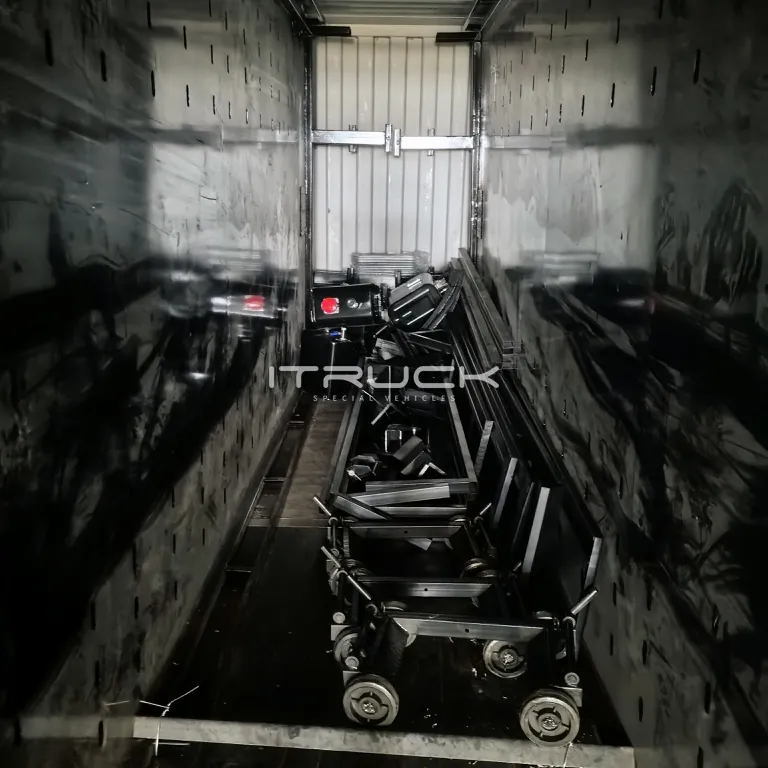

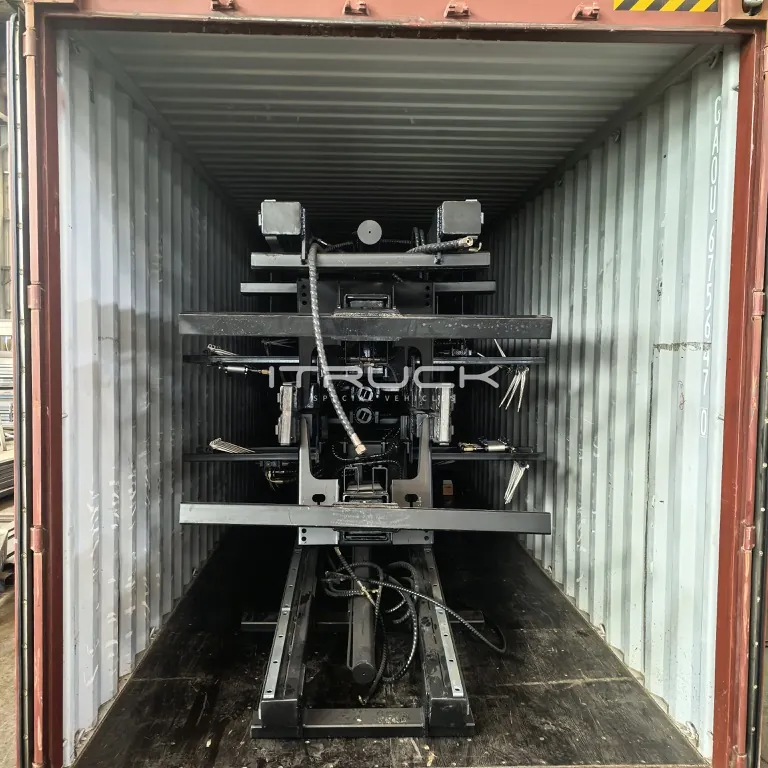

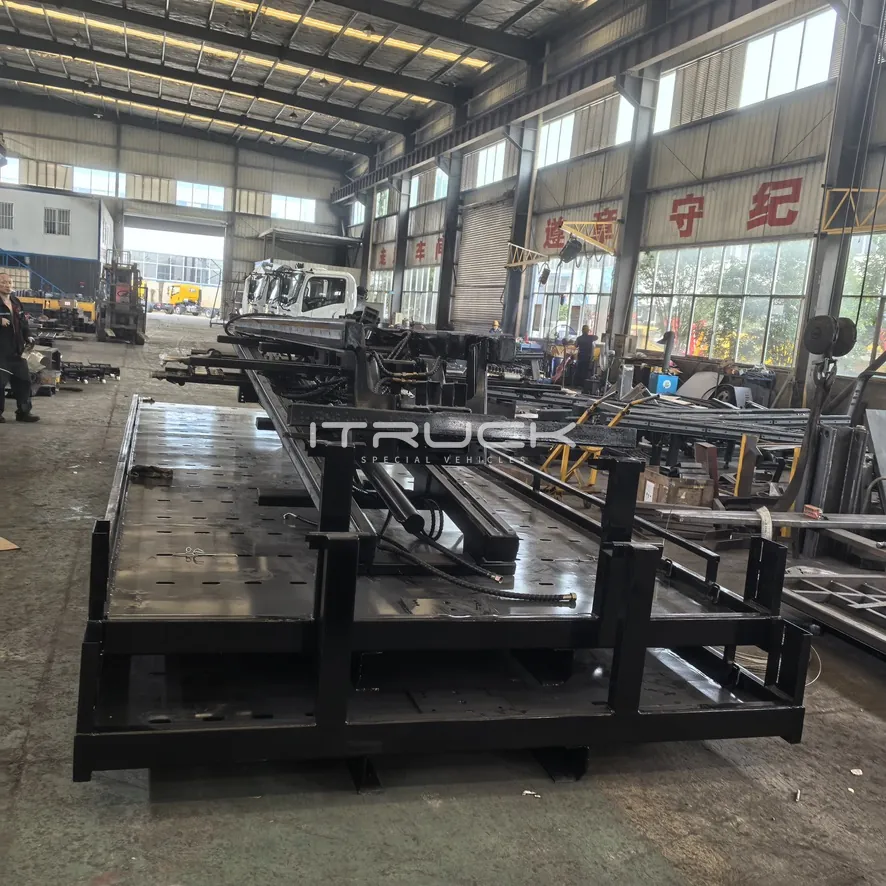

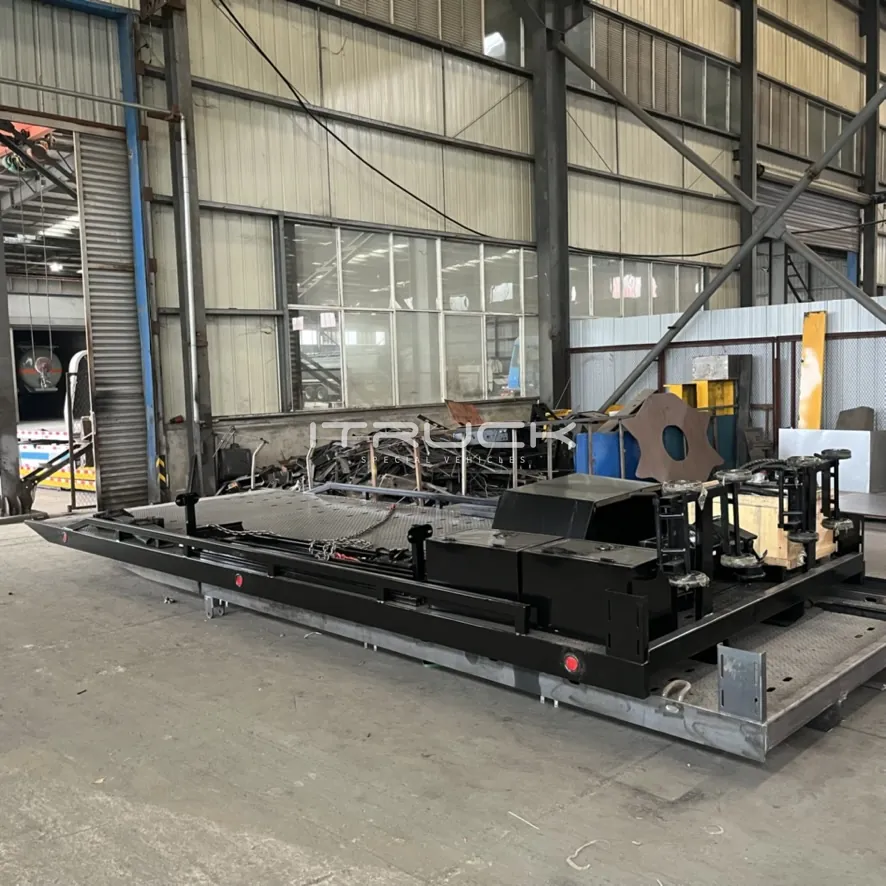

Subframe with wheel lift, built to match the chassis
Deck travel stop

Hydraulics

Deck slide cylinder ×1 · deck tilt cylinders ×2
Wheel lift boom cylinders ×2 · extension cylinder ×1

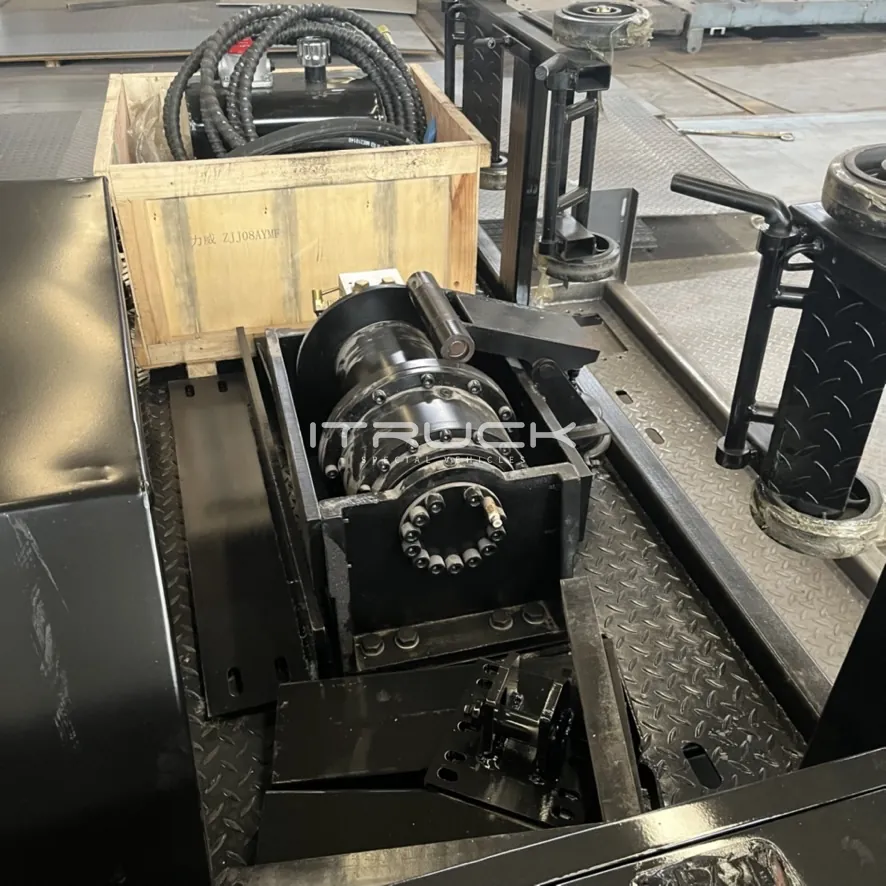

Hydraulic winch — center mounted
Hydraulic pump and reservoir
Multi-spool control valve
Counterbalance valves ×2 — bed lift and wheel lift
Hoses, hose guide and sleeves

Control

Manual control stations ×2 — one each side
Plastic-steel control consoles
Wireless remote — optional

Lights

Light bar with siren and speaker

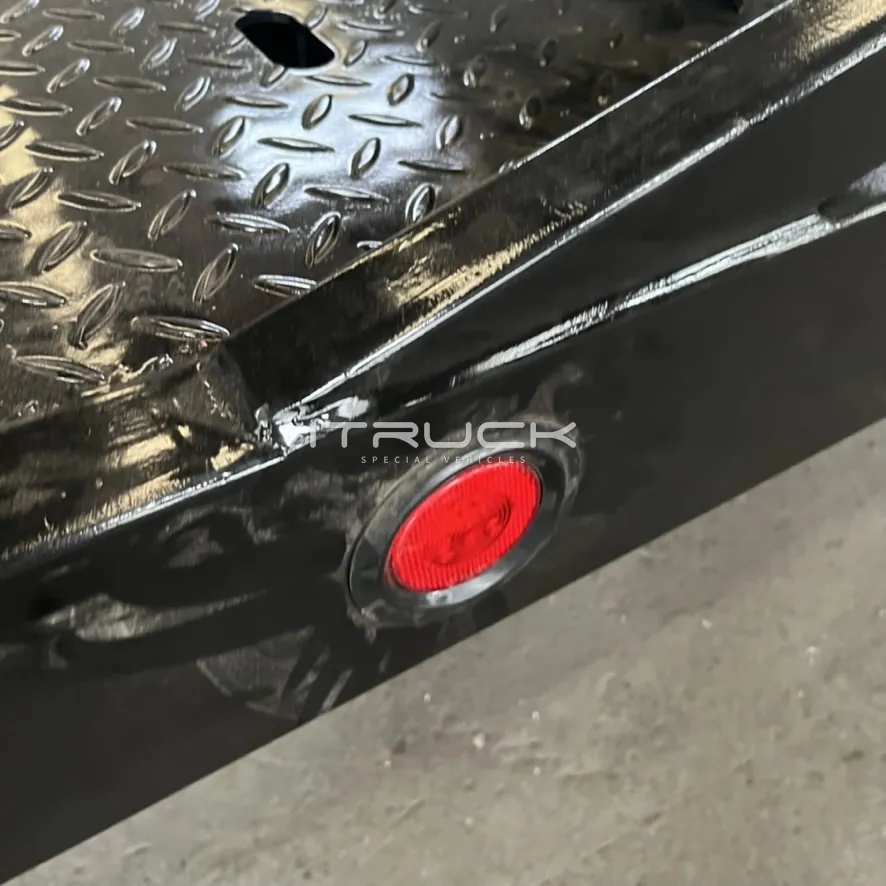

Side marker lights ×8
Frame marker lights ×6, with mounts
Lamp frame

Accessories

Wheel dollies ×2 · wheel grids ×2 · L-arms ×2
Tie-down straps ×4
Toolboxes ×2 · side fences ×2 · mud flaps ×2
Square-tube toolbox and fence brackets

Painting

Standard primer
Epoxy topcoat
E-coat — optional

Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

Supplied without wheel lift
Folding rear deck section — manual or hydraulic
Retractable deck extension
Thicker platform plate
Laser-cut deck holes to your pattern
Side rail — square tube or steel plate
Lightweight or heavy-duty reinforced build
E-coat painting
Wireless remote control
Custom color — RAL code or sample photo

The hydraulic folding section and the retractable extension are alternatives — one or the other.

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.
