Specifications by rating

Item	10T	12T	15T	20T
Winch line pull	10 t	12 t	15 t	20 t
Deck lift capacity	10 t	12 t	15 t	20 t
Deck load capacity — extended	10 t	12 t	15 t	20 t
Wheel lift capacity	10 t	12 t	16 t
Wheel lift towing capacity	20 t	24 t	32 t
Platform (L × W)	~8,000–9,000 × 2,500 mm		~9,000 × 2,500 mm
Platform material	Q235 / Q345R, smooth or checkered

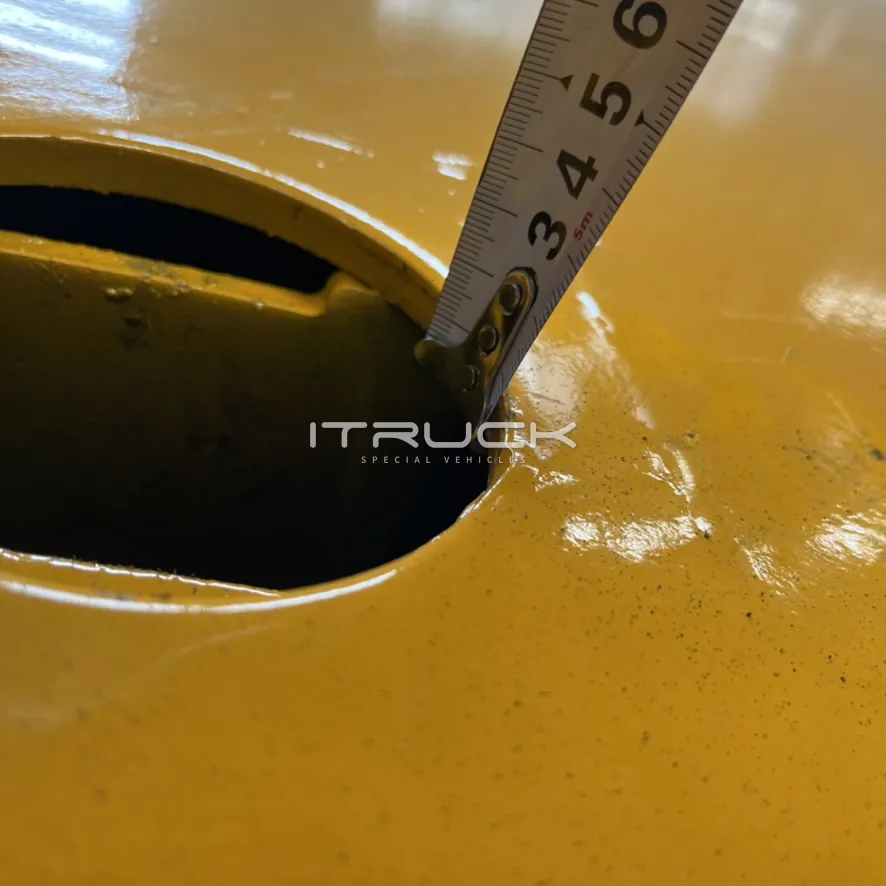

Steel thickness	6 mm	8 mm	10 mm
Approx. net weight	4–5 t			5–6 t

All tonnages are metric tons (1,000 kg).

Standard Equipment

What comes with every unit

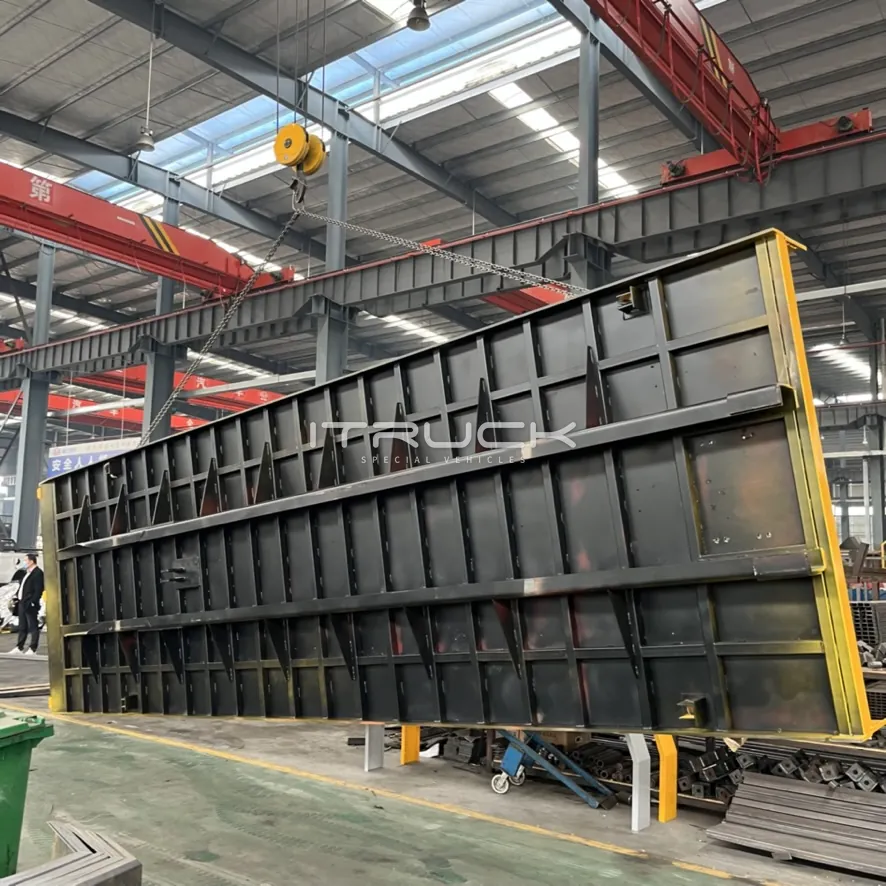

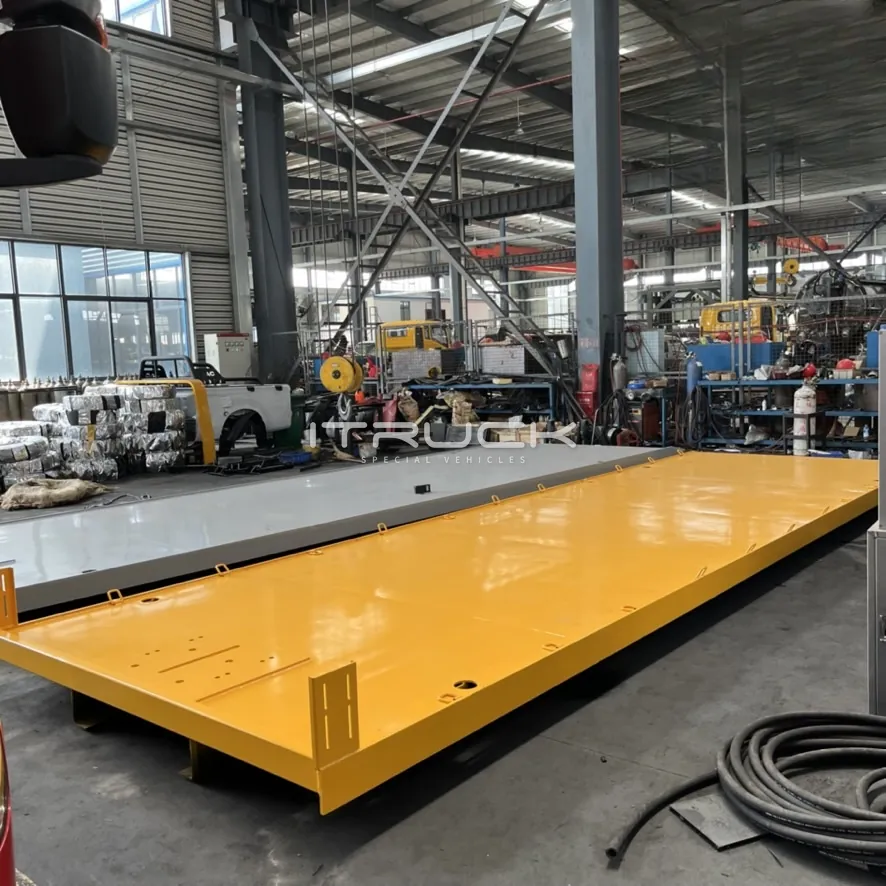

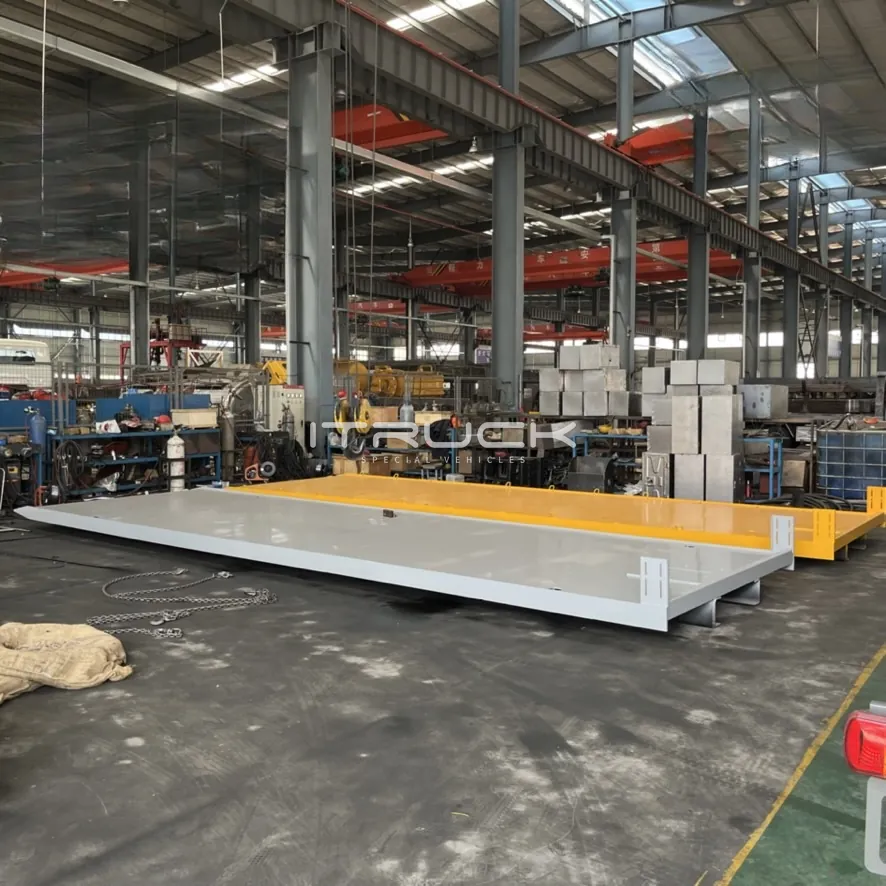

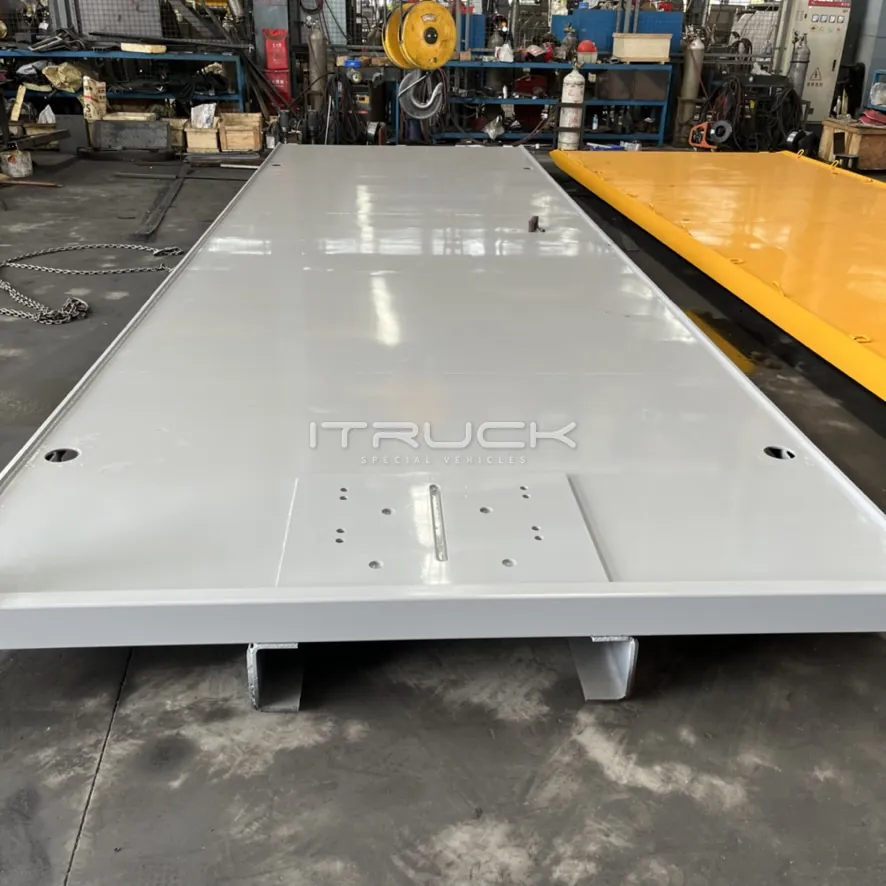

Platform

Q235 carbon steel or Q345R low-alloy steel — smooth or checkered plate
Q345R yields ≈345 MPa against ≈235 MPa for Q235 — stiffer and more dent-resistant at the same thickness
Deck size set by your chassis and requirement

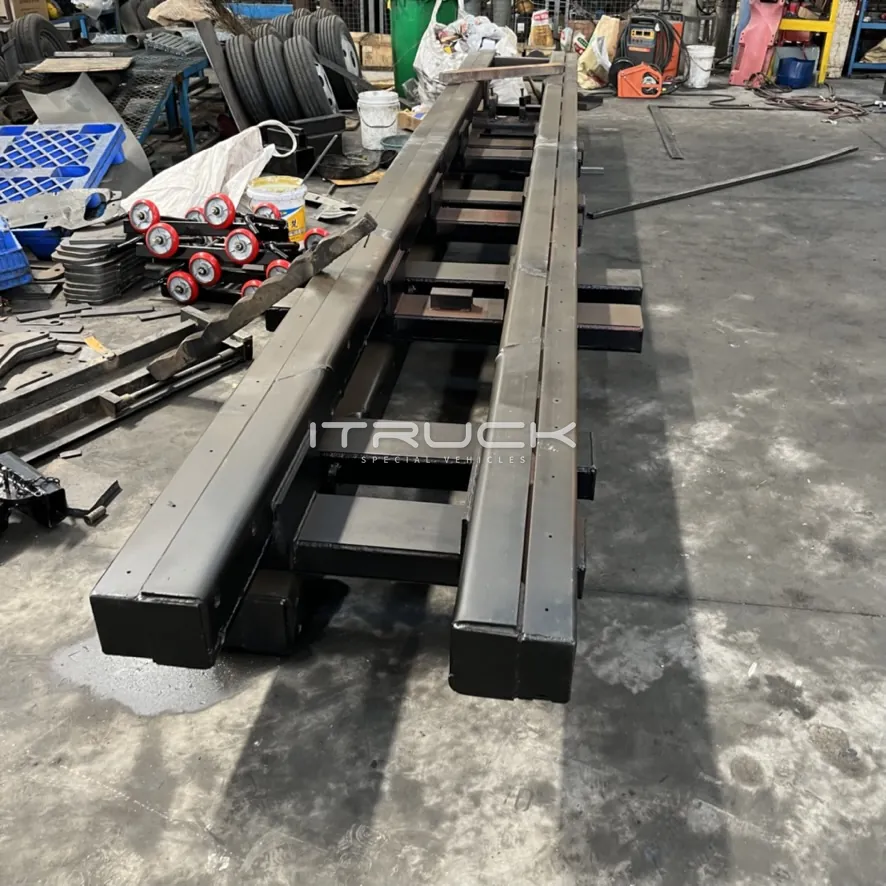

Subframe with wheel lift, built to match the chassis
Deck travel stop

Hydraulics

Deck slide cylinder ×1 (20T: ×2) · deck tilt cylinders ×2
Stabilizer leg cylinders ×2

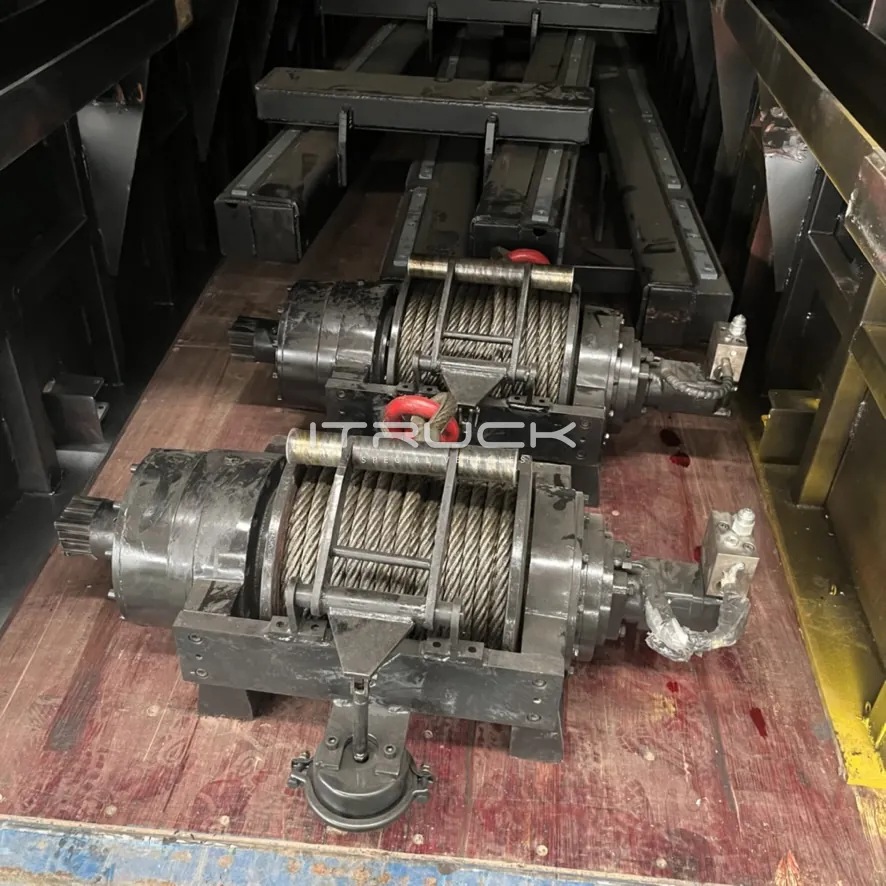

Hydraulic winch
Hydraulic pump and reservoir
Multi-spool control valve
Counterbalance valves ×2 — bed lift and wheel lift
Hoses, hose guide and sleeves

Control

Wireless remote control — standard
Manual control stations ×2 — one each side
Plastic-steel control consoles

Lights

Light bar with siren and speaker
Side marker lights ×10
Frame marker lights ×8, with mounts
Lamp frame

Accessories

Wheel dollies ×2 · wheel grids ×2 · L-arms ×2
Tie-down straps ×4 · container locking pins ×4
Toolboxes ×2 · side fences ×2 · mud flaps ×2
Square-tube toolbox and fence brackets

Painting

Standard primer
Epoxy topcoat
E-coat — optional

Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

Supplied without wheel lift
Folding rear deck section — manual or hydraulic
Retractable deck extension
Thicker platform plate
Laser-cut deck holes to your pattern
Side rail — square tube or steel plate
Winch position — front, center or side
Lightweight or heavy-duty reinforced build
E-coat painting
Custom color — RAL code or sample photo

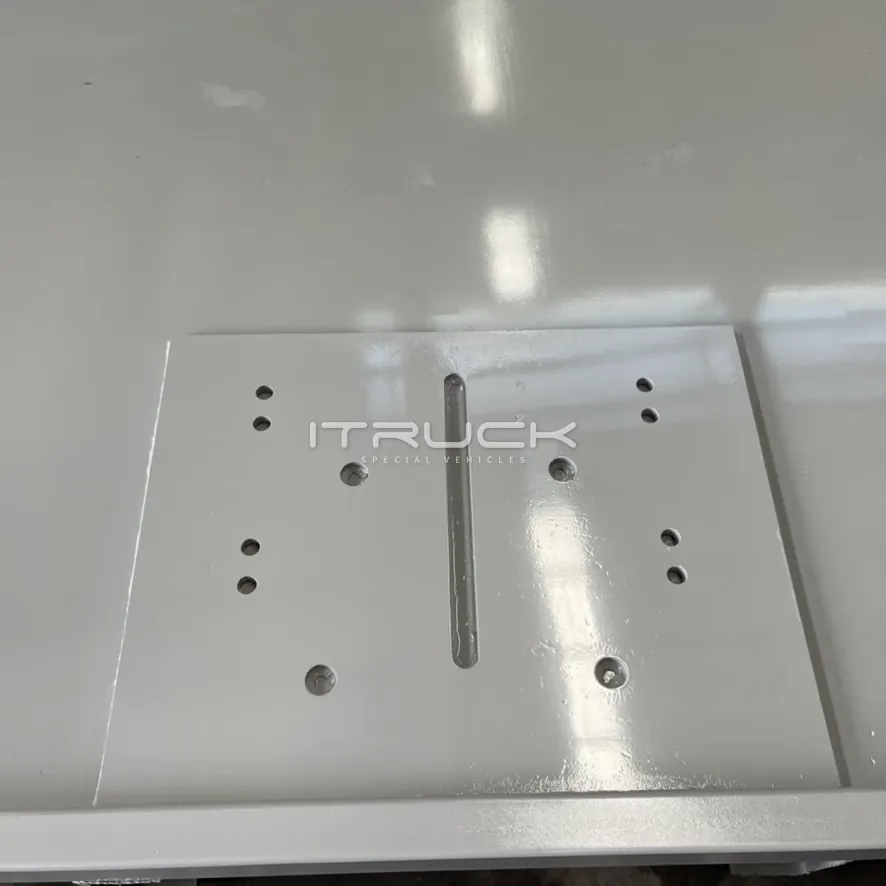

Winch position is fixed at order: the deck plate is cut to suit.

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.
