Specifications by rating

Item	4T
Winch line pull	4 t
Deck lift capacity	4 t
Deck load capacity — extended	4 t
Turret rotation	270°
Wheel lift capacity	4 t
Wheel lift towing capacity	8 t
Platform (L × W)	5,600 × 2,300 mm
Platform material	Q235 checkered / Q345R smooth
Steel thickness	4 mm
Approx. net weight	2.0–2.5 t

All tonnages are metric tons (1,000 kg).

Standard Equipment

What comes with every unit

Platform

Q235 carbon steel, checkered plate — or Q345R, smooth plate
Q345R yields ≈345 MPa against ≈235 MPa for Q235 — stiffer and more dent-resistant at the same thickness
Standard deck 5,600 × 2,300 mm — final size set by your chassis
Subframe with wheel lift, built to match the chassis
Deck travel stop

Hydraulics

Deck slide cylinder ×1 · deck tilt cylinders ×2

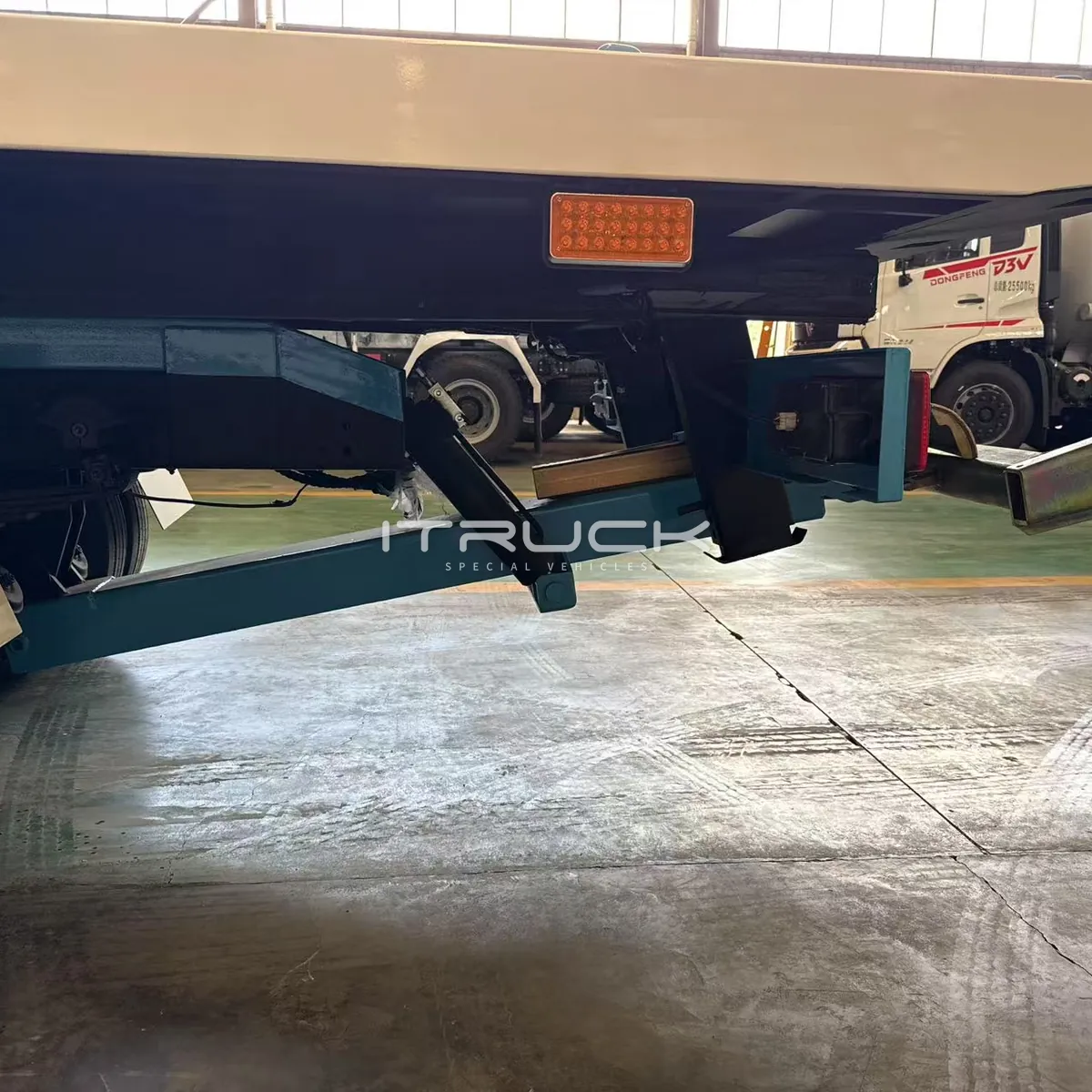

Turret with reducer — 270° rotation

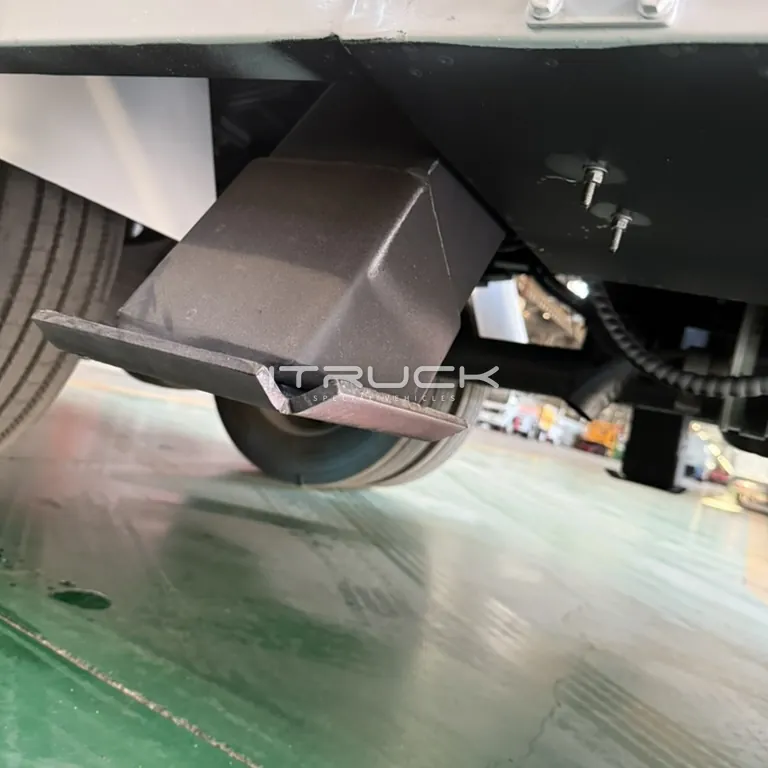

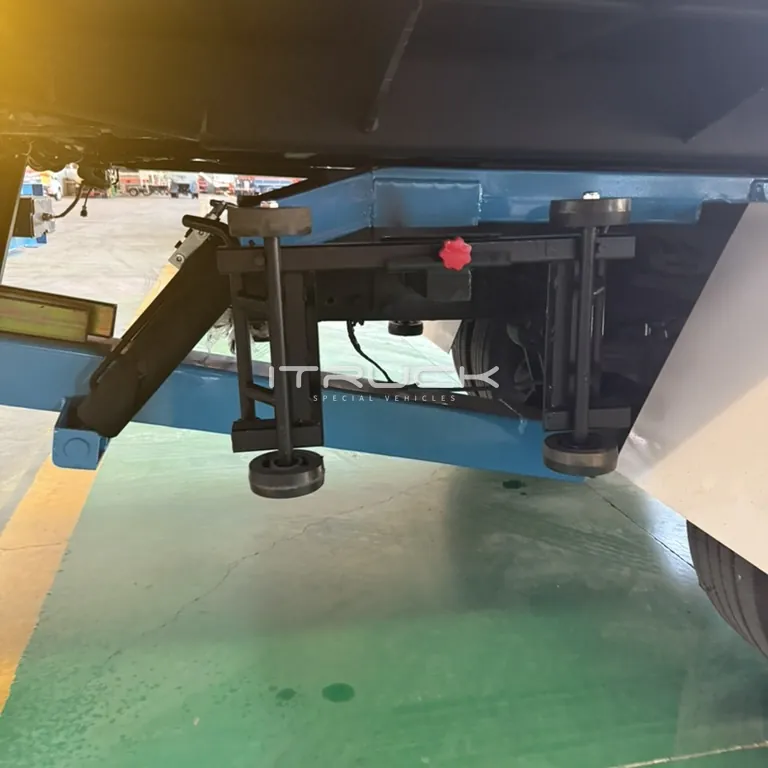

Wheel lift boom cylinders ×2 · extension cylinder ×1

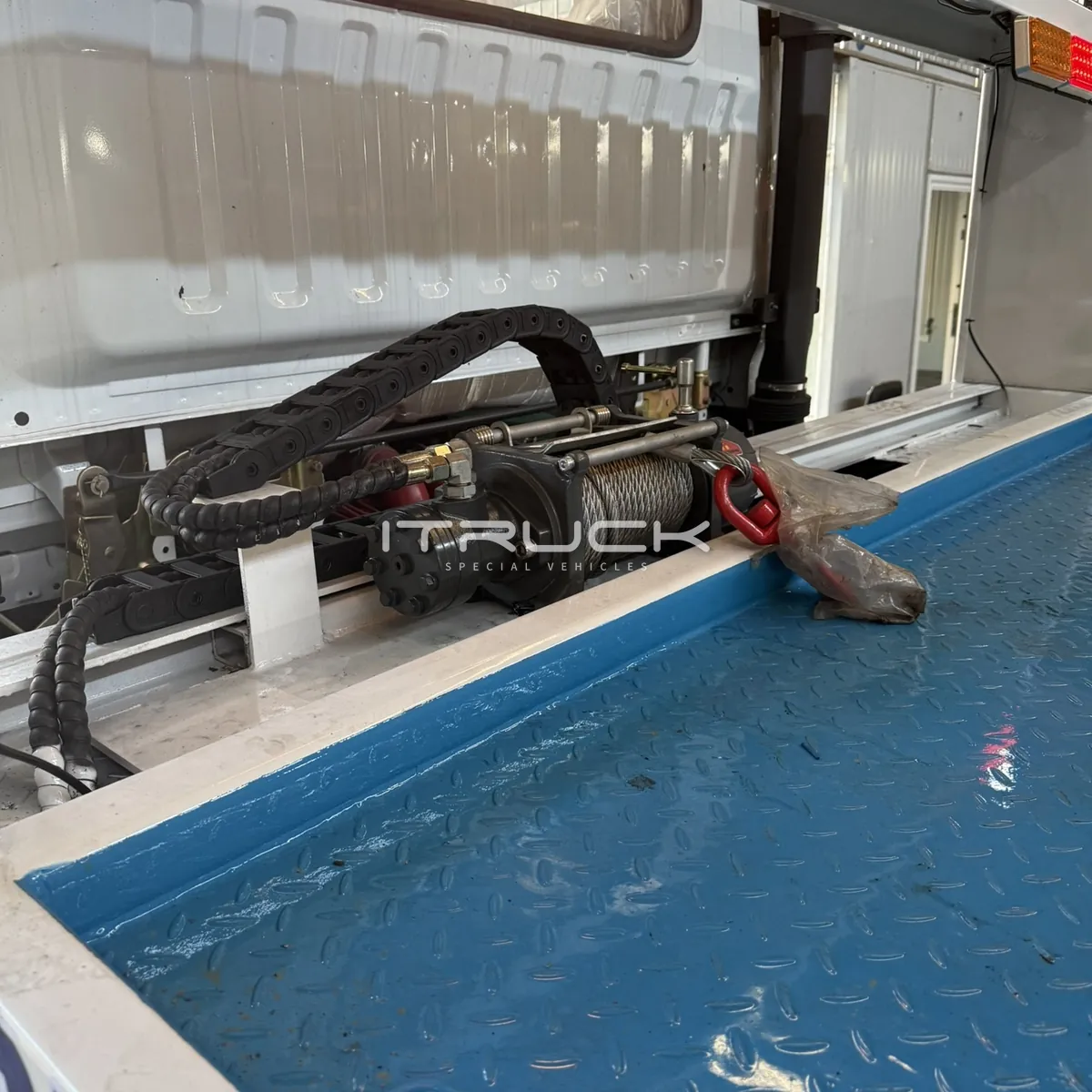

Hydraulic winch on a sliding cylinder
Hydraulic pump and reservoir
Multi-spool control valves ×2
Counterbalance valves ×2 — bed lift and wheel lift
Hoses, hose guide and sleeves

Control

Wireless remote control — standard
Manual control station

Lights

Light bar with siren and speaker
Side marker lights ×8
Frame marker lights ×6, with mounts
Lamp frame

Accessories

Auxiliary wheels ×2 · wheel grids ×2 · L-arms ×2
Tie-down straps ×4 · tow chain
Toolboxes ×2 · side fences ×2 · mud flaps ×2
Square-tube toolbox and fence brackets

Painting

Standard primer
Epoxy topcoat
E-coat — optional

Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

Supplied without wheel lift
Folding rear deck section — manual or hydraulic
Retractable deck extension
Thicker platform plate
Laser-cut deck holes to your pattern
Side rail — square tube or steel plate
Winch position — front, center or side
Lightweight or heavy-duty reinforced build
E-coat painting
Custom color — RAL code or sample photo

The hydraulic folding section and the retractable extension are alternatives — one or the other.

Winch position is fixed at order: the deck plate is cut to suit.

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.

Get the measurement guide (PDF) →

Need the complete truck, not just the equipment?

We build finished vehicles too — 11 wrecker models and 10 flatbed carriers on Isuzu, Dongfeng, Howo, Foton, Iveco and Shacman chassis, LHD or RHD, driven off the ship and straight to work. Same factory in Suizhou, same people you are talking to here. Mounting equipment on a chassis you already run usually costs far less import duty; a complete truck saves you sourcing the chassis and finding a body shop.
