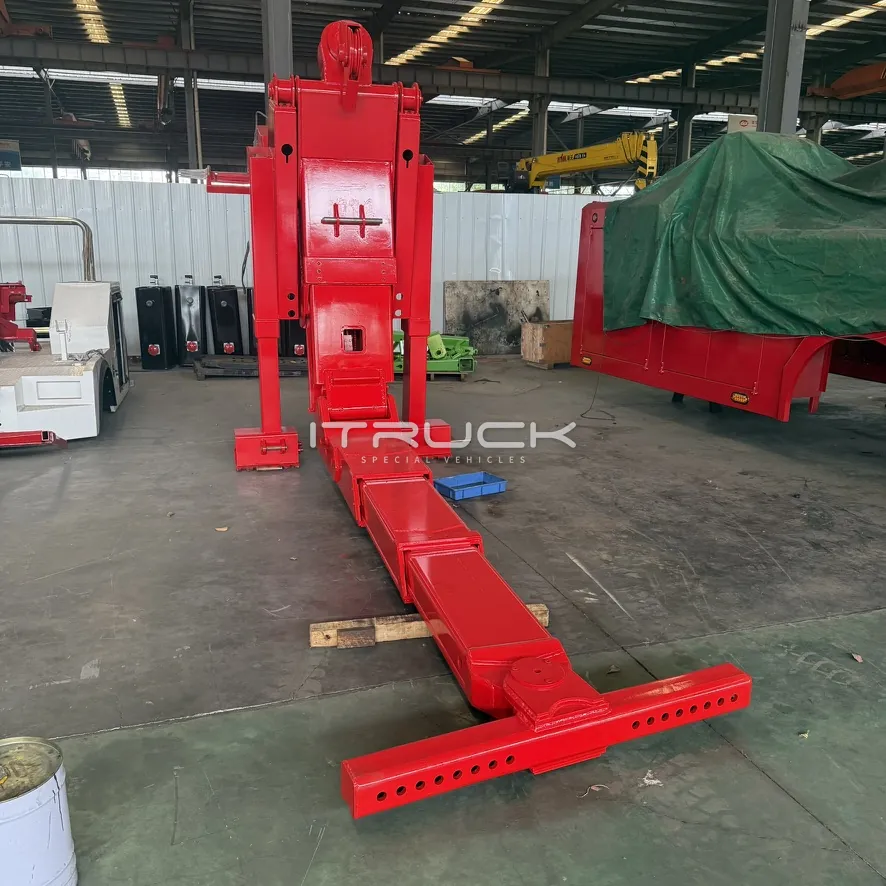

Arm fully extended

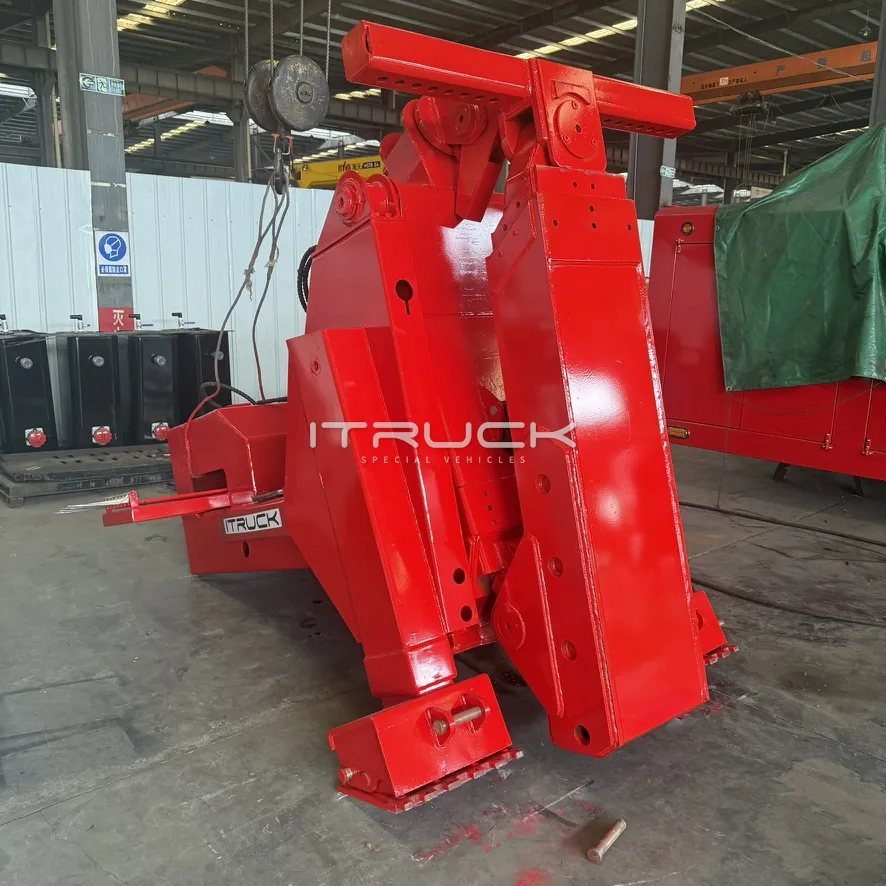

Rear view

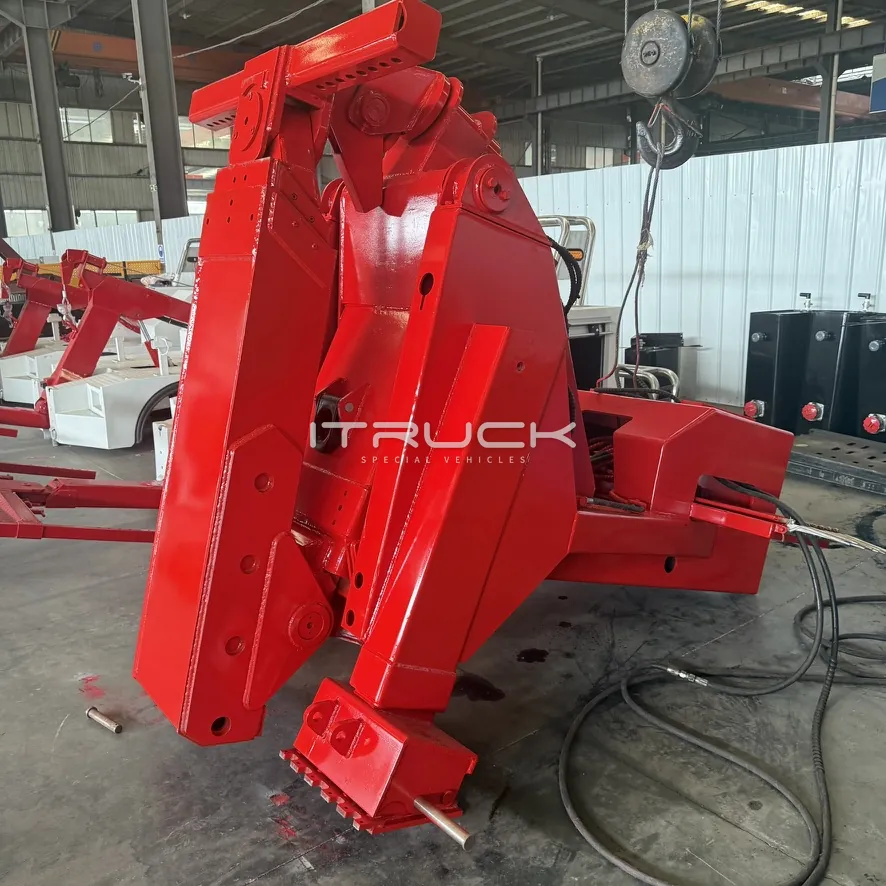

Three-quarter view

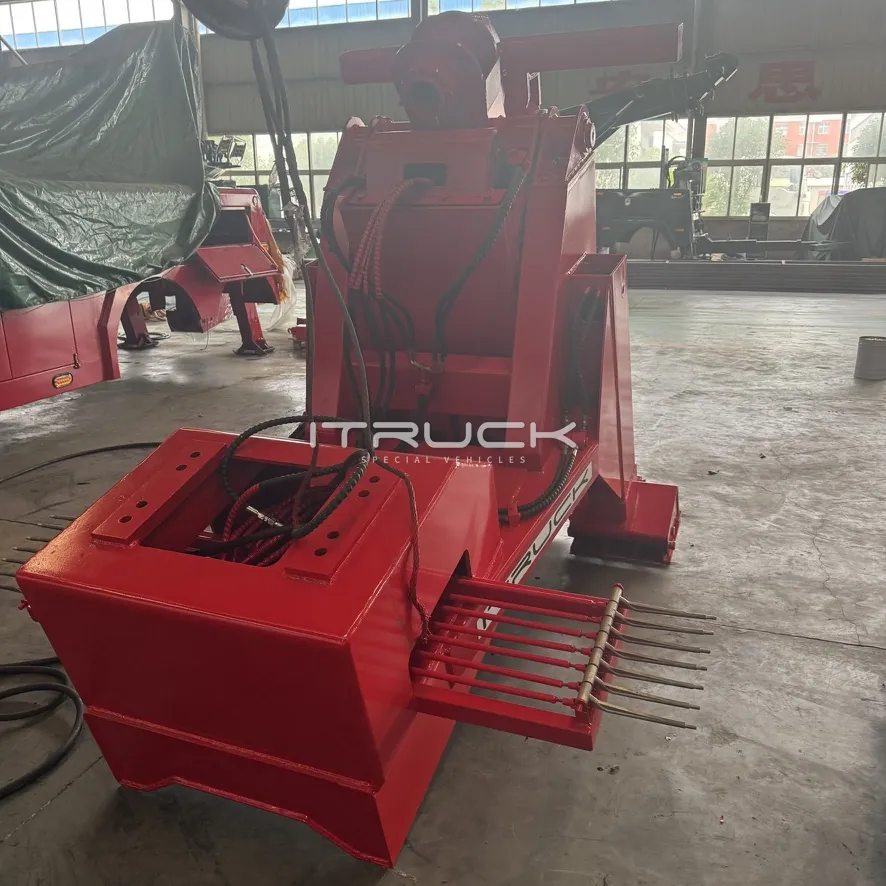

Subframe and fork rack

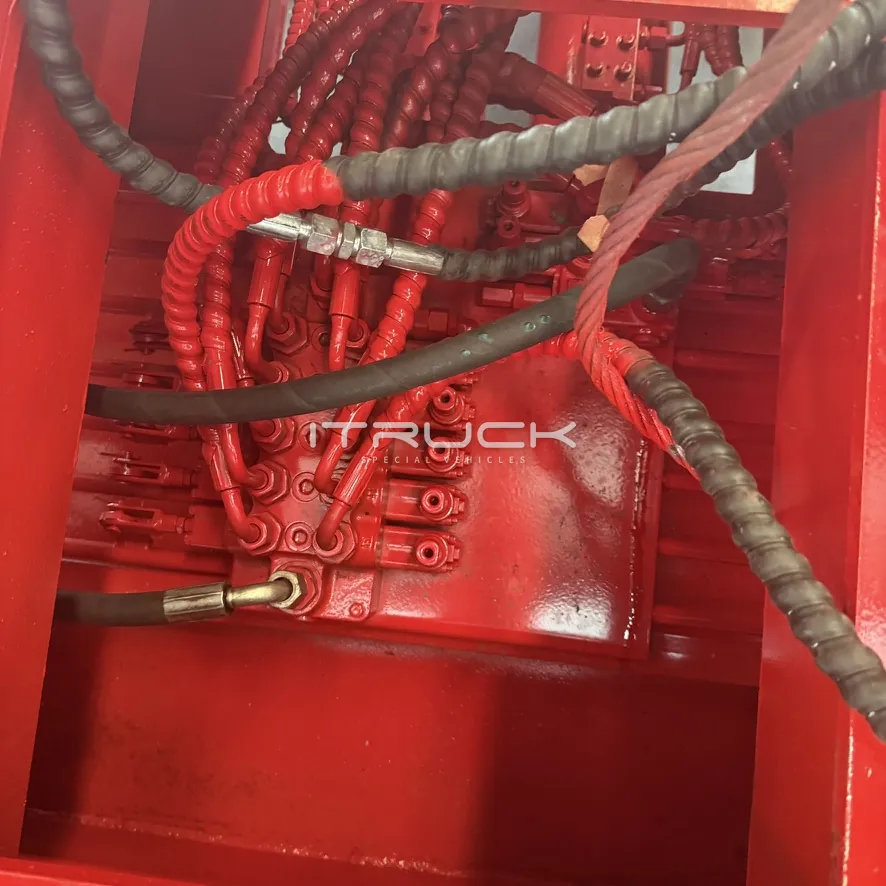

Hydraulic plumbing

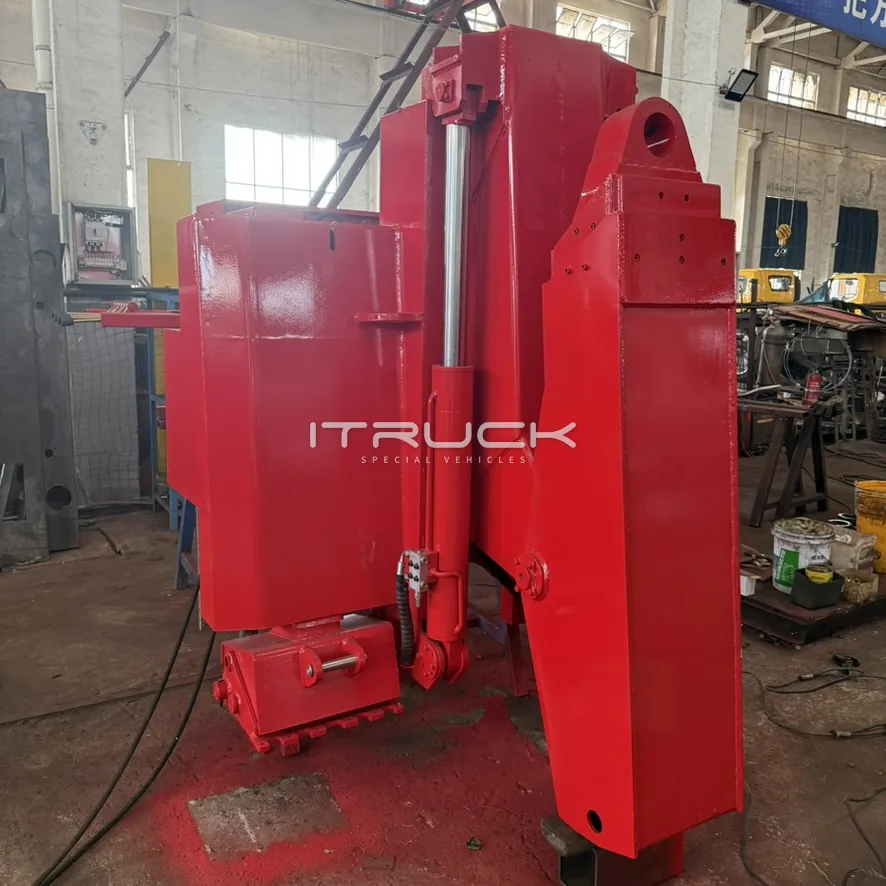

Side view, lift cylinder

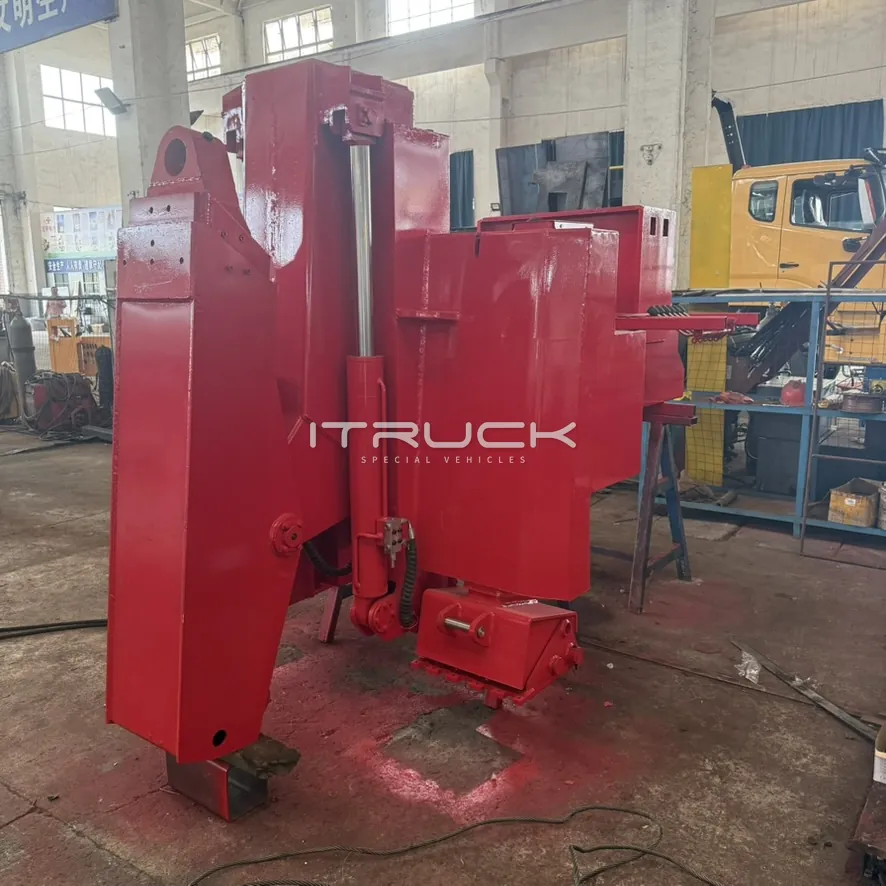

Rear three-quarter view

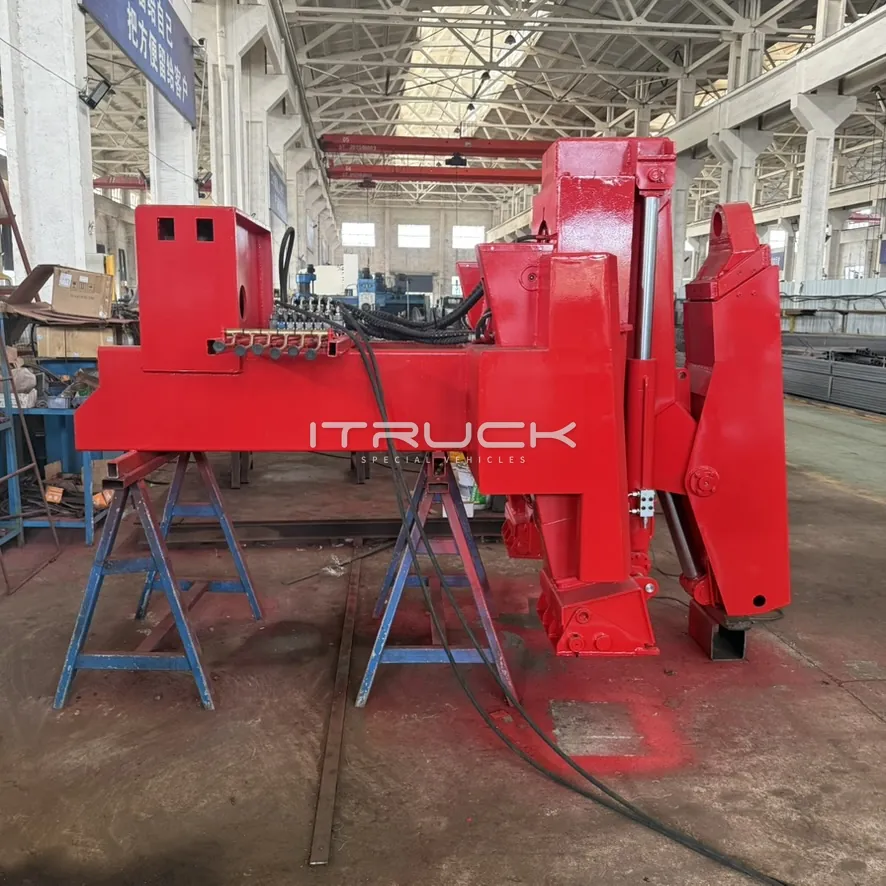

On stands, subframe side

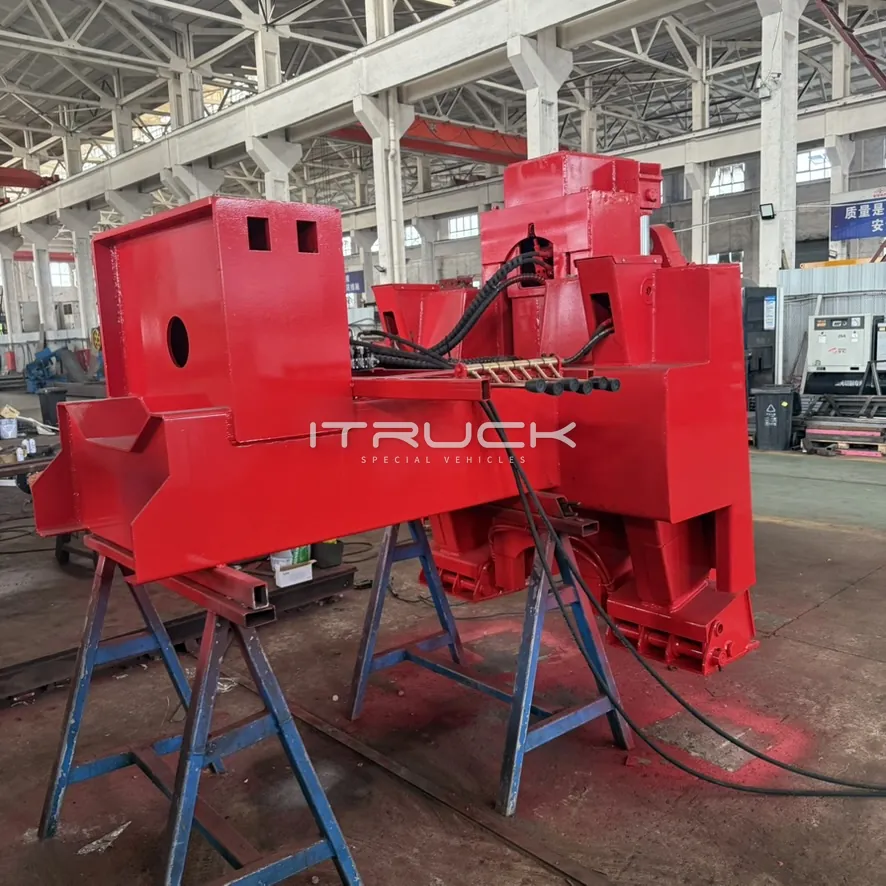

Subframe and hose manifold

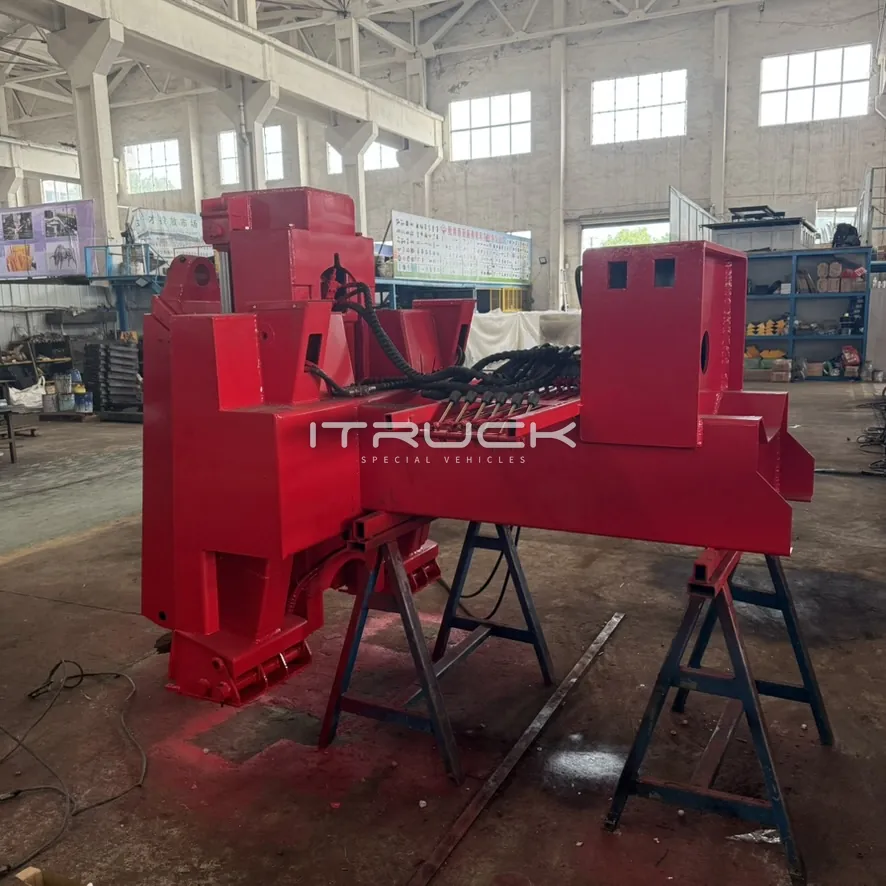

On stands, other side

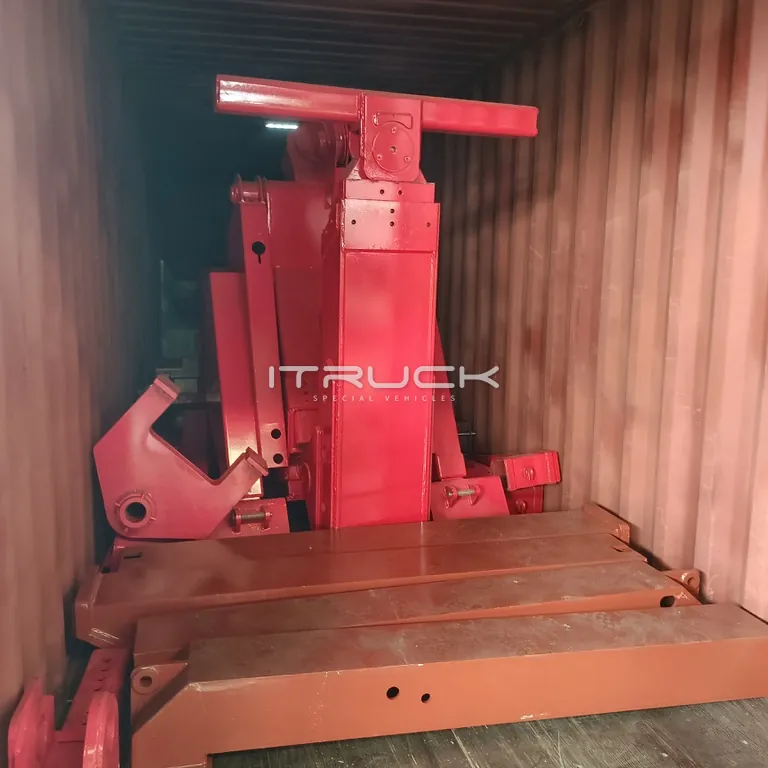

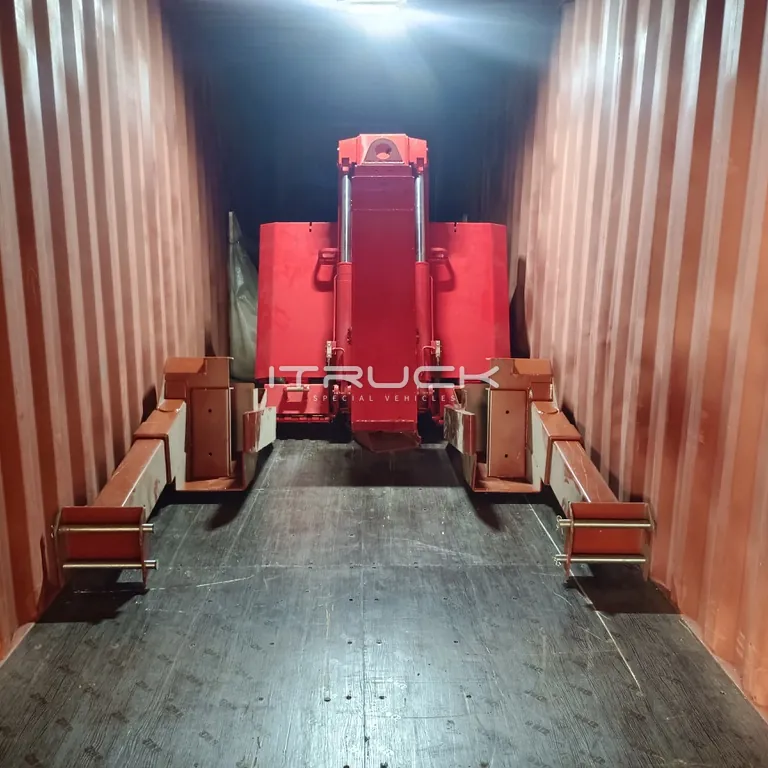

Loaded in a container

Packed for shipping

1 / 12

Photos are for reference only. Options may be shown.

Standalone Underlift · 10–28 t

Underlift without Crane 10T / 16T / 25T / 28T

Name: Underlift without Crane 10T / 16T / 25T / 28T
Brand: iTruck

A 3-stage HG70 underlift on its own Q355B subframe, with no boom, for operators who only need to lift and tow and want to fit it to their own truck.

10–28 tLift capacity

20–85 tTow rating

HG70Underlift steel

3-stageTelescopic underlift

Lead time30 days after deposit
Container loading2 per 20' GP · 4 per 40' HQ · LCL: one per wooden crate
Price basisEXW Suizhou · FCA on request

Request a Quote WhatsApp Us

Technical Specifications

Specifications by rating

Item	10T	16T	25T	28T
Lifting capacity — retracted	10 t	16 t	25 t	28 t
Retracted length	1,505 mm		1,650 mm	1,750 mm
Lifting capacity — extended	3.8 t	4.5 t	6.5 t	8.5 t
Extended length	2,760 mm	3,150 mm		3,450 mm
Underlift tilt — below horizontal	−10°
Tow rating	20–30 t	32–48 t	50–75 t	56–85 t
Tow bar length	1,400 mm
Tow bar section	127 × 127 mm
Pin	56 mm
Pin bore	57 mm
Underlift steel	HG70
Subframe steel	Q355B
Approx. net weight	~2.5 t	~3 t	~5 t	~6 t

All tonnages are metric tons (1,000 kg).

Standard Equipment

What comes with every unit

Underlift

HG70 steel underlift, 3-stage
Rear stabilizer legs — hydraulic

Subframe

Carbon steel Q355B subframe

Hook-ups

Air hook-ups — DOT
Electrical hook-ups — 12 V or 24 V, DOT

Hydraulics

Hydraulic pump — 6/13-tooth spline or single shaft, DOT
Hoses and connectors — DOT
Control valves — DOT
Cylinders — DOT (28T: internally mounted)

Control

Manual control — both sides, English labels
Push-button wireless remote — optional

Attachments

Fork sets — 10T: 3 (2 axle-lift, 1 suspension-lift) · 16T / 25T / 28T: 5 (4 axle-lift, 1 suspension-lift)
Fork receiver and U-shape tire holder ×1 set each
Safety chains ×2
D-rings ×1 (25T / 28T; not fitted on 10T / 16T — insufficient space)

Lights

Tail lights ×1 per side — DOT

Painting

Standard primer
Epoxy topcoat
English decals and markings
Protective wrap on the toolbox paint

Options

Build it your way

Options are priced with your configuration — ask for them in your quote.

Push-button wireless remote control
Custom attachments
Custom color — RAL code or sample photo

Custom colors are matched as closely as possible from a RAL code or sample photo; a slight difference cannot be excluded.

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.
