Cast Steel Underlift Forks
Cast steel forks for the wheel-lift crossbar, in Nos. 7, 10, 11 and 12 with a 51 mm or 56 mm shank.
Ships with your body orderPrice on request| Size / type | Detail |
|---|---|
| No. 7 fork — 51 mm shank | also 56 mm shank |
| No. 10 fork — 51 mm shank | also 56 mm shank |
| No. 11 fork — 51 mm shank | also 56 mm shank |
| No. 12 fork — 51 mm shank | also 56 mm shank |

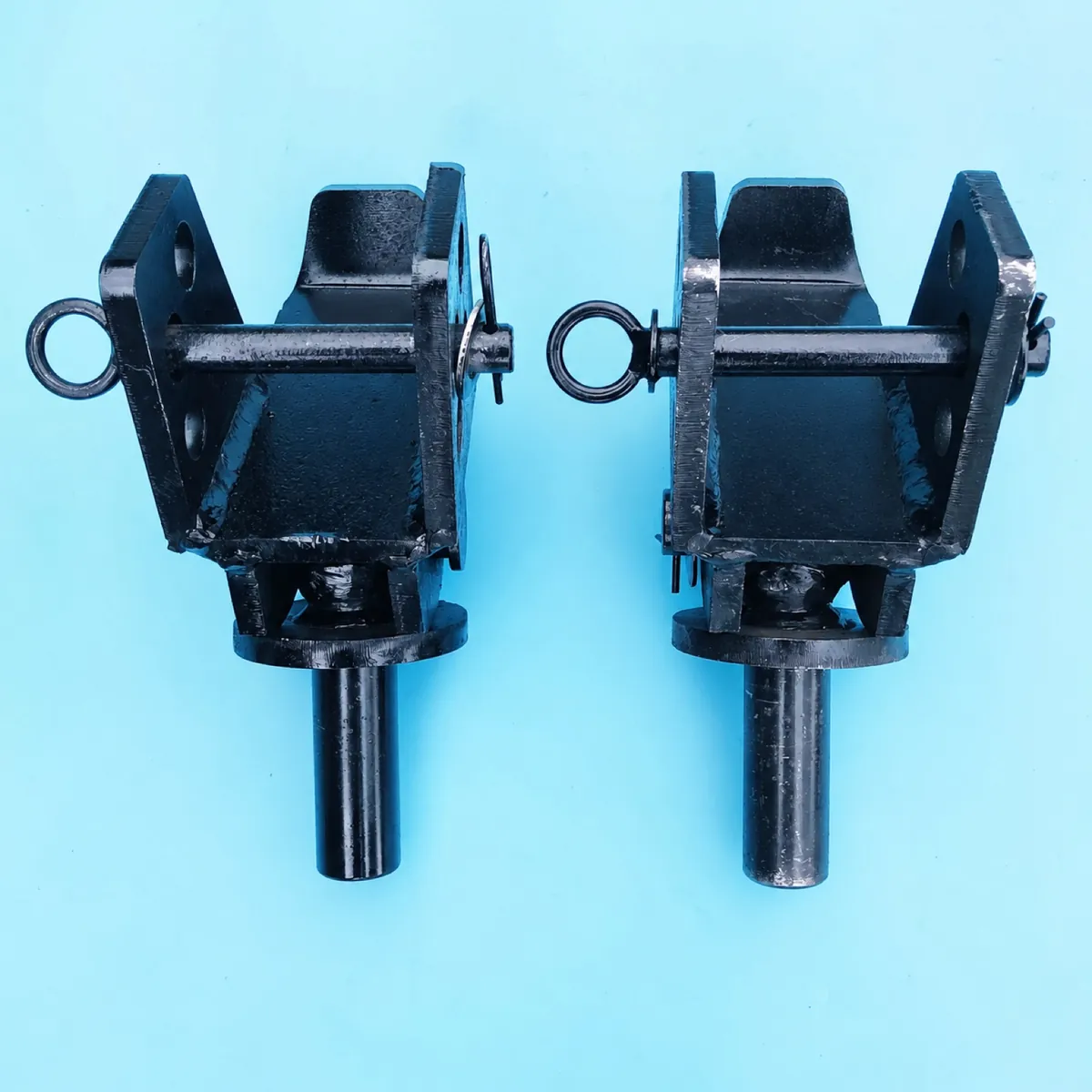

Leaf-Spring & Y-Type Forks
Leaf-spring and Y-type forks that cradle the axle instead of the tyre — for trucks and buses with exposed spring packs.
Ships with your body orderPrice on request| Size / type | Detail |
|---|---|
| Leaf-spring fork pair — 37 mm shank, 12 mm plate | per pair |
| Leaf-spring fork pair — 51 mm shank, 16 mm plate | per pair |
| Leaf-spring fork pair — 56 mm shank, 16 mm plate | per pair |

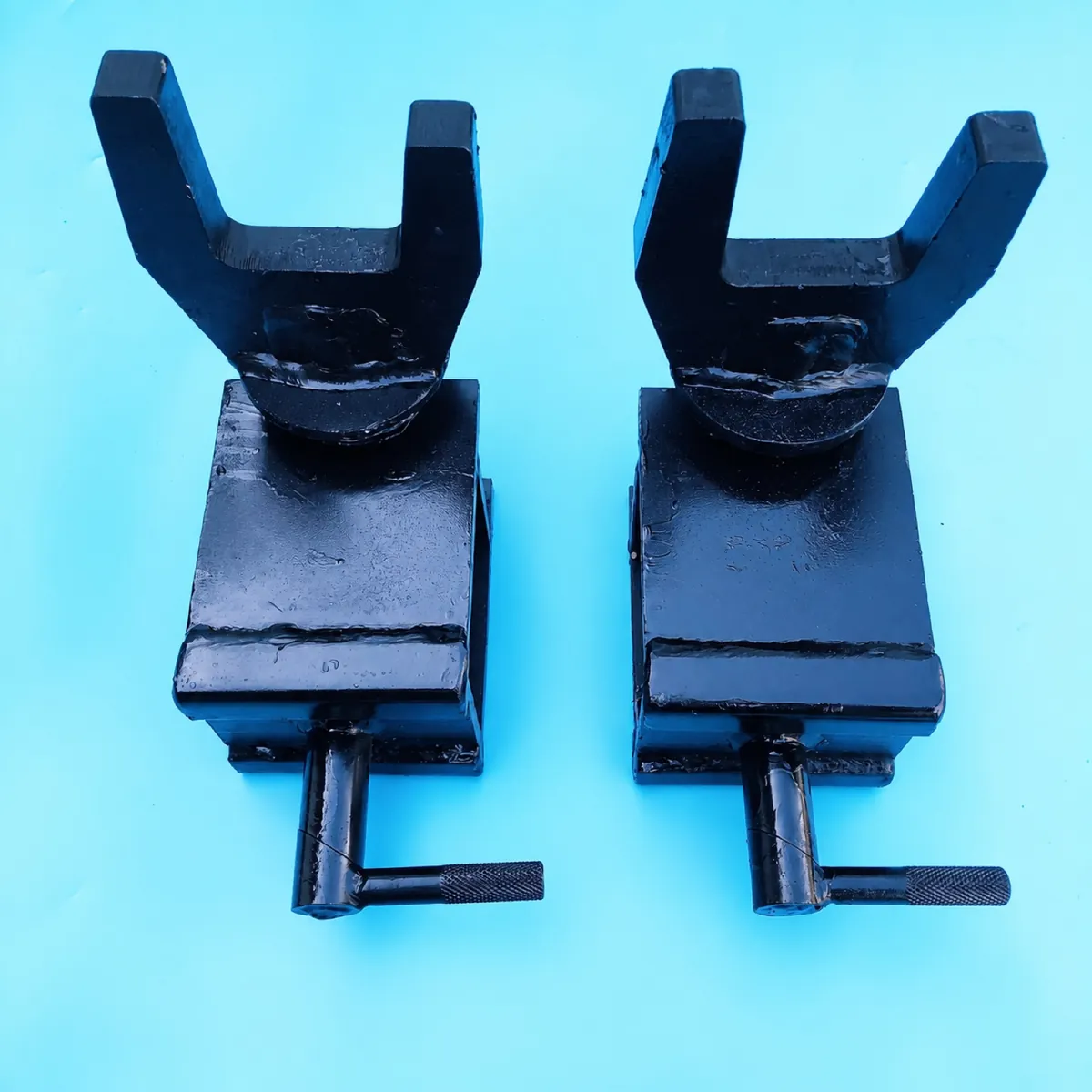

1 / 2Fork Receivers & Sockets
Receivers and sockets that take the forks on the crossbar, standard or raised, sold per pair.
Ships with your body orderPrice on request| Size / type | Detail |
|---|---|
| 3 t receiver set — 83 × 83 mm | base + fork, per set |
| 3 t receiver set — 83 × 103 mm | base + fork, per set |
| 5 t receiver set — 83 × 83 mm | base + fork, per set |
| 5 t receiver set — 83 × 103 mm | base + fork, per set |
| 5 t raised base + raised fork — 80 × 80 mm | per set |
| 5 t raised base + raised fork — 80 × 100 mm | per set |
| 8 t base + raised fork — 80 × 103 mm | per set |
| 8 t base + raised fork — 100 × 120 mm | per set |
| Standard receivers, per pair | 8–10 t · 12–16 t · 20–25 t |
| Raised receivers, per pair | 8–10 t · 12–16 t · 20–25 t |
| Raised forks, per pair | 8–10 t · 12–16 t · 20–25 t |
| Crossbar socket — 50 × 70 mm | also 40 × 80 mm |

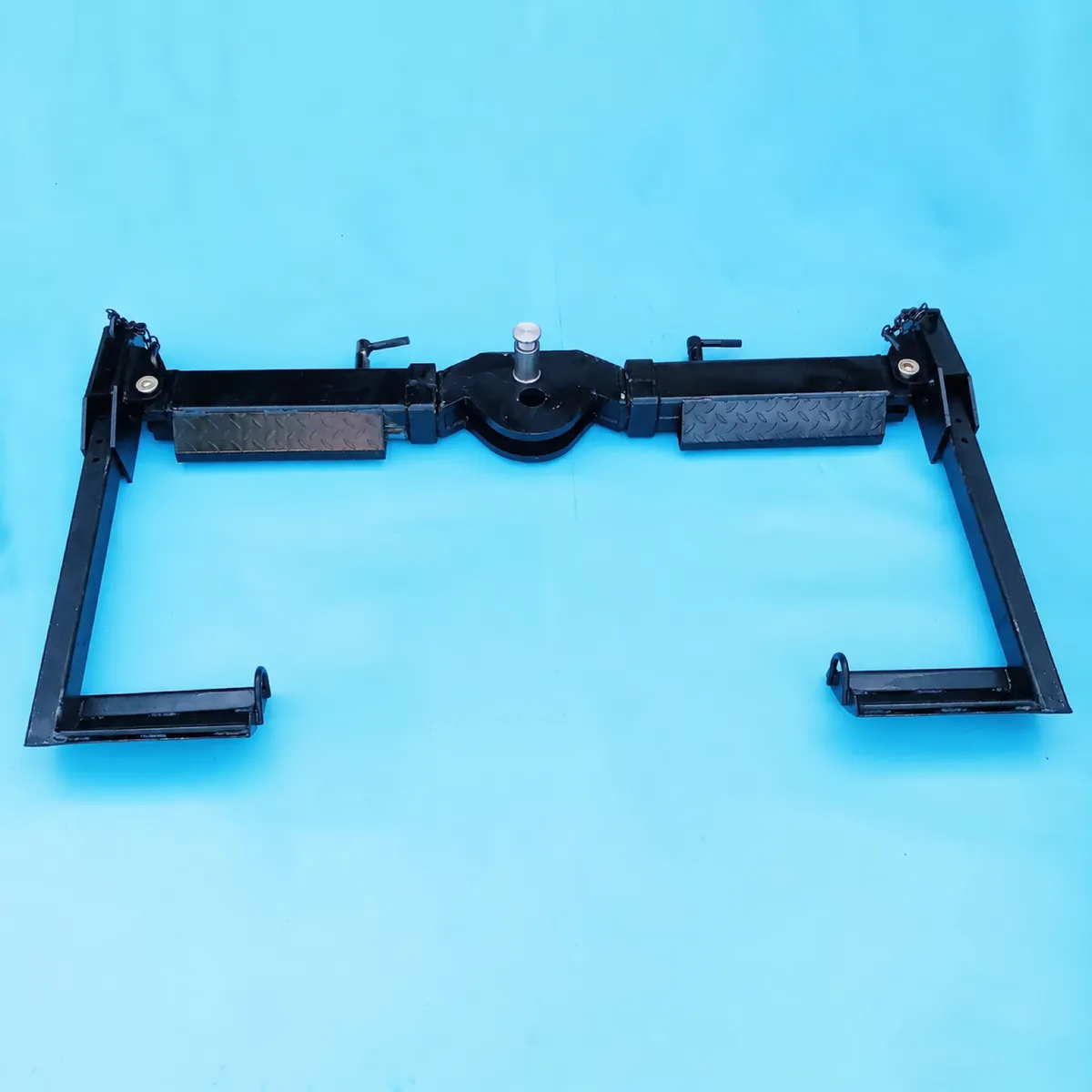

L-Arms, Tire Clamps & Cradles
L-arms, 7-shaped arms and tire-clamp cradles, plus the complete five-piece crossbar set for 3–25 t underlifts.
Ships with your body orderPrice on request| Size / type | Detail |
|---|---|
| 7-shaped arm, 50 × 70 mm | left or right |
| 7-shaped arm, 40 × 80 mm | left or right |
| Tire clamp tube 80 × 80 mm | with 50 × 70 or 40 × 80 elbow, left or right |
| Tire clamp tube 80 × 100 mm | with 50 × 70 or 40 × 80 elbow, left or right |
| Five-piece rear underlift set | crossbar + 2 clamp tubes + 2 arms |
| Crossbar only | one piece |
| Crossbar pin | each |
| 8–10 t rear underlift assembly | made to order |
| Punched or custom arm, left or right | made to order |
| Bus tire-clamp underlift unit | single-tow, crossbar size to order |

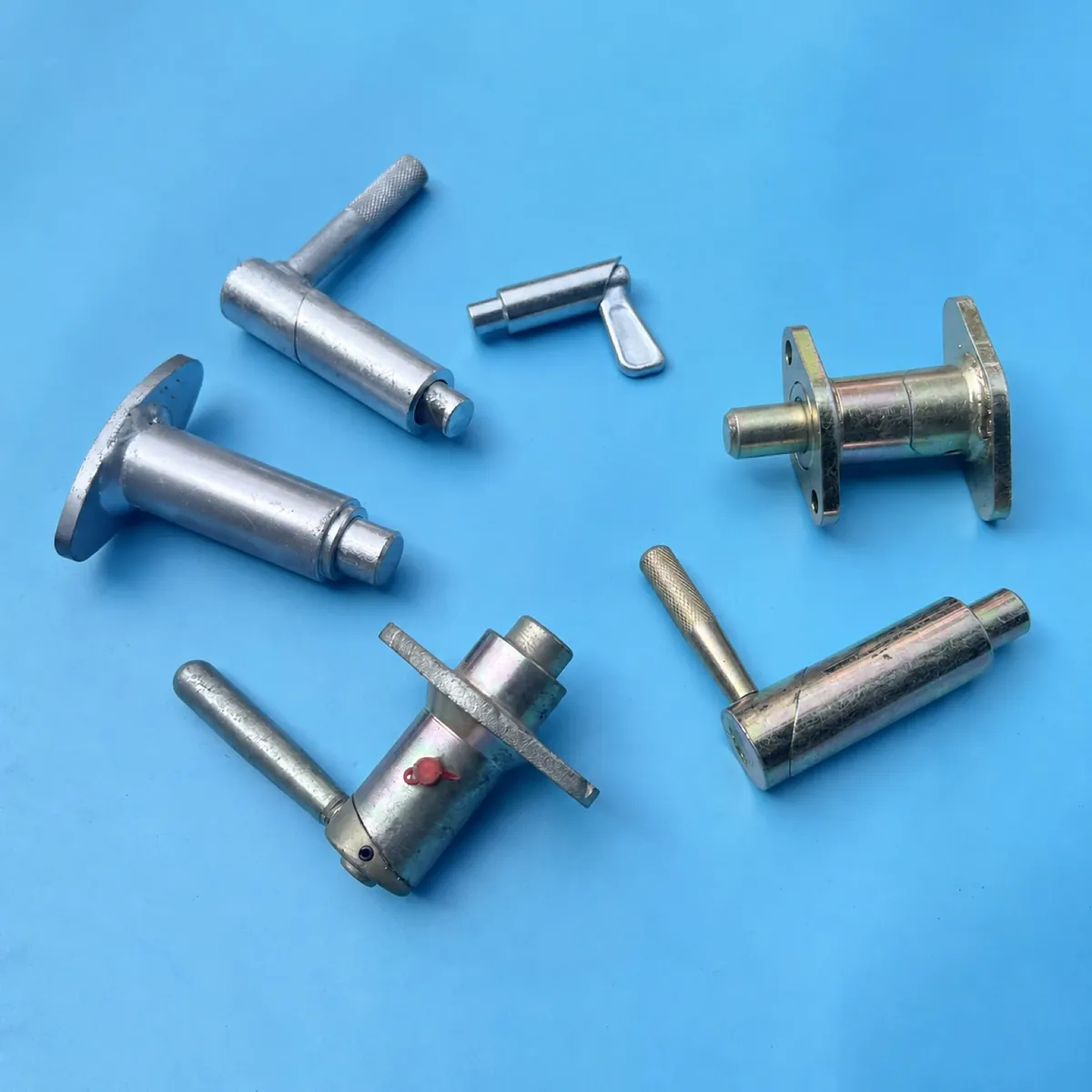

1 / 2Underlift Locks & Pins
Spring locks and pins that hold the forks and sleeves in the crossbar.
Ships with your body orderPrice on request| Size / type | Detail |
|---|---|
| Spring lock, type A | each |
| Spring lock, type B | each |
| Spring lock pin | each |

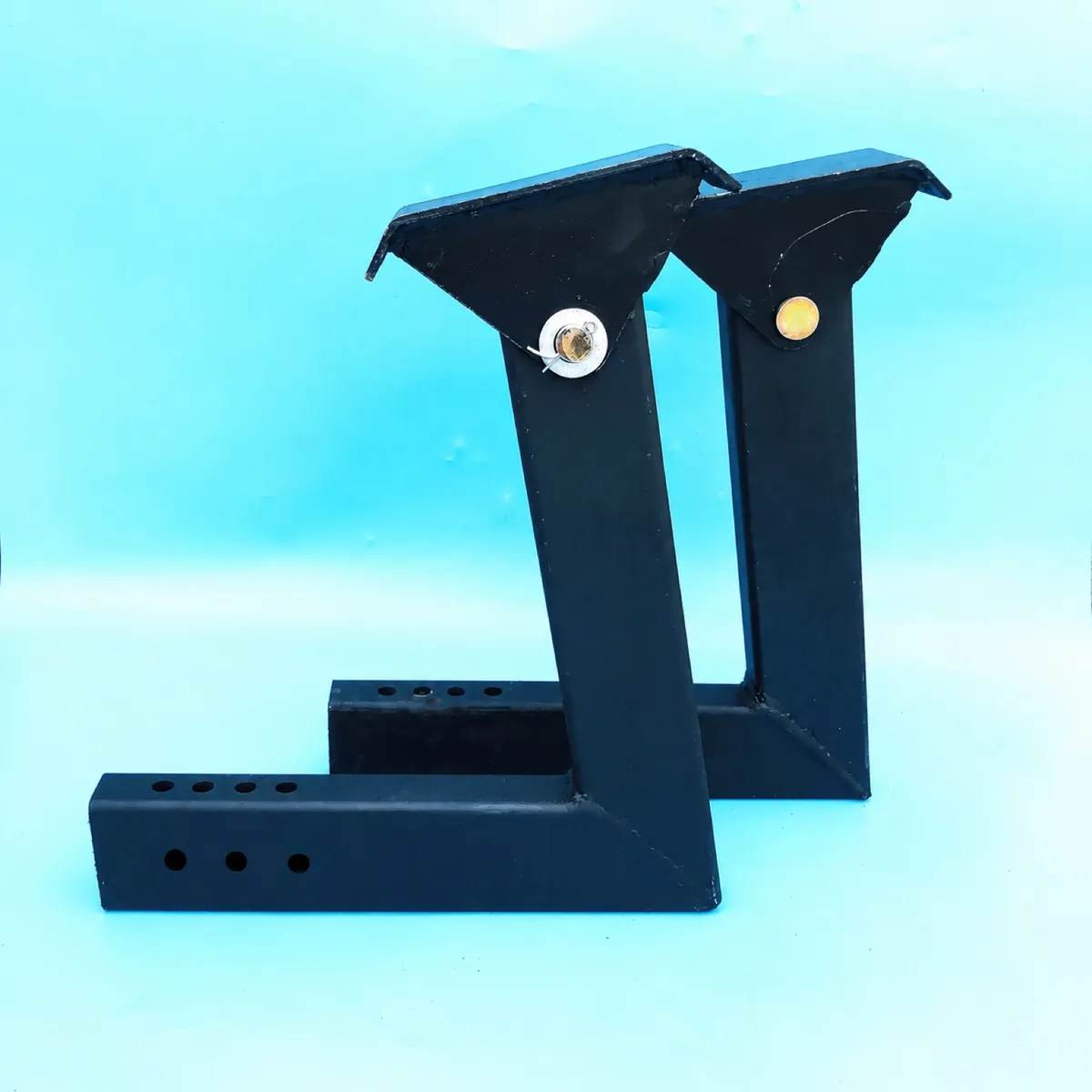

1 / 2Rear Support Legs & Stabilizers
Rear support legs and stabilisers that take the weight off the chassis when the underlift is loaded.
Ships with your body orderPrice on request| Size / type | Detail |
|---|---|
| Support leg — 63 × 83 mm | each |
| Support leg — 53 × 103 mm | each |
| Support leg set — 50 × 70 mm | 2 per set, standard or raised |
| Support leg set — 40 × 80 mm | 2 per set, standard or raised |
| Rear support, new type | non-standard sizes made to order |
| Tail board support | 720 mm, 50 mm tube, pair 17 kg |

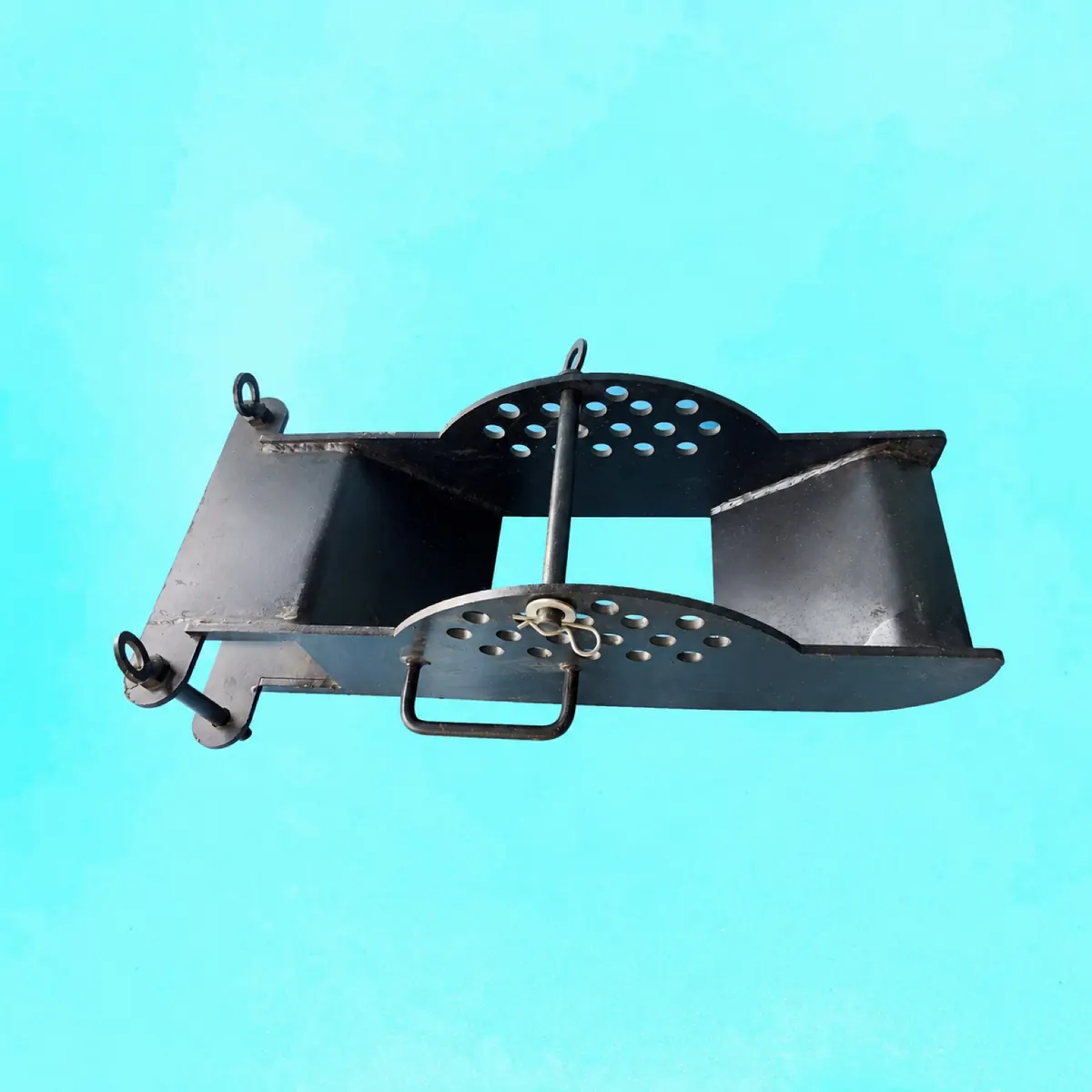

Three-Wheeler Cradle
Cradle for lifting three-wheelers and small utility vehicles on the underlift, 8 mm plate, 22 kg.
Ships with your body orderPrice on request| Size / type | Detail |
|---|---|
| Three-wheeler cradle, type A | 500 × 200 mm, 8 mm plate, 22 kg |
| Three-wheeler cradle, type B | |
| Three-wheeler cradle, type C |

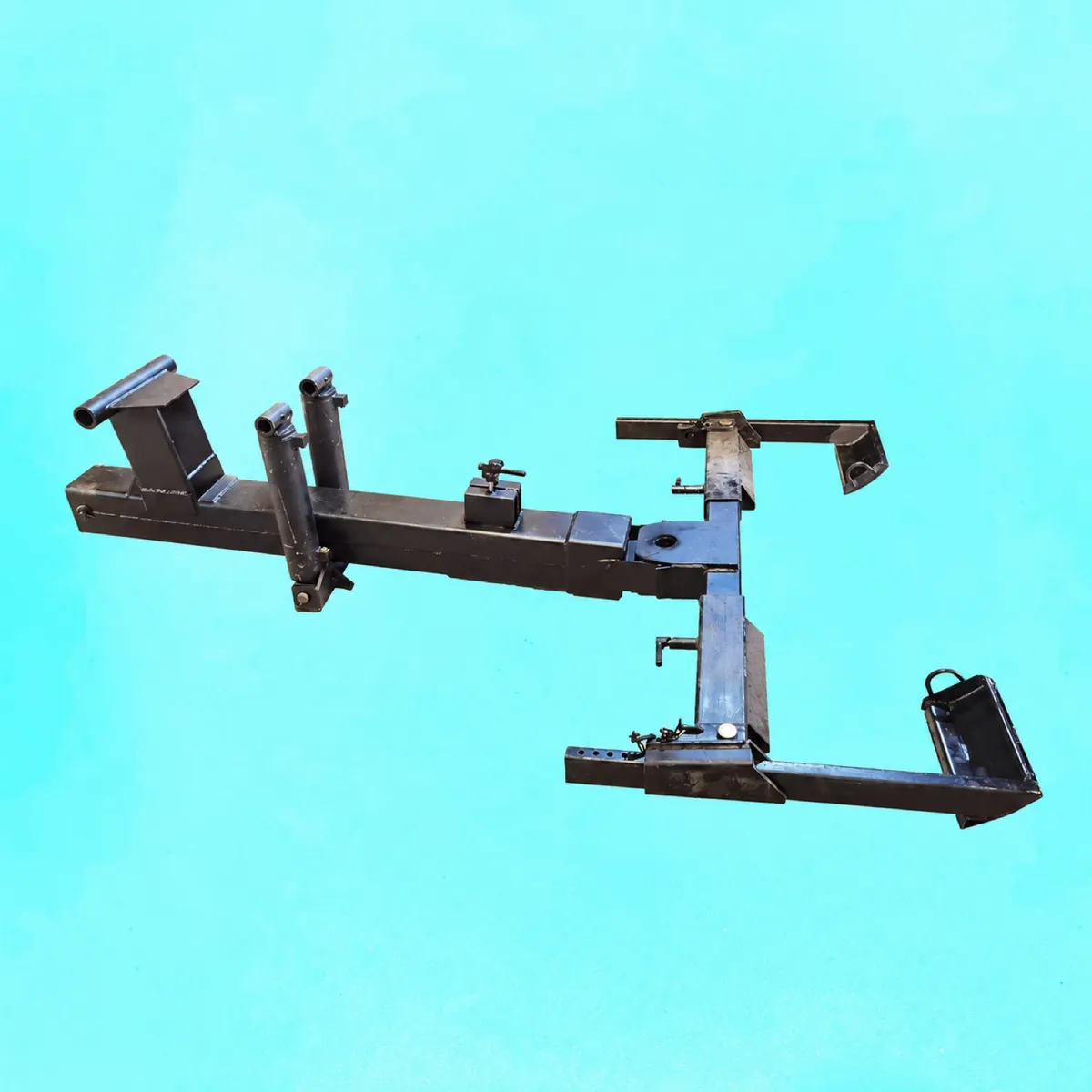

Hydraulic Telescopic Underlift Kit
Complete hydraulic telescopic underlift assembly for 5–6 t bodies, 1,340 mm arm stroke, lift and extension cylinders included.
Ships with your body orderPrice on request| Size / type | Detail |
|---|---|
| Hydraulic telescopic underlift, 3–4 t | complete assembly |
| Hydraulic telescopic underlift, 5–6 t | complete assembly, 1,340 mm stroke |
Parts ship with your wrecker body order at no extra freight. Ordered on their own, freight is quoted by weight and volume to your port. Payment T/T 100% before shipment. 12-month warranty on every part.
